Wilier
Urta SLR Shimano XT Di2 1x12sp
Gallery
Images
detail
Geometry
Geometry
>
Geometry
Geometry

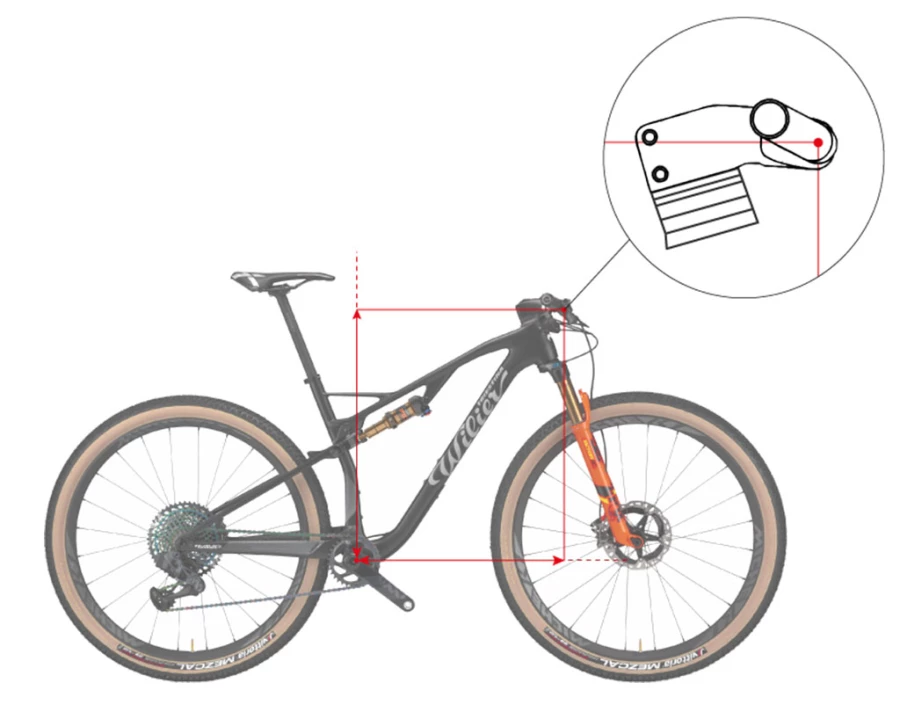

Frame geometry
| Geometry | L | M | S | XL |
|---|---|---|---|---|
| Stack | 604mm | 596mm | 593mm | 613mm |
| Reach | 453mm | 426mm | 400mm | 480mm |
| Headtube length | 101mm | 93mm | 90mm | 111mm |
| Headtube angle | 69deg | 69deg | 69deg | 69deg |
| BB height | — | — | — | — |
| BB drop | — | — | — | — |
| Trail | — | — | — | — |
| Fork length | — | — | — | — |
| Fork offset | — | — | — | — |
| Front center | — | — | — | — |
| Chainstay length | 435mm | 435mm | 435mm | 435mm |
| Wheelbase | 1145mm | 1115mm | 1088mm | 1175mm |
| Top tube | 626mm | 597mm | 570mm | 656mm |
| Standover height | — | — | — | — |
| Seat tube length | 480mm | 440mm | 410mm | 530mm |
| Seat tube angle | 74deg | 74deg | 74deg | 74deg |
Spec geometry
| Geometry | L | M | S | XL |
|---|---|---|---|---|
| Crank length | — | — | — | — |
| Stem length | — | — | — | — |
| Handlebar width | — | — | — | — |
| Handlebar reach | — | — | — | — |
| Handlebar drop | — | — | — | — |
| Saddle width | — | — | — | — |
| Dropper post travel | — | — | — | — |
| Seatpost offset | — | — | — | — |
Specs
Full specs
>
Specs
Full specs
Frame
Frame
URTA SLR - Carbon monocoque frame (HUS MOD)
Suspension
Rear shock
Fox Float DPS Kashima, 190x45mm
Fork
Fox 34 SC Factory Kashima, 100mm
Brakes
Front brake
Shimano Deore XT BL-M8200 lever + BR-MT805 caliper
Rear brake
Shimano Deore XT BL-M8200 lever + BR-MT805 caliper
Front rotor
Shimano RT-CL800, 180mm
Rear rotor
Shimano RT-CL800, 180mm
Drivetrain
Shift levers
Shimano Deore XT Di2 SW-M8250-R (M8200 1x12)
Rear derailleur
Shimano Deore XT Di2 RD-M8250-SGS
Cassette
Shimano CS-M8200-12, 12-speed, 10-51T
Chain
Shimano CN-M8100
Crankset
Shimano Deore XT FC-M8200, 32T
Bottom bracket
Shimano Press-Fit BB-MT800-PA
Cockpit
Stem
URTA BAR integrated carbon stem and bar, -17°
Handlebars
URTA BAR integrated carbon stem and bar, -17°
Saddle
Selle San Marco Shortfit 2.0 Open-Fit Narrow
Seatpost
Ritchey WCS Trail Zero alloy, 27.2mm
Wheels & Tires
Front wheel
Miche 966 SPR Alloy 29" TLR wheelset
Rear wheel
Miche 966 SPR Alloy 29" TLR wheelset
Front tire
Vittoria Saguaro 29x2.25 TLR
Rear tire
Vittoria Saguaro 29x2.25 TLR
Weight
Weight
Frame weight: 1730 g ±5% (painted size M, rear shock not included)
