Wilier
Urta Max SLR Shimano XTR Di2 1x12sp Miche 966 SPR Alloy 29" TLR (E632RW9U)
Gallery
Images
detail
Geometry
Geometry
>
Geometry
Geometry
Frame geometry
| Geometry | L | M | S | XL |
|---|---|---|---|---|
| Stack | 602mm | 598mm | 598mm | 613mm |
| Reach | 471mm | 443mm | 415mm | 500mm |
| Headtube length | 9.2mm | 8.8mm | 8.8mm | 10.4mm |
| Headtube angle | 67.5deg | 67.5deg | 67.5deg | 67.5deg |
| BB height | — | — | — | — |
| BB drop | — | — | — | — |
| Trail | — | — | — | — |
| Fork length | — | — | — | — |
| Fork offset | — | — | — | — |
| Front center | — | — | — | — |
| Chainstay length | 43.5mm | 43.5mm | 43.5mm | 43.5mm |
| Wheelbase | 1184mm | 1154mm | 1126mm | 1218mm |
| Top tube | 63.2mm | 60.3mm | 57.5mm | 66.4mm |
| Standover height | — | — | — | — |
| Seat tube length | — | — | — | — |
| Seat tube angle | — | — | — | — |
Spec geometry
| Geometry | L | M | S | XL |
|---|---|---|---|---|
| Crank length | — | — | — | — |
| Stem length | — | — | — | — |
| Handlebar width | — | — | — | — |
| Handlebar reach | — | — | — | — |
| Handlebar drop | — | — | — | — |
| Saddle width | — | — | — | — |
| Dropper post travel | — | — | — | — |
| Seatpost offset | — | — | — | — |
Specs
Full specs
>
Specs
Full specs
Frame
Frame

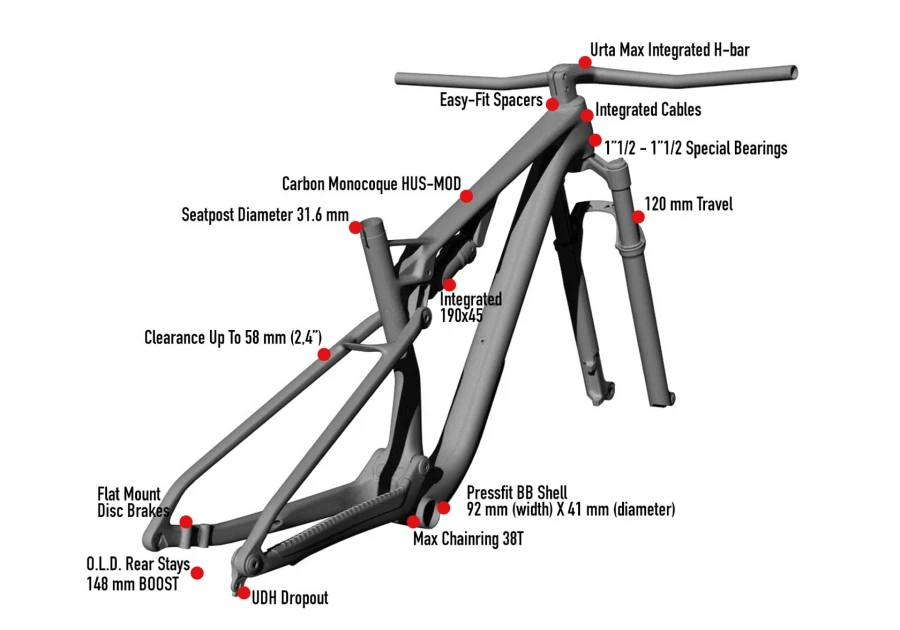

URTA Max SLR — carbon monocoque frame (HUS MOD + High Impact Carbon Weave)
Suspension
Rear shock
FOX Float SL Factory Kashima, EVOL LP, 190x45mm (with remote)
Fork
FOX 34 SC Factory Kashima, 120mm
Brakes
Front brake
Shimano XTR BL-M9200 lever + BR-MT805 caliper
Rear brake
Shimano XTR BL-M9200 lever + BR-MT805 caliper
Front rotor
Shimano RT-MT905, 180mm
Rear rotor
Shimano RT-MT905, 180mm
Drivetrain
Shift levers
Shimano XTR Di2 SW-M9250-R
Rear derailleur
Shimano XTR RD-M9250-SGS
Cassette
Shimano XTR CS-M9200-12, 12-speed, 10-51T
Chain
Shimano CN-M9100
Crankset
Shimano XTR FC-M9200, 32T
Bottom bracket
Shimano Press-Fit SM-BB94-41A
Cockpit
Stem

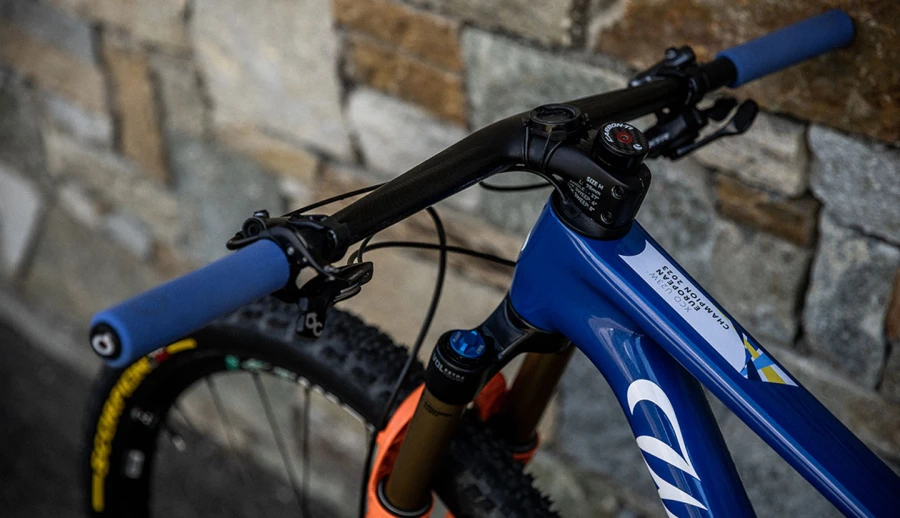

URTA Max integrated carbon stem/bar, -27° (URTA BAR)
Handlebars
URTA Max integrated carbon bar/stem, -27° (URTA BAR)
Saddle
Selle San Marco Shortfit 2.0 Open-Fit Narrow
Seatpost
FOX Transfer SL, 31.6mm, internal routing (dropper)
Wheels & Tires
Front wheel
Miche K1 RD Carbon 29" TLR wheelset (front)
Rear wheel
Miche K1 RD Carbon 29" TLR wheelset (rear)
Front tire
Vittoria Saguaro 29x2.25 TLR
Rear tire
Vittoria Saguaro 29x2.25 TLR
Weight
Weight
10.85 kg (+/- 5%)
