Wilier

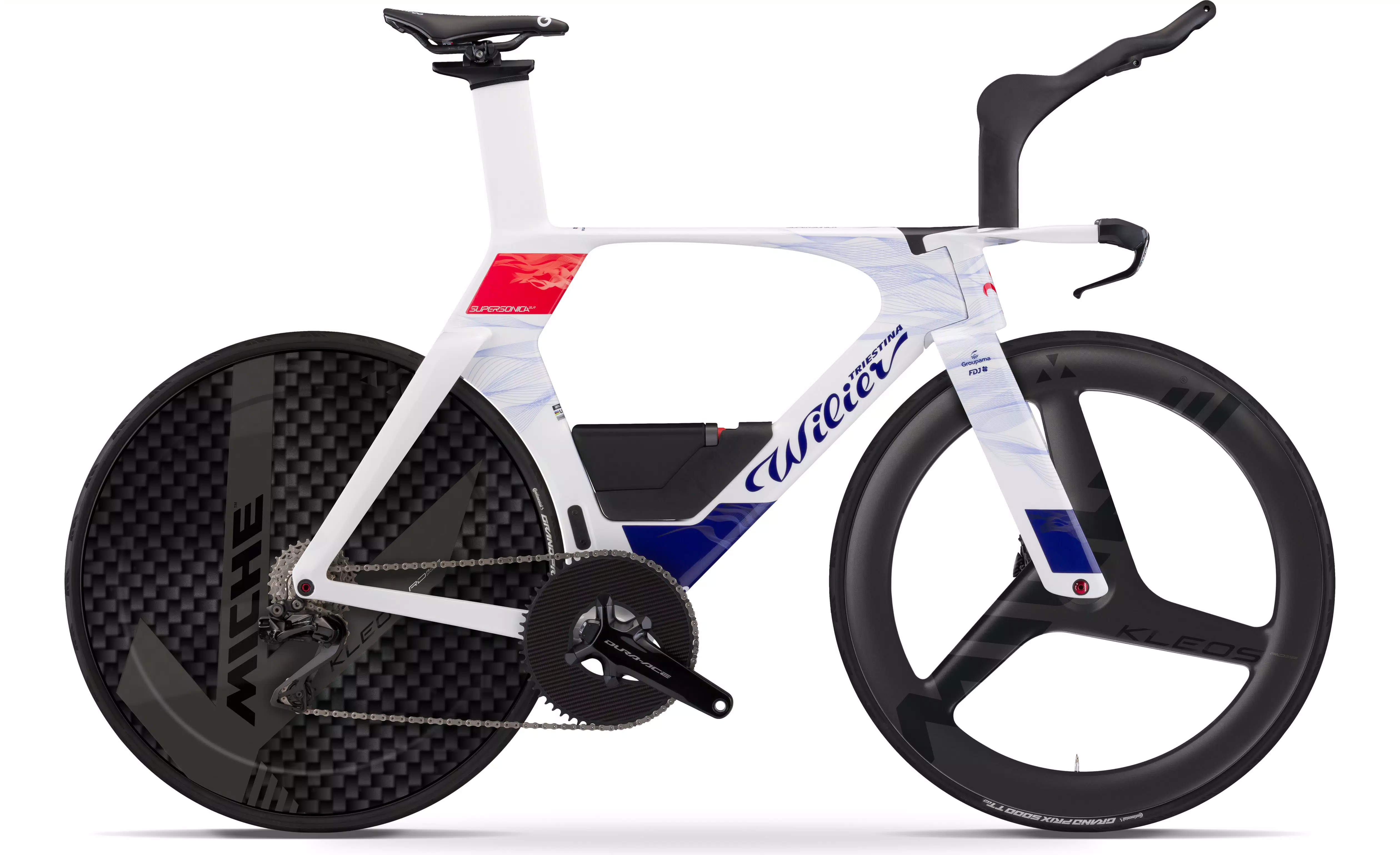

Turbine SLR Shimano Dura-Ace Di2 R9270 2x12sp Miche Kleos 67/85
Gallery
Images
geometry
Geometry
Geometry
>
Geometry
Geometry
Frame geometry
| Geometry | L/XL | M | XS/S |
|---|---|---|---|
| Stack | 555mm | 521mm | 487mm |
| Reach | 439mm | 418mm | 397mm |
| Headtube length | 15.3mm | 11.8mm | 8.2mm |
| Headtube angle | 72.5deg | 72.5deg | 72.5deg |
| BB height | — | — | — |
| BB drop | — | — | — |
| Trail | — | — | — |
| Fork length | — | — | — |
| Fork offset | — | — | — |
| Front center | — | — | — |
| Chainstay length | 40.5mm | 40.5mm | 40.5mm |
| Wheelbase | — | — | — |
| Top tube | 57.2mm | 54.3mm | 51.4mm |
| Standover height | — | — | — |
| Seat tube length | 57.1mm | 53.6mm | 50.1mm |
| Seat tube angle | 76.5deg | 76.5deg | 76.5deg |
Spec geometry
| Geometry | L/XL | M | XS/S |
|---|---|---|---|
| Crank length | — | — | — |
| Stem length | — | — | — |
| Handlebar width | 380mm | 380mm | 380mm |
| Handlebar reach | — | — | — |
| Handlebar drop | — | — | — |
| Saddle width | 137mm | 137mm | 137mm |
| Dropper post travel | — | — | — |
| Seatpost offset | -15mm | -15mm | -15mm |
Specs
Full specs
>
Specs
Full specs
Frame
Frame
Wilier Turbine SLR - Carbon monocoque HUS MOD + High Impact Carbon
Suspension
Fork
Wilier Turbine SLR - Carbon monocoque HUS MOD
Brakes
Front brake
Shimano Dura-Ace BR-R9270 hydraulic disc
Rear brake
Shimano Dura-Ace BR-R9270 hydraulic disc
Front rotor
Shimano Dura-Ace RT-CL900 (Center Lock), 140mm
Rear rotor
Shimano Dura-Ace RT-CL900 (Center Lock), 140mm
Drivetrain
Shift levers
Shimano Dura-Ace Di2 STI levers (listed as ST-R9180 Di2)
Rear derailleur
Shimano Dura-Ace RD-R9250 Di2, 12-speed
Front derailleur
Shimano Dura-Ace FD-R9250 Di2
Cassette
Shimano Dura-Ace CS-R9200-12, 12-speed, 11-30T
Chain
Shimano Dura-Ace chain (listed as CN-M9100)
Crankset
Shimano Dura-Ace FC-R9200, 52/36T
Bottom bracket
Shimano Press Fit SM-BB92-41B
Cockpit
Stem
Wilier custom integrated cockpit (Turbine Bar), 38cm
Handlebars
Wilier customized Turbine Bar, 38cm
Saddle
Prologo Nago R4 PAS, Tirox rails, 137mm
Seatpost
Wilier Filante carbon custom made, -15mm offset
Wheels & Tires
Front wheel
Miche Kleos 67
Rear wheel
Miche Kleos 85
Front tire
Vittoria Corsa Graphene 2.0, 700x25, TLR
Rear tire
Vittoria Corsa Graphene 2.0, 700x25, TLR
Weight
Weight
8.0 kg +/- 5%
