Wilier
Turbine SL Shimano 105 Di2 2x12 R7170 Miche S 50 Carbon
Gallery
Images
detail
Geometry
Geometry
>
Geometry
Geometry

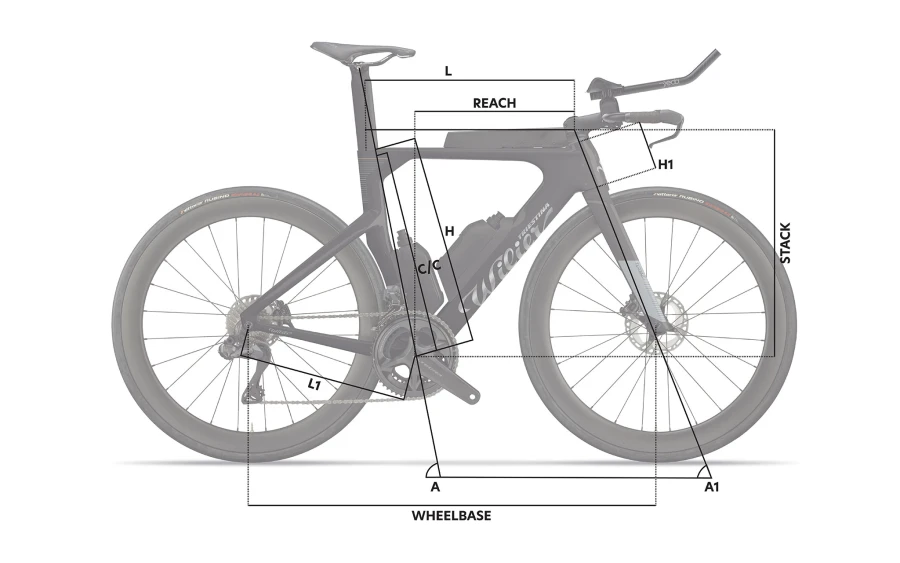

Frame geometry
| Geometry | L/XL | M | XS/S |
|---|---|---|---|
| Stack | 554mm | 522mm | 490mm |
| Reach | 425mm | 405mm | 385mm |
| Headtube length | — | — | — |
| Headtube angle | 72deg | 72deg | 71deg |
| BB height | — | — | — |
| BB drop | — | — | — |
| Trail | — | — | — |
| Fork length | — | — | — |
| Fork offset | — | — | — |
| Front center | — | — | — |
| Chainstay length | — | — | — |
| Wheelbase | 1032mm | 1002mm | 980mm |
| Top tube | 52.1mm | 50.2mm | 48.5mm |
| Standover height | — | — | — |
| Seat tube length | — | — | — |
| Seat tube angle | 80.2deg | 79.5deg | 78.5deg |
Spec geometry
| Geometry | L/XL | M | XS/S |
|---|---|---|---|
| Crank length | — | — | — |
| Stem length | — | — | — |
| Handlebar width | — | — | — |
| Handlebar reach | — | — | — |
| Handlebar drop | — | — | — |
| Saddle width | — | — | — |
| Dropper post travel | — | — | — |
| Seatpost offset | 0mm | 0mm | 0mm |
Specs
Full specs
>
Specs
Full specs
Frame
Frame
TURBINE SL - Carbon monocoque
Suspension
Fork
TURBINE SL - Carbon monocoque
Brakes
Front brake
Shimano Dura-Ace BR-R9270 hydraulic disc
Rear brake
Shimano Dura-Ace BR-R9270 hydraulic disc
Front rotor
Shimano SM-RT70 160mm
Rear rotor
Shimano SM-RT70 140mm
Drivetrain
Shift levers
Shimano Dura-Ace Di2 ST-R9180
Rear derailleur
Shimano 105 Di2 RD-R7150
Front derailleur
Shimano 105 Di2 FD-R7150
Cassette
Shimano 105 CS-R7100-12, 12-speed, 11-34T
Chain
Shimano 105 CN-M7100
Crankset
Shimano 105 FC-R7100, 52-36T
Bottom bracket
Shimano Press Fit SM-BB72-41B
Cockpit
Stem
Ritchey | Wilier Stemma S2 - alloy
Handlebars
Deda Crononero Evo
Saddle
Selle Italia Shortfit 2.0 Open-Fit (Narrow)
Seatpost
Ritchey | Wilier carbon custom made, 0mm offset
Wheels & Tires
Front wheel
Miche S 50 Carbon wheelset
Rear wheel
Miche S 50 Carbon wheelset
Front tire
Vittoria Rubino Pro IV Graphene 2.0, 700x28c
Rear tire
Vittoria Rubino Pro IV Graphene 2.0, 700x28c
