Wilier

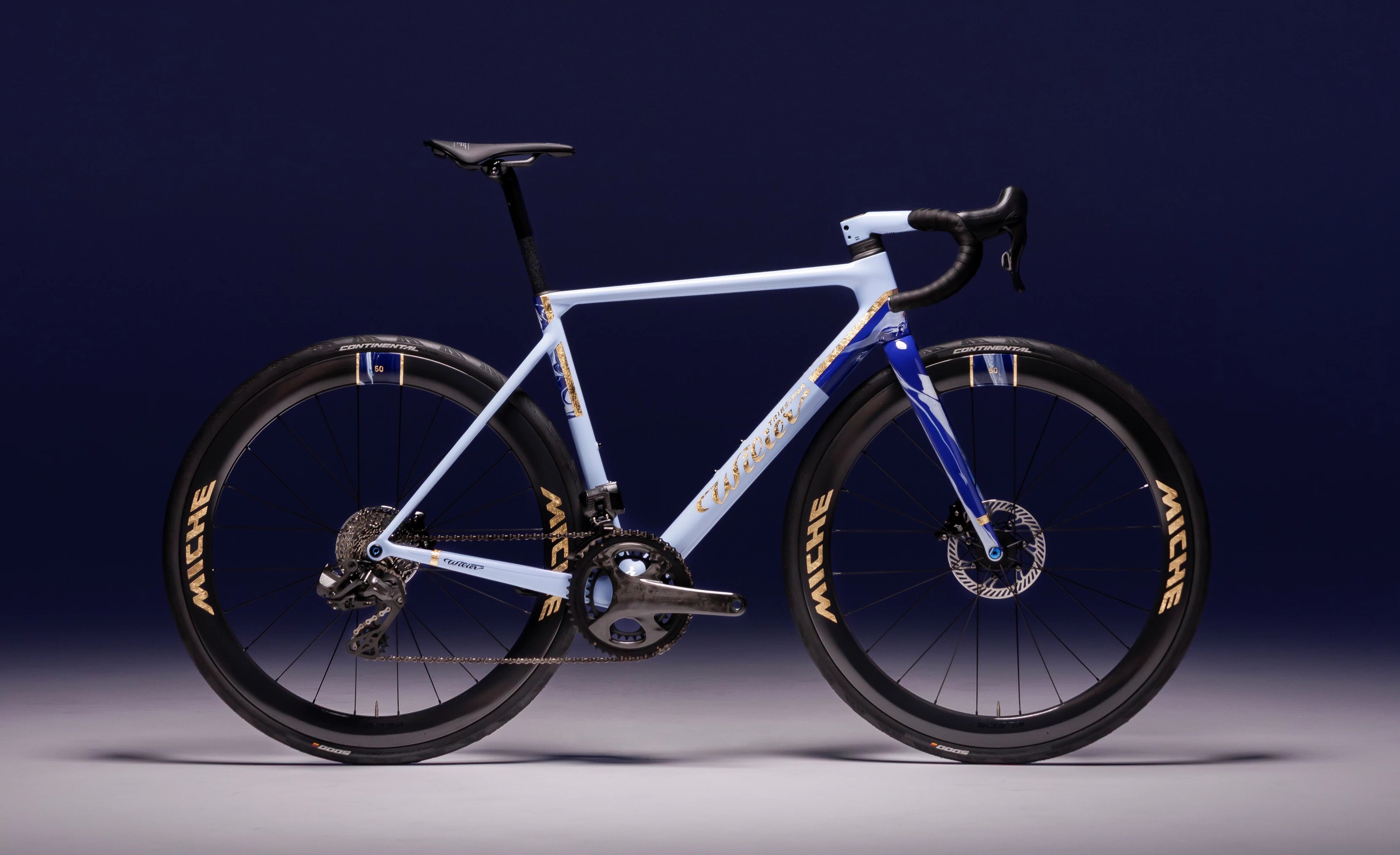

Filante SL Shimano Ultegra Di2 2x12 R8170 Miche S 50 Carbon (E639LD3S)
Gallery
Images
detail
Geometry
Geometry
>
Geometry
Geometry
Frame geometry
| Geometry | L | M | S | XL | XS | XXL |
|---|---|---|---|---|---|---|
| Stack | 555mm | 538mm | 521mm | 571mm | 505mm | 587mm |
| Reach | 391mm | 388mm | 384mm | 395mm | 380mm | 399mm |
| Headtube length | 15.4mm | 13.5mm | 11.9mm | 16.6mm | 10.4mm | 18.1mm |
| Headtube angle | 73deg | 72.5deg | 72deg | 73deg | 70.8deg | 73.5deg |
| BB height | — | — | — | — | — | — |
| BB drop | — | — | — | — | — | — |
| Trail | — | — | — | — | — | — |
| Fork length | — | — | — | — | — | — |
| Fork offset | — | — | — | — | — | — |
| Front center | — | — | — | — | — | — |
| Chainstay length | 41mm | 40.8mm | 40.7mm | 41.1mm | 40.7mm | 41.1mm |
| Wheelbase | 997mm | 990mm | 984mm | 1002mm | 981mm | 1006mm |
| Top tube | 55.6mm | 54.3mm | 53mm | 57mm | 51.5mm | 58.3mm |
| Standover height | — | — | — | — | — | — |
| Seat tube length | 52mm | 50mm | 48mm | 54mm | 45mm | 56mm |
| Seat tube angle | 73.5deg | 74deg | 74.5deg | 73deg | 75.2deg | 72.5deg |
Spec geometry
| Geometry | L | M | S | XL | XS | XXL |
|---|---|---|---|---|---|---|
| Crank length | — | — | — | — | — | — |
| Stem length | — | — | — | — | — | — |
| Handlebar width | — | — | — | — | — | — |
| Handlebar reach | — | — | — | — | — | — |
| Handlebar drop | — | — | — | — | — | — |
| Saddle width | — | — | — | — | — | — |
| Dropper post travel | — | — | — | — | — | — |
| Seatpost offset | -15mm | -15mm | -15mm | -15mm | -15mm | -15mm |
Specs
Full specs
>
Specs
Full specs

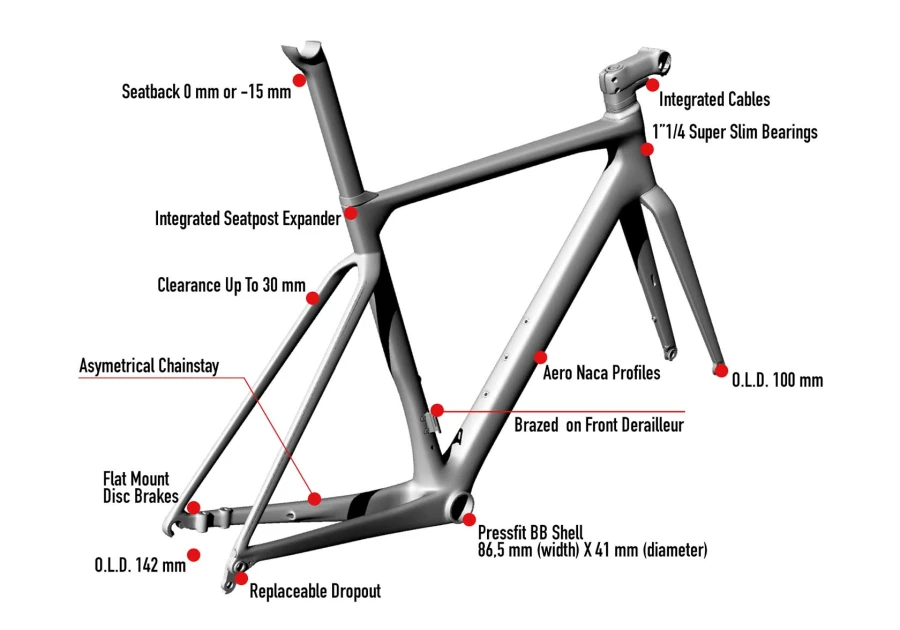

Frame
Frame
Wilier Filante SL - Carbon Monocoque NHU MOD + High Impact Strength
Suspension
Fork
Wilier Filante SL - Carbon Monocoque NHU MOD + High Impact Strength
Brakes
Front brake
Shimano Ultegra Di2 R8170 hydraulic disc
Rear brake
Shimano Ultegra Di2 R8170 hydraulic disc
Front rotor
Shimano RT-CL800 160mm
Rear rotor
Shimano RT-CL800 140mm
Drivetrain
Shift levers
Shimano Ultegra Di2 ST-R8170
Rear derailleur
Shimano Ultegra Di2 RD-R8150
Front derailleur
Shimano Ultegra Di2 FD-R8150
Cassette
Shimano Ultegra CS-R8101-12, 12-speed, 11-30T
Chain
Shimano Ultegra CN-M8100
Crankset
Shimano Ultegra FC-R800 50-34T
Bottom bracket
Shimano PressFit 86.5x41 (BB86)
Cockpit
Stem
Z BAR integrated carbon cockpit (custom made)
Handlebars
Z BAR integrated carbon cockpit (custom made)
Saddle
Selle Italia Shortfit 2.0 Open-Fit NARROW
Seatpost
Wilier Filante SL carbon seatpost (custom made), -15mm offset
Wheels & Tires
Front wheel
Miche S 50 Carbon wheelset (front)
Rear wheel
Miche S 50 Carbon wheelset (rear)
Front tire
Vittoria Rubino IV Graphene 2.0, 700x28c
Rear tire
Vittoria Rubino IV Graphene 2.0, 700x28c
