Time

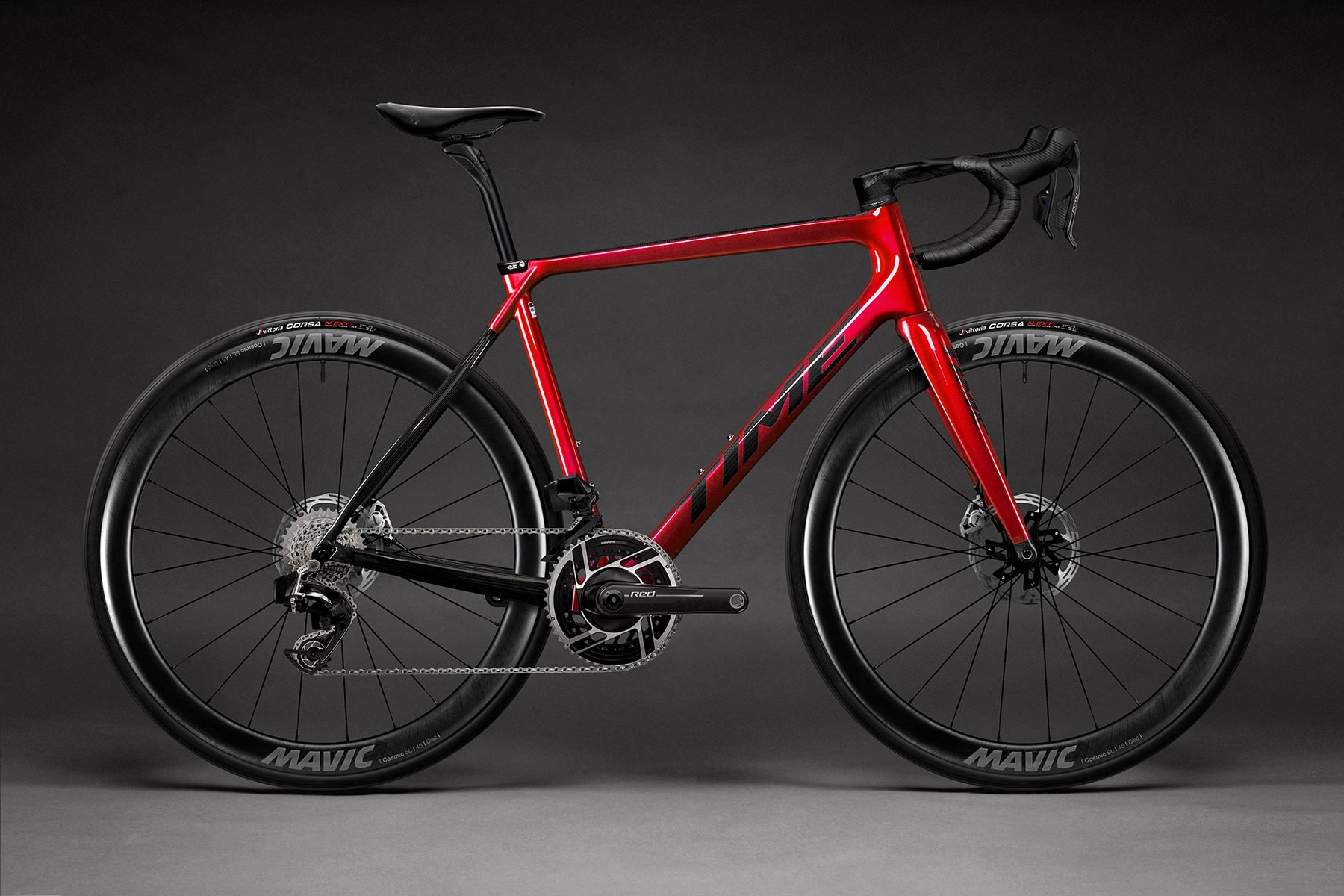

Alpe d'Huez Disc SRAM Red E1 AXS
Gallery
Images
product
Geometry
Geometry
>
Geometry
Geometry
Frame geometry
| Geometry | L | M | S | XL | XS |
|---|---|---|---|---|---|
| Stack | 582mm | 562mm | 538mm | 601mm | 514mm |
| Reach | 392mm | 383mm | 377mm | 397mm | 372mm |
| Headtube length | 186mm | 166mm | 142mm | 204mm | 122mm |
| Headtube angle | 73deg | 73deg | 72.5deg | 73.5deg | 71deg |
| BB height | — | — | — | — | — |
| BB drop | 65mm | 65mm | 65mm | 65mm | 65mm |
| Trail | 58mm | 58mm | 61mm | 55mm | 70mm |
| Fork length | 368mm | 368mm | 368mm | 368mm | 368mm |
| Fork offset | 43mm | 43mm | 43mm | 43mm | 43mm |
| Front center | 599mm | 584mm | 575mm | 604mm | 576mm |
| Chainstay length | 410mm | 410mm | 410mm | 410mm | 410mm |
| Wheelbase | 1000mm | 985mm | 976mm | 1005mm | 977mm |
| Top tube | 570mm | 555mm | 531mm | 580mm | 513mm |
| Standover height | 821mm | 795mm | 763mm | 840mm | 741mm |
| Seat tube length | 540mm | 510mm | 470mm | 565mm | 450mm |
| Seat tube angle | 73deg | 73deg | 74deg | 73deg | 74.7deg |
Spec geometry
| Geometry | L | M | S | XL | XS |
|---|---|---|---|---|---|
| Crank length | — | — | — | — | — |
| Stem length | — | — | — | — | — |
| Handlebar width | — | — | — | — | — |
| Handlebar reach | — | — | — | — | — |
| Handlebar drop | — | — | — | — | — |
| Saddle width | — | — | — | — | — |
| Dropper post travel | — | — | — | — | — |
| Seatpost offset | — | — | — | — | — |
Specs
Full specs
>
Specs
Full specs
Frame
Frame
BCS Carbon Fiber frame with Vectran™ and Dyneema® reinforcement; PF BB386 EVO (SRAM DUB press fit); flat-mount disc; max tire 28c; 12x100mm front / 12x142mm rear thru-axle hub standard
Suspension
Fork
Carbon fork with Vectran™-enhanced tapered steerer (1-1/8" to 1-1/2")
Brakes
Front brake
SRAM RED E1 HRD (flat-mount hydraulic disc)
Rear brake
SRAM RED E1 HRD (flat-mount hydraulic disc)
Front rotor
SRAM Paceline X CL 160mm
Rear rotor
SRAM Paceline X CL 160mm
Drivetrain
Shift levers
SRAM RED E1 AXS
Rear derailleur
SRAM RED E1 AXS
Front derailleur
SRAM RED E1 AXS
Cassette
SRAM XG-1290 E1 12-speed 10-33T
Chain
SRAM RED E1
Crankset
SRAM RED E1 AXS 48/35T
Bottom bracket
PF BB386 EVO; SRAM DUB Press Fit
Cockpit
Stem
VISION Metron 5D EVO one-piece bar/stem
Handlebars
VISION Metron 5D EVO one-piece bar/stem
Grips
Arundel Gecko Grip bar tape
Saddle
Selle Italia Novus Boost EVO Superflow
Seatpost
FSA SL-K, 27.2mm
Wheels & Tires
Front wheel
Wheelset option: VISION METRON 45 RS / VISION METRON 45 SL / VISION SC 45 / MAVIC COSMIC SL 45
Rear wheel
Wheelset option: VISION METRON 45 RS / VISION METRON 45 SL / VISION SC 45 / MAVIC COSMIC SL 45
Front tire
Vittoria Corsa N.EXT 700x28c
Rear tire
Vittoria Corsa N.EXT 700x28c
