Time

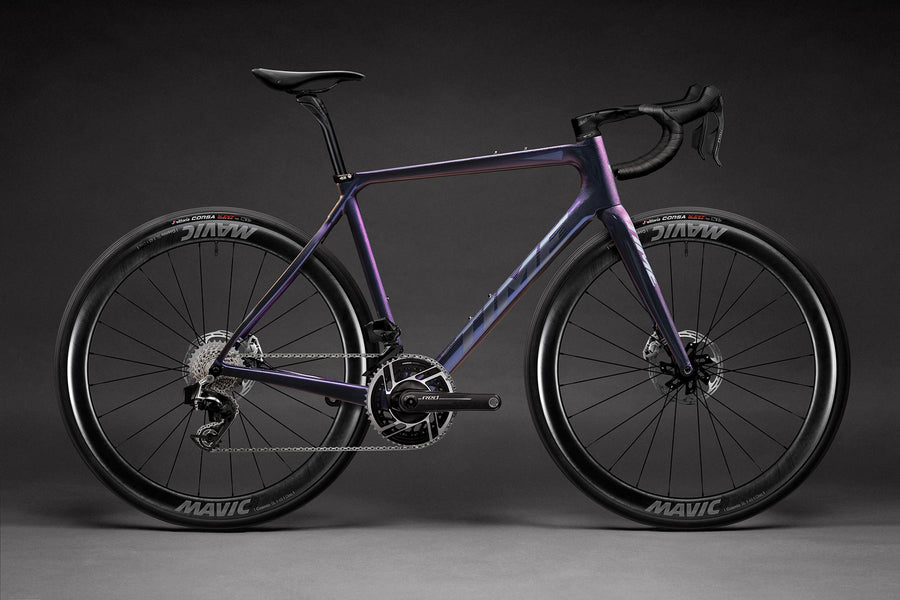

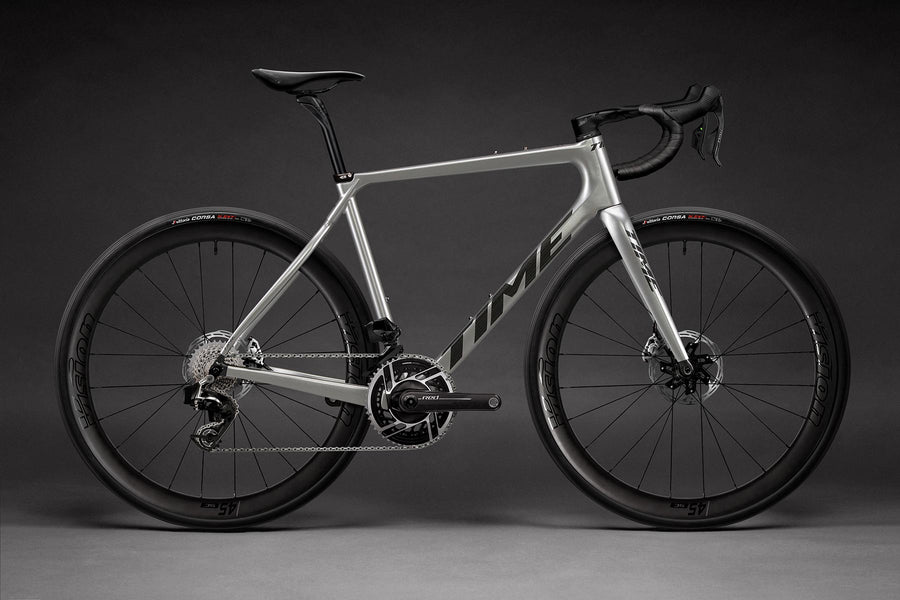

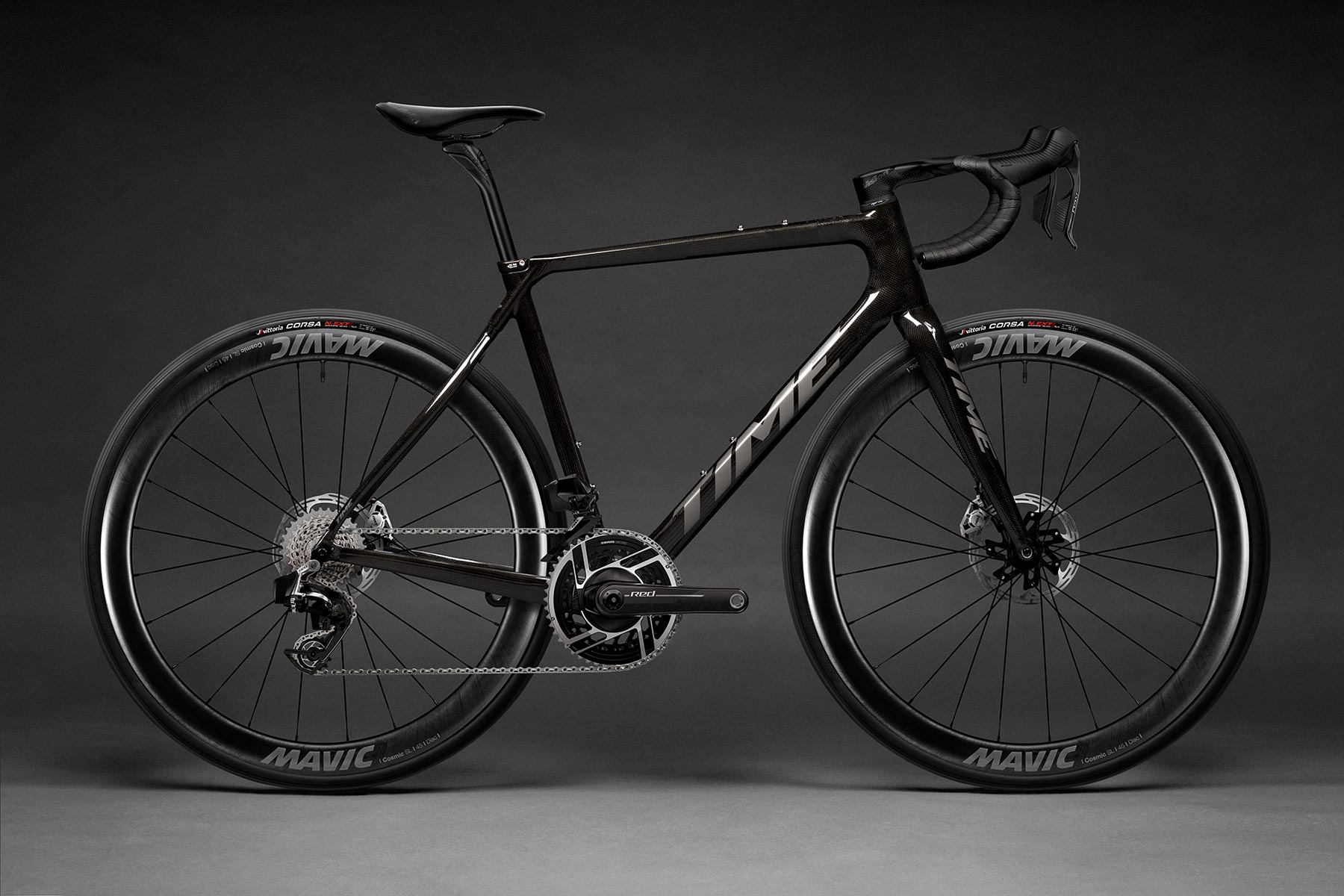

Alpe d'Huez X SRAM Red E1 AXS
Gallery
Images
product
Geometry
Geometry
>
Geometry
Geometry
Frame geometry
| Geometry | L | M | S | XL | XS |
|---|---|---|---|---|---|
| Stack | 581mm | 562mm | 543mm | 601mm | 530mm |
| Reach | 392mm | 383mm | 373mm | 397mm | 366mm |
| Headtube length | 169mm | 149mm | 131mm | 188mm | 123mm |
| Headtube angle | 72.5deg | 72.5deg | 71.5deg | 73deg | 70.5deg |
| BB height | — | — | — | — | — |
| BB drop | 74mm | 74mm | 74mm | 74mm | 74mm |
| Trail | 58mm | 58mm | 64mm | 54mm | 71mm |
| Fork length | 377mm | 377mm | 377mm | 377mm | 377mm |
| Fork offset | 50mm | 50mm | 50mm | 50mm | 50mm |
| Front center | 609mm | 594mm | 587mm | 615mm | 585mm |
| Chainstay length | 418mm | 418mm | 418mm | 418mm | 418mm |
| Wheelbase | 1016mm | 1001mm | 994mm | 1022mm | 992mm |
| Top tube | 570mm | 555mm | 539mm | 580mm | 521mm |
| Standover height | 819mm | 794mm | 775mm | 839mm | 753mm |
| Seat tube length | 530mm | 500mm | 480mm | 550mm | 455mm |
| Seat tube angle | 73deg | 73deg | 73deg | 73deg | 73.7deg |
Spec geometry
| Geometry | L | M | S | XL | XS |
|---|---|---|---|---|---|
| Crank length | — | — | — | — | — |
| Stem length | — | — | — | — | — |
| Handlebar width | — | — | — | — | — |
| Handlebar reach | — | — | — | — | — |
| Handlebar drop | — | — | — | — | — |
| Saddle width | — | — | — | — | — |
| Dropper post travel | — | — | — | — | — |
| Seatpost offset | — | — | — | — | — |
Specs
Full specs
>
Specs
Full specs
Frame
Frame
BCS Carbon Fiber - Dyneema® Enhanced (ADHX platform), flat-mount disc, PF BB386, 12x142mm rear
Suspension
Fork
Carbon fork with tapered steerer (1-1/8" to 1-1/2"), flat-mount disc, 12x100mm front
Brakes
Front brake
SRAM RED E1 HRD (flat-mount hydraulic disc)
Rear brake
SRAM RED E1 HRD (flat-mount hydraulic disc)
Front rotor
SRAM Paceline X CL 160mm
Rear rotor
SRAM Paceline X CL 160mm
Drivetrain
Shift levers
SRAM RED E1 AXS
Rear derailleur
SRAM RED E1 AXS
Front derailleur
SRAM RED E1 AXS
Cassette
SRAM XG-1290 E1, 12-speed, 10-33T
Chain
SRAM RED E1
Crankset
SRAM RED E1 48/35T
Bottom bracket
PressFit BB386 for SRAM DUB (DUB Press Fit)
Cockpit
Stem
null
Handlebars
FSA K-Force Compact
Grips
Arundel Gecko Grip bar tape
Saddle
Selle Italia Novus Boost EVO Superflow
Seatpost
FSA K-FORCE LIGHT (27.2mm)
Wheels & Tires
Front wheel
Wheelset choice: Mavic Cosmic SL 45 / Vision Metron 45RS / Vision Metron 45 SL / Vision SC 45 / Vision SC 30 AGX / Mavic Allroad SL
Rear wheel
Wheelset choice: Mavic Cosmic SL 45 / Vision Metron 45RS / Vision Metron 45 SL / Vision SC 45 / Vision SC 30 AGX / Mavic Allroad SL
Front tire
Vittoria Corsa N.EXT 700x32
Rear tire
Vittoria Corsa N.EXT 700x32
