Time

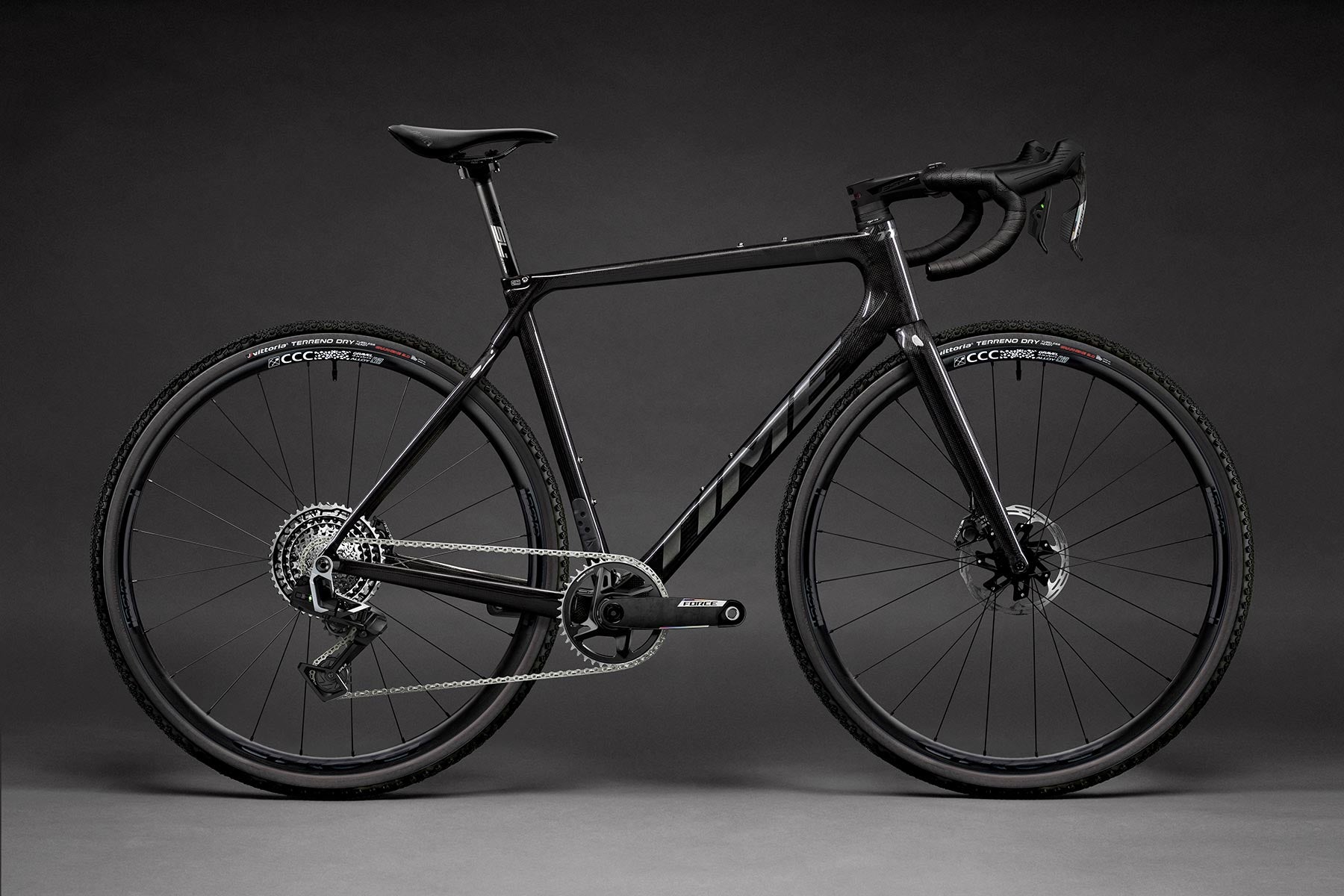

ADHX 45 SRAM Force E1 2x
Gallery
Images
product
Geometry
Geometry
>
Geometry
Geometry
Frame geometry
| Geometry | L | M | S | XL | XS |
|---|---|---|---|---|---|
| Stack | 583mm | 564mm | 543mm | 603mm | 532mm |
| Reach | 390mm | 381mm | 371mm | 395mm | 364mm |
| Headtube length | 169mm | 149mm | 131mm | 188mm | 123mm |
| Headtube angle | 72.3deg | 72.3deg | 71.3deg | 72.8deg | 70.3deg |
| BB height | — | — | — | — | — |
| BB drop | 71mm | 71mm | 71mm | 71mm | 71mm |
| Trail | 59mm | 59mm | 65mm | 57mm | 71mm |
| Fork length | 383mm | 383mm | 383mm | 383mm | 383mm |
| Fork offset | 53mm | 53mm | 53mm | 53mm | 53mm |
| Front center | 613mm | 598mm | 591mm | 618mm | 589mm |
| Chainstay length | 430mm | 430mm | 430mm | 430mm | 430mm |
| Wheelbase | 1033mm | 1018mm | 1011mm | 1038mm | 1009mm |
| Top tube | 568mm | 553mm | 537mm | 578mm | 519mm |
| Standover height | 829mm | 804mm | 785mm | 849mm | 763mm |
| Seat tube length | 530mm | 500mm | 480mm | 550mm | 455mm |
| Seat tube angle | 72.8deg | 72.8deg | 72.8deg | 72.8deg | 73.5deg |
Spec geometry
| Geometry | L | M | S | XL | XS |
|---|---|---|---|---|---|
| Crank length | — | — | — | — | — |
| Stem length | — | — | — | — | — |
| Handlebar width | — | — | — | — | — |
| Handlebar reach | — | — | — | — | — |
| Handlebar drop | — | — | — | — | — |
| Saddle width | — | — | — | — | — |
| Dropper post travel | — | — | — | — | — |
| Seatpost offset | — | — | — | — | — |
Specs
Full specs
>
Specs
Full specs
Frame
Frame
BCS Carbon Fiber - Dyneema® Enhanced (Flat-mount disc, PF BB386 / SRAM DUB press fit, UDH rear hanger, 700c/650b compatible)
Suspension
Fork
null
Brakes
Front brake
SRAM Force HRD (hydraulic disc, flat mount)
Rear brake
SRAM Force HRD (hydraulic disc, flat mount)
Front rotor
SRAM Paceline X CL, 160mm
Rear rotor
SRAM Paceline X CL, 160mm
Drivetrain
Shift levers
SRAM Force E1 AXS
Rear derailleur
SRAM Force E1 AXS, 36T
Front derailleur
SRAM Force E1 Wide AXS
Cassette
SRAM XG-1270, 12-speed, 10-36T
Chain
SRAM Force
Crankset
SRAM Force E1 1x XPLR DUB, 42T
Bottom bracket
PressFit BB386 / SRAM DUB Press Fit
Cockpit
Stem
FSA SMR II
Handlebars
FSA A-Wing AGX
Saddle
Selle Italia Novus Boost EVO Superflow
Seatpost
FSA SL-K, 27.2mm
Wheels & Tires
Front wheel
Choice of wheelset: VISION SC 30 AGX / MAVIC ALLROAD SL / BOYD CCC ALLOY
Rear wheel
Choice of wheelset: VISION SC 30 AGX / MAVIC ALLROAD SL / BOYD CCC ALLOY
Front tire
Vittoria T50, 700x45c
Rear tire
Vittoria T50, 700x45c
