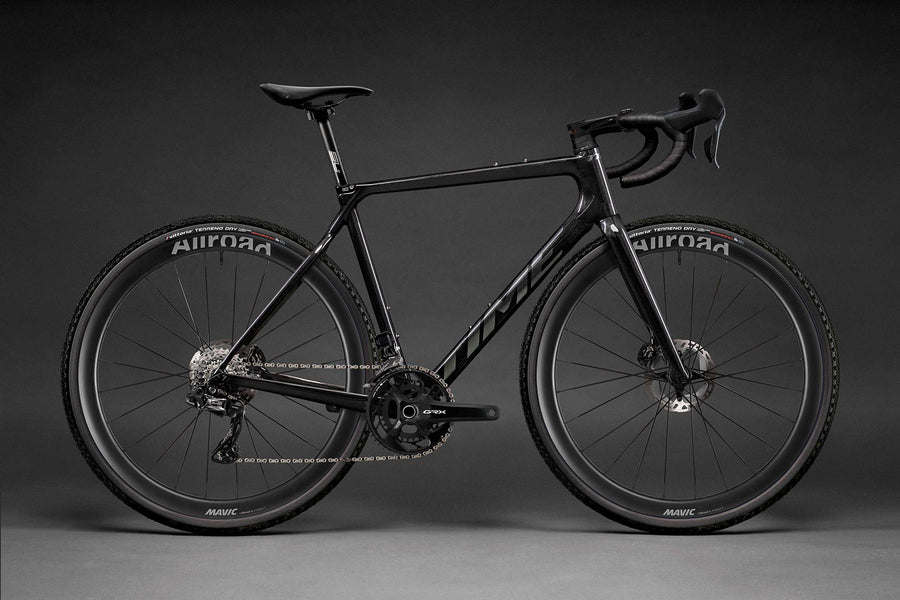

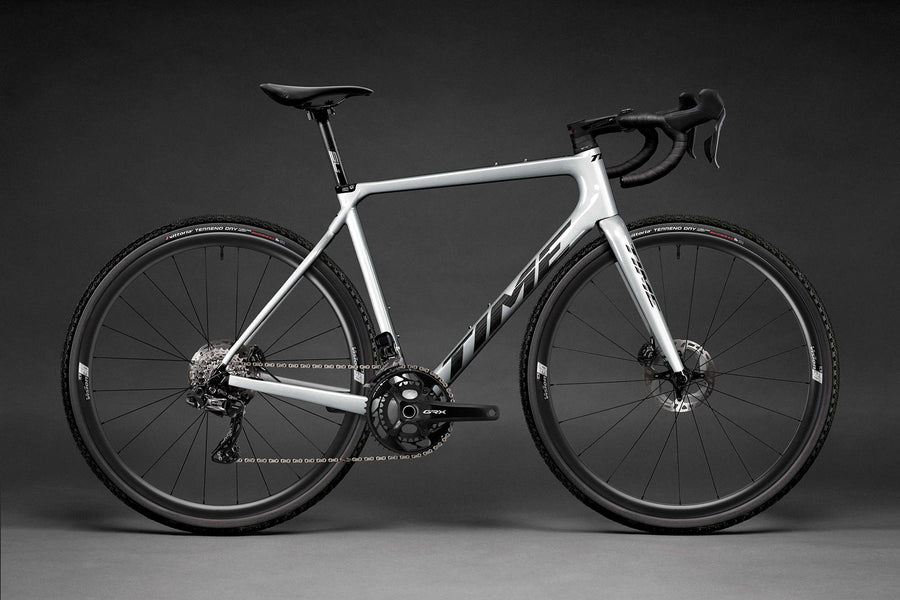

Time
ADHX 45 Shimano GRX Di2 12sp
Gallery
Images
geometry
Geometry
Geometry
>
Geometry
Geometry
Frame geometry
| Geometry | L | M | S | XL | XS |
|---|---|---|---|---|---|
| Stack | 583mm | 564mm | 543mm | 603mm | 532mm |
| Reach | 390mm | 381mm | 371mm | 395mm | 364mm |
| Headtube length | 169mm | 149mm | 131mm | 188mm | 123mm |
| Headtube angle | 72.3deg | 72.3deg | 71.3deg | 72.8deg | 70.3deg |
| BB height | — | — | — | — | — |
| BB drop | 71mm | 71mm | 71mm | 71mm | 71mm |
| Trail | 59mm | 59mm | 65mm | 57mm | 71mm |
| Fork length | 383mm | 383mm | 383mm | 383mm | 383mm |
| Fork offset | 53mm | 53mm | 53mm | 53mm | 53mm |
| Front center | 613mm | 598mm | 591mm | 618mm | 589mm |
| Chainstay length | 430mm | 430mm | 430mm | 430mm | 430mm |
| Wheelbase | 1033mm | 1018mm | 1011mm | 1038mm | 1009mm |
| Top tube | 568mm | 553mm | 537mm | 578mm | 519mm |
| Standover height | 829mm | 804mm | 785mm | 849mm | 763mm |
| Seat tube length | 530mm | 500mm | 480mm | 550mm | 455mm |
| Seat tube angle | 72.8deg | 72.8deg | 72.8deg | 72.8deg | 73.5deg |
Spec geometry
| Geometry | L | M | S | XL | XS |
|---|---|---|---|---|---|
| Crank length | — | — | — | — | — |
| Stem length | — | — | — | — | — |
| Handlebar width | — | — | — | — | — |
| Handlebar reach | — | — | — | — | — |
| Handlebar drop | — | — | — | — | — |
| Saddle width | — | — | — | — | — |
| Dropper post travel | — | — | — | — | — |
| Seatpost offset | — | — | — | — | — |
Specs
Full specs
>
Specs
Full specs
Frame
Frame
BCS Carbon Fiber frame (Dyneema® Enhanced) — ADHX 45
Suspension
Fork
ADHX 45 carbon fork, tapered steerer 1-1/8" to 1-1/2"
Brakes
Front brake
Shimano GRX 820 hydraulic disc, flat mount
Rear brake
Shimano GRX 820 hydraulic disc, flat mount
Front rotor
Shimano MT800 Center Lock, 160mm
Rear rotor
Shimano MT800 Center Lock, 160mm
Drivetrain
Shift levers
Shimano GRX 825 Di2 (2x12)
Rear derailleur
Shimano GRX 825 Di2, 12-speed
Front derailleur
Shimano GRX 825 Di2
Cassette
Shimano HG8101, 12-speed, 11-34T
Chain
Shimano HG7100, 12-speed
Crankset
Shimano GRX 820 2x, 48/31T
Bottom bracket
PF BB386 (PressFit 86.5x46)
Cockpit
Stem
FSA SMR II
Handlebars
FSA A-Wing AGX
Saddle
Selle Italia Novus Boost EVO Superflow
Seatpost
FSA SL-K, 27.2mm
Wheels & Tires
Front wheel
Wheelset option: VISION SC 30 AGX / MAVIC ALLROAD SL / BOYD CCC ALLOY (12x100mm front, Center Lock)
Rear wheel
Wheelset option: VISION SC 30 AGX / MAVIC ALLROAD SL / BOYD CCC ALLOY (12x142mm rear, Center Lock)
Front tire
Vittoria T50, 700x45c
Rear tire
Vittoria T50, 700x45c
