Specialized
Tarmac SL8 Comp
Gallery
Images
product
Geometry
Geometry
>
Geometry
Geometry

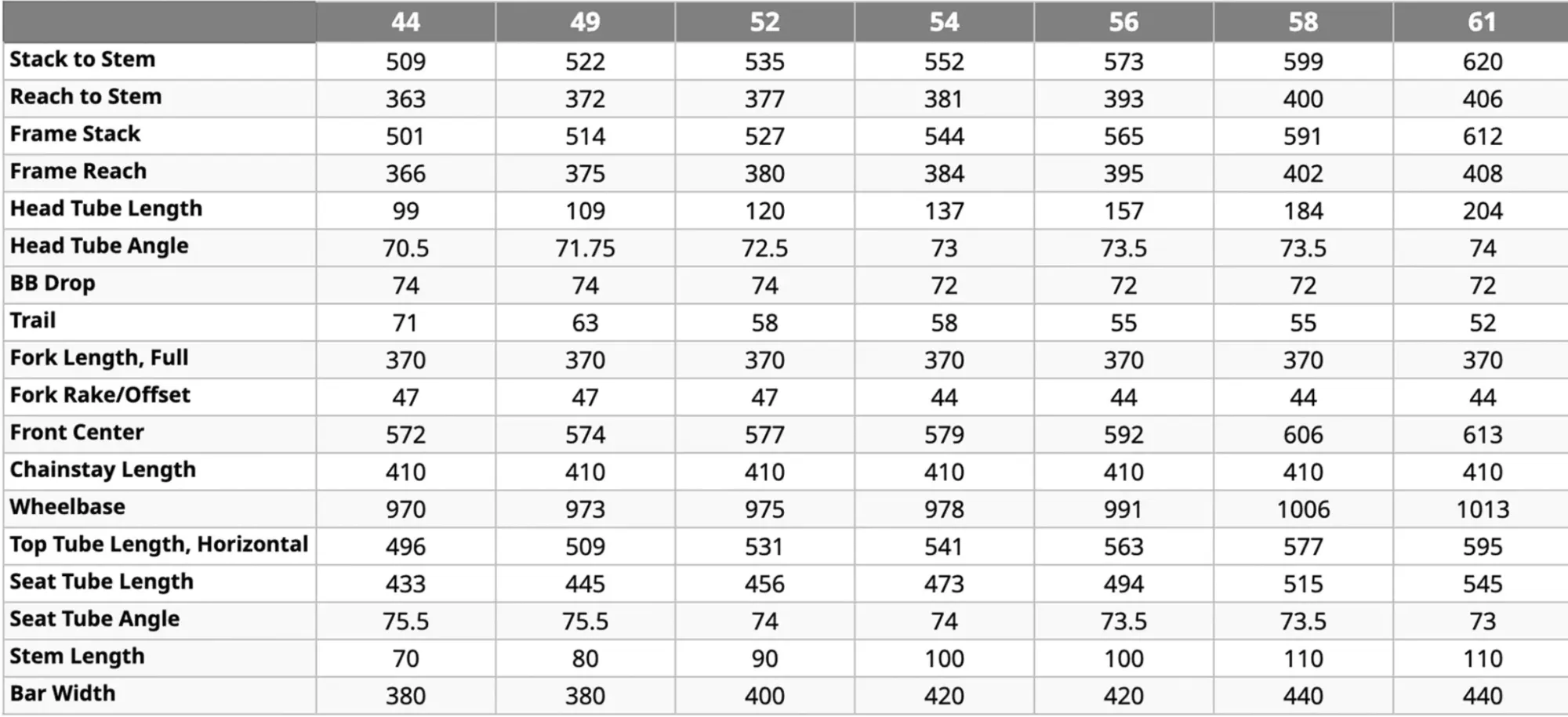

Frame geometry
| Geometry | 44 | 49 | 52 | 54 | 56 | 58 | 61 |
|---|---|---|---|---|---|---|---|
| Stack | 501mm | 514mm | 527mm | 544mm | 565mm | 591mm | 612mm |
| Reach | 366mm | 375mm | 380mm | 384mm | 395mm | 402mm | 408mm |
| Headtube length | 99mm | 109mm | 120mm | 137mm | 157mm | 184mm | 204mm |
| Headtube angle | 70.5deg | 71.75deg | 72.5deg | 73deg | 73.5deg | 73.5deg | 74deg |
| BB height | 266mm | 266mm | 266mm | 268mm | 268mm | 268mm | 268mm |
| BB drop | 74mm | 74mm | 74mm | 72mm | 72mm | 72mm | 72mm |
| Trail | 71mm | 63mm | 58mm | 58mm | 55mm | 55mm | 52mm |
| Fork length | 370mm | 370mm | 370mm | 370mm | 370mm | 370mm | 370mm |
| Fork offset | 47mm | 47mm | 47mm | 44mm | 44mm | 44mm | 44mm |
| Front center | 572mm | 574mm | 577mm | 579mm | 592mm | 606mm | 613mm |
| Chainstay length | 410mm | 410mm | 410mm | 410mm | 410mm | 410mm | 410mm |
| Wheelbase | 970mm | 973mm | 975mm | 978mm | 991mm | 1006mm | 1013mm |
| Top tube | 496mm | 509mm | 531mm | 541mm | 563mm | 577mm | 595mm |
| Standover height | 723mm | 735mm | 746mm | 768mm | 786mm | 808mm | 834mm |
| Seat tube length | 433mm | 445mm | 456mm | 473mm | 494mm | 515mm | 545mm |
| Seat tube angle | 75.5deg | 75.5deg | 74deg | 74deg | 73.5deg | 73.5deg | 73deg |
Spec geometry
| Geometry | 44 | 49 | 52 | 54 | 56 | 58 | 61 |
|---|---|---|---|---|---|---|---|
| Crank length | — | — | — | — | — | — | — |
| Stem length | — | — | — | — | — | — | — |
| Handlebar width | — | — | — | — | — | — | — |
| Handlebar reach | — | — | — | — | — | — | — |
| Handlebar drop | — | — | — | — | — | — | — |
| Saddle width | — | — | — | — | — | — | — |
| Dropper post travel | — | — | — | — | — | — | — |
| Seatpost offset | — | — | — | — | — | — | — |
Specs
Full specs
>
Specs
Full specs
Frame
Frame
Tarmac SL8 FACT 10r Carbon, Rider First Engineered™, Win Tunnel Engineered, Clean Routing, Threaded BB, 12x142mm thru-axle, flat-mount disc
Suspension

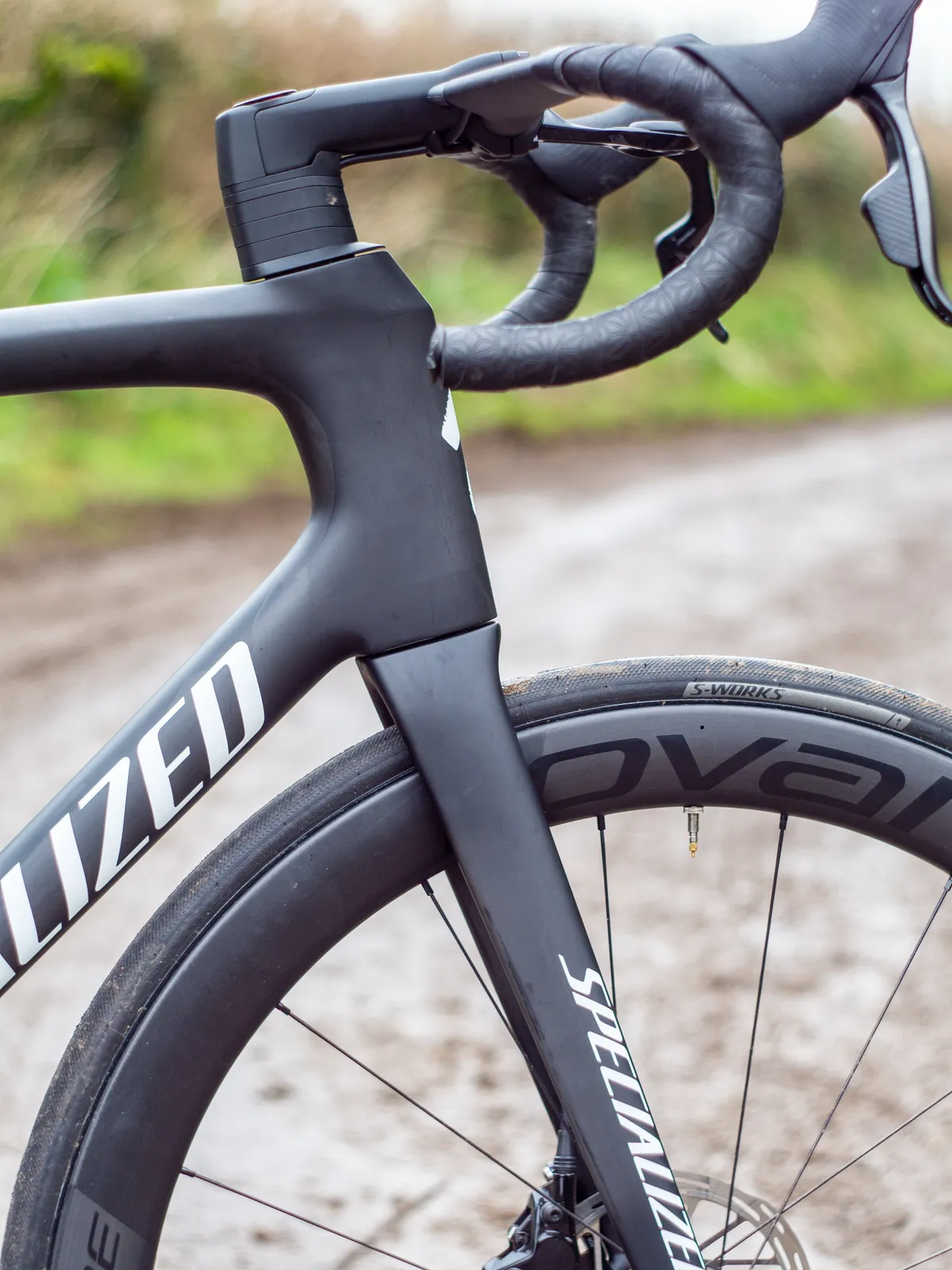

Fork
FACT 10r Carbon, 12x100mm thru-axle, flat-mount disc
Brakes
Front brake
NEW SRAM Rival AXS E1, hydraulic disc
Rear brake
NEW SRAM Rival AXS E1, hydraulic disc
Front rotor
160mm
Rear rotor
160mm
Drivetrain
Shift levers
NEW SRAM Rival AXS E1 HRD
Rear derailleur
NEW SRAM Rival AXS E1
Front derailleur
NEW SRAM Rival AXS E1
Cassette
NEW SRAM Rival XG-1250, 12sp, 10-36t
Chain
NEW SRAM Rival E1
Crankset
NEW SRAM Rival E1, 48/35t
Bottom bracket
SRAM DUB BSA
Cockpit
Stem

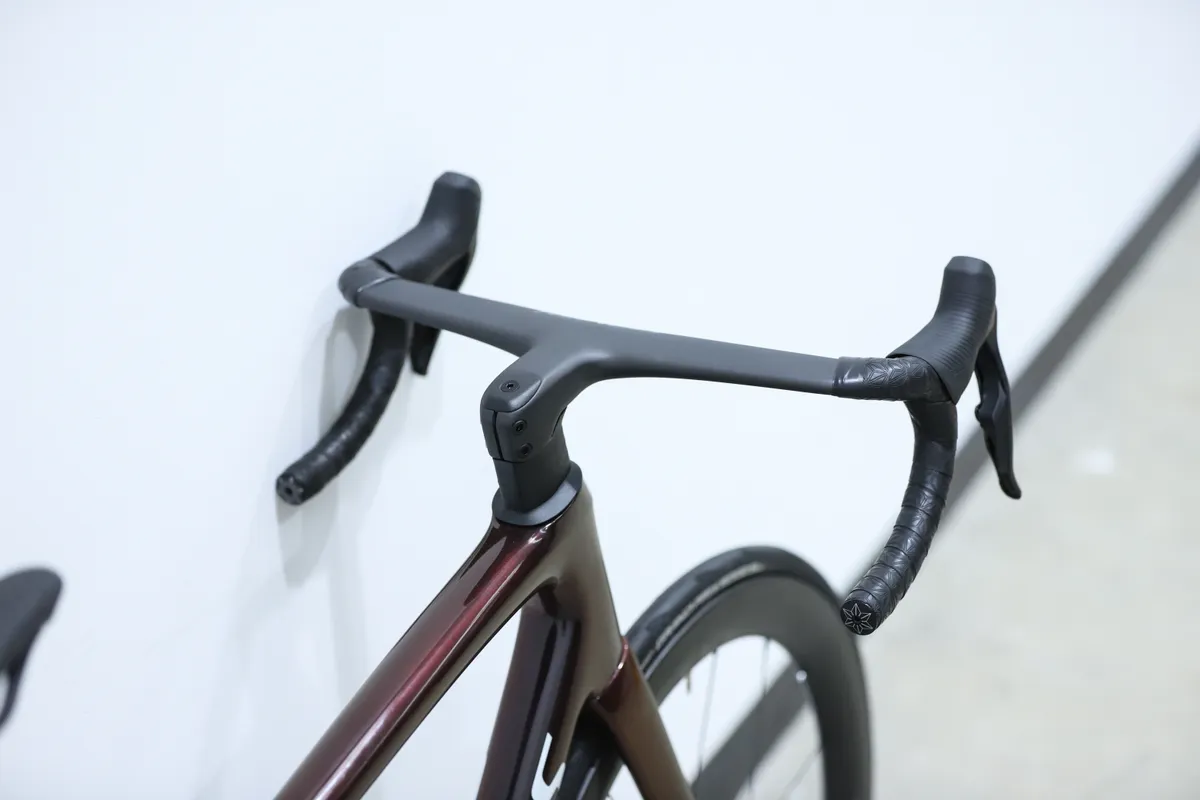

Tarmac integrated stem, 6-degree

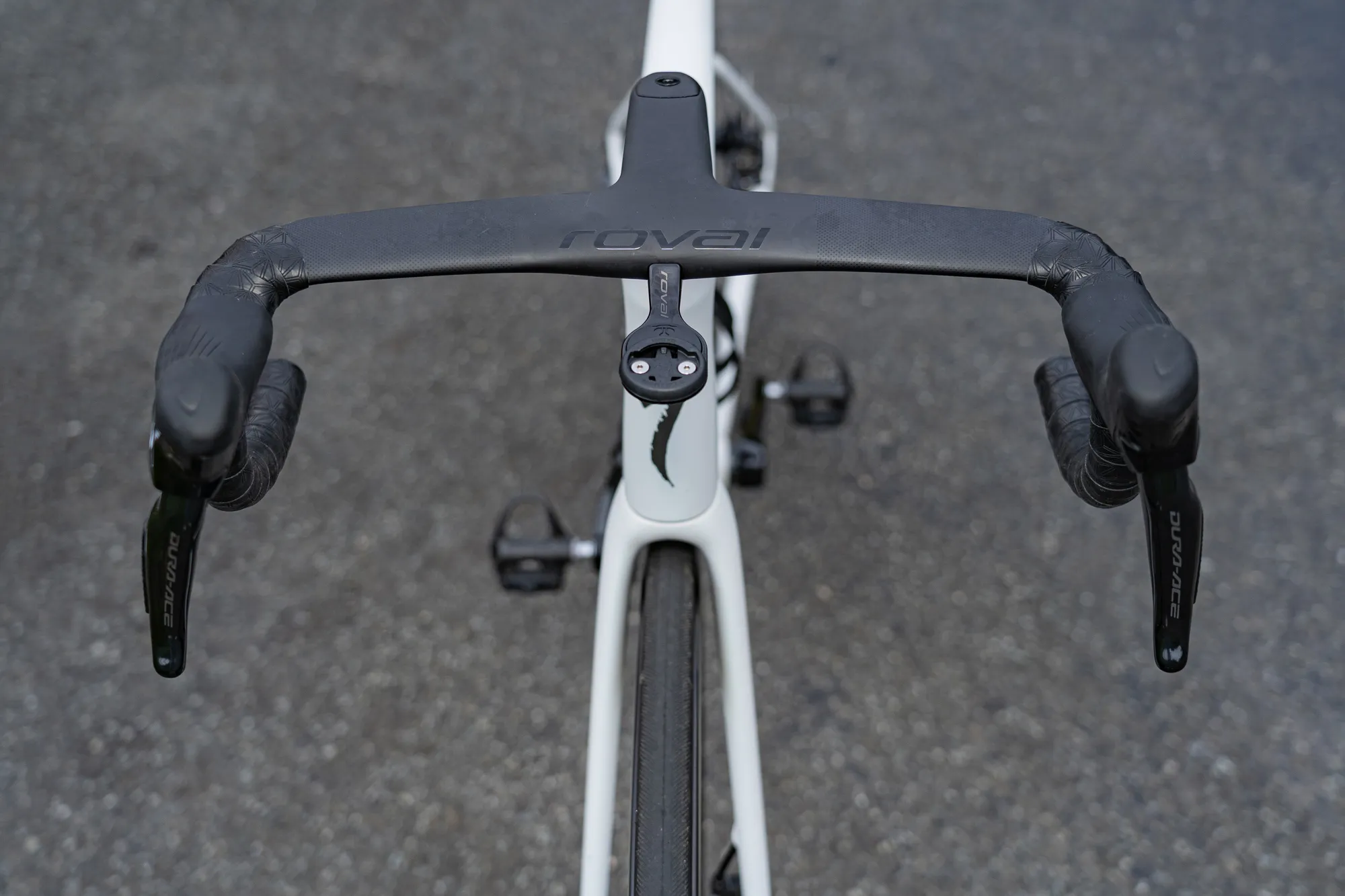

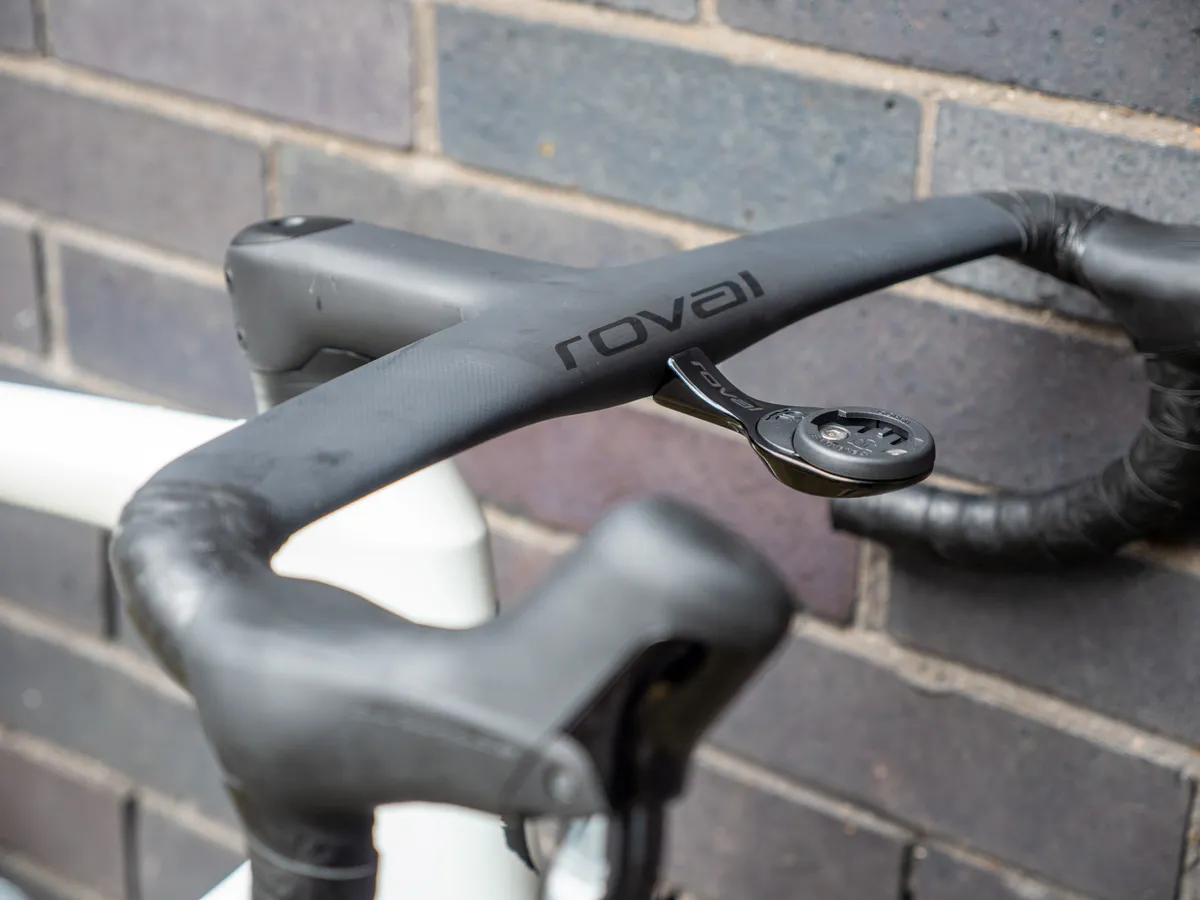

Handlebars
Specialized Shallow Drop, 6061, 70x125mm, 31.8mm clamp
Grips
Supacaz Super Sticky Kush (bar tape)
Saddle
Body Geometry Power Sport, steel rails
Seatpost

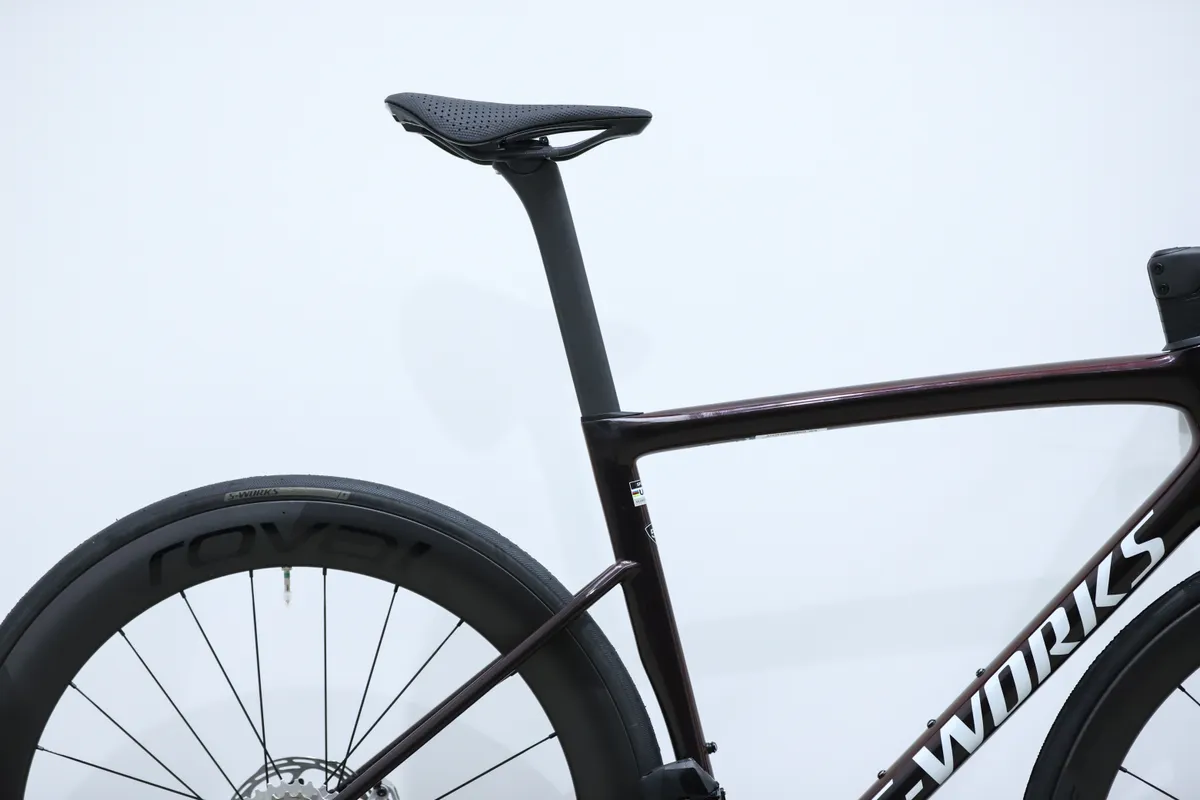

S-Works Tarmac SL8 Carbon seat post, FACT Carbon, 15mm offset
Wheels & Tires
Front wheel
DT Swiss R470 wheel — 20mm internal width, tubeless ready, 24h, Specialized full sealed bearing thru axle hub, centerlock disc, DT Swiss Champion 14G stainless steel spokes, DT Swiss brass nipples
Rear wheel
DT Swiss R470 wheel — 20mm internal width, tubeless ready, 24h, Specialized full sealed bearing thru axle hub, centerlock disc, DT Swiss Champion 14G stainless steel spokes, DT Swiss brass nipples
Front tire
S-Works Turbo, 120 TPI, folding bead, BlackBelt protection, 700x26mm
Rear tire
S-Works Turbo, 120 TPI, folding bead, BlackBelt protection, 700x26mm
Weight
Weight
7.77 kg (17 lb, 2.1 oz)
