Santa Cruz
Tallboy XX AXS RSV
Gallery
Images
action
Geometry
Geometry
>
Geometry
Geometry
Frame geometry
| Geometry | l | m | s | xl | xs | xxl |
|---|---|---|---|---|---|---|
| Stack | 628mm | 619mm | 610mm | 646mm | 601mm | 656mm |
| Reach | 475mm | 455mm | 430mm | 495mm | 405mm | 520mm |
| Headtube length | 125mm | 115mm | 105mm | 145mm | 95mm | 155mm |
| Headtube angle | 65.7deg | 65.7deg | 65.7deg | 65.7deg | 65.7deg | 65.7deg |
| BB height | 335mm | 335mm | 335mm | 335mm | 335mm | 335mm |
| BB drop | 38mm | 38mm | 38mm | 38mm | 38mm | 38mm |
| Trail | — | — | — | — | — | — |
| Fork length | — | — | — | — | — | — |
| Fork offset | — | — | — | — | — | — |
| Front center | 790mm | 766mm | 737mm | 818mm | 708mm | 847mm |
| Chainstay length | 437mm | 433mm | 430mm | 439mm | 430mm | 443mm |
| Wheelbase | 1227mm | 1199mm | 1167mm | 1257mm | 1138mm | 1290mm |
| Top tube | 622mm | 602mm | 579mm | 644mm | 555mm | 671mm |
| Standover height | 698mm | 696mm | 693mm | 698mm | 680mm | 701mm |
| Seat tube length | 430mm | 405mm | 380mm | 460mm | 370mm | 500mm |
| Seat tube angle | 76.8deg | 76.7deg | 76.3deg | 77deg | 76deg | 77.1deg |
Spec geometry
| Geometry | l | m | s | xl | xs | xxl |
|---|---|---|---|---|---|---|
| Crank length | — | — | — | — | — | — |
| Stem length | 40mm | 40mm | 40mm | 40mm | 40mm | 40mm |
| Handlebar width | 760mm | 760mm | 760mm | 760mm | 760mm | 760mm |
| Handlebar reach | — | — | — | — | — | — |
| Handlebar drop | — | — | — | — | — | — |
| Saddle width | — | — | — | — | — | — |
| Dropper post travel | — | — | — | — | — | — |
| Seatpost offset | — | — | — | — | — | — |
Specs
Full specs
>
Specs
Full specs
Frame
Frame
Carbon CC frame, 120mm travel (29")
Suspension
Rear shock
FOX Float Factory, 190x45
Fork
FOX 34 Float Factory, Grip X, 130mm
Brakes
Front brake
SRAM Code Ultimate Stealth
Rear brake
SRAM Code Ultimate Stealth
Front rotor
SRAM HS2 180mm
Rear rotor
SRAM HS2 180mm
Drivetrain
Shift levers
SRAM AXS Pod Controller (Rocker Paddle)
Rear derailleur
SRAM XX SL Eagle AXS T-Type, 12-speed
Cassette
SRAM XX SL Eagle T-Type, 10-52T
Chain
SRAM XX SL Eagle T-Type Flattop, 12-speed
Crankset
SRAM XX SL Eagle DUB T-Type crankset, 32T
Bottom bracket
SRAM DUB 68/73mm Threaded BB (73mm threaded shell)
Cockpit
Stem
Industry Nine A35, 40mm
Handlebars
Santa Cruz 20 Carbon Bar, 760mm
Grips
Santa Cruz Bicycles House Grips
Saddle
WTB Silverado Medium Fusion, Stainless
Seatpost
OneUp Dropper Post, 31.6mm
Wheels & Tires
Front wheel

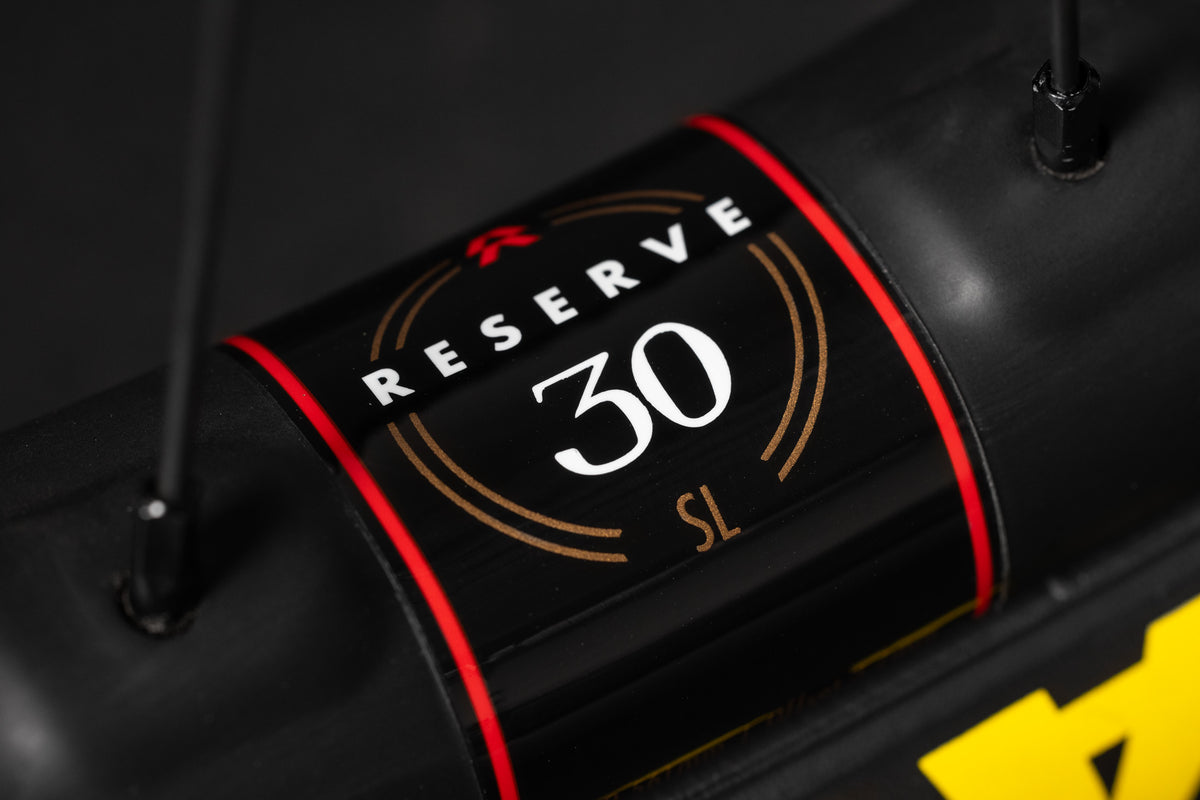

Reserve 30|SL Carbon; Industry Nine Hydra, 15x110mm, 6-bolt, 28h
Rear wheel
Reserve 30|SL Carbon; Industry Nine Hydra, 12x148mm, XD, 6-bolt, 28h
Front tire
Maxxis Forekaster 29x2.4 WT, 3C MaxxTerra, EXO
Rear tire
Maxxis Forekaster 29x2.4 WT, 3C MaxxTerra, EXO
Weight
Weight
28.74 lbs / 13.04 kg
