Santa Cruz

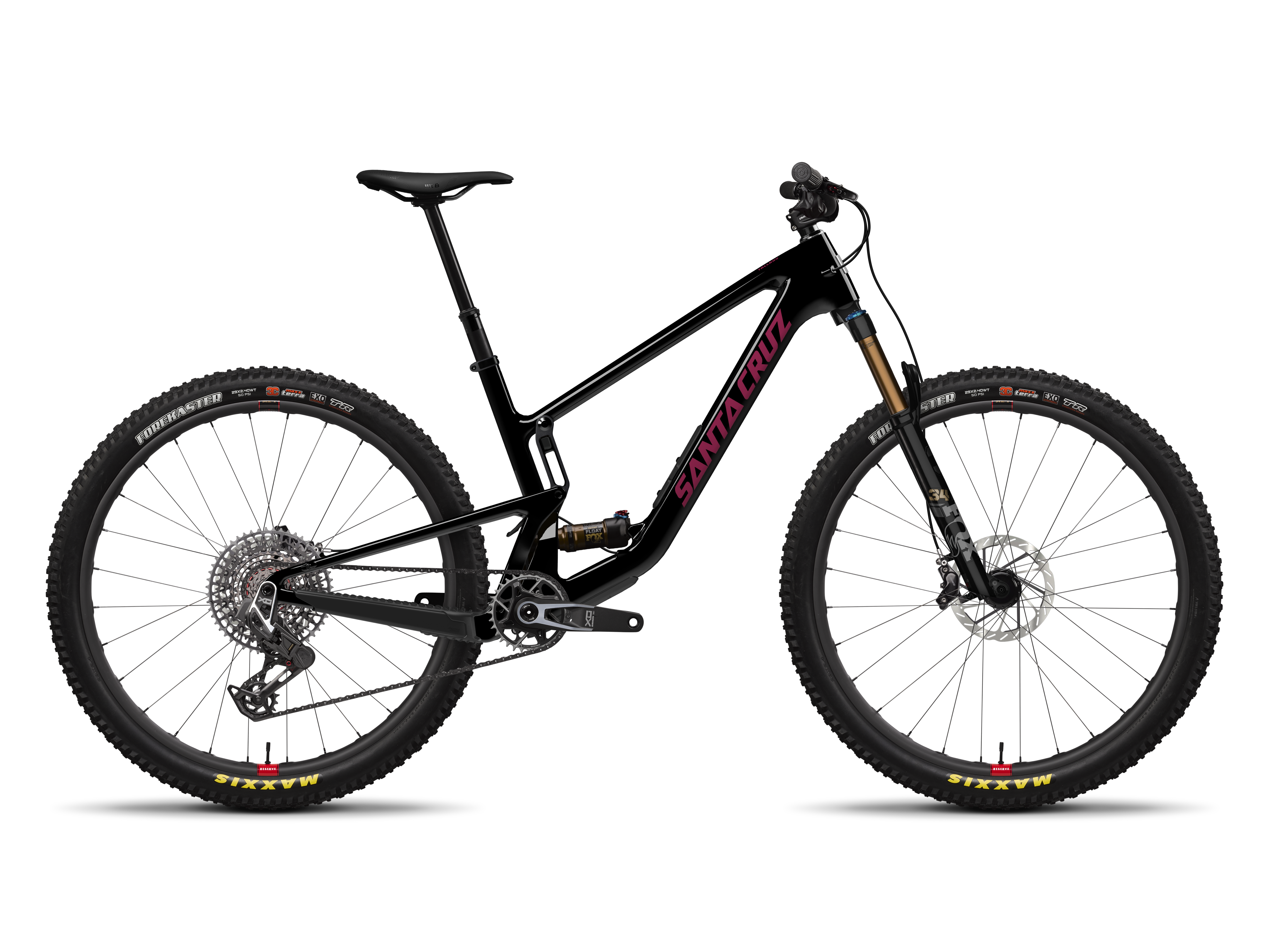

Tallboy X0 AXS RSV
Gallery
Images
product
Geometry
Geometry
>
Geometry
Geometry
Frame geometry
| Geometry | l | m | s | xl | xs | xxl |
|---|---|---|---|---|---|---|
| Stack | 628mm | 619mm | 610mm | 646mm | 601mm | 656mm |
| Reach | 475mm | 455mm | 430mm | 495mm | 405mm | 520mm |
| Headtube length | 125mm | 115mm | 105mm | 145mm | 95mm | 155mm |
| Headtube angle | 65.7deg | 65.7deg | 65.7deg | 65.7deg | 65.7deg | 65.7deg |
| BB height | 335mm | 335mm | 335mm | 335mm | 335mm | 335mm |
| BB drop | 38mm | 38mm | 38mm | 38mm | 38mm | 38mm |
| Trail | — | — | — | — | — | — |
| Fork length | — | — | — | — | — | — |
| Fork offset | — | — | — | — | — | — |
| Front center | 790mm | 766mm | 737mm | 818mm | 708mm | 847mm |
| Chainstay length | 437mm | 433mm | 430mm | 439mm | 430mm | 443mm |
| Wheelbase | 1227mm | 1199mm | 1167mm | 1257mm | 1138mm | 1290mm |
| Top tube | 622mm | 602mm | 579mm | 644mm | 555mm | 671mm |
| Standover height | 698mm | 696mm | 693mm | 698mm | 680mm | 701mm |
| Seat tube length | 430mm | 405mm | 380mm | 460mm | 370mm | 500mm |
| Seat tube angle | 76.8deg | 76.7deg | 76.3deg | 77deg | 76deg | 77.1deg |
Spec geometry
| Geometry | l | m | s | xl | xs | xxl |
|---|---|---|---|---|---|---|
| Crank length | — | — | — | — | — | — |
| Stem length | 42mm | 42mm | 42mm | 42mm | 42mm | 42mm |
| Handlebar width | 760mm | 760mm | 760mm | 760mm | 760mm | 760mm |
| Handlebar reach | — | — | — | — | — | — |
| Handlebar drop | — | — | — | — | — | — |
| Saddle width | — | — | — | — | — | — |
| Dropper post travel | — | — | — | — | — | — |
| Seatpost offset | — | — | — | — | — | — |
Specs
Full specs
>
Specs
Full specs
Frame
Frame
Santa Cruz Tallboy Carbon CC (VPP), 120mm travel
Suspension
Rear shock
FOX Float Factory, 190x45 (30x8 bushings f/r)
Fork
FOX 34 Float Factory, GRIP X, 130mm, 44mm offset
Brakes
Front brake
SRAM Code Silver Stealth
Rear brake
SRAM Code Silver Stealth
Front rotor
SRAM HS2 180mm
Rear rotor
SRAM HS2 180mm
Drivetrain
Shift levers
SRAM AXS Pod Controller (Rocker Paddle)
Rear derailleur
SRAM X0 Eagle AXS T-Type, 12-speed
Cassette
SRAM X0 Eagle T-Type, 12-speed, 10-52T
Chain
SRAM X0 Eagle T-Type Flattop, 12-speed
Crankset
SRAM X0 Eagle DUB T-Type crankset, 32T (max 36T)
Bottom bracket
SRAM DUB 73mm MTB Wide BB (73mm threaded shell)
Cockpit
Stem
Burgtec Enduro MK3, 42mm
Handlebars
Santa Cruz 20 Carbon Bar, 760mm
Grips
Santa Cruz Bicycles House Grips
Saddle
WTB Silverado Medium Fusion, CroMo SL
Seatpost
OneUp Dropper Post, 31.6
Wheels & Tires
Front wheel
Reserve 30|SL Carbon; DT Swiss 350, 15x110, 6-bolt, 28h
Rear wheel
Reserve 30|SL Carbon; DT Swiss 350, 12x148, XD, 6-bolt, 28h, DEG 90T
Front tire
Maxxis Forekaster 29x2.4 WT, 3C MaxxTerra, EXO
Rear tire
Maxxis Forekaster 29x2.4 WT, 3C MaxxTerra, EXO
Weight
Weight
29.43 lbs / 13.35 kg
