Salsa

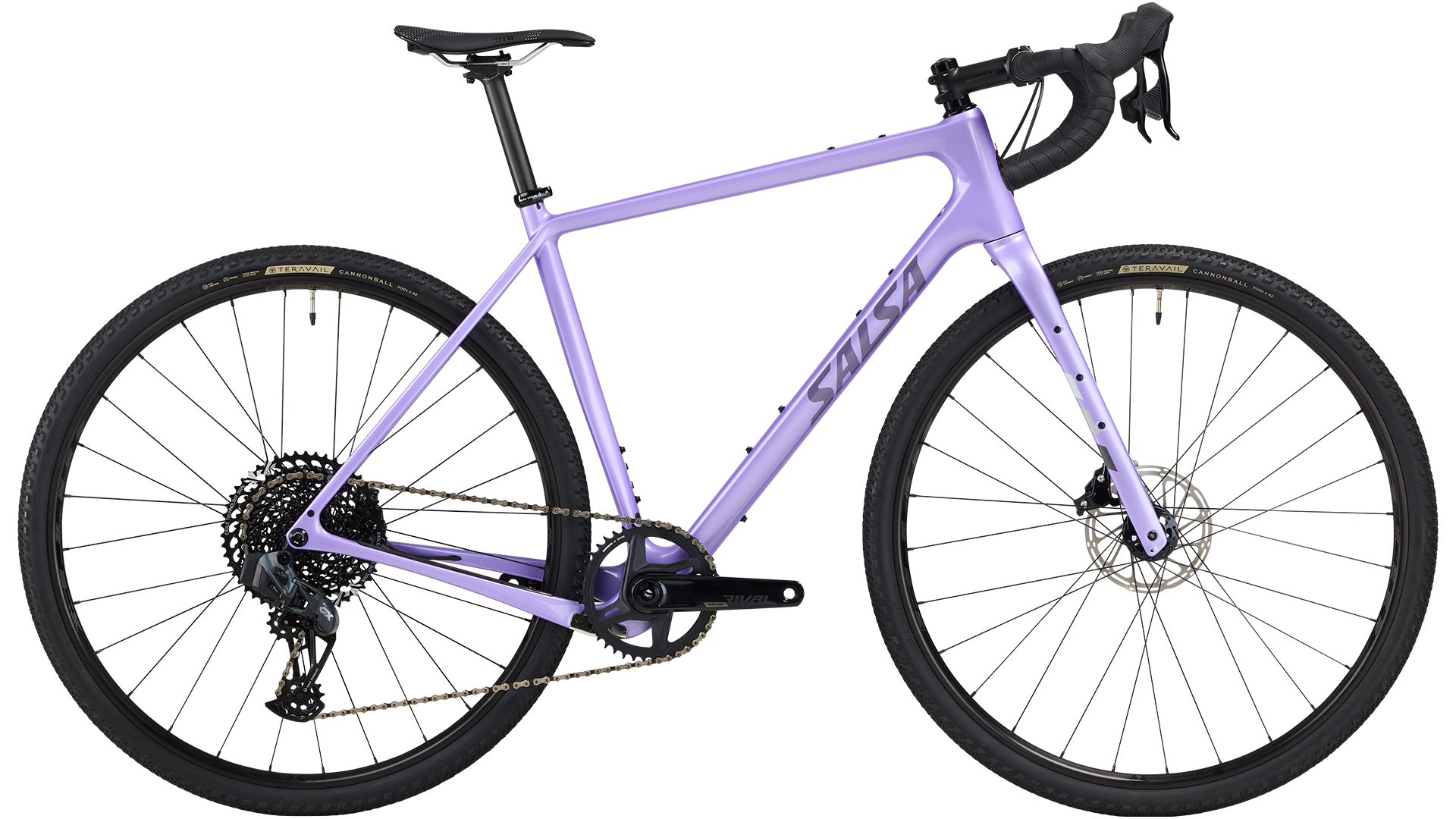

Warbird C Rival GX AXS
Gallery
Images
product
Geometry
Geometry
>
Geometry
Geometry
Frame geometry
| Geometry | 49cm | 52.5cm | 54.5cm | 56cm | 57.5cm | 59cm | 61cm |
|---|---|---|---|---|---|---|---|
| Stack | 517.85mm | 547.09mm | 565.97mm | 584.85mm | 603.73mm | 622.61mm | 641.5mm |
| Reach | 360.24mm | 368.13mm | 371.97mm | 381.19mm | 390.42mm | 399.65mm | 407.74mm |
| Headtube length | 90mm | 120mm | 140mm | 160mm | 180mm | 200mm | 220mm |
| Headtube angle | 71deg | 70.75deg | 70.75deg | 70.75deg | 70.75deg | 70.75deg | 70.75deg |
| BB height | 279mm | 279mm | 279mm | 279mm | 279mm | 279mm | 279mm |
| BB drop | 70mm | 70mm | 70mm | 70mm | 70mm | 70mm | 70mm |
| Trail | — | — | — | — | — | — | — |
| Fork length | 405mm | 405mm | 405mm | 405mm | 405mm | 405mm | 405mm |
| Fork offset | 50mm | 50mm | 50mm | 50mm | 50mm | 50mm | 50mm |
| Front center | — | — | — | — | — | — | — |
| Chainstay length | 430mm | 430mm | 430mm | 430mm | 430mm | 430mm | 430mm |
| Wheelbase | 996.14mm | 1011.96mm | 1022.39mm | 1038.21mm | 1054.03mm | 1069.85mm | 1084.54mm |
| Top tube | 499mm | 525mm | 545mm | 560mm | 575mm | 590mm | 610mm |
| Standover height | 670.2mm | 714.48mm | 744.3mm | 770.11mm | 785.96mm | 808.4mm | 830.55mm |
| Seat tube length | 390mm | 440mm | 475mm | 510mm | 520mm | 545mm | 570mm |
| Seat tube angle | 75deg | 74deg | 73deg | 73deg | 73deg | 73deg | 72.5deg |
Spec geometry
| Geometry | 49cm | 52.5cm | 54.5cm | 56cm | 57.5cm | 59cm | 61cm |
|---|---|---|---|---|---|---|---|
| Crank length | 165mm | 170mm | 170mm | 172.5mm | 172.5mm | 175mm | 175mm |
| Stem length | 60mm | 70mm | 80mm | 90mm | 90mm | 100mm | 110mm |
| Handlebar width | 380mm | 400mm | 420mm | 440mm | 460mm | 460mm | 460mm |
| Handlebar reach | — | — | — | — | — | — | — |
| Handlebar drop | — | — | — | — | — | — | — |
| Saddle width | 142mm | 142mm | 142mm | 142mm | 142mm | 142mm | 142mm |
| Dropper post travel | — | — | — | — | — | — | — |
| Seatpost offset | 0mm | 0mm | 0mm | 0mm | 0mm | 0mm | 0mm |
Specs
Full specs
>
Specs
Full specs
Frame
Frame
Warbird (Lilac)
Suspension
Fork
Waxwing Deluxe V2
Brakes
Front brake
SRAM Rival D1 hydraulic disc (with SRAM Rival AXS D1 lever)
Rear brake
SRAM Rival D1 hydraulic disc (with SRAM Rival AXS D1 lever)
Front rotor
SRAM CenterLine, 6-bolt, 160mm
Rear rotor
SRAM CenterLine, 6-bolt, 160mm
Drivetrain
Shift levers
SRAM Rival AXS D1
Rear derailleur
SRAM GX AXS
Cassette
SRAM XG-1275, 12-speed, 10-50T
Chain
SRAM GX Eagle
Crankset
SRAM Rival 1, D1, DUB Wide, 42T
Bottom bracket
SRAM DUB PF86.5 Road Wide
Cockpit
Stem
Salsa Guide
Handlebars
Salsa Cowbell
Grips
Anti-slip, shock-proof silicone tape
Saddle
WTB Gravelier Medium, Cromoly SL, 142 x 250mm
Seatpost
Salsa Guide Carbon, zero offset
Wheels & Tires
Front wheel
WTB Speedterra i25, TCS 2.0, 28h, 700c (taped; tubeless valve and sealant included); WTB Speedterra, 12 x 100mm; Butted, black
Rear wheel
WTB Speedterra i25, TCS 2.0, 28h, 700c (taped; tubeless valve and sealant included); WTB Speedterra, 12 x 142mm; Butted, black
Front tire
Teravail Cannonball 700c x 42mm, Durable casing, tubeless-ready
Rear tire
Teravail Cannonball 700c x 42mm, Durable casing, tubeless-ready
Weight
Weight
20 lb 4 oz (56cm)
