Salsa

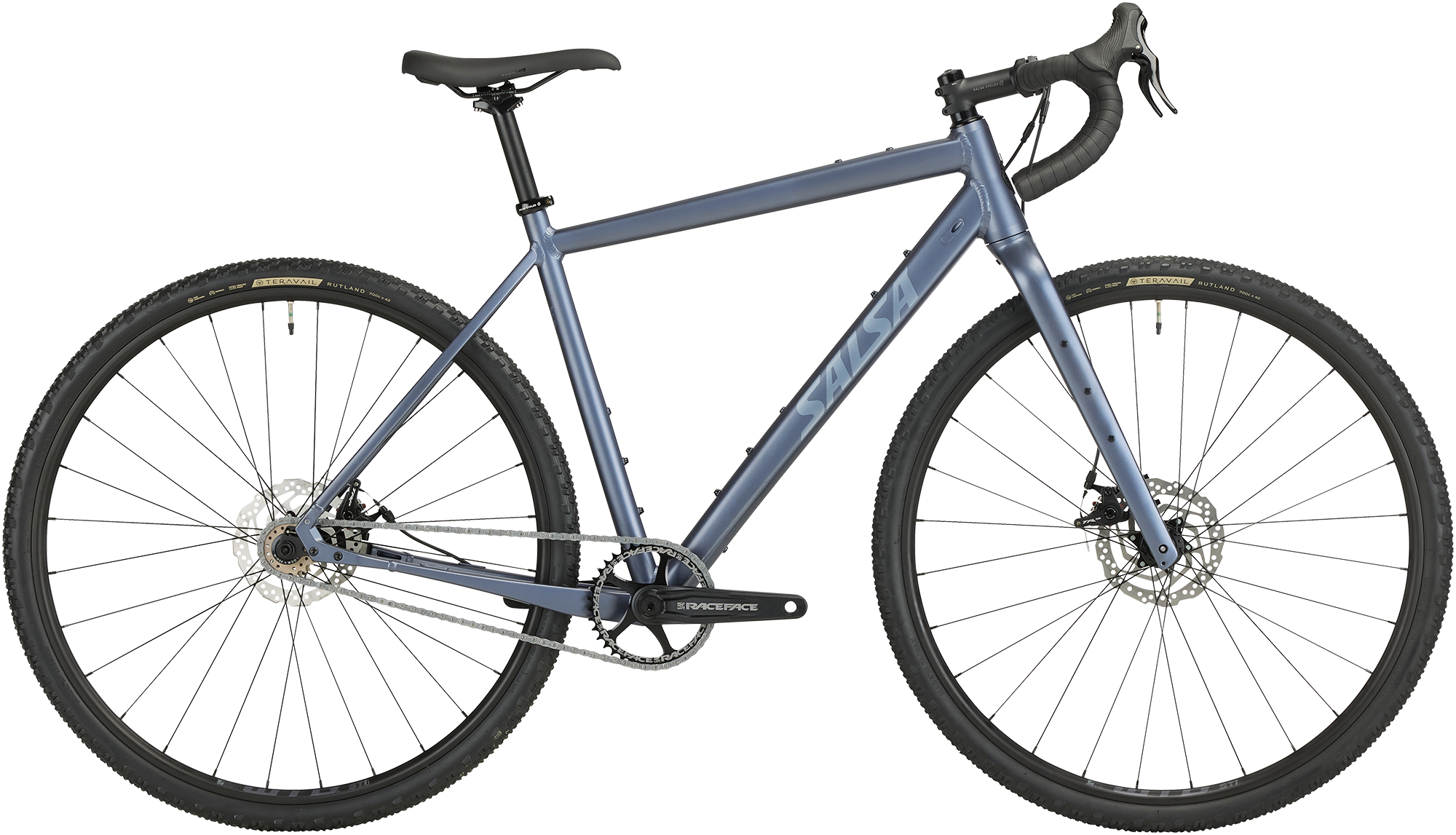

Stormchaser Single Speed
Gallery
Images
product
Geometry
Geometry
>
Geometry
Geometry
Frame geometry
| Geometry | 49cm | 52.5cm | 54.5cm | 56cm | 57.5cm | 59cm | 61cm |
|---|---|---|---|---|---|---|---|
| Stack | 535.2mm | 549.3mm | 568.1mm | 586.9mm | 605.8mm | 624.6mm | 643.5mm |
| Reach | 358.6mm | 363mm | 364.8mm | 373.9mm | 383mm | 392.1mm | 643.5mm |
| Headtube length | 90mm | 105mm | 125mm | 145mm | 165mm | 185mm | 205mm |
| Headtube angle | 69.2deg | 69.2deg | 69.2deg | 69.2deg | 69.2deg | 69.2deg | 69.2deg |
| BB height | — | — | — | — | — | — | — |
| BB drop | 64mm | 64mm | 64mm | 64mm | 64mm | 64mm | 64mm |
| Trail | — | — | — | — | — | — | — |
| Fork length | 433mm | 433mm | 433mm | 433mm | 433mm | 433mm | 433mm |
| Fork offset | 51mm | 51mm | 51mm | 51mm | 51mm | 51mm | 51mm |
| Front center | — | — | — | — | — | — | — |
| Chainstay length | 435mm | 435mm | 435mm | 435mm | 435mm | 435mm | 435mm |
| Wheelbase | 1023.1mm | 1032.8mm | 1041.5mm | 1057.6mm | 1073.7mm | 1089.8mm | 1107.1mm |
| Top tube | 508mm | 529mm | 548mm | 563mm | 578mm | 593mm | 608mm |
| Standover height | 696.5mm | 736mm | 765.6mm | 794.3mm | 806.9mm | 829.1mm | 851.2mm |
| Seat tube length | 390mm | 440mm | 475mm | 510mm | 520mm | 545mm | 570mm |
| Seat tube angle | 74.4deg | 73.2deg | 72.2deg | 72.2deg | 72.2deg | 72.2deg | 72.3deg |
Spec geometry
| Geometry | 49cm | 52.5cm | 54.5cm | 56cm | 57.5cm | 59cm | 61cm |
|---|---|---|---|---|---|---|---|
| Crank length | 165mm | 165mm | 170mm | 170mm | 175mm | 175mm | 175mm |
| Stem length | 60mm | 70mm | 80mm | 90mm | 90mm | 100mm | 110mm |
| Handlebar width | 400mm | 420mm | 440mm | 460mm | 480mm | 500mm | 520mm |
| Handlebar reach | — | — | — | — | — | — | — |
| Handlebar drop | — | — | — | — | — | — | — |
| Saddle width | — | — | — | — | — | — | — |
| Dropper post travel | — | — | — | — | — | — | — |
| Seatpost offset | — | — | — | — | — | — | — |
Specs
Full specs
>
Specs
Full specs
Frame
Frame
Stormchaser Aluminum
Suspension
Fork
Stormchaser C
Brakes
Front brake
TRP Spyre mechanical disc brakes
Rear brake
TRP Spyre mechanical disc brakes
Front rotor
Shimano RT10 (Center Lock, 160 mm)
Rear rotor
Shimano RT10 (Center Lock, 160 mm)
Drivetrain
Shift levers
N/A
Rear derailleur
N/A
Cassette
Spacer kit with 17t and 18t cog
Chain
KMC Z1eHX EPT Anti-Rust
Crankset
Race Face Ride, 38t
Bottom bracket
null
Cockpit
Stem
Salsa Guide
Handlebars
Salsa Cowchipper
Grips
Velo anti-slip, shock-proof silicone tape
Saddle
WTB Volt Medium Steel
Seatpost
Salsa Guide
Wheels & Tires
Front wheel
Shimano RS470 12 x 100 mm hub, WTB ST TCS 2.0 i23 29" rim, 28h (taped for tubeless, WTB tubeless valve included). Tubes installed
Rear wheel
Shimano RS470 12 x 142 mm hub, WTB ST TCS 2.0 i23 29" rim, 28h (taped for tubeless, WTB tubeless valve included). Tubes installed
Front tire
Teravail Rutland 700 x 42 mm, tubeless ready, Durable casing
Rear tire
Teravail Rutland 700 x 42 mm, tubeless ready, Durable casing
