Rocky Mountain

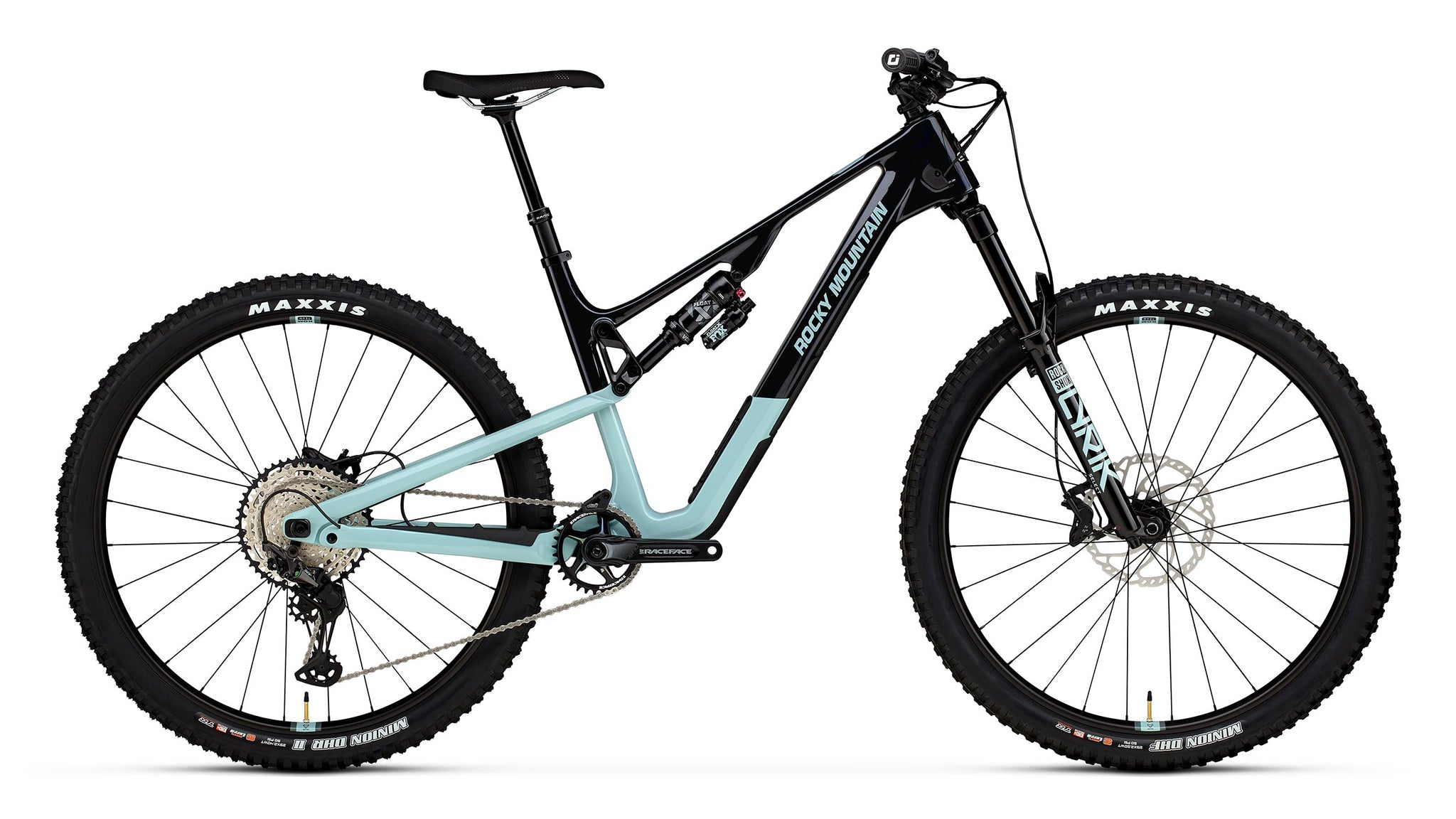

Instinct Carbon 50
Gallery
Images
product
Geometry
Geometry
>
Geometry
Geometry
Frame geometry
| Geometry | lg | md | sm | xl |
|---|---|---|---|---|
| Stack | 628mm | 599mm | 572mm | 659mm |
| Reach | 474mm | 449mm | 423mm | 504mm |
| Headtube length | 125mm | 110mm | 100mm | 135mm |
| Headtube angle | 63.5deg | 63.5deg | 63.5deg | 63.5deg |
| BB height | — | — | — | — |
| BB drop | 44mm | 44mm | 44mm | 44mm |
| Trail | — | — | — | — |
| Fork length | — | — | — | — |
| Fork offset | — | — | — | — |
| Front center | — | — | — | — |
| Chainstay length | 440mm | 440mm | 440mm | 440mm |
| Wheelbase | 1259mm | 1227mm | 1198mm | 1293mm |
| Top tube | 640mm | 621mm | 572mm | 649mm |
| Standover height | 796mm | 798mm | 760mm | 792mm |
| Seat tube length | 440mm | 410mm | 365mm | 470mm |
| Seat tube angle | 76.5deg | 76.5deg | 76.5deg | 76.5deg |
Spec geometry
| Geometry | lg | md | sm | xl |
|---|---|---|---|---|
| Crank length | 170mm | 170mm | 165mm | 170mm |
| Stem length | 40mm | 40mm | 40mm | 40mm |
| Handlebar width | 760mm | 760mm | 760mm | 760mm |
| Handlebar reach | — | — | — | — |
| Handlebar drop | — | — | — | — |
| Saddle width | 142mm | 142mm | 142mm | 142mm |
| Dropper post travel | 200mm | 170mm | 150mm | 200mm |
| Seatpost offset | — | — | — | — |
Specs
Full specs
>
Specs
Full specs
Frame
Frame
SMOOTHWALL™ Carbon | Penalty Box 2.0 Storage | Full Sealed Cartridge Bearings | Press Fit BB | Internal Cable Routing | 2-Bolt ISCG05 Tabs | RIDE-4™ Adjustable Geometry | 2 Position Axle | 140mm Travel | SMOOTHWALL™ Carbon Rear Triangle
Suspension
Rear shock
Fox Float X Performance | Sealed Bearing Eyelet | 20x8mm F Hardware | XS - SM = 190x45mm | MD - LG - XL = 210x52.5mm | Size-Specific tune in FAQ
Fork
RockShox Lyrik Select 150mm | Charger RC Damper | 27.5 = 37mm Offset | 29 = 42mm Offset
Brakes
Front brake
Shimano MT6120 4 Piston | Metal Pads
Rear brake
Shimano MT6120 4 Piston | Metal Pads
Front rotor
null
Rear rotor
null
Drivetrain
Shift levers
Shimano XT
Rear derailleur
Shimano XT
Cassette
Shimano SLX 10-51T 12spd
Chain
Shimano M6100
Crankset
Race Face Aeffect Cinch | 32T | 24mm Spindle | Crankarm Length: XS - SM = 165mm | MD - XL = 170mm
Bottom bracket
Shimano SM-BBMT500
Cockpit
Stem
Rocky Mountain 35 AM | 0° Rise | All Sizes = 40mm
Handlebars
Rocky Mountain AM | 760mm Width | 25mm Rise | 9° Backsweep | 5° Upsweep | 35 Clamp
Grips
ODI Elite Pro Lock On
Saddle
WTB Volt Race 142 | Cromoly rails
Seatpost
X Fusion Manic Composite 30.9mm | XS = 125mm | SM = 150mm | MD = 170mm | LG - XL = 200mm
Wheels & Tires
Front wheel
WTB KOM Team i30 TCS 2.0 | 28H | Tubeless Set Up | Sealant Incl; Novatec D791SB Sealed Boost 15mm; 2.0 Stainless
Rear wheel
WTB KOM Team i30 TCS 2.0 | 28H | Tubeless Set Up | Sealant Incl; DT Swiss 370 Boost 148mm | 18T Star-Ratchet; 2.0 Stainless
Front tire
Maxxis Minion DHF 2.5 WT 3C MaxxTerra EXO+ Tubeless Ready
Rear tire
Maxxis Minion DHR II 2.4 WT 3C MaxxTerra EXO+ Tubeless Ready
