Rocky Mountain

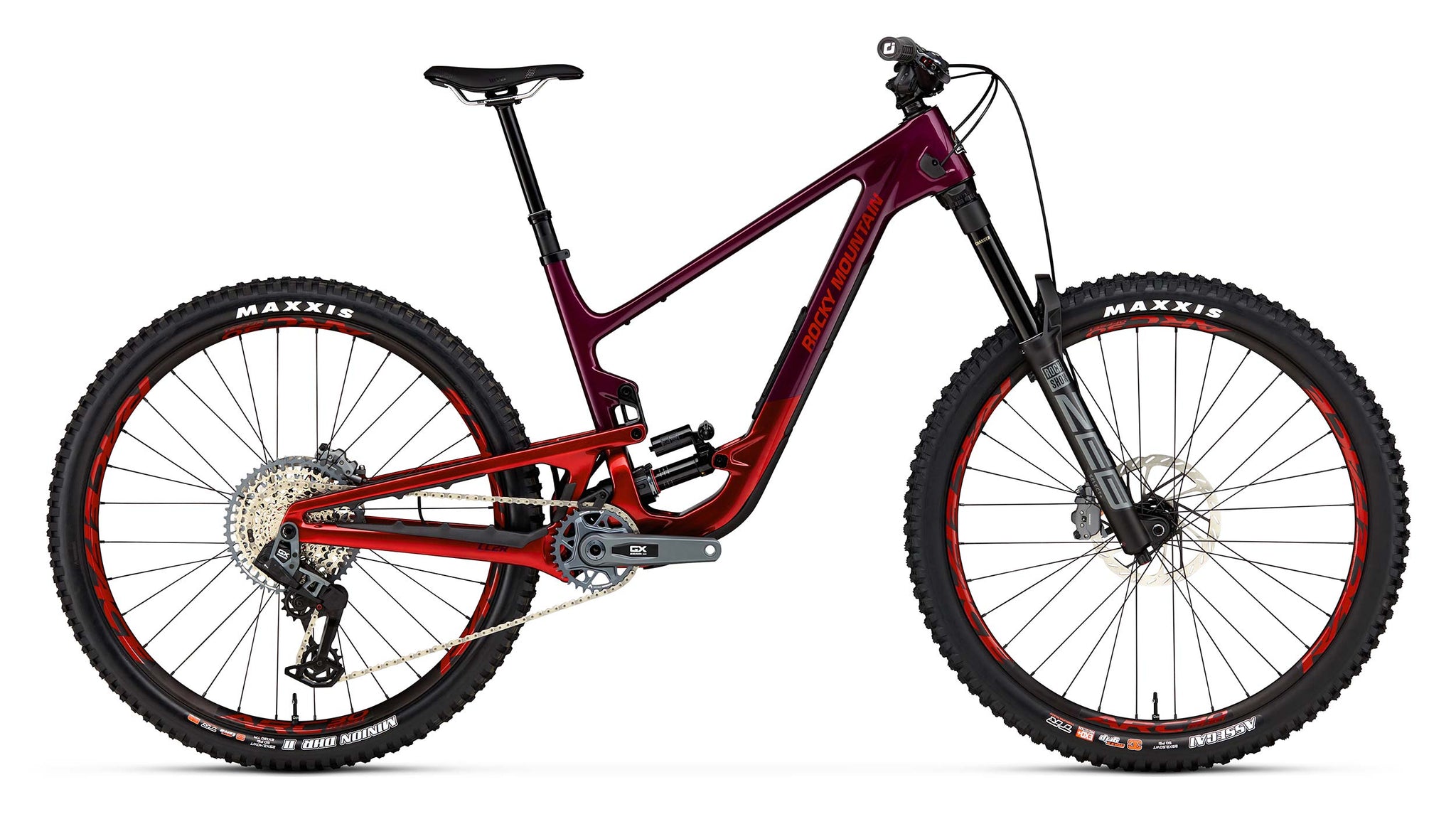

Altitude Carbon 70
Gallery
Images
geometry
Geometry
Geometry
>
Geometry
Geometry
Frame geometry
| Geometry | lg | md | xl |
|---|---|---|---|
| Stack | 639mm | 630mm | 653mm |
| Reach | 475mm | 450mm | 505mm |
| Headtube length | 115mm | 105mm | 130mm |
| Headtube angle | 62.9deg | 62.9deg | 62.9deg |
| BB height | — | — | — |
| BB drop | 29mm | 29mm | 29mm |
| Trail | — | — | — |
| Fork length | — | — | — |
| Fork offset | — | — | — |
| Front center | — | — | — |
| Chainstay length | 450mm | 440mm | 450mm |
| Wheelbase | 1282mm | 1243mm | 1319mm |
| Top tube | 610mm | 584mm | 642mm |
| Standover height | 797mm | 791mm | 808mm |
| Seat tube length | 440mm | 410mm | 470mm |
| Seat tube angle | 77deg | 77deg | 77deg |
Spec geometry
| Geometry | lg | md | xl |
|---|---|---|---|
| Crank length | 170mm | 170mm | 170mm |
| Stem length | 40mm | 40mm | 40mm |
| Handlebar width | 780mm | 780mm | 780mm |
| Handlebar reach | — | — | — |
| Handlebar drop | — | — | — |
| Saddle width | 142mm | 142mm | 142mm |
| Dropper post travel | 210mm | 180mm | 210mm |
| Seatpost offset | — | — | — |
Specs
Full specs
>
Specs
Full specs
Frame
Frame
SMOOTHWALL™ Carbon frame w/ SMOOTHWALL™ Carbon rear triangle | Penalty Box 2.0 Storage | RIDE-4™ adjustable geometry | 160mm travel | full sealed cartridge bearings | threaded BB | internal cable routing | 2-bolt ISCG05 tabs
Suspension
Rear shock
RockShox Vivid Select+ w/ HBO | sealed bearing eyelet | 40x10mm F hardware | SM: 210x55mm | MD-LG-XL: 230x60mm
Fork
RockShox ZEB Select+ RC2, 170mm (27.5: 38mm offset / 29: 44mm offset)
Brakes
Front brake
SRAM Maven Bronze Stealth, 4-piston (metal pads)
Rear brake
SRAM Maven Bronze Stealth, 4-piston (metal pads)
Front rotor
null
Rear rotor
null
Drivetrain
Shift levers
SRAM AXS Pod Controller
Rear derailleur
SRAM GX Eagle Transmission (T-Type) wireless
Cassette
SRAM GX Eagle Transmission, 10-52T
Chain
SRAM GX Eagle Transmission
Crankset
SRAM GX Eagle Transmission crankset, DUB spindle, 32T | crank length: XS-SM 165mm / MD-XL 170mm
Bottom bracket
SRAM DUB BSA 73 Wide
Cockpit
Stem
Rocky Mountain 35 CNC, 40mm, 0° rise
Handlebars
Race Face Turbine, 780mm width, 40mm rise, 8° backsweep, 5° upsweep, 35mm clamp
Grips
ODI Elite Pro Lock-On
Saddle
WTB Solano Fusion Form 142 (cromoly rails)
Seatpost
OneUp V3 Dropper, 30.9mm | SM 150mm / MD 180mm / LG-XL 210mm
Wheels & Tires
Front wheel
Race Face ARC 30, 32H (CushCore Trail insert specified); Novatec D791SB, Boost 15mm (sealed bearing); DT Swiss Competition 2.0/1.8/2.0
Rear wheel
Race Face ARC 30, 32H (CushCore Trail insert specified); DT Swiss 370, Boost 148mm, 18T Star Ratchet; DT Swiss Competition 2.0/1.8/2.0
Front tire
Maxxis Assegai 2.5 WT, 3C MaxxGrip, EXO+, Tubeless Ready (CushCore Trail insert specified)
Rear tire
Maxxis Minion DHR II 2.4 WT, 3C MaxxTerra, DD, Tubeless Ready (CushCore Trail insert specified)
