Revel

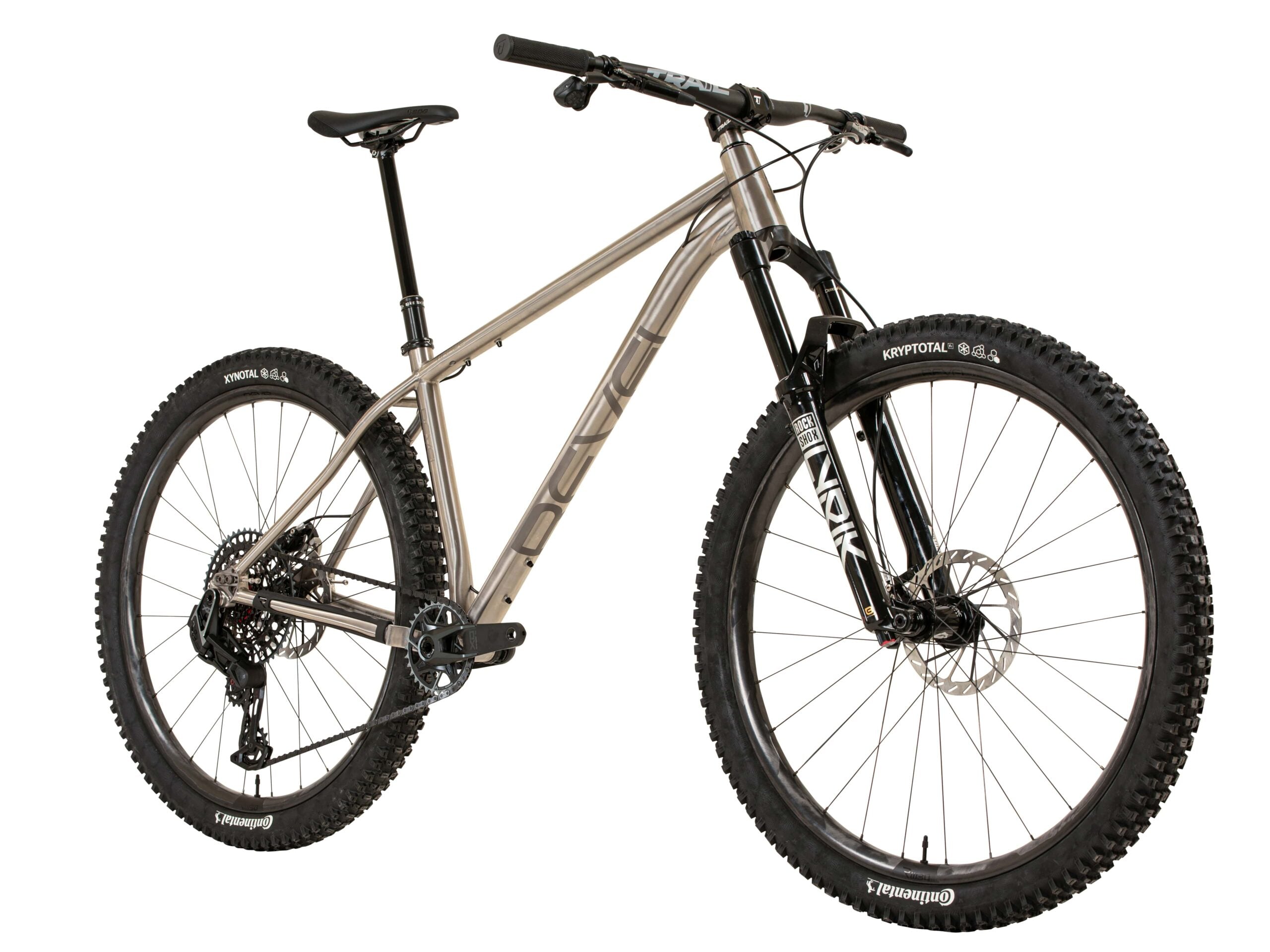

Tirade SRAM X0 Eagle Transmission Kit
Price TBD
Gallery
Images
product
Geometry
Geometry
>
Geometry
Geometry
Frame geometry
| Geometry | Large | Medium | Small | XL | XXL |
|---|---|---|---|---|---|
| Stack | 650mm | 640mm | 626mm | 660mm | 676mm |
| Reach | 467mm | 446mm | 427mm | 492mm | 522mm |
| Headtube length | 122mm | 110mm | 95mm | 132mm | 149mm |
| Headtube angle | 64.7deg | 64.7deg | 64.7deg | 64.7deg | 64.7deg |
| BB height | 317mm | 317mm | 317mm | 317mm | 317mm |
| BB drop | 59mm | 59mm | 59mm | 59mm | 59mm |
| Trail | 131mm | 131mm | 131mm | 131mm | 131mm |
| Fork length | 551mm | 551mm | 551mm | 551mm | 551mm |
| Fork offset | 44mm | 44mm | 44mm | 44mm | 44mm |
| Front center | — | — | — | — | — |
| Chainstay length | 420mm | 420mm | 420mm | 420mm | 420mm |
| Wheelbase | 1215mm | 1190mm | 1163mm | 1240mm | 1280mm |
| Top tube | 641mm | 627mm | 603mm | 671mm | 698mm |
| Standover height | 728mm | 720mm | 717mm | 742mm | 761mm |
| Seat tube length | 440mm | 410mm | 370mm | 470mm | 510mm |
| Seat tube angle | 74.5deg | 74.5deg | 74deg | 75deg | 75.5deg |
Specs
Full specs
>
Specs
Full specs
No specs available yet.
