Revel

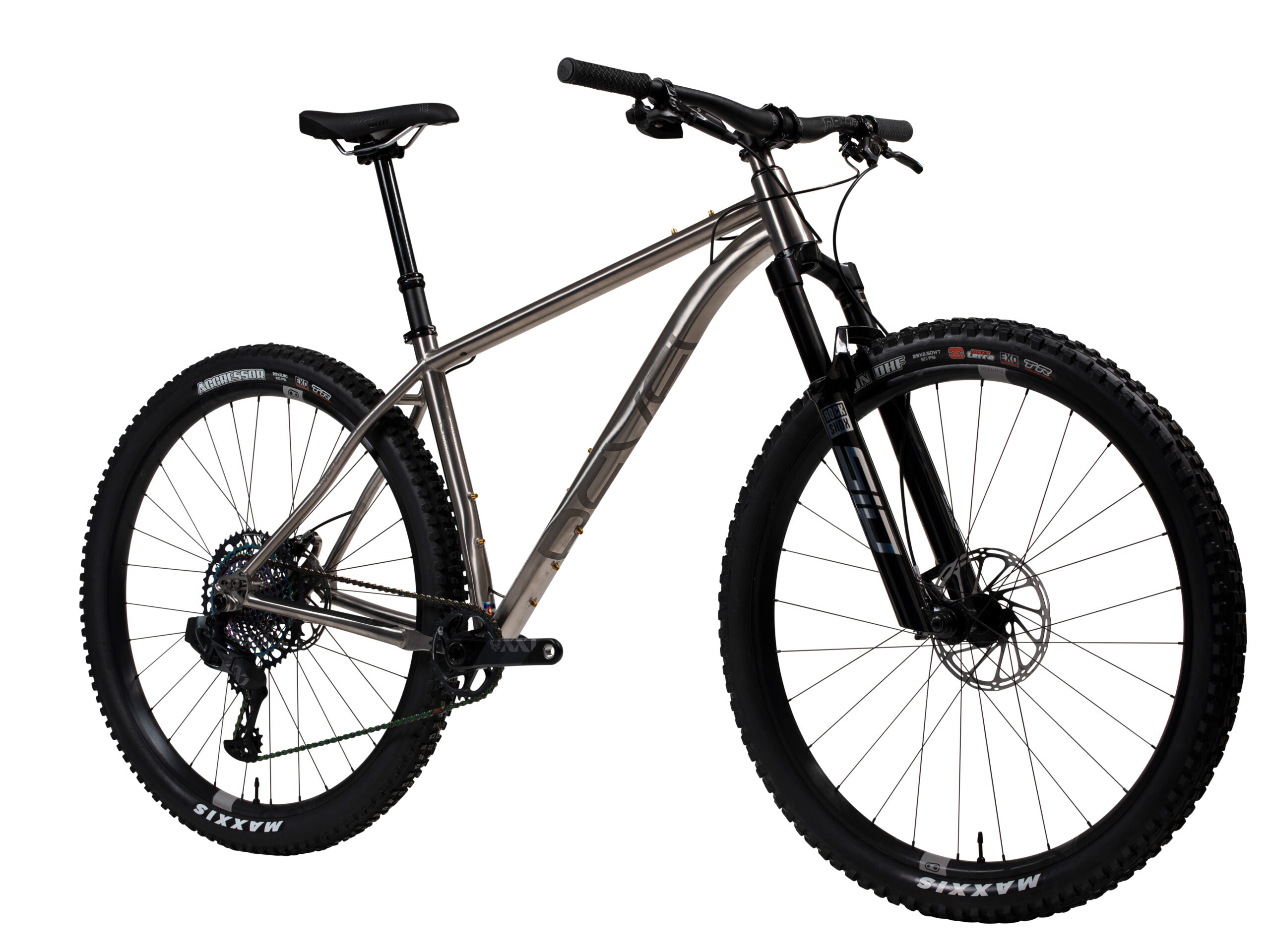

El Jefe SRAM Eagle 90 Kit
Price TBD
Gallery
Images
product
Geometry
Geometry
>
Geometry
Geometry
Frame geometry
| Geometry | Large | Medium | Small | XL |
|---|---|---|---|---|
| Stack | 615mm | 607mm | 599mm | 627mm |
| Reach | 474mm | 455mm | 435mm | 499mm |
| Headtube length | 106mm | 96mm | 86mm | 116mm |
| Headtube angle | 67.5deg | 67.5deg | 67.5deg | 67.5deg |
| BB height | 299mm | 299mm | 299mm | 299mm |
| BB drop | 68mm | 68mm | 68mm | 68mm |
| Trail | 112mm | 112mm | 112mm | 112mm |
| Fork length | 510mm | 510mm | 510mm | 510mm |
| Fork offset | 44mm | 44mm | 44mm | 44mm |
| Front center | — | — | — | — |
| Chainstay length | 420mm | 420mm | 420mm | 420mm |
| Wheelbase | 1167mm | 1146mm | 1121mm | 1199mm |
| Top tube | 640mm | 615mm | 590mm | 670mm |
| Standover height | 770mm | 735mm | 700mm | 790mm |
| Seat tube length | 460mm | 420mm | 374mm | 455mm |
| Seat tube angle | 75deg | 75deg | 75deg | 75deg |
Specs
Full specs
>
Specs
Full specs
No specs available yet.
