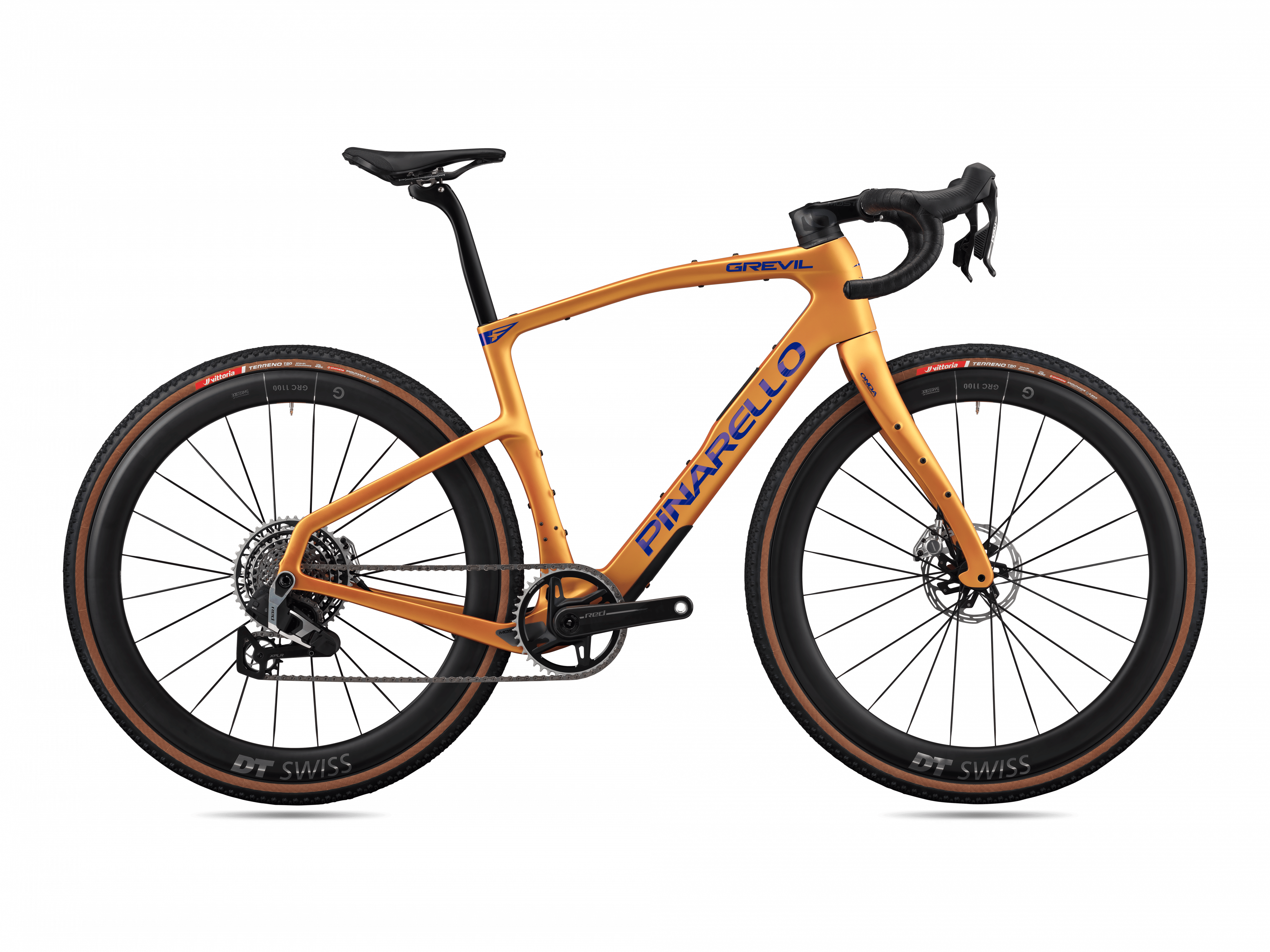

Pinarello
Grevil F F9 SRAM Red XPLR AXS
Price TBD
Gallery
Images
action
Geometry
Geometry
>
Geometry
Geometry
Frame geometry
| Geometry | 410 | 440 | 470 | 490 | 510 | 545 |
|---|---|---|---|---|---|---|
| Stack | 553.2mm | 568.3mm | 583.2mm | 598.4mm | 613.6mm | 633.7mm |
| Reach | 368.4mm | 376.1mm | 383.7mm | 390.4mm | 398.2mm | 406.9mm |
| Headtube length | 115mm | 130mm | 150mm | 160mm | 175mm | 195mm |
| Headtube angle | 70.25deg | 70.5deg | 70.75deg | 71.75deg | 72deg | 72.25deg |
| BB height | — | — | — | — | — | — |
| BB drop | 72mm | 72mm | 67mm | 67mm | 67mm | 67mm |
| Trail | — | — | — | — | — | — |
| Fork length | 430mm | 430mm | 430mm | 430mm | 430mm | 430mm |
| Fork offset | 55mm | 55mm | 55mm | 50mm | 50mm | 50mm |
| Front center | 603.9mm | 614.5mm | 625.8mm | 621.9mm | 631.9mm | 644.3mm |
| Chainstay length | 405mm | 405mm | 405mm | 405mm | 405mm | 405mm |
| Wheelbase | 1023.5mm | 1034.2mm | 1047mm | 1043mm | 1053.1mm | 1065.5mm |
| Top tube | 530mm | 545mm | 558mm | 570mm | 587mm | 607mm |
| Standover height | — | — | — | — | — | — |
| Seat tube length | 470mm | 500mm | 530mm | 550mm | 575mm | 600mm |
| Seat tube angle | 74.5deg | 74deg | 73.75deg | 73.5deg | 73deg | 72.5deg |
Spec geometry
| Geometry | 410 | 440 | 470 | 490 | 510 | 545 |
|---|---|---|---|---|---|---|
| Crank length | — | — | — | — | — | — |
| Stem length | — | — | — | — | — | — |
| Handlebar width | — | — | — | — | — | — |
| Handlebar reach | — | — | — | — | — | — |
| Handlebar drop | — | — | — | — | — | — |
| Saddle width | — | — | — | — | — | — |
| Dropper post travel | — | — | — | — | — | — |
| Seatpost offset | — | — | — | — | — | — |
Specs
Full specs
>
Specs
Full specs
Frame
Frame
TORAY T900 UD
Suspension

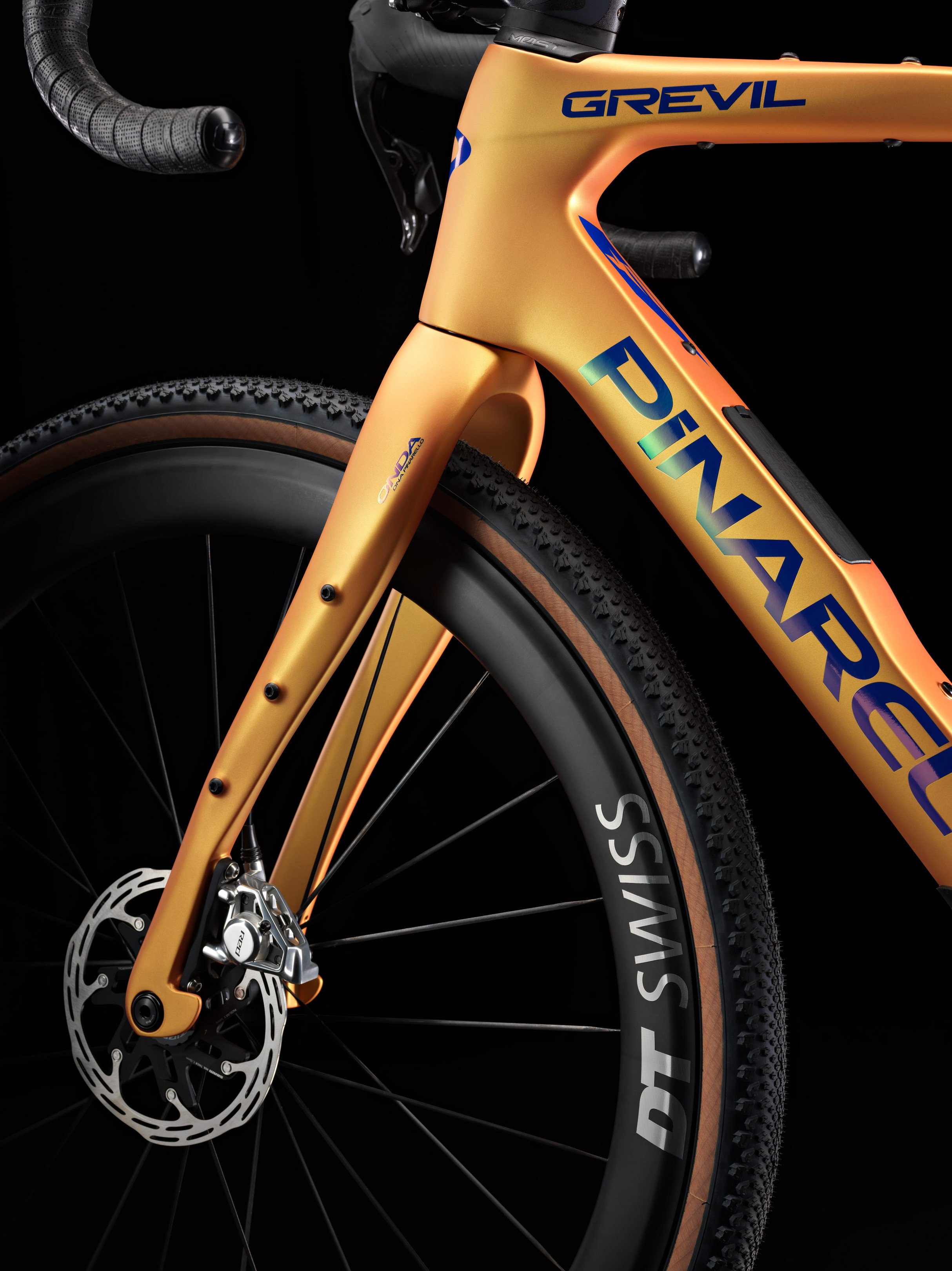

Fork

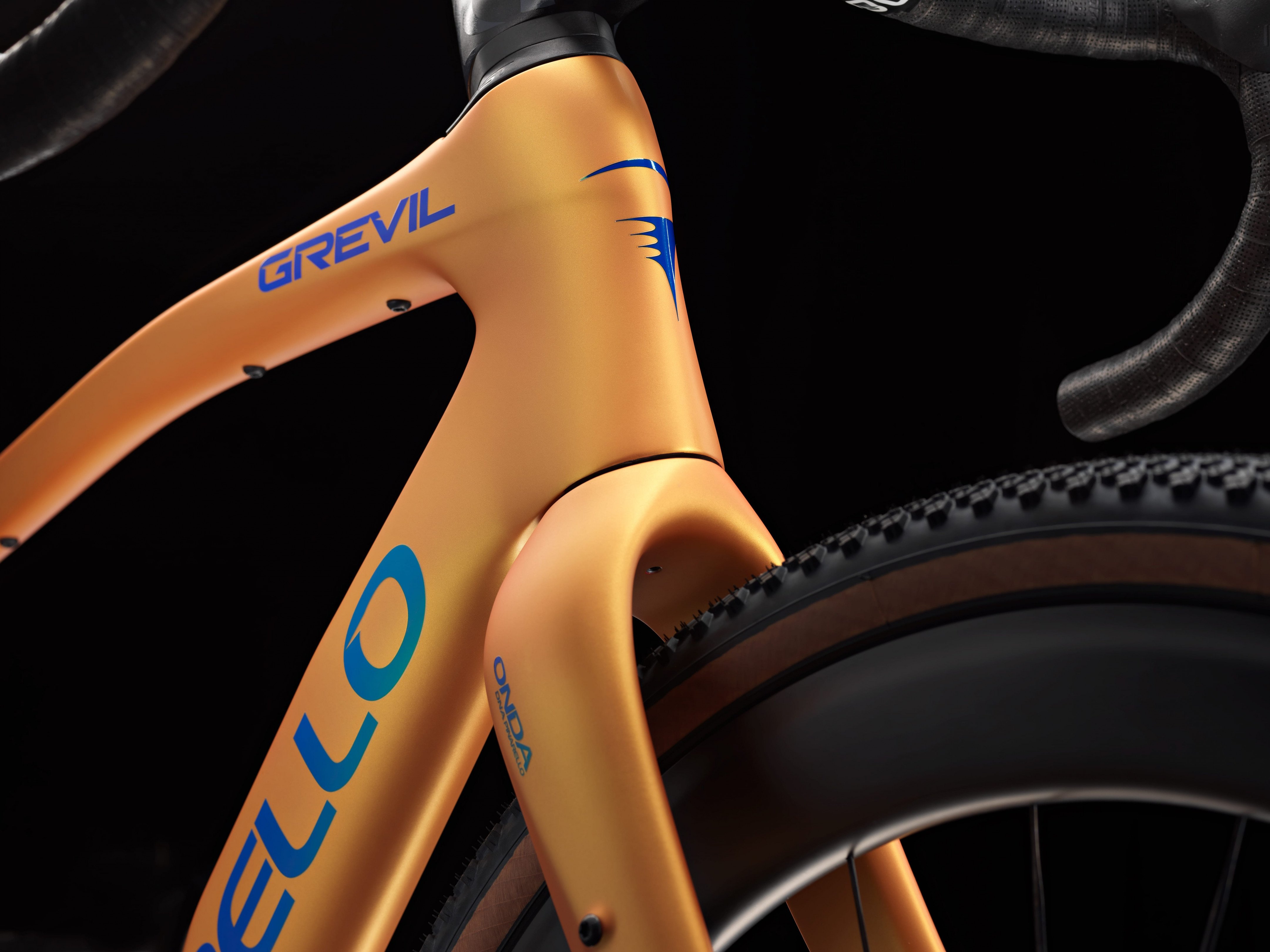

F Onda Fork with ForkFlap™, tapered head tube
Brakes
Front brake
SRAM Red, 2-piston hydraulic caliper
Rear brake
SRAM Red, 2-piston hydraulic caliper
Front rotor
160mm
Rear rotor
160mm

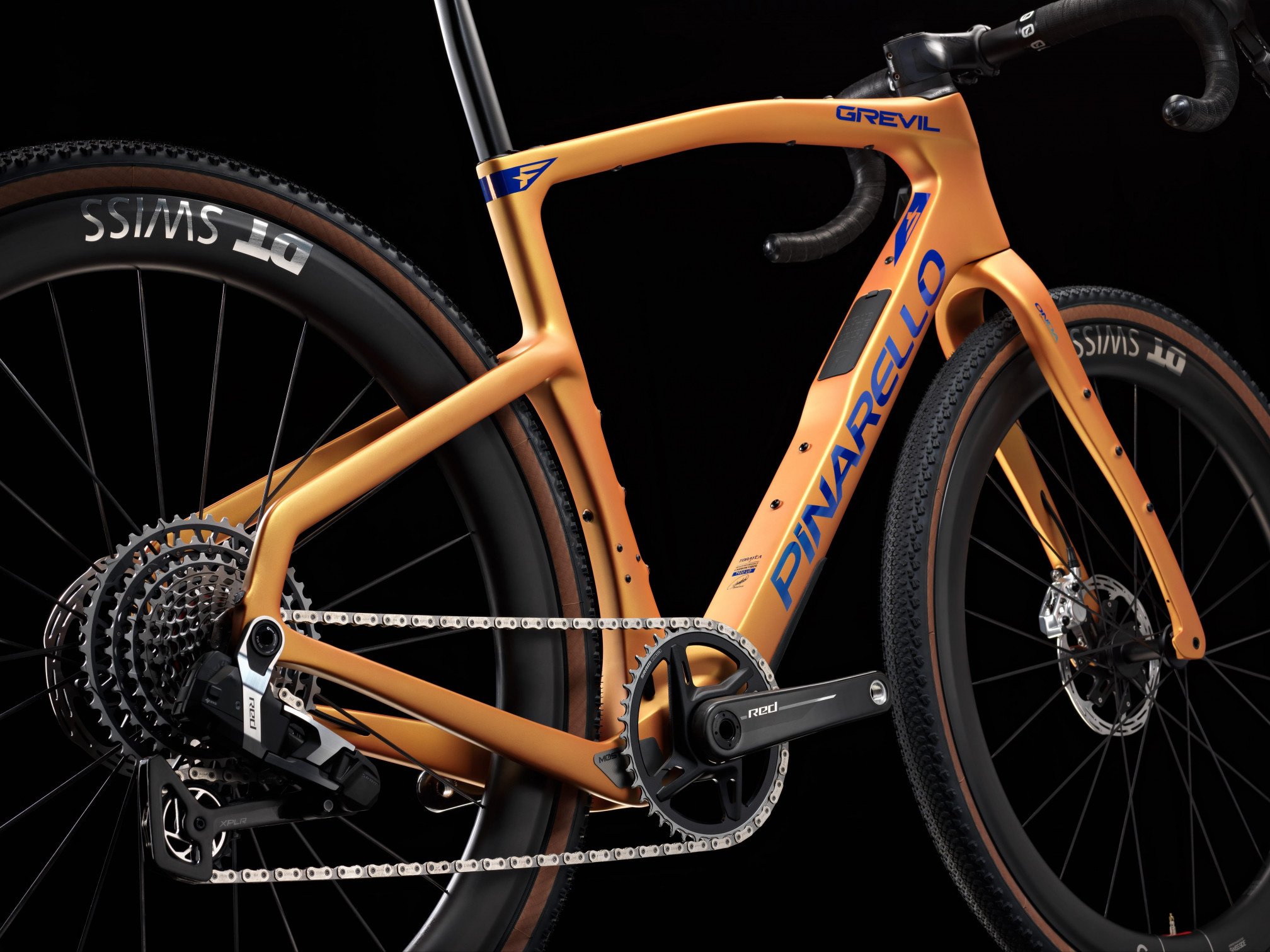

Drivetrain
Shift levers
SRAM RED XPLR AXS
Rear derailleur
SRAM RED XPLR AXS
Cassette
SRAM RED XPLR AXS 1x13
Chain
SRAM Red

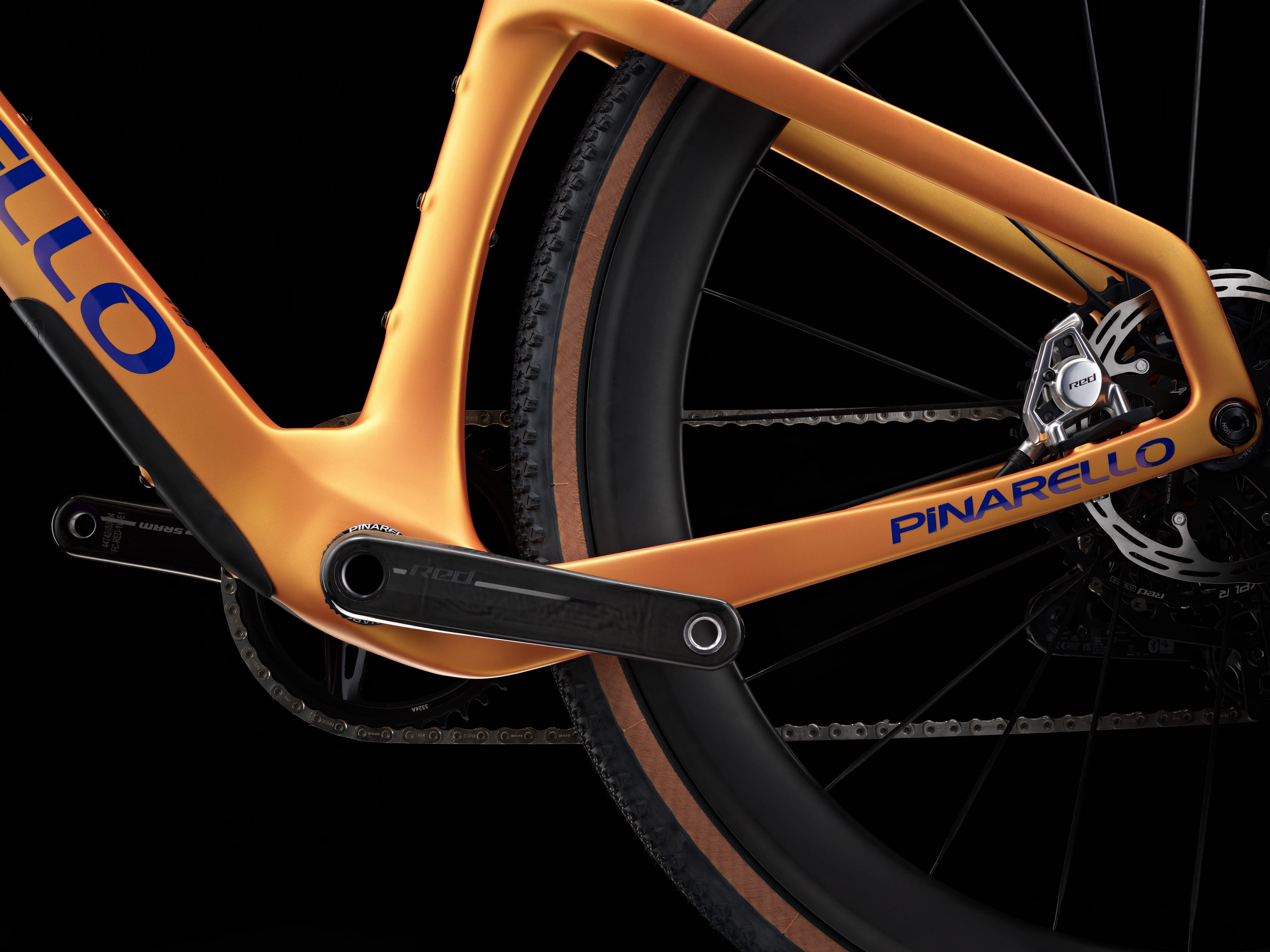

Crankset
SRAM RED XPLR AXS 1x13
Bottom bracket
SRAM BB DUB ITALIAN 70mm ROAD WIDE
Cockpit
Stem
TIGER ALU AERO TICR
Handlebars
JAGUAR ULTRA GR TICR
Saddle
Most Lynx My26

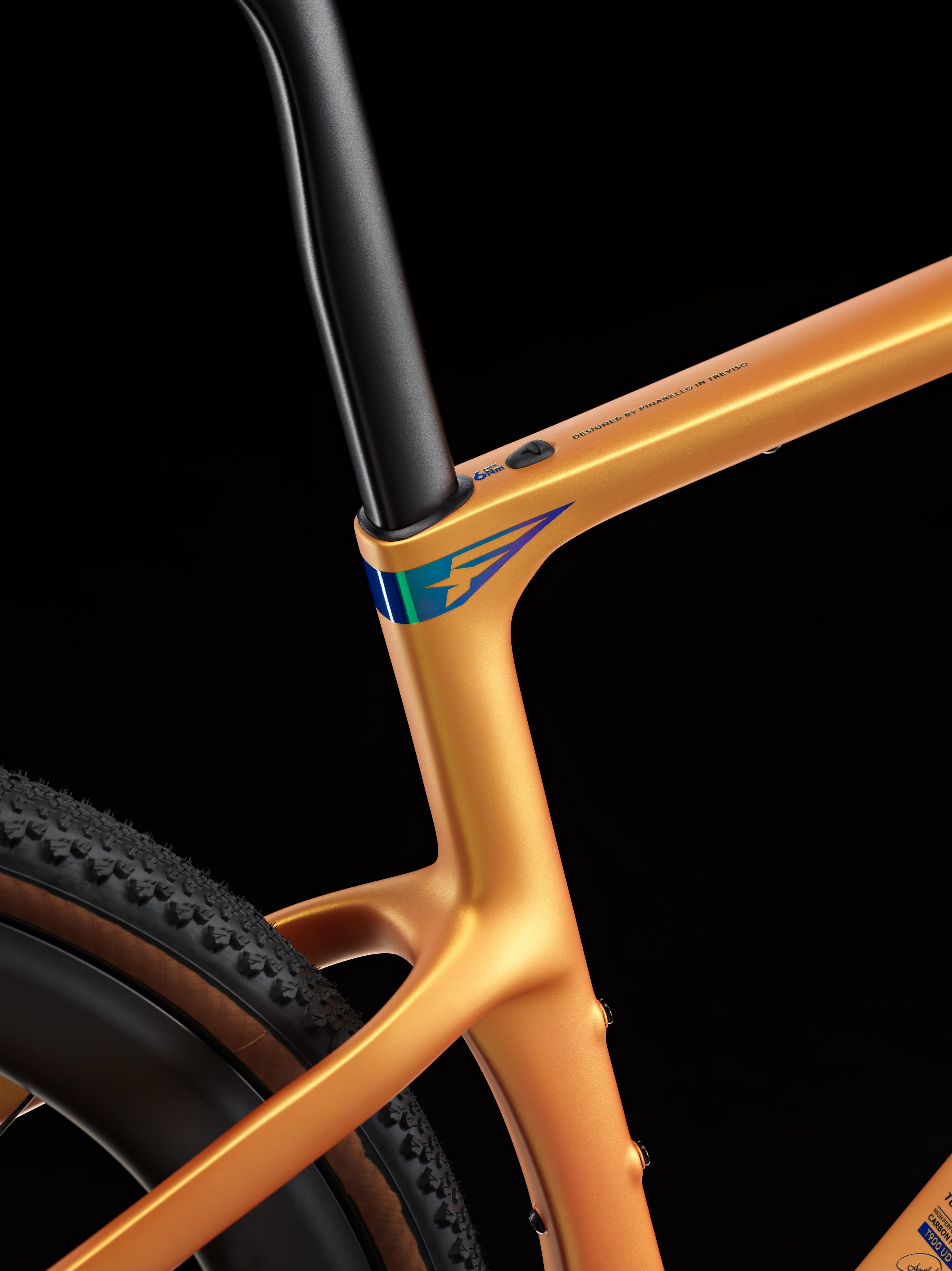

Seatpost
D-SHAPE SEATPOST
Wheels & Tires
Front wheel
DT SWISS GRC 1400 50DB
Rear wheel
DT SWISS GRC 1400 50DB
Front tire
Vittoria Terreno T50 45
Rear tire
Vittoria Terreno T50 45
