Mondraker

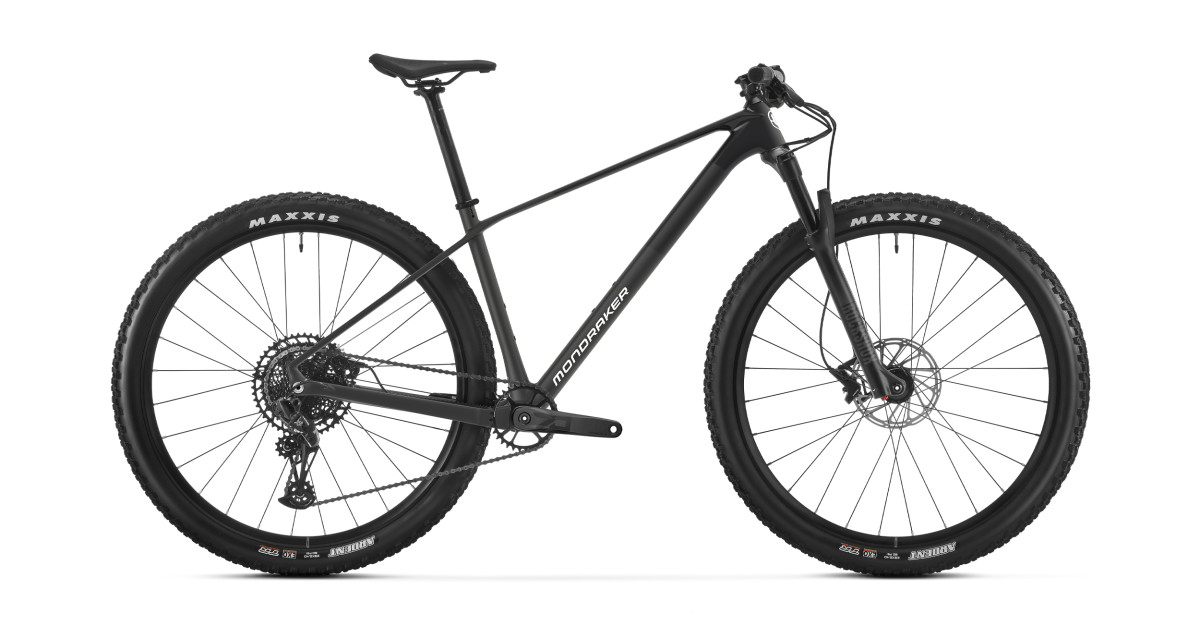

Podium S
Gallery
Images
other
Geometry
Geometry
>
Geometry
Geometry
Spec geometry
| Geometry | L | M | S | XL |
|---|---|---|---|---|
| Crank length | 170mm | 165mm | 165mm | 170mm |
| Stem length | 70mm | 60mm | 60mm | 80mm |
| Handlebar width | 760mm | 760mm | 760mm | 760mm |
| Handlebar reach | — | — | — | — |
| Handlebar drop | — | — | — | — |
| Saddle width | 140mm | 140mm | 140mm | 140mm |
| Dropper post travel | — | — | — | — |
| Seatpost offset | — | — | — | — |
Specs
Full specs
>
Specs
Full specs
Frame
Frame
Podium 29 Stealth Air Carbon, XC Forward Geometry, BSA bottom bracket, tapered head tube, HHG internal cable routing, Boost 12x148mm rear axle, UDH, dedicated 1x drivetrain design, flat-mount brake compatible
Suspension
Fork
RockShox Recon Gold RL Remote 29, 100mm, Motion Control, Solo Air, tapered steerer, Boost 15x110mm, 30mm aluminum stanchions, 42mm offset (OneLoc remote)
Brakes
Front brake
Shimano MT501 (Servo Wave alloy lever), resin pads
Rear brake
Shimano MT501 (Servo Wave alloy lever), resin pads
Front rotor
Shimano RT56, 180mm, 6-bolt
Rear rotor
Shimano RT56, 160mm, 6-bolt
Drivetrain
Shift levers
SRAM 70 Eagle T-Type, 12-speed
Rear derailleur
SRAM 70 Eagle T-Type, 12-speed
Cassette
SRAM XS-1270, 12-speed, 10-52T
Chain
SRAM 70 Eagle, 12-speed, PowerLock
Crankset
SRAM 70 Eagle T-Type, Boost, DUB spindle, 3-bolt chainring mount, 55mm chainline; crank length: S/M 165mm, L/XL 170mm
Bottom bracket
SRAM DUB BSA, 73mm, sealed bearings
Cockpit
Stem
MDK 6061-T6 alloy, 31.8mm clamp, +/-5°; length: S 60mm, M 60mm, L 70mm, XL 80mm
Handlebars
Onoff S3 0.2 6061 alloy, 31.8mm clamp, 760mm width, 5mm rise, 8° backsweep, 4° upsweep
Grips
Ergon GRX, black
Saddle
Fizik Vento Argo X5, 140mm
Seatpost
Onoff S3 0-R, 27.2mm x 400mm
Wheels & Tires
Front wheel
Mavic CrossRide 29 Boost, 30mm internal width, tubeless ready, 28h; Mavic Boost 15x110mm, sealed bearings, 6-bolt; Mavic 28 round J-bent stainless steel
Rear wheel
Mavic CrossRide 29 Boost, 30mm internal width, tubeless ready, 28h; Mavic ID360, Boost 12x148mm, HG freehub, 6-bolt; Mavic 28 round J-bent stainless steel
Front tire
Maxxis Rekon Race 29x2.4, EXO, tubeless ready, 120 TPI, folding bead
Rear tire
Maxxis Rekon Race 29x2.4, EXO, tubeless ready, 120 TPI, folding bead
Weight
Weight
24.0 lb
