Mondraker

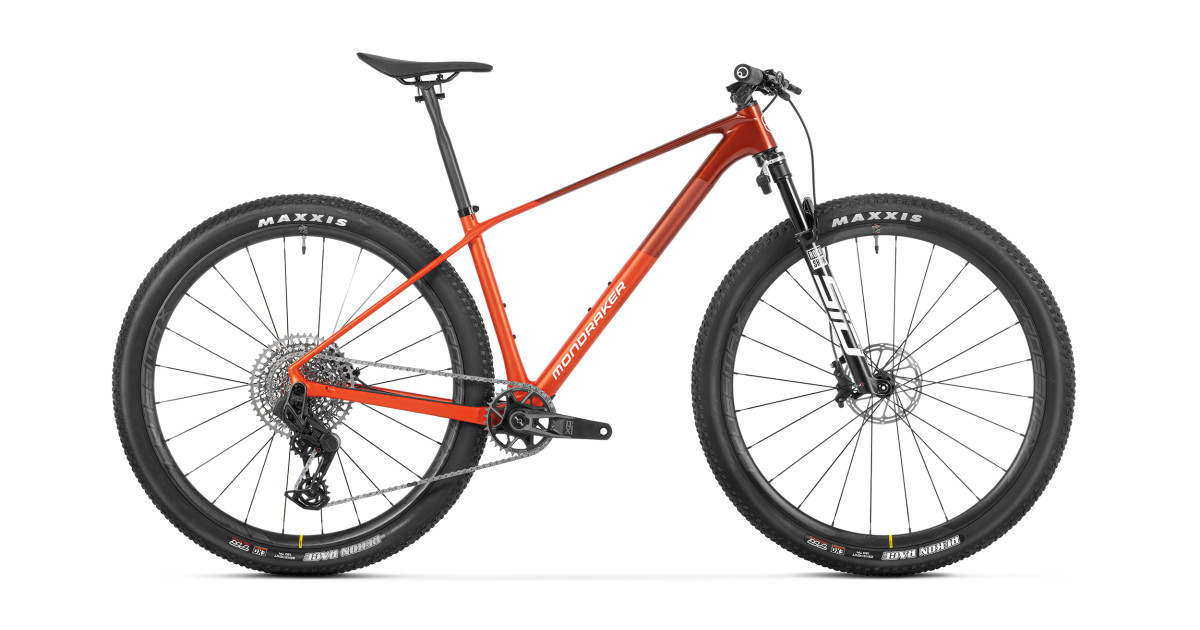

Podium RR
Gallery
Images
Geometry
Geometry
>
Geometry
Geometry
Spec geometry
| Geometry | L | M | S | XL |
|---|---|---|---|---|
| Crank length | 170mm | 165mm | 165mm | 170mm |
| Stem length | 70mm | 60mm | 60mm | 80mm |
| Handlebar width | 760mm | 760mm | 760mm | 760mm |
| Handlebar reach | — | — | — | — |
| Handlebar drop | — | — | — | — |
| Saddle width | 140mm | 140mm | 140mm | 140mm |
| Dropper post travel | — | — | — | — |
| Seatpost offset | — | — | — | — |
Specs
Full specs
>
Specs
Full specs
Frame
Frame
Podium 29 Stealth Air Carbon, XC Forward Geometry, BSA bottom bracket, tapered head tube, HHG internal cable routing, Boost 12x148mm rear axle, UDH, dedicated 1x drivetrain design, Flatmount brake compatible
Suspension
Fork
RockShox SID SL Ultimate Flight Attendant, 100mm, DebonAir+, Charger Race Day 2, tapered steerer, Boost 15x110mm axle, 32mm aluminum stanchions, 44mm offset (AXS-controlled remote)
Brakes
Front brake
SRAM Motive Bronze 4P Stealth (2-piece caliper), steel-backed organic pads
Rear brake
SRAM Motive Bronze 4P Stealth (2-piece caliper), steel-backed organic pads
Front rotor
SRAM CenterLine 160mm, 6-bolt, one-piece rotor
Rear rotor
SRAM CenterLine 160mm, 6-bolt, one-piece rotor
Drivetrain
Shift levers
SRAM Eagle AXS Pod, 12-speed
Rear derailleur
SRAM X0 Eagle AXS T-Type, 12-speed
Cassette
SRAM XS-1275, 12-speed, 10-52T
Chain
SRAM GX Eagle, 12-speed, PowerLock
Crankset
SRAM X0 Eagle T-Type DUB, Boost, 55mm chainline, direct-mount 34T chainring, power meter (S/M: 165mm; L/XL: 170mm)
Bottom bracket
SRAM DUB BSA, 73mm, sealed bearings
Cockpit
Stem
Onoff S6 6061-T6 alloy + CNC, 31.8mm clamp, -7° (S: 60mm; M: 60mm; L: 70mm; XL: 80mm)
Handlebars
Onoff S6 Carbon 0.2, 31.8mm clamp, 760mm width, 5mm rise, 8° backsweep, 4° upsweep
Grips
Ergon GRX, black
Saddle
Fizik Vento Argo X5, 140mm
Seatpost
Onoff S9 Carbon 0-R, 27.2mm diameter, 400mm length
Wheels & Tires
Front wheel
Mavic CrossMax S Carbon 29, 30mm internal width, hookless, tubeless ready, 24 spokes; Mavic hub, Boost 15x110mm, 6-bolt; Mavic J-bend spokes
Rear wheel
Mavic CrossMax S Carbon 29, 30mm internal width, hookless, tubeless ready, 28 spokes; Mavic hub w/ ID360 freewheel technology, Boost 12x148mm, XD driver, 6-bolt; Mavic J-bend spokes
Front tire
Maxxis Rekon Race 29x2.4, EXO protection, tubeless ready, 120 TPI, folding bead
Rear tire
Maxxis Rekon Race 29x2.4, EXO protection, tubeless ready, 120 TPI, folding bead
Weight
Weight
20.5 lbs
