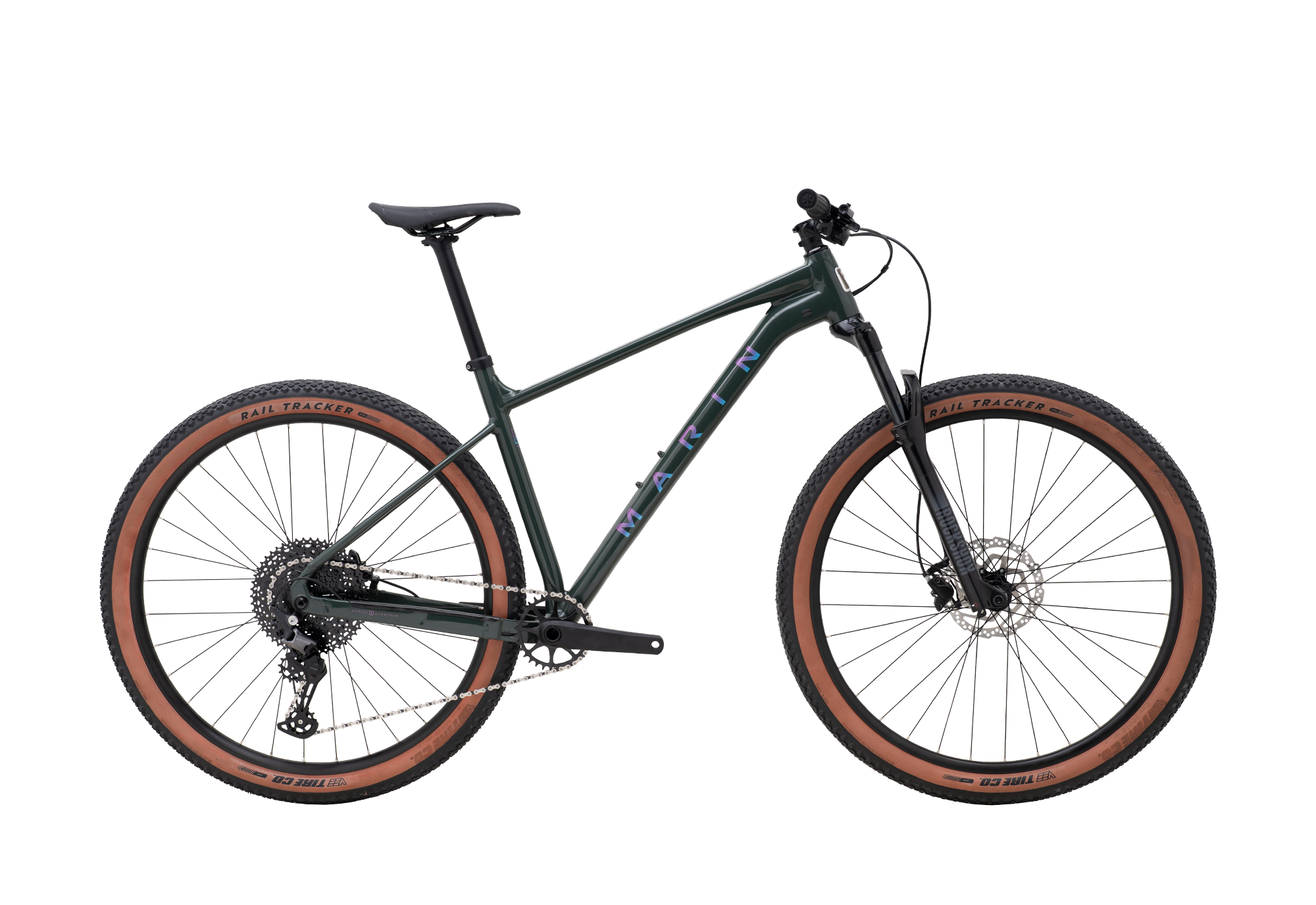

Team Marin 1
Gallery
Images
product
Geometry
Geometry
>
Geometry
Geometry
Frame geometry
| Geometry | L | M | S | XL |
|---|---|---|---|---|
| Stack | 637mm | 628mm | 616mm | 646mm |
| Reach | 450mm | 430mm | 410mm | 485mm |
| Headtube length | 120mm | 110mm | 97mm | 130mm |
| Headtube angle | 66.5deg | 66.5deg | 66.5deg | 66.5deg |
| BB height | 320mm | 320mm | 320mm | 320mm |
| BB drop | 58mm | 58mm | 58mm | 58mm |
| Trail | — | — | — | — |
| Fork length | — | — | — | — |
| Fork offset | 44mm | 44mm | 44mm | 44mm |
| Front center | — | — | — | — |
| Chainstay length | 425mm | 425mm | 425mm | 425mm |
| Wheelbase | 1171mm | 1147mm | 1122mm | 1210mm |
| Top tube | 633mm | 610mm | 587mm | 670mm |
| Standover height | 756mm | 709mm | 680mm | 789mm |
| Seat tube length | 482mm | 431mm | 381mm | 520mm |
| Seat tube angle | 74deg | 74deg | 74deg | 74deg |
Spec geometry
| Geometry | L | M | S | XL |
|---|---|---|---|---|
| Crank length | 175mm | 175mm | 170mm | 175mm |
| Stem length | 35mm | 35mm | 35mm | 35mm |
| Handlebar width | 780mm | 780mm | 780mm | 780mm |
| Handlebar reach | — | — | — | — |
| Handlebar drop | — | — | — | — |
| Saddle width | — | — | — | — |
| Dropper post travel | — | — | — | — |
| Seatpost offset | — | — | — | — |
Specs
Full specs
>
Specs
Full specs
Frame
Frame
Series 4 6061 Aluminum, 29" wheels, post-mount rear brake, internal shifter & dropper routing, 148x12mm Boost thru-axle
Suspension
Fork
RockShox Judy Silver TK, 120mm travel, Solo Air, alloy tapered steerer, 110x15mm Boost, Maxle Stealth, 51mm offset
Brakes
Front brake
Shimano BR-MT200 hydraulic disc w/ Shimano BL-MT201 lever
Rear brake
Shimano BR-MT200 hydraulic disc w/ Shimano BL-MT201 lever
Front rotor
180mm Centerlock
Rear rotor
160mm
Drivetrain
Shift levers
Shimano Deore, 12-speed
Rear derailleur
Shimano Deore, 12-speed
Cassette
SunRace, 12-speed, 11-51T
Chain
KMC X12
Crankset
Forged Alloy 1x12 crankset, hollow spindle, steel narrow-wide 32T chainring
Bottom bracket
External sealed cartridge bearings
Cockpit
Stem
Marin 3D Forged Alloy, 35mm
Handlebars
Marin Mini-Riser, 6061 double-butted aluminum, 780mm width, 4° up, 9° back
Grips
Marin Single Clamp Locking
Saddle
Marin Speed Concept
Seatpost
Marin Alloy (diameter not confirmed; listed as 3.9mm)
Wheels & Tires
Front wheel
Aluminum double wall, 29mm internal, sleeve joint, disc specific, tubeless compatible; Forged Aluminum, 110x15mm, disc, 32H; 14g black stainless steel
Rear wheel
Aluminum double wall, 29mm internal, sleeve joint, disc specific, tubeless compatible; Shimano, 148x12mm, MicroSpline, disc, 32H; 14g black stainless steel
Front tire
Vee Tire Rail Rocco XC, 29x2.3, Dual Control compound, folding bead, tubeless ready
Rear tire
Vee Tire Rail Rocco XC, 29x2.3, Dual Control compound, folding bead, tubeless ready
