Marin

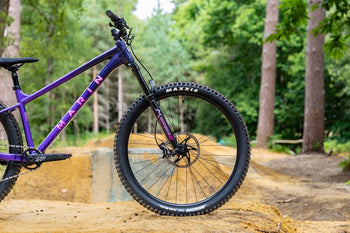

San Quentin 1
Gallery
Images
Geometry
Geometry
>
Geometry
Geometry
Frame geometry
| Geometry | L | M | S | XL |
|---|---|---|---|---|
| Stack | 645mm | 622.5mm | 618mm | 650mm |
| Reach | 470mm | 450mm | 422mm | 500mm |
| Headtube length | 125mm | 115mm | 110mm | 130mm |
| Headtube angle | 64deg | 64deg | 64deg | 64deg |
| BB height | 327mm | 316mm | 316mm | 327mm |
| BB drop | 50mm | 50mm | 50mm | 50mm |
| Trail | — | — | — | — |
| Fork length | — | — | — | — |
| Fork offset | 44mm | 37mm | 37mm | 44mm |
| Front center | — | — | — | — |
| Chainstay length | 430mm | 425mm | 425mm | 430mm |
| Wheelbase | 1236mm | 1203.6mm | 1173.4mm | 1268mm |
| Top tube | 619mm | 593.7mm | 564.7mm | 650mm |
| Standover height | 688mm | 656.4mm | 627.7mm | 695mm |
| Seat tube length | 410mm | 340mm | 310mm | 420mm |
| Seat tube angle | 77deg | 77deg | 77deg | 77deg |
Spec geometry
| Geometry | L | M | S | XL |
|---|---|---|---|---|
| Crank length | 170mm | 170mm | 170mm | 170mm |
| Stem length | 35mm | 35mm | 35mm | 35mm |
| Handlebar width | 780mm | 780mm | 780mm | 780mm |
| Handlebar reach | — | — | — | — |
| Handlebar drop | — | — | — | — |
| Saddle width | — | — | — | — |
| Dropper post travel | — | — | — | — |
| Seatpost offset | — | — | — | — |
Specs
Full specs
>
Specs
Full specs
Frame
Frame
Series 2 6061 Aluminum, 27.5" or 29" wheel, double butted, internal cable routing, 141mm open dropout, 73mm threaded BB
Suspension
Fork
SR Suntour XCM34 Boost, 15x110mm, 130mm travel, coil spring, 27.5", bolt-on thru-axle
Brakes
Front brake
Tektro M275 hydraulic disc brake
Rear brake
Tektro M275 hydraulic disc brake
Front rotor
180mm
Rear rotor
180mm
Drivetrain
Shift levers
MicroShift SL-M9195-R, 1x9 (bearing)
Rear derailleur
MicroShift RD-M9195M, 9-speed, clutch
Cassette
9-speed cassette (not specified)
Chain
KMC X-9
Crankset
Marin forged alloy crankset, integrated steel 32T narrow-wide chainring, Boost spacing
Bottom bracket
Sealed cartridge bearing, square taper
Cockpit
Stem
Marin 3D forged alloy, 45mm
Handlebars
Marin Mini-Riser, 6061 double butted aluminum, 780mm width, 28mm rise, 5° up, 9° back
Grips
Marin MTN, closed end
Saddle
Marin Speed Concept
Seatpost
Marin alloy, 30.9mm
Wheels & Tires
Front wheel
Marin aluminum double wall, specific, 29mm internal, pinned joint, 32H, tubeless compatible; Forged alloy, 110x15mm, sealed cartridge bearing, 32H; 14g black stainless steel
Rear wheel
Marin aluminum double wall, specific, 29mm internal, pinned joint, 32H, tubeless compatible; Forged alloy, quad sealed cartridge bearings, alloy axle, QR type, 141mm width, 32H, Shimano standard freehub body; 14g black stainless steel
Front tire
Delium Vesatile, all-around construction, 2.5", wire-bead, tubeless
Rear tire
Delium Vesatile, all-around construction, 2.5", wire-bead, tubeless
