Marin

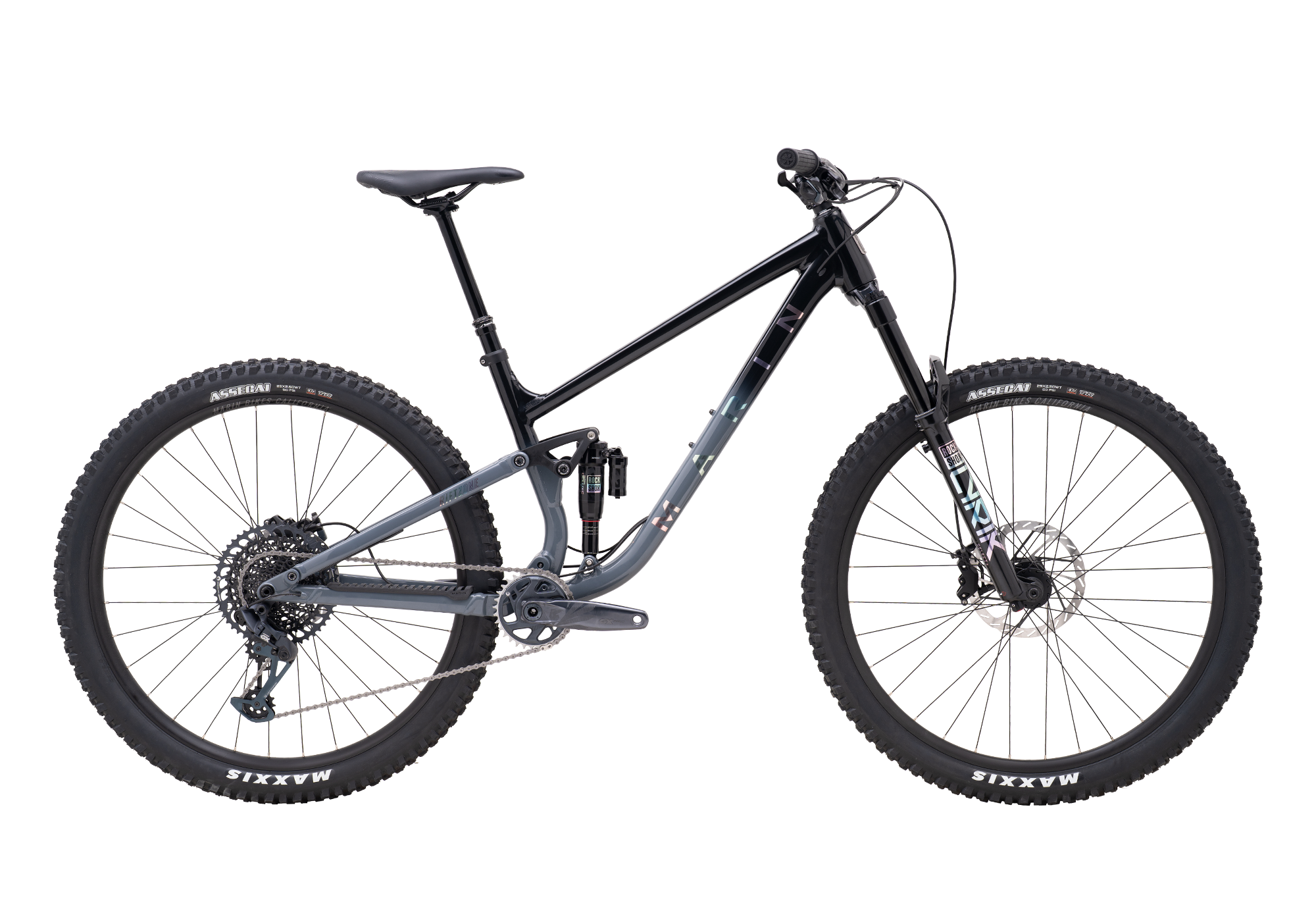

Rift Zone XR
Gallery
Images
Geometry
Geometry
>
Geometry
Geometry
Frame geometry
| Geometry | L | M | S | XL |
|---|---|---|---|---|
| Stack | 637.3mm | 628.2mm | 569.1mm | 641.8mm |
| Reach | 485mm | 460mm | 415mm | 515mm |
| Headtube length | 125mm | 115mm | 115mm | 130mm |
| Headtube angle | 65.1deg | 65.1deg | 65.1deg | 65.1deg |
| BB height | 348mm | 348mm | 344mm | 348mm |
| BB drop | 35mm | 35mm | 20mm | 35mm |
| Trail | — | — | — | — |
| Fork length | — | — | — | — |
| Fork offset | 44mm | 44mm | 44mm | 44mm |
| Front center | — | — | — | — |
| Chainstay length | 430mm | 430mm | 430mm | 430mm |
| Wheelbase | 1234.4mm | 1205.1mm | 1147.8mm | 1266.3mm |
| Top tube | 632.1mm | 605mm | 552.6mm | 663.2mm |
| Standover height | 701.7mm | 691.2mm | 661.7mm | 700.5mm |
| Seat tube length | 425mm | 400mm | 330mm | 430mm |
| Seat tube angle | 76.5deg | 76.5deg | 76.5deg | 76.5deg |
Spec geometry
| Geometry | L | M | S | XL |
|---|---|---|---|---|
| Crank length | 170mm | 170mm | 170mm | 170mm |
| Stem length | 35mm | 35mm | 35mm | 35mm |
| Handlebar width | 780mm | 780mm | 780mm | 780mm |
| Handlebar reach | — | — | — | — |
| Handlebar drop | — | — | — | — |
| Saddle width | — | — | — | — |
| Dropper post travel | 170mm | 170mm | 150mm | 200mm |
| Seatpost offset | — | — | — | — |
Specs
Full specs
>
Specs
Full specs
Frame
Frame
Series 3 6061 Aluminum Frame, 29” wheels, 130mm travel, MultiTrac suspension platform, 148x12mm Boost thru-axle, 73mm threaded BB w/ ISCG05 tabs
Suspension
Rear shock
RockShox Super Deluxe Select+, 210x55mm, 25xM8 hardware, custom tune
Fork
RockShox Lyrik Select+, 150mm travel, 29", 110x15 Maxle Stealth, 42mm offset
Brakes
Front brake
SRAM DB8 Stealth, 4-piston hydraulic disc brake
Rear brake
SRAM DB8 Stealth, 4-piston hydraulic disc brake
Front rotor
200mm (SRAM HSC)
Rear rotor
180mm (SRAM HSC)
Drivetrain
Shift levers
SRAM GX Eagle Lunar, MMX mount
Rear derailleur
SRAM GX Eagle Lunar
Cassette
SRAM XG-1275 Eagle, 12-speed, 10-52T
Chain
SRAM NX Eagle, 12-speed
Crankset
SRAM GX Eagle, 32T, 55mm chainline, 170mm length
Bottom bracket
SRAM DUB MTB 73
Cockpit
Stem
Marin CNC stem, 35mm length, 35mm bar bore
Handlebars
Marin Trail Bar, 35mm clamp, 7000 alloy, 800mm width, 20mm rise, 5° up, 8° back
Grips
Marin Grizzly Lock-On
Saddle
Marin Speed Concept
Seatpost
TranzX YSP23JL dropper, 30.9mm, 1x remote (S: 150mm; M/L: 170mm; XL: 200mm)
Wheels & Tires
Front wheel
Marin aluminum double wall rim, 29mm internal, sleeved joint, disc specific, 32h, tubeless compatible; Formula DC-711, 110x15mm, 6-bolt disc, 32h; 14g black stainless steel
Rear wheel
Marin aluminum double wall rim, 29mm internal, sleeved joint, disc specific, 32h, tubeless compatible; Formula DCL-3482, 148x12mm, 4 sealed bearings, 6-bolt disc, XD driver, 32h; 14g black stainless steel
Front tire
Maxxis Assegai, 29x2.5, EXO, tubeless compatible (compound listed as MAXX TERAA)
Rear tire
Maxxis Assegai, 29x2.5, EXO, tubeless compatible (compound listed as MAXX TERAA)
