Marin

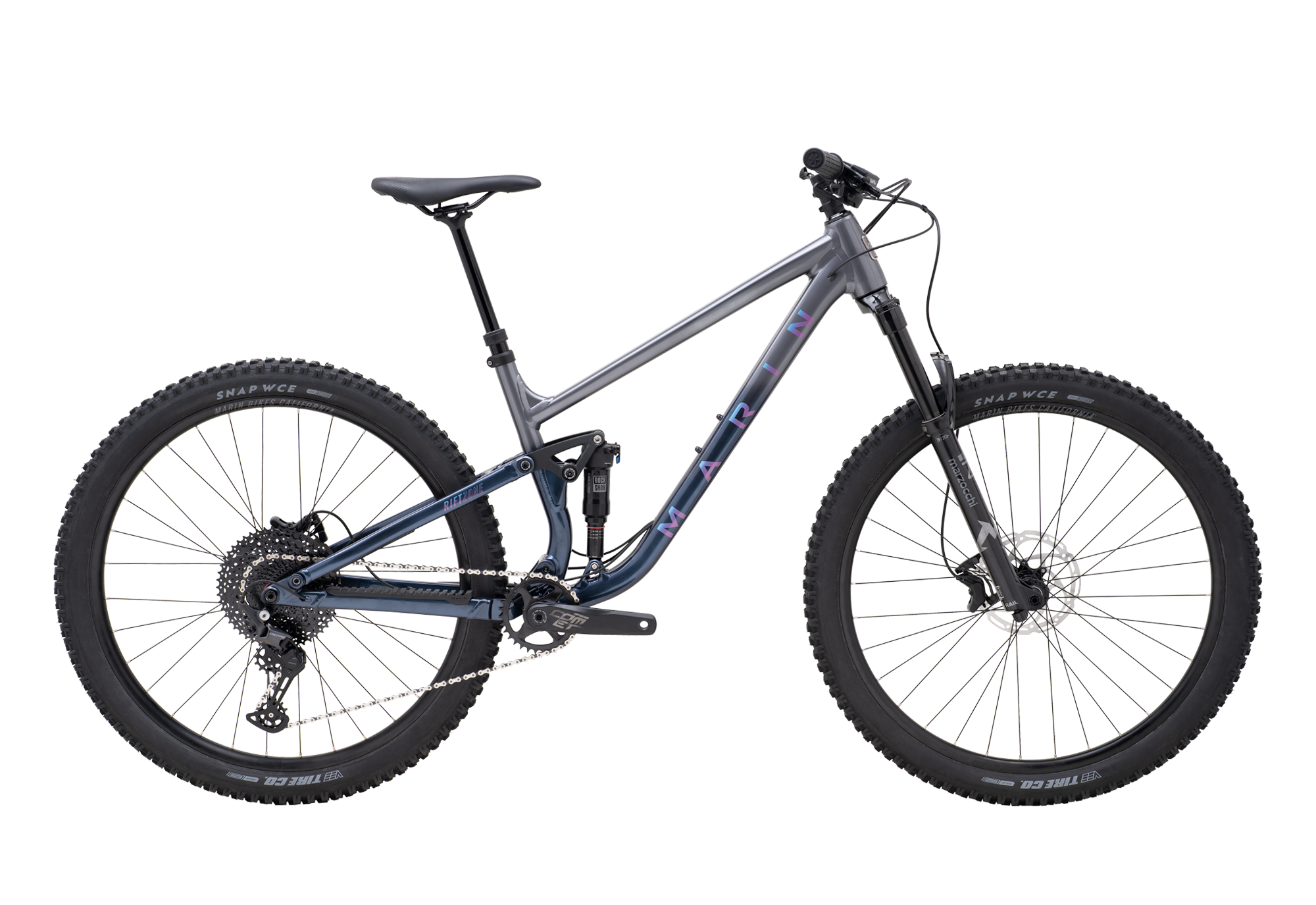

Rift Zone 2
Gallery
Images
product
Geometry
Geometry
>
Geometry
Geometry
Frame geometry
| Geometry | L | M | S | XL |
|---|---|---|---|---|
| Stack | 637.3mm | 628.2mm | 569.1mm | 641.8mm |
| Reach | 485mm | 460mm | 415mm | 515mm |
| Headtube length | 125mm | 115mm | 115mm | 130mm |
| Headtube angle | 65.1deg | 65.1deg | 65.1deg | 65.1deg |
| BB height | 348mm | 348mm | 344mm | 348mm |
| BB drop | 35mm | 35mm | 20mm | 35mm |
| Trail | — | — | — | — |
| Fork length | — | — | — | — |
| Fork offset | 44mm | 44mm | 44mm | 44mm |
| Front center | — | — | — | — |
| Chainstay length | 430mm | 430mm | 430mm | 430mm |
| Wheelbase | 1234.4mm | 1205.1mm | 1147.8mm | 1266.3mm |
| Top tube | 632.1mm | 605mm | 552.6mm | 663.2mm |
| Standover height | 701.7mm | 691.2mm | 661.7mm | 700.5mm |
| Seat tube length | 425mm | 400mm | 330mm | 430mm |
| Seat tube angle | 76.5deg | 76.5deg | 76.5deg | 76.5deg |
Spec geometry
| Geometry | L | M | S | XL |
|---|---|---|---|---|
| Crank length | 170mm | 170mm | 170mm | 170mm |
| Stem length | 35mm | 35mm | 35mm | 35mm |
| Handlebar width | 780mm | 780mm | 780mm | 780mm |
| Handlebar reach | — | — | — | — |
| Handlebar drop | — | — | — | — |
| Saddle width | — | — | — | — |
| Dropper post travel | 170mm | 170mm | 150mm | 170mm |
| Seatpost offset | — | — | — | — |
Specs
Full specs
>
Specs
Full specs
Frame
Frame
Series 3 6061 Aluminum Frame, 29” wheels, 130mm travel, MultiTrac Suspension Platform, 148x12mm Boost thru-axle, 73mm threaded BB w/ ISCG05 tabs
Suspension
Rear shock
RockShox Deluxe Select RT, Debonair air sleeve, rebound adjustment, custom tune, 210x50mm, M8x25mm hardware
Fork
Marzocchi Bomber Z2 29", Rail Damper w/ sweep adjustment, 140mm travel, Kabolt bolt-on axle, 44mm offset
Brakes
Front brake
Shimano BR-MT200 hydraulic disc w/ Shimano BL-MT201 lever
Rear brake
Shimano BR-MT200 hydraulic disc w/ Shimano BL-MT201 lever
Front rotor
180mm (Center Lock)
Rear rotor
180mm (Center Lock)
Drivetrain
Shift levers
Shimano Deore SL-M6100-R, 12-speed
Rear derailleur
Shimano Deore, 12-speed, SGS
Cassette
Shimano Deore M6100, 12-speed, 10-51T
Chain
KMC X-12 (silver/black)
Crankset
FSA Comet, Modular 1x, 32T direct-mount chainring, MegaTooth technology, Boost spacing
Bottom bracket
External sealed cartridge bearing (threaded, 73mm)
Cockpit
Stem
Marin 3D forged alloy, 35mm
Handlebars
Marin Mini-Riser, 6061 double-butted aluminum, 780mm width, 28mm rise, 5° up, 9° back
Grips
Marin Grizzly Lock On
Saddle
Marin Speed Concept
Seatpost
TranzX YSP18JL dropper, 30.9mm, 1x remote — Size S: 150mm travel; other sizes: 170mm travel
Wheels & Tires
Front wheel
Marin double-wall alloy, 29mm internal, pinned joint, disc-specific, 32H, tubeless compatible; Shimano HB-MT410B, 110x15mm, Center Lock; 14g black stainless steel
Rear wheel
Marin double-wall alloy, 29mm internal, pinned joint, disc-specific, 32H, tubeless compatible; Shimano HB-MT410B, 148x12mm, Center Lock, Micro Spline freehub body; 14g black stainless steel
Front tire
Vee Tire Flow Snap, 29x2.35", Tackee compound, tubeless ready
Rear tire
Vee Tire Flow Snap, 29x2.35", Tackee compound, tubeless ready
