Marin

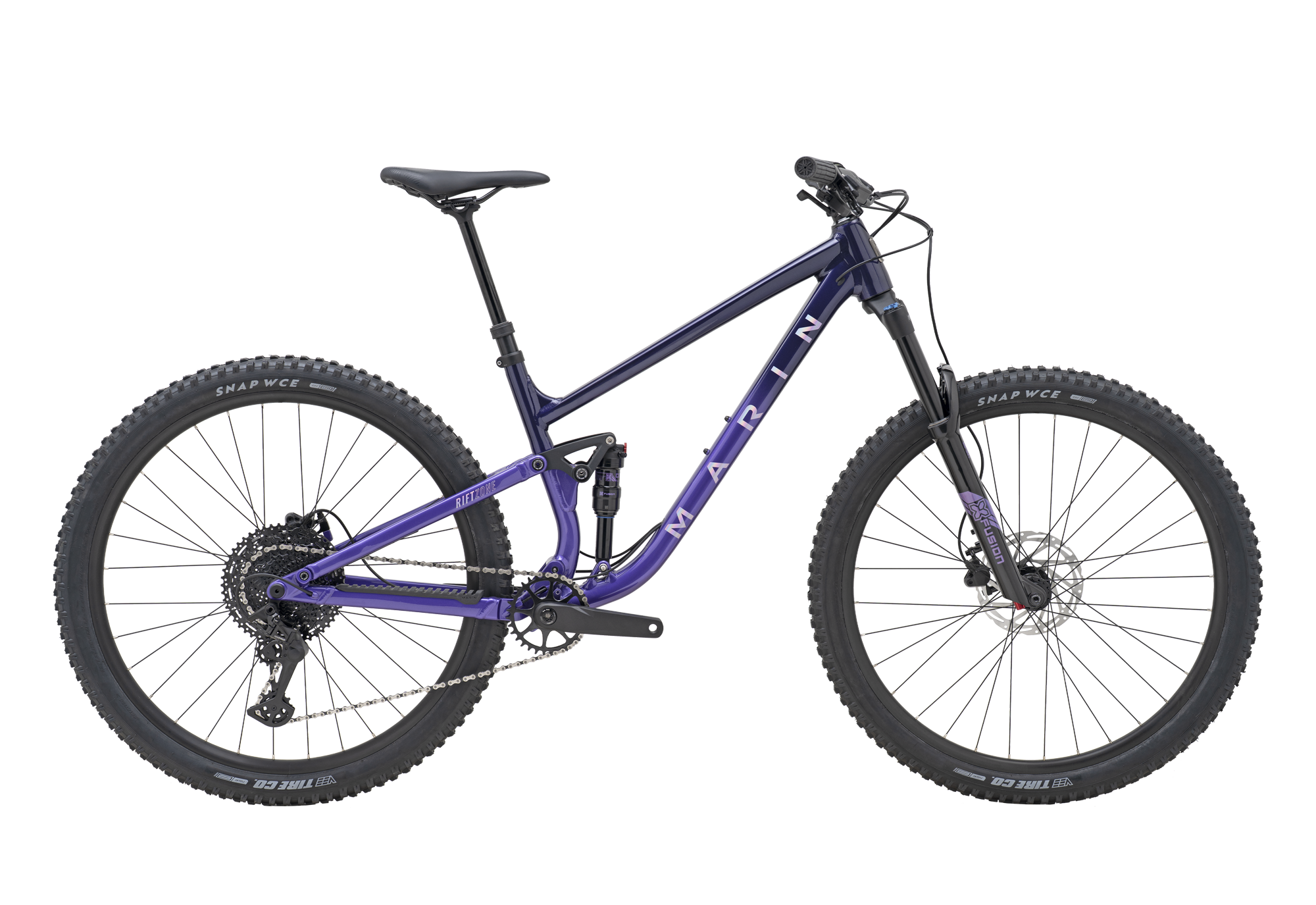

Rift Zone 1
Gallery
Images
product
Geometry
Geometry
>
Geometry
Geometry
Frame geometry
| Geometry | L | M | S | XL |
|---|---|---|---|---|
| Stack | 637.3mm | 628.2mm | 569.1mm | 641.8mm |
| Reach | 485mm | 460mm | 415mm | 515mm |
| Headtube length | 125mm | 115mm | 115mm | 130mm |
| Headtube angle | 65.1deg | 65.1deg | 65.1deg | 65.1deg |
| BB height | 348mm | 348mm | 344mm | 348mm |
| BB drop | 35mm | 35mm | 20mm | 35mm |
| Trail | — | — | — | — |
| Fork length | — | — | — | — |
| Fork offset | 44mm | 44mm | 44mm | 44mm |
| Front center | — | — | — | — |
| Chainstay length | 430mm | 430mm | 430mm | 430mm |
| Wheelbase | 1234.4mm | 1205.1mm | 1147.8mm | 1266.3mm |
| Top tube | 632.1mm | 605mm | 552.6mm | 663.2mm |
| Standover height | 701.7mm | 691.2mm | 661.7mm | 700.5mm |
| Seat tube length | 425mm | 400mm | 330mm | 430mm |
| Seat tube angle | 76.5deg | 76.5deg | 76.5deg | 76.5deg |
Spec geometry
| Geometry | L | M | S | XL |
|---|---|---|---|---|
| Crank length | 170mm | 170mm | 170mm | 170mm |
| Stem length | 35mm | 35mm | 35mm | 35mm |
| Handlebar width | 780mm | 780mm | 780mm | 780mm |
| Handlebar reach | — | — | — | — |
| Handlebar drop | — | — | — | — |
| Saddle width | — | — | — | — |
| Dropper post travel | 170mm | 170mm | 150mm | 170mm |
| Seatpost offset | — | — | — | — |
Specs
Full specs
>
Specs
Full specs
Frame
Frame
Series 3 6061 Aluminum, 27.5 or 29" wheels, 130mm travel, MultiTrac suspension platform, 148x12mm Boost thru-axle, 73mm threaded BB w/ ISCG05 tabs
Suspension
Rear shock
X-Fusion O2 Pro R, custom tune, 210x55mm, M8x25mm hardware (top and bottom)
Fork
X-Fusion Slide (29) or Sweep (27.5) Boost RC, 140mm travel, compression and rebound adjustment, 44mm offset
Brakes
Front brake
Tektro HD-M280 hydraulic disc
Rear brake
Tektro HD-M280 hydraulic disc
Front rotor
180mm
Rear rotor
180mm
Drivetrain
Shift levers
Shimano SL-U6000-11R, 11-speed
Rear derailleur
Shimano RD-U6000, 11-speed GS
Cassette
Shimano CS-LG400-11, 11-speed, 11-50T
Chain
Shimano LG-500, 11-speed
Crankset
Marin forged alloy crankset, integrated steel 32T narrow-wide chainring, 170mm crank length, Boost spacing
Bottom bracket
External sealed cartridge bearing (73mm threaded)
Cockpit
Stem
Marin 3D forged alloy, 35mm
Handlebars
Marin Mini-Riser, 6061 double-butted aluminum, 780mm width, 28mm rise, 5° up, 9° back
Grips
Marin MTN, closed end
Saddle
Marin Speed Concept
Seatpost
X-Fusion Manic dropper, 30.9mm, 1x composite remote (XS–S: 150mm travel; M–XL: 170mm travel)
Wheels & Tires
Front wheel
Marin aluminum double wall, 29mm internal, pinned joint, disc-specific, tubeless compatible; Shimano HF-MT400B, 110x15mm, Centerlock; 14g black stainless steel
Rear wheel
Marin aluminum double wall, 29mm internal, pinned joint, disc-specific, tubeless compatible; Shimano HB-MT200B, 141 QR, Centerlock, standard freehub body; 14g black stainless steel
Front tire
Vee Tire Snap WCE 2.35", Top 40 compound, GXE core, 90 TPI, tubeless compatible
Rear tire
Vee Tire Snap WCE 2.35", Top 40 compound, GXE core, 90 TPI, tubeless compatible
