Marin

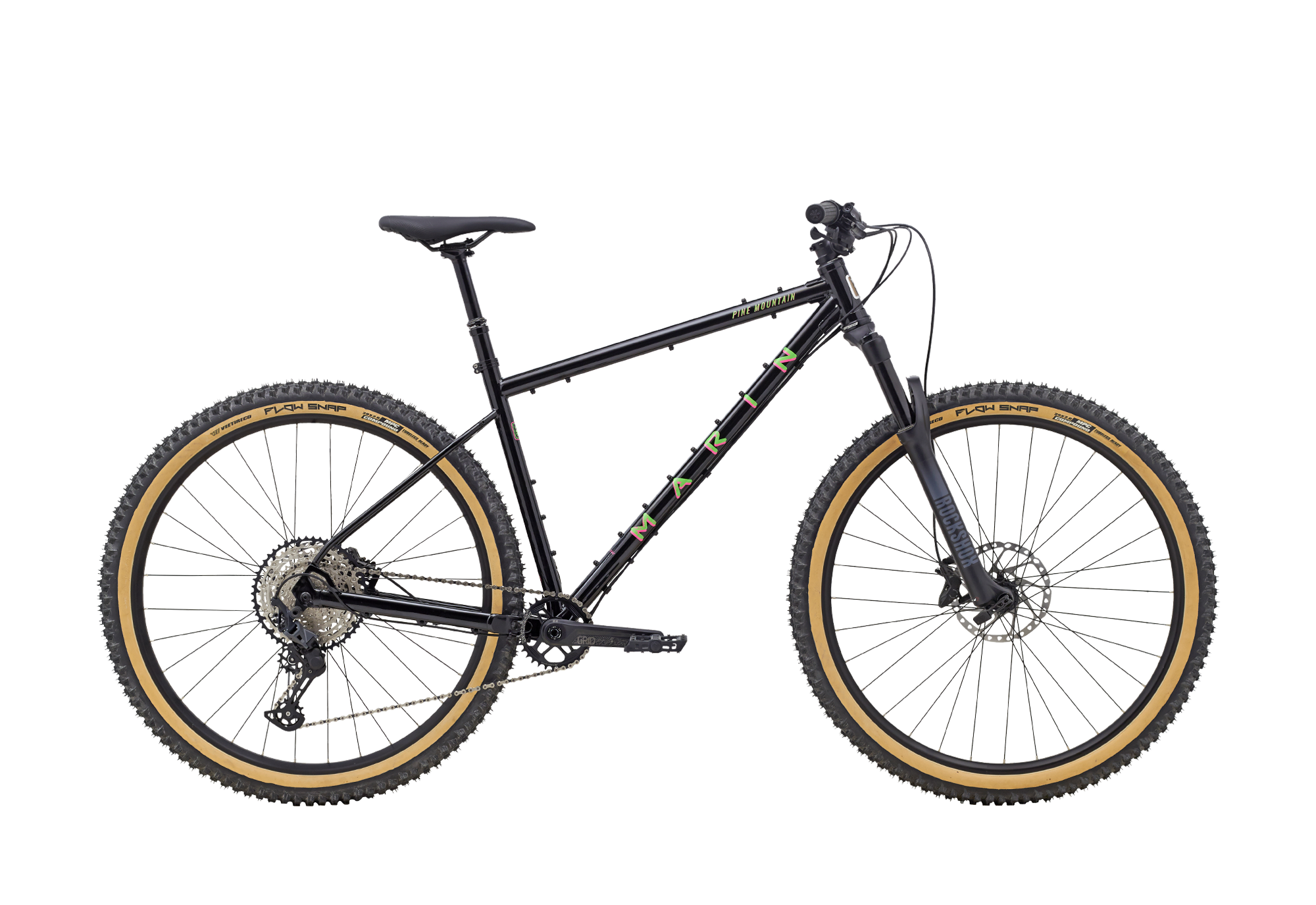

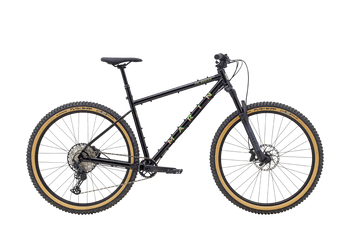

Pine Mountain 2
Gallery
Images
product
Geometry
Geometry
>
Geometry
Geometry
Frame geometry
| Geometry | L | M | S | XL |
|---|---|---|---|---|
| Stack | 654.8mm | 645.7mm | 641.2mm | 559.3mm |
| Reach | 475mm | 450mm | 425mm | 510mm |
| Headtube length | 125mm | 115mm | 110mm | 130mm |
| Headtube angle | 65deg | 65deg | 65deg | 65deg |
| BB height | 315.2mm | 315.2mm | 315.2mm | 315.2mm |
| BB drop | 60mm | 60mm | 60mm | 60mm |
| Trail | — | — | — | — |
| Fork length | — | — | — | — |
| Fork offset | 44mm | 44mm | 44mm | 44mm |
| Front center | — | — | — | — |
| Chainstay length | 432mm | 432mm | 432mm | 432mm |
| Wheelbase | 1228.7mm | 1199.5mm | 1172.4mm | 1265.8mm |
| Top tube | 632.2mm | 605mm | 578.9mm | 668.4mm |
| Standover height | 737.4mm | 704.5mm | 682mm | 777.8mm |
| Seat tube length | 430mm | 395mm | 370mm | 475mm |
| Seat tube angle | 76.5deg | 76.5deg | 76.5deg | 76.5deg |
Spec geometry
| Geometry | L | M | S | XL |
|---|---|---|---|---|
| Crank length | 170mm | 170mm | 170mm | 170mm |
| Stem length | 35mm | 35mm | 35mm | 35mm |
| Handlebar width | 780mm | 780mm | 780mm | 780mm |
| Handlebar reach | — | — | — | — |
| Handlebar drop | — | — | — | — |
| Saddle width | — | — | — | — |
| Dropper post travel | 150mm | 150mm | 125mm | 150mm |
| Seatpost offset | — | — | — | — |
Specs
Full specs
>
Specs
Full specs
Frame
Frame
Series 3 double butted and heat treated CrMo, 29" wheels, custom cast Boost 148x12mm dropouts, 148x12mm thru-axle, 73mm threaded BB, gear mounts
Suspension
Fork
RockShox 35 Gold RL, 120mm travel, DebonAir, alloy tapered steerer, 110x15mm Boost, Maxle Lite, 44mm offset
Brakes
Front brake
TRP Slate EVO, 4-piston hydraulic disc
Rear brake
TRP Slate EVO, 4-piston hydraulic disc
Front rotor
180mm
Rear rotor
180mm
Drivetrain
Shift levers
Shimano SLX, SL7100, 12-speed
Rear derailleur
Shimano SLX, RD7100, 12-speed
Cassette
Sunrace, 12-speed, Micro Spline, 10-51T
Chain
KMC X12
Crankset
FSA Grid, Modular 1x, 32T direct mount MegaTooth chainring
Bottom bracket
FSA outboard cartridge bearings
Cockpit
Stem
Marin 3D Forged Alloy, 35mm
Handlebars
Marin Bedroll Bar, 50mm rise, 780mm width, 10° backsweep, 6° upsweep
Grips
Marin Grizzly Lock On
Saddle
Marin Pine Mountain Trail
Seatpost
TranzX YSP23JL dropper, 1x remote, 30.9mm (Size S: 125mm travel; all other sizes: 150mm travel)
Wheels & Tires
Front wheel
Alloy double-wall, offset spoke, 32mm ID, tubeless compatible; Forged alloy, 110x15mm, sealed cartridge bearings, disc-specific, 32H; 14g black stainless steel
Rear wheel
Alloy double-wall, offset spoke, 32mm ID, tubeless compatible; Shimano, Micro Spline, 148x12mm, disc-specific, 32H; 14g black stainless steel
Front tire
Vee Tire Flow Snap, 29x2.6", Top 40 compound, Enduro Core, 90 TPI, tubeless compatible
Rear tire
Vee Tire Flow Snap, 29x2.6", Top 40 compound, Enduro Core, 90 TPI, tubeless compatible
