Marin

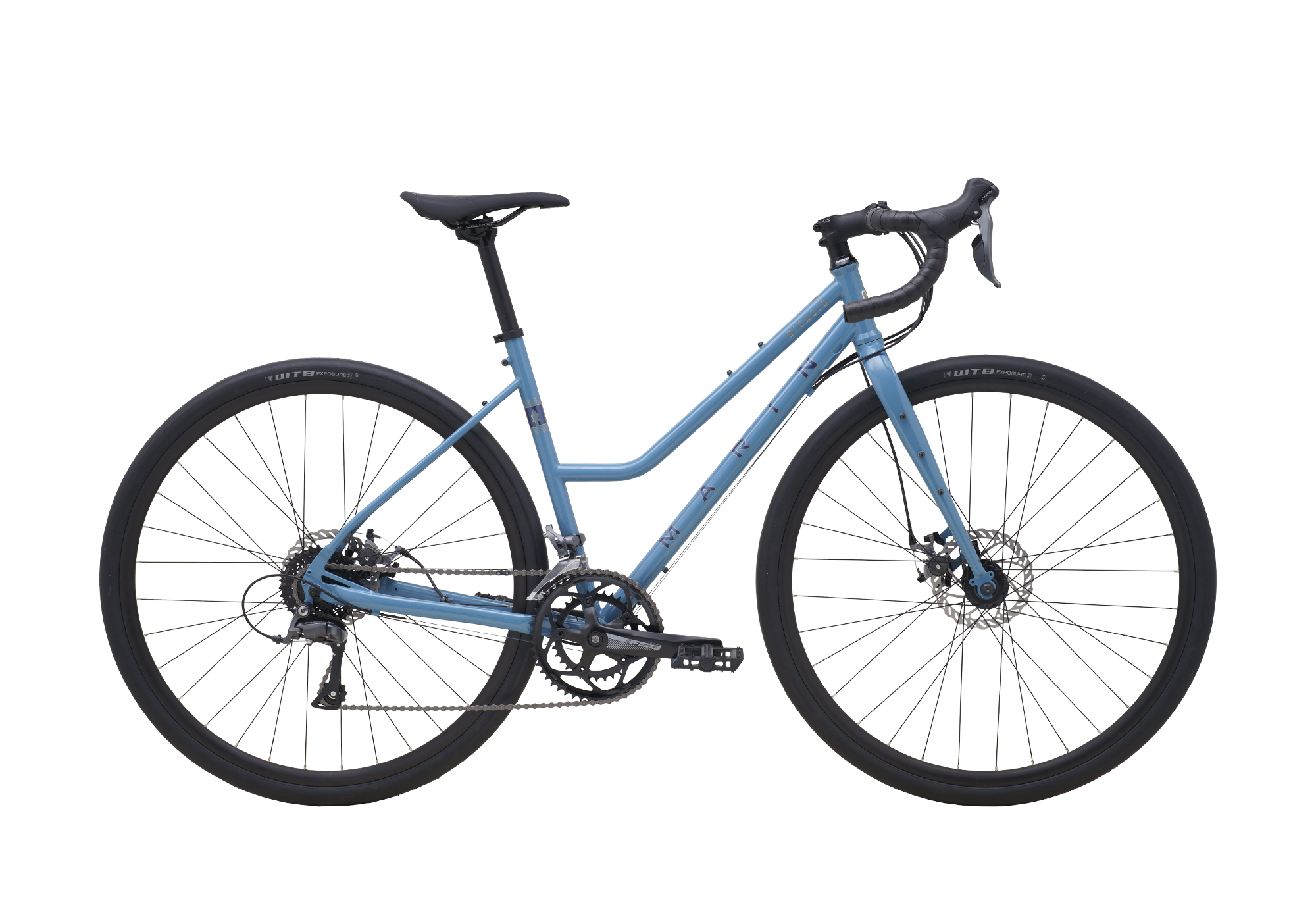

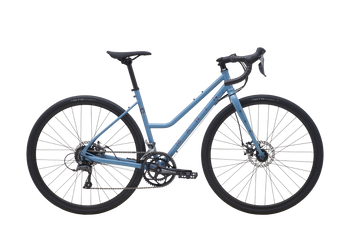

Nicasio 1 ST
Gallery
Images
product
Geometry
Geometry
>
Geometry
Geometry
Frame geometry
| Geometry | 50 | 52 | 54 | 56 | 58 | 60 |
|---|---|---|---|---|---|---|
| Stack | 550.2mm | 568.2mm | 582.5mm | 596.7mm | 610.9mm | 625.2mm |
| Reach | 372mm | 375mm | 380mm | 390mm | 402mm | 415mm |
| Headtube length | 120mm | 135mm | 150mm | 165mm | 180mm | 195mm |
| Headtube angle | 70.5deg | 71.5deg | 71.5deg | 71.5deg | 71.5deg | 71.5deg |
| BB height | 274mm | 274mm | 274mm | 274mm | 274mm | 274mm |
| BB drop | 76mm | 76mm | 76mm | 76mm | 76mm | 76mm |
| Trail | — | — | — | — | — | — |
| Fork length | — | — | — | — | — | — |
| Fork offset | 50mm | 50mm | 50mm | 50mm | 50mm | 50mm |
| Front center | — | — | — | — | — | — |
| Chainstay length | 430mm | 430mm | 430mm | 430mm | 430mm | 430mm |
| Wheelbase | 1016.2mm | 1015.6mm | 1024.4mm | 1040.2mm | 1056.9mm | 1074.7mm |
| Top tube | 524.6mm | 537.9mm | 547mm | 561.1mm | 577.2mm | 600.2mm |
| Standover height | 720mm | 739.7mm | 758.3mm | 776.5mm | 794.5mm | 812.2mm |
| Seat tube length | 460mm | 480mm | 500mm | 520mm | 540mm | 560mm |
| Seat tube angle | 74.5deg | 74deg | 74deg | 74deg | 74deg | 73.5deg |
Spec geometry
| Geometry | 50 | 52 | 54 | 56 | 58 | 60 |
|---|---|---|---|---|---|---|
| Crank length | 170mm | 170mm | 175mm | 175mm | 175mm | 175mm |
| Stem length | 75mm | 75mm | 90mm | 90mm | 90mm | 90mm |
| Handlebar width | 400mm | 400mm | 420mm | 420mm | 440mm | 440mm |
| Handlebar reach | — | — | — | — | — | — |
| Handlebar drop | — | — | — | — | — | — |
| Saddle width | — | — | — | — | — | — |
| Dropper post travel | — | — | — | — | — | — |
| Seatpost offset | — | — | — | — | — | — |
Specs
Full specs
>
Specs
Full specs
Frame
Frame
Series 1 Double Butted CrMo Beyond Road, 700C Wheels, Beyond Road Geometry, Fender and Rack Mounts, Disc Mount
Suspension
Fork
CrMo, Fender and Rack Eyelets, IS Disc Mount
Brakes
Front brake
Tektro MDC400, Road Mechanical (160mm rotor)
Rear brake
Tektro MDC400, Road Mechanical (160mm rotor)
Front rotor
160mm
Rear rotor
160mm
Drivetrain
Shift levers
Shimano Claris 2x8-Speed (integrated brake/shift levers)
Rear derailleur
Shimano Claris 8-Speed
Cassette
SunRace 8-Speed, 11-32T
Chain
KMC Z8
Crankset
FSA Tempo Compact, 50/34T
Bottom bracket
Sealed Cartridge Bearings, Square Taper
Cockpit
Stem
Marin 3D Forged Alloy
Handlebars
Marin Butted Alloy, Compact 16º Flared Drop
Grips
Marin Comfort Tape
Saddle
Marin Beyond Road Concept
Seatpost
Marin Alloy, 27.2mm
Wheels & Tires
Front wheel
Marin Aluminum Double Wall, 19mm Inner, Disc Specific; Forged Aluminum Alloy, Disc, 32H; 14g Black Stainless Steel
Rear wheel
Marin Aluminum Double Wall, 19mm Inner, Disc Specific; Forged Aluminum Alloy, Disc, 32H; 14g Black Stainless Steel
Front tire
WTB Exposure, 700Cx36, Wire Bead
Rear tire
WTB Exposure, 700Cx36, Wire Bead
