Marin

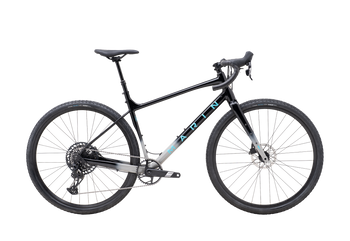

Gestalt XR
Gallery
Images
product
Geometry
Geometry
>
Geometry
Geometry
Spec geometry
| Geometry | 49-54 | 56-60 |
|---|---|---|
| Crank length | — | — |
| Stem length | — | — |
| Handlebar width | — | — |
| Handlebar reach | — | — |
| Handlebar drop | — | — |
| Saddle width | — | — |
| Dropper post travel | 70mm | 110mm |
| Seatpost offset | — | — |
Specs
Full specs
>
Specs
Full specs
Frame
Frame
Series 3 Beyond Road, 6061 Aluminum, Tapered Head Tube, Relieved BB, Internal Cable Routing, Mudguard and Rack Mounts, Flat Mount Disc, 142x12mm Thru-Axle
Suspension
Fork
Marin Full Carbon w/ Tapered Steerer, 12mm Thru-Axle, Flat-Mount Disc, Fender Eyelets
Brakes
Front brake
Shimano GRX Hydraulic Disc
Rear brake
Shimano GRX Hydraulic Disc
Front rotor
160mm
Rear rotor
160mm
Drivetrain
Shift levers
Shimano GRX GX8010, 1x11-Speed, Integrated Dropper Lever
Rear derailleur
Shimano GRX RDX812, Shadow w/ Clutch
Cassette
Shimano CS-M5100 11-Speed, 11-42T
Chain
KMC X11
Crankset
FSA Gossamer Pro, Megatooth 42T Chainring, BB386EVO Alloy Spindle
Bottom bracket
FSA MegaExo Threaded
Cockpit
Stem
Marin 3D Forged Alloy
Handlebars
Marin Butted Alloy, Compact 16º Flared Drop
Grips
Marin Shock Absorbing Perforated Tape
Saddle
Marin Beyond Road Concept Elite
Seatpost
TranzX YSP38J, Size 49-54 70mm, Size 56-60 110mm Travel, 27.2mm
Wheels & Tires
Front wheel
Marin Aluminum Double Wall, 25mm Inner, 18mm Tall, Disc Specific, Tubeless Compatible; Forged Aluminum Alloy, 100x12mm, Disc, 32H; 14g Black Stainless Steel
Rear wheel
Marin Aluminum Double Wall, 25mm Inner, 18mm Tall, Disc Specific, Tubeless Compatible; Forged Aluminum Alloy, 142x12mm, Disc, 32H; 14g Black Stainless Steel
Front tire
Vee Tire Co., Rocket Man, 700x44, Tubeless Compatible
Rear tire
Vee Tire Co., Rocket Man, 700x44, Tubeless Compatible
