Look

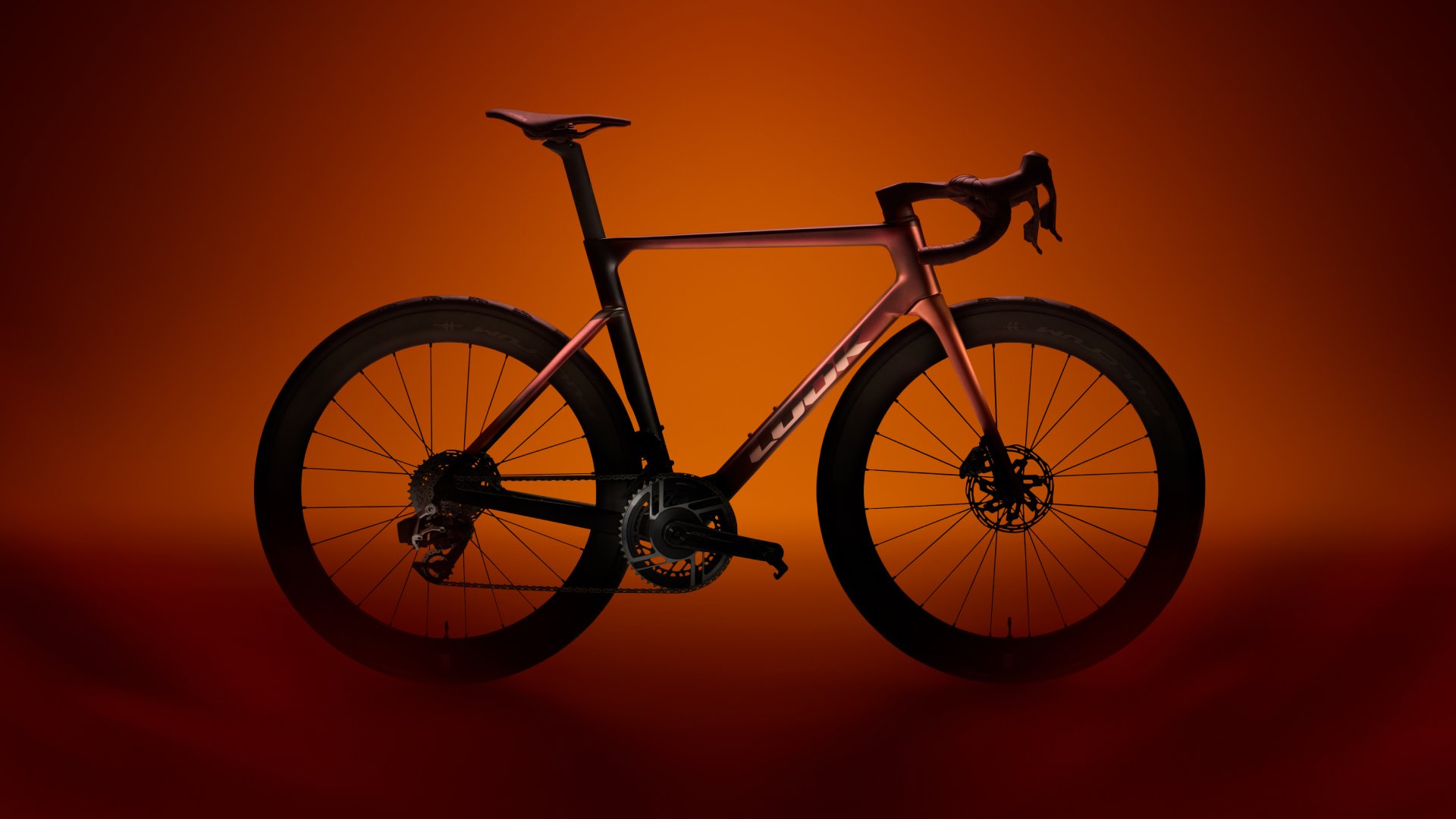

795 Blade RS Red AXS / Fulcrum Speed 57
Gallery
Images
detail
Geometry
Geometry
>
Geometry
Geometry
Frame geometry
| Geometry | L | M | S | XL | XS | XXS |
|---|---|---|---|---|---|---|
| Stack | 573.2mm | 549.2mm | 525.2mm | 597.2mm | 501.2mm | 486.2mm |
| Reach | 401.2mm | 391.2mm | 381.3mm | 411.2mm | 371.3mm | 361.3mm |
| Headtube length | 161.8mm | 136.7mm | 115.6mm | 189.5mm | 90.4mm | 77.9mm |
| Headtube angle | 73deg | 73deg | 71.8deg | 73deg | 71.8deg | 70.7deg |
| BB height | 70.5mm | 70.5mm | 73mm | 68mm | 73mm | 75.5mm |
| BB drop | — | — | — | — | — | — |
| Trail | 59.3mm | 59.3mm | 59.8mm | 59.3mm | 59.8mm | 59.8mm |
| Fork length | 368mm | 368mm | 368mm | 368mm | 368mm | 368mm |
| Fork offset | 43mm | 43mm | 50mm | 43mm | 50mm | 56.3mm |
| Front center | 603.9mm | 586.7mm | 587.6mm | 621.6mm | 569.8mm | 569.8mm |
| Chainstay length | 410mm | 410mm | 410mm | 410mm | 410mm | 410mm |
| Wheelbase | — | — | — | — | — | — |
| Top tube | 560.1mm | 543.5mm | 526.9mm | 576.8mm | 510.2mm | 491.6mm |
| Standover height | 815mm | 790mm | 765mm | 841mm | 741mm | 720.9mm |
| Seat tube length | 554.8mm | 529.9mm | 504.4mm | 579.7mm | 479.6mm | 463mm |
| Seat tube angle | 74.5deg | 74.5deg | 74.5deg | 74.5deg | 74.5deg | 75deg |
Spec geometry
| Geometry | L | M | S | XL | XS | XXS |
|---|---|---|---|---|---|---|
| Crank length | — | — | — | — | — | — |
| Stem length | — | — | — | — | — | — |
| Handlebar width | — | — | — | — | — | — |
| Handlebar reach | — | — | — | — | — | — |
| Handlebar drop | — | — | — | — | — | — |
| Saddle width | — | — | — | — | — | — |
| Dropper post travel | — | — | — | — | — | — |
| Seatpost offset | — | — | — | — | — | — |
Specs
Full specs
>
Specs
Full specs
Frame
Frame
LOOK (model not specified)
Suspension
Fork
LOOK (model not specified)
Brakes
Front brake
SRAM Red AXS hydraulic disc (exact caliper not specified)
Rear brake
SRAM Red AXS hydraulic disc (exact caliper not specified)
Front rotor
SRAM CenterLine rotor (size not specified)
Rear rotor
SRAM CenterLine rotor (size not specified)
Drivetrain
Shift levers
SRAM Red AXS
Rear derailleur
SRAM Red AXS (max 36T)
Front derailleur
SRAM Red AXS
Cassette
SRAM XG-1290 12-speed 11-33T
Chain
SRAM Red AXS
Crankset
SRAM Red AXS 50/37T (XXS: 48/35T)
Bottom bracket
Praxis T47
Cockpit
Stem
LOOK Aero Combo Stem
Handlebars
LOOK Aero Combo Handlebars
Saddle
Selle Italia SLR Boost Superflow
Seatpost
LOOK Aero Post 4 Carbon
Wheels & Tires
Front wheel
Fulcrum Speed 57
Rear wheel
Fulcrum Speed 57
Front tire
Continental GP 5000 TLR 28 mm
Rear tire
Continental GP 5000 TLR 28 mm
Weight
Weight
7.3 kg (Size M)
