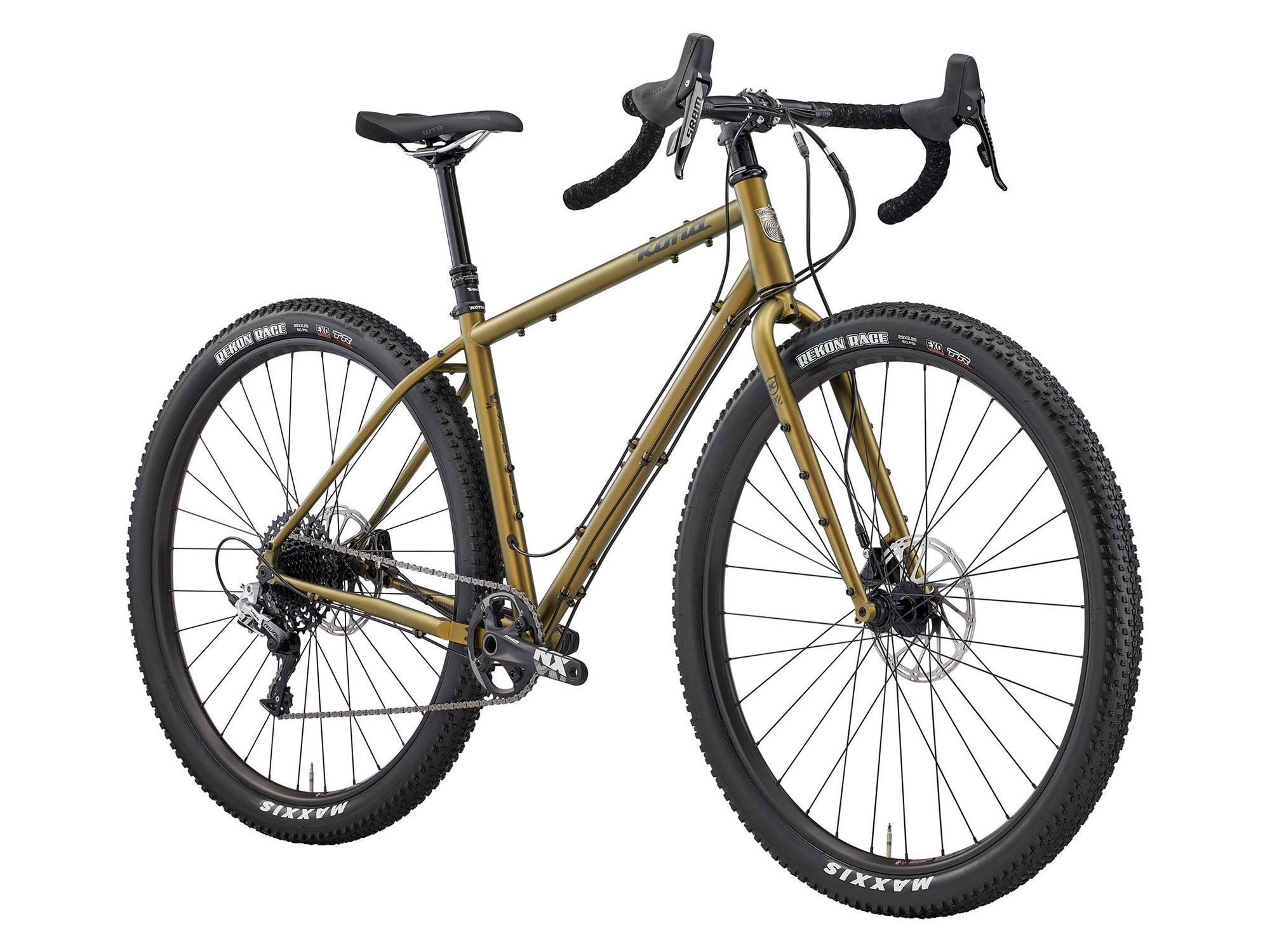

Kona
Sutra LTD
Gallery
Images
geometry
Geometry
Geometry
>
Geometry
Geometry
Frame geometry
| Geometry | 48 | 50 | 52 | 54 | 56 | 58 |
|---|---|---|---|---|---|---|
| Stack | 551mm | 570mm | 591mm | 610mm | 632mm | 651mm |
| Reach | 375mm | 380mm | 385mm | 390mm | 395mm | 400mm |
| Headtube length | 105mm | 125mm | 150mm | 170mm | 195mm | 215mm |
| Headtube angle | 70.5deg | 70.5deg | 70.5deg | 70.5deg | 70.5deg | 70.5deg |
| BB height | 281mm | 281mm | 283mm | 283mm | 285mm | 285mm |
| BB drop | 74mm | 74mm | 72mm | 72mm | 70mm | 70mm |
| Trail | — | — | — | — | — | — |
| Fork length | 415mm | 415mm | 415mm | 415mm | 415mm | 415mm |
| Fork offset | 50mm | 50mm | 50mm | 50mm | 50mm | 50mm |
| Front center | 602mm | 613mm | 626mm | 638mm | 651mm | 662mm |
| Chainstay length | 445mm | 445mm | 445mm | 445mm | 445mm | 445mm |
| Wheelbase | 1036mm | 1047mm | 1061mm | 1073mm | 1086mm | 1098mm |
| Top tube | 523mm | 538mm | 555mm | 571mm | 588mm | 605mm |
| Standover height | 752mm | 770mm | 794mm | 817mm | 835mm | 854mm |
| Seat tube length | 480mm | 500mm | 520mm | 540mm | 560mm | 580mm |
| Seat tube angle | 75deg | 74.5deg | 74deg | 73.5deg | 73deg | 72.5deg |
Spec geometry
| Geometry | 48 | 50 | 52 | 54 | 56 | 58 |
|---|---|---|---|---|---|---|
| Crank length | — | — | — | — | — | — |
| Stem length | — | — | — | — | — | — |
| Handlebar width | — | — | — | — | — | — |
| Handlebar reach | — | — | — | — | — | — |
| Handlebar drop | — | — | — | — | — | — |
| Saddle width | — | — | — | — | — | — |
| Dropper post travel | — | — | — | — | — | — |
| Seatpost offset | — | — | — | — | — | — |
Specs
Full specs
>
Specs
Full specs

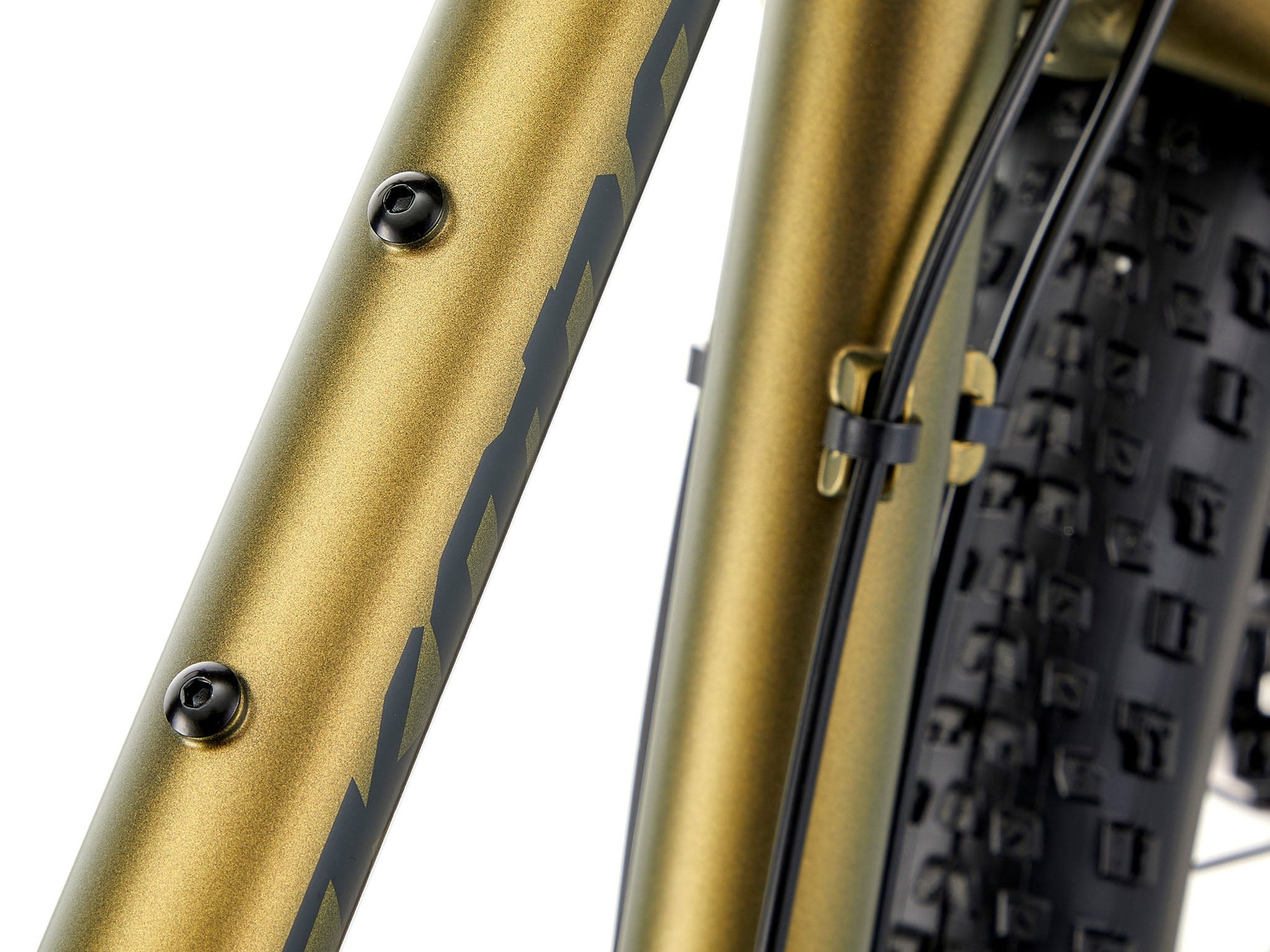

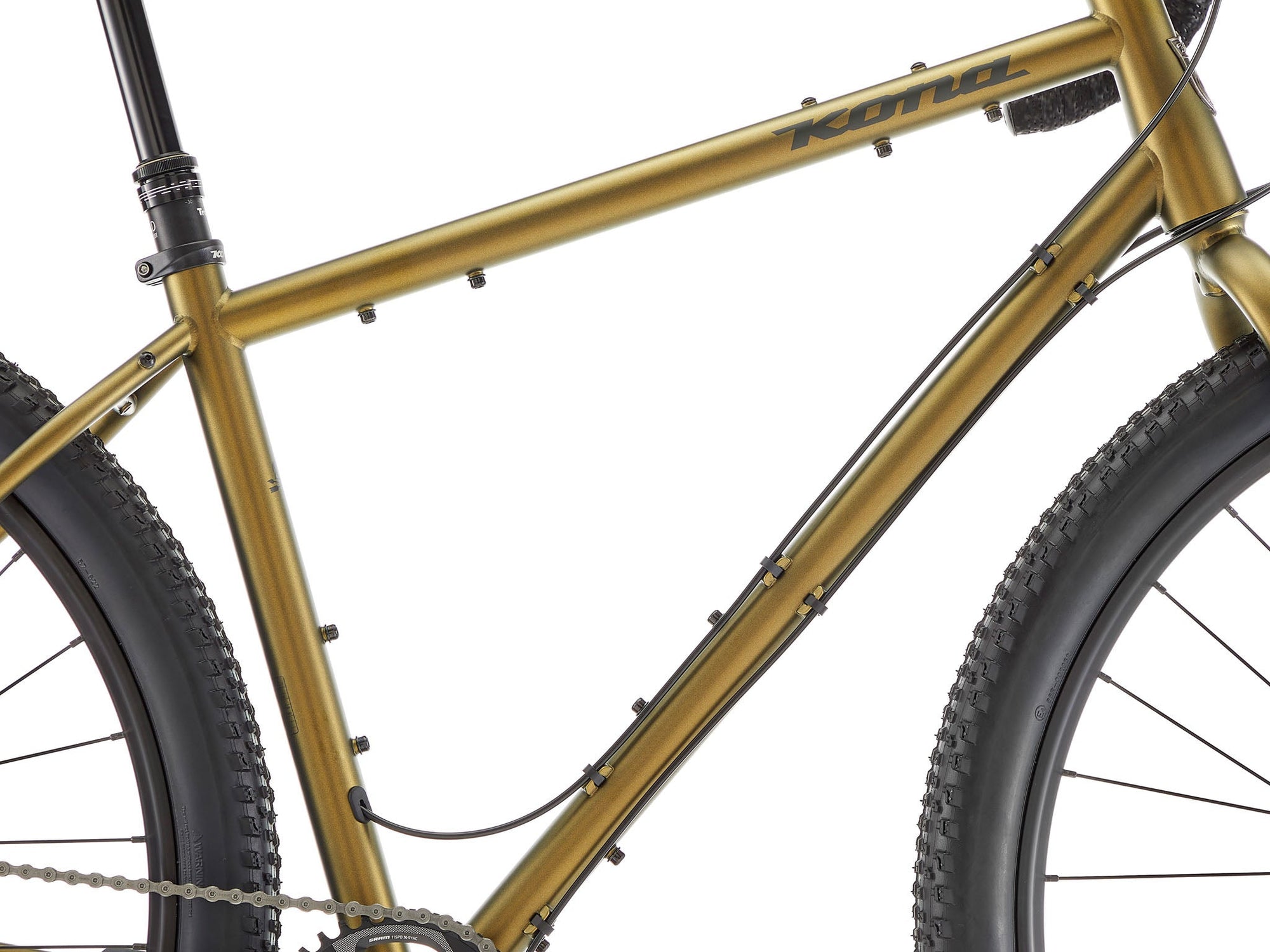

Frame
Frame
Kona Cromoly Butted (steel)
Suspension
Fork
Kona Project Two Cromoly Disc Touring Fork
Brakes
Front brake
SRAM Rival HRD Flat Mount hydraulic disc (caliper)

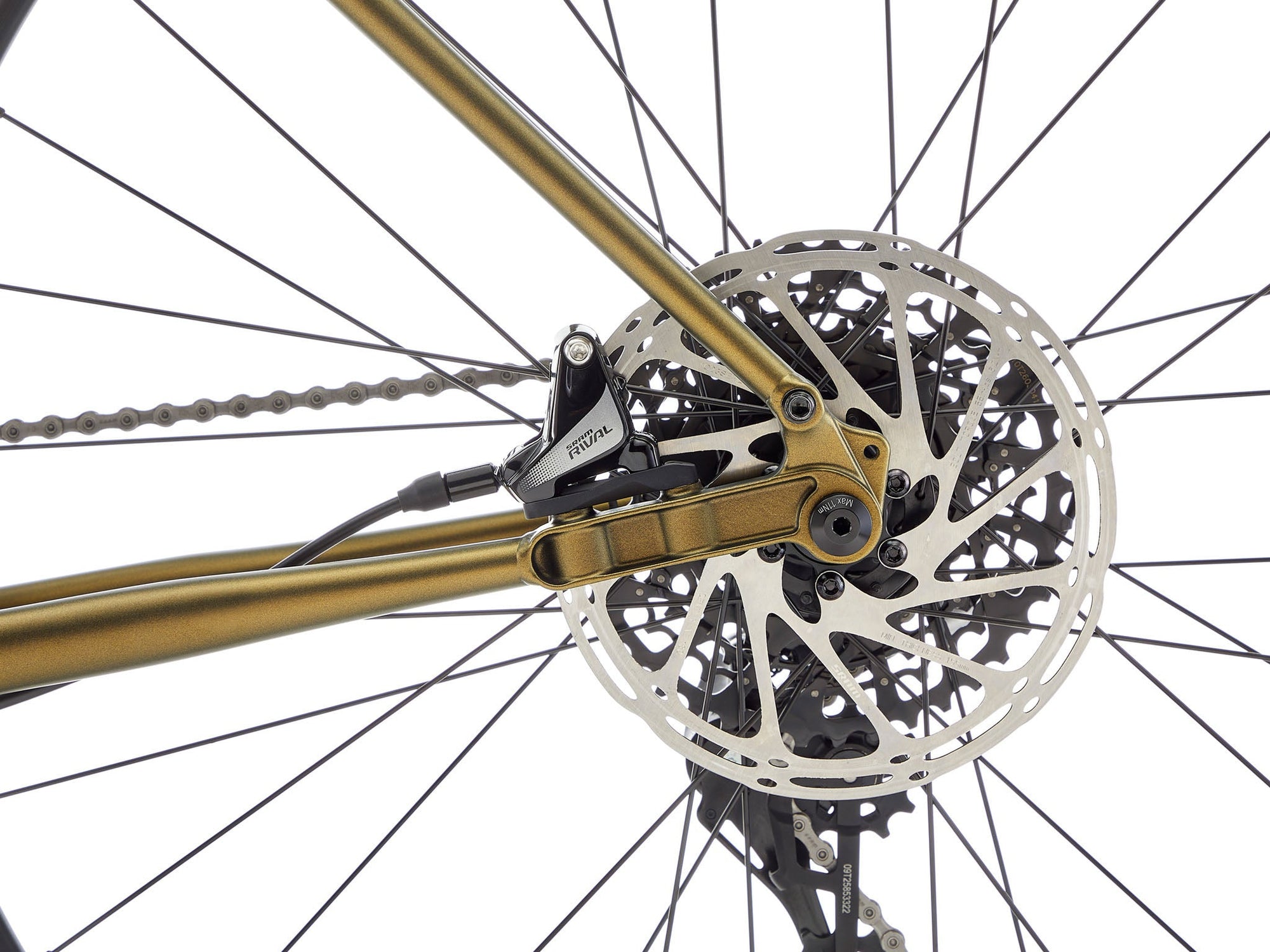

Rear brake
SRAM Rival HRD Flat Mount hydraulic disc (caliper)
Front rotor
SRAM Centerline 180mm
Rear rotor
SRAM Centerline 180mm
Drivetrain
Shift levers
SRAM Rival 1 (with integrated dropper lever)
Rear derailleur
SRAM Rival 1
Cassette
SRAM PG-1130, 11-speed, 11-42T
Chain
SRAM PC-1110

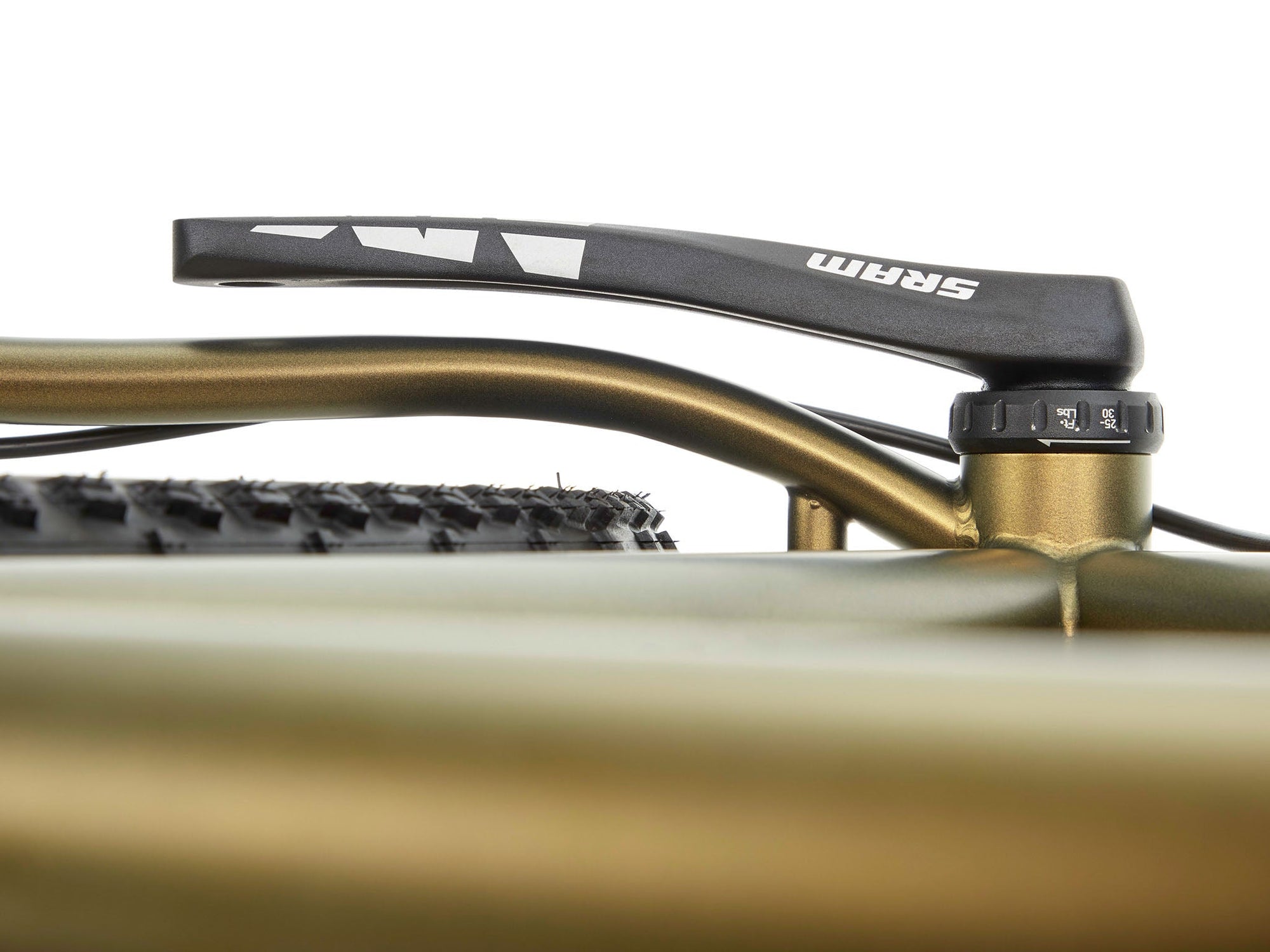

Crankset
SRAM NX crankarms w/ 36T X-Sync chainring
Bottom bracket
SRAM GXP, 73mm
Cockpit
Stem
Kona Road Deluxe

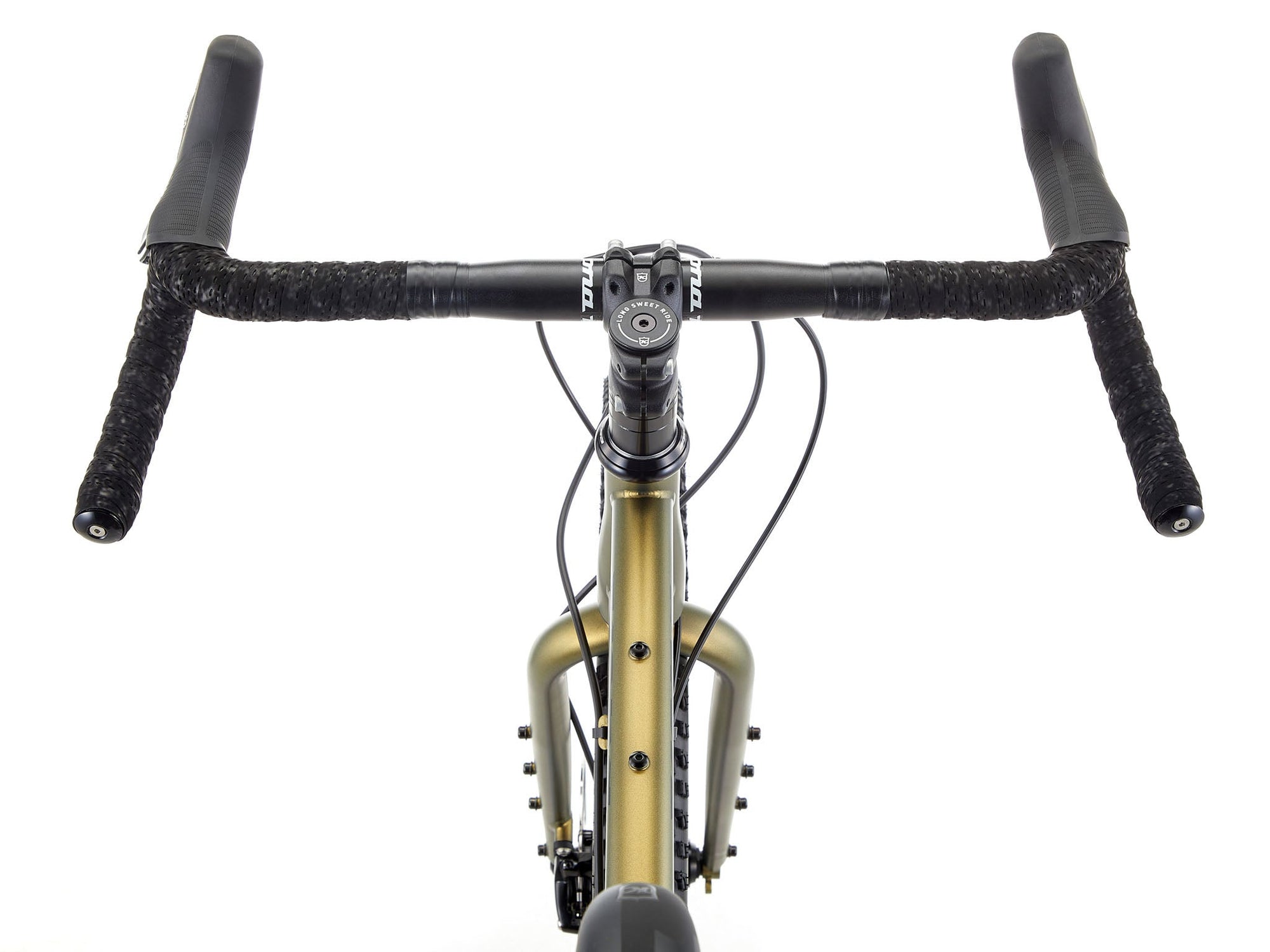

Handlebars
Kona Road
Grips
Kona Cork Tape
Saddle
WTB Volt
Seatpost
TranzX Dropper +RAD Internal, 31.6mm
Wheels & Tires
Front wheel
WTB KOM Team i27 TCS 2.0; Formula 12x100mm; Stainless Black 14g
Rear wheel
WTB KOM Team i27 TCS 2.0; Formula 12x142mm; Stainless Black 14g
Front tire
Maxxis Rekon Race EXO TR 29x2.25
Rear tire
Maxxis Rekon Race EXO TR 29x2.25
