Frame geometry
| Geometry | 48 | 50 | 52 | 54 | 56 | 58 |
|---|---|---|---|---|---|---|
| Stack | 532mm | 551mm | 570mm | 588mm | 607mm | 626mm |
| Reach | 372mm | 378mm | 383mm | 388mm | 392mm | 400mm |
| Headtube length | 90mm | 110mm | 130mm | 150mm | 170mm | 190mm |
| Headtube angle | 70.5deg | 70.5deg | 71deg | 71deg | 71.5deg | 71.5deg |
| BB height | 268mm | 268mm | 270mm | 270mm | 272mm | 272mm |
| BB drop | 74mm | 74mm | 72mm | 72mm | 70mm | 70mm |
| Trail | — | — | — | — | — | — |
| Fork length | 400mm | 400mm | 400mm | 400mm | 400mm | 400mm |
| Fork offset | 50mm | 50mm | 50mm | 50mm | 50mm | 50mm |
| Front center | 592mm | 604mm | 612mm | 623mm | 628mm | 643mm |
| Chainstay length | 435mm | 435mm | 435mm | 435mm | 435mm | 435mm |
| Wheelbase | 1016mm | 1029mm | 1036mm | 1048mm | 1054mm | 1068mm |
| Top tube | 515mm | 531mm | 546mm | 562mm | 578mm | 598mm |
| Standover height | 735mm | 754mm | 775mm | 794mm | 815mm | 834mm |
| Seat tube length | 480mm | 500mm | 520mm | 540mm | 560mm | 580mm |
| Seat tube angle | 75deg | 74.5deg | 74deg | 73.5deg | 73deg | 72.5deg |
Spec geometry
| Geometry | 48 | 50 | 52 | 54 | 56 | 58 |
|---|---|---|---|---|---|---|
| Crank length | — | — | — | — | — | — |
| Stem length | — | — | — | — | — | — |
| Handlebar width | — | — | — | — | — | — |
| Handlebar reach | — | — | — | — | — | — |
| Handlebar drop | — | — | — | — | — | — |
| Saddle width | — | — | — | — | — | — |
| Dropper post travel | — | — | — | — | — | — |
| Seatpost offset | — | — | — | — | — | — |
Specs
Full specs
>
Specs
Full specs
Frame
Frame
Kona Butted Cromoly
Suspension

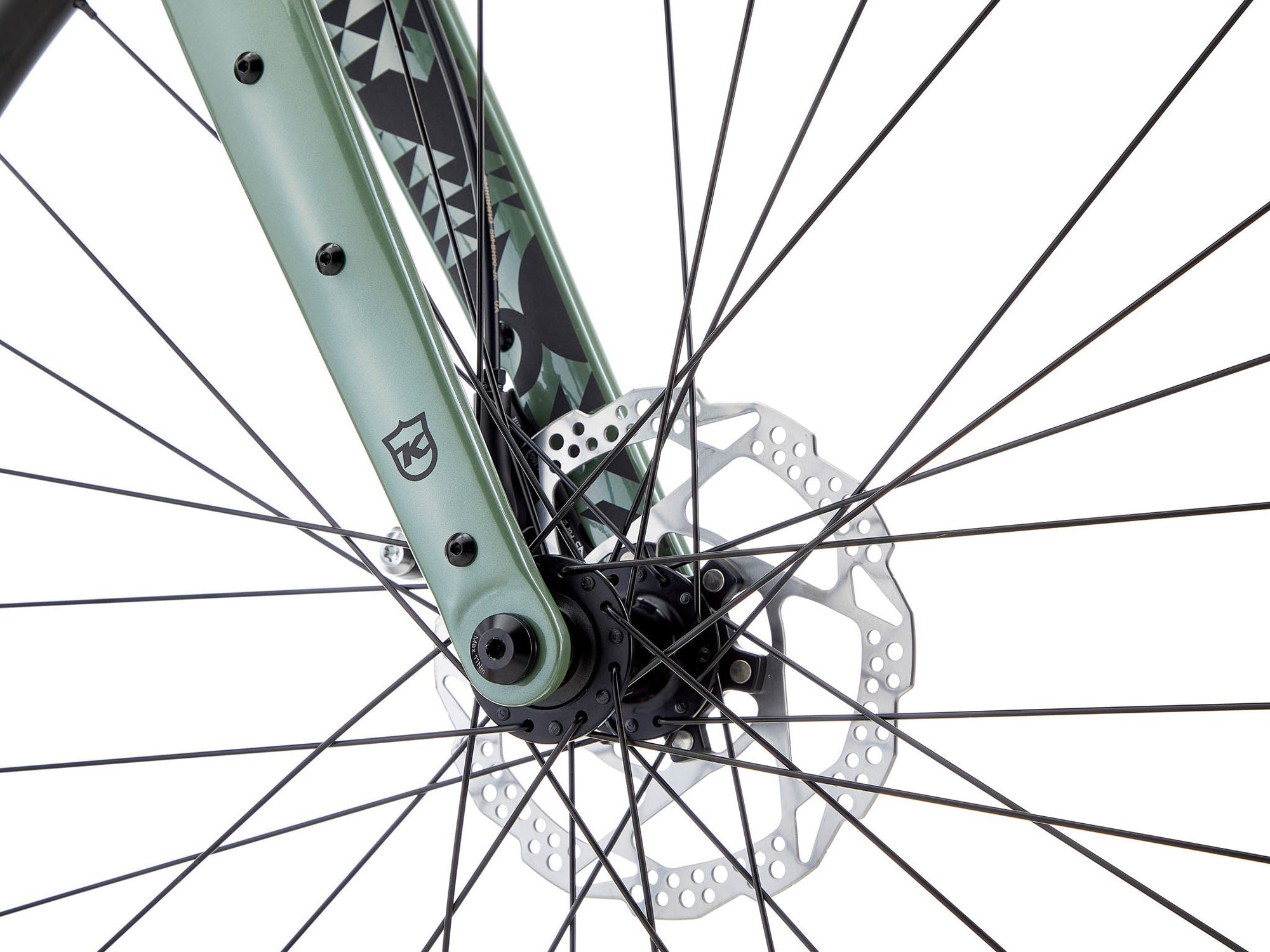

Fork
Kona Rove Verso Full Carbon Flat Mount Disc
Brakes
Front brake
SRAM Apex Hydraulic (caliper/levers)
Rear brake
SRAM Apex Hydraulic (caliper/levers)
Front rotor
SRAM Centerline 160mm
Rear rotor
SRAM Centerline 160mm
Drivetrain
Shift levers
SRAM Apex
Rear derailleur
SRAM Apex XPLR
Cassette
SRAM XPLR 12-speed, 11-44T
Chain
SRAM Apex

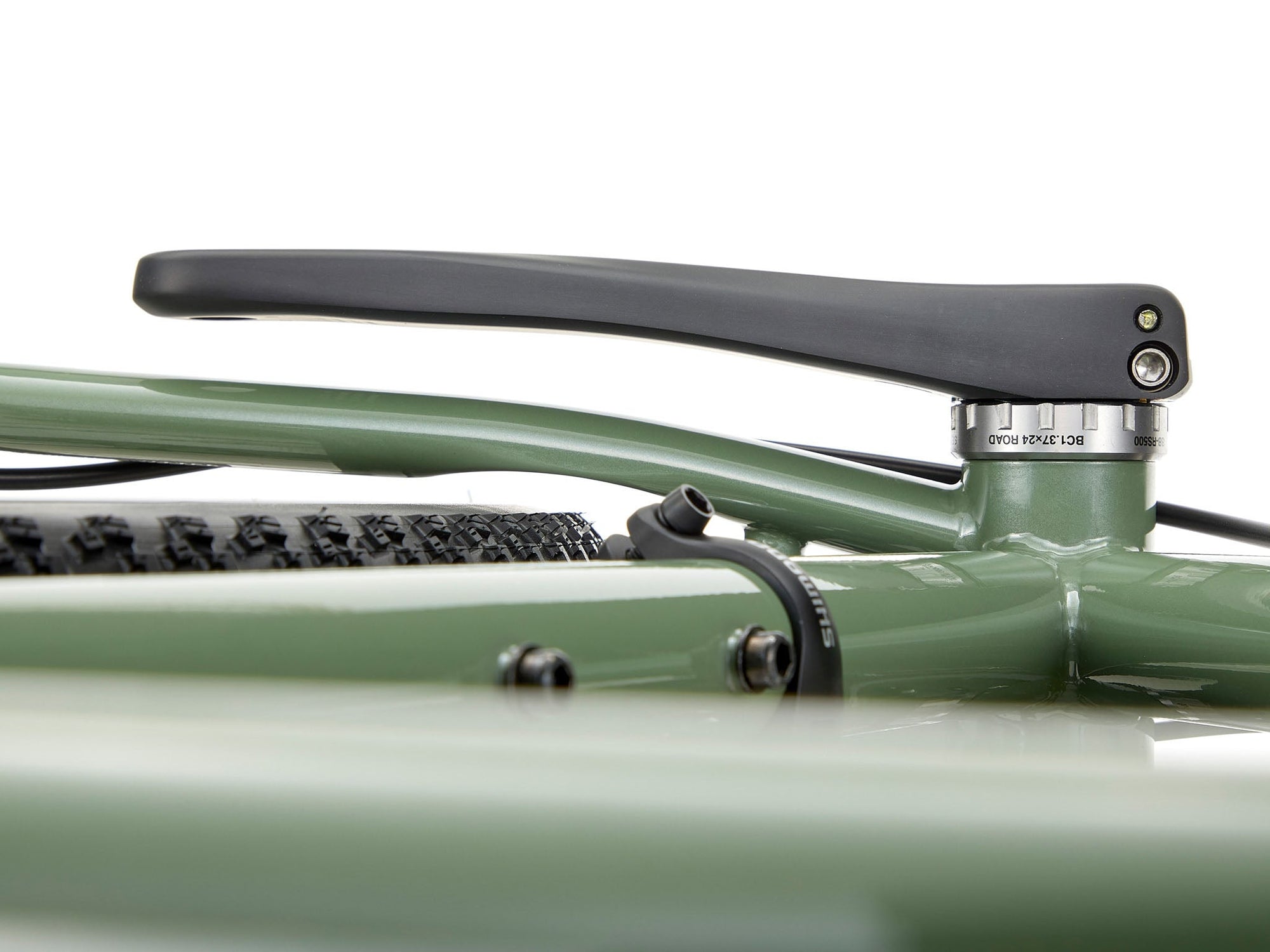

Crankset
SRAM Apex crankarms with 40T X-Sync chainring
Bottom bracket
SRAM DUB, 68mm
Cockpit
Stem
Kona Road Deluxe
Handlebars
Kona Road
Grips
Velo Shock-Proof Bar Tape
Saddle
WTB Volt
Seatpost
Kona Deluxe Thumb w/Offset, 27.2mm
Wheels & Tires
Front wheel
WTB KOM Team i23 TCS; Formula, 12x100mm; Stainless Black 14g
Rear wheel
WTB KOM Team i23 TCS; Formula, 12x142mm; Stainless Black 14g
Front tire
Maxxis Rambler EXO TR, 650x47c
Rear tire
Maxxis Rambler EXO TR, 650x47c
