Kona

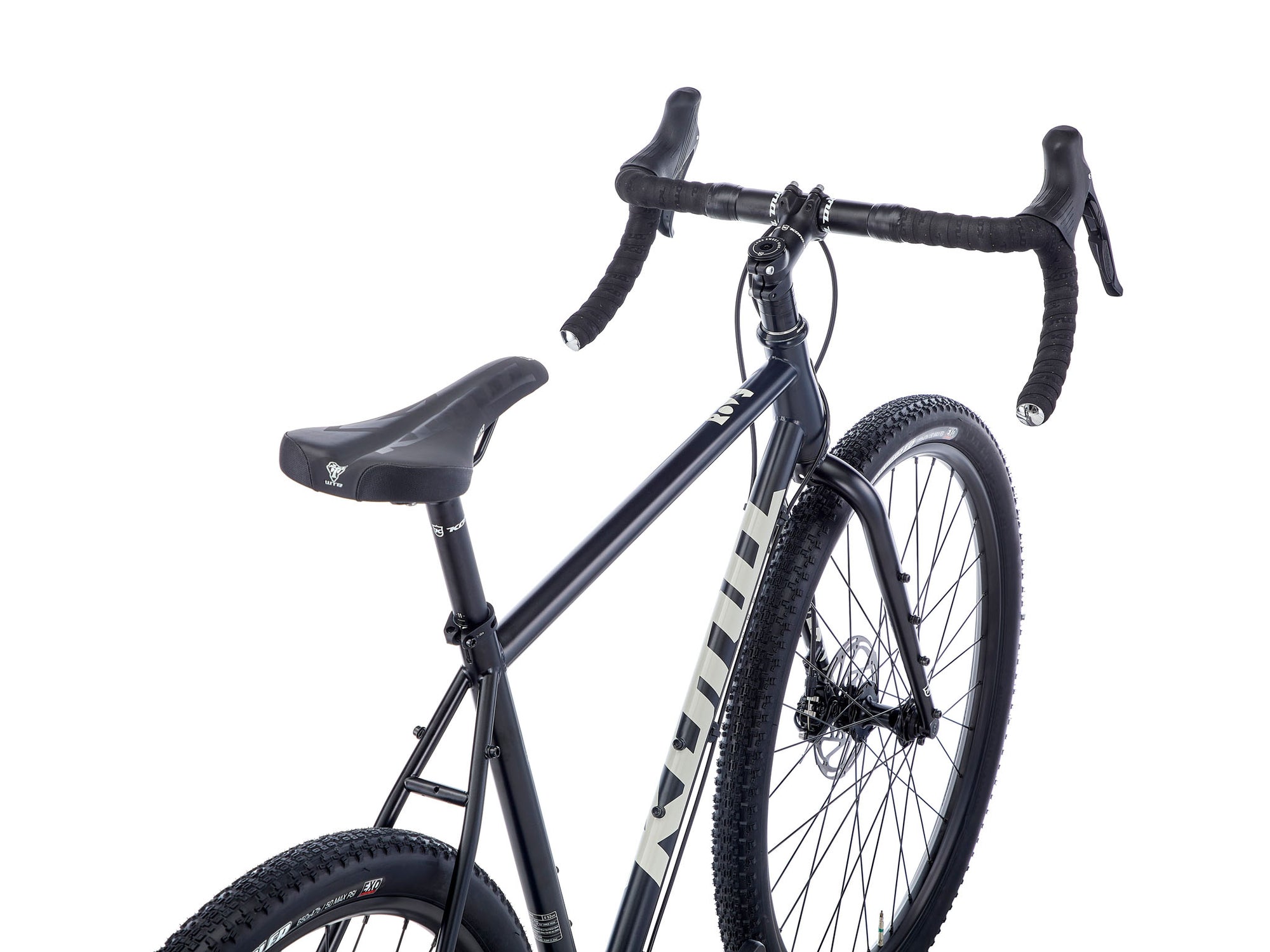

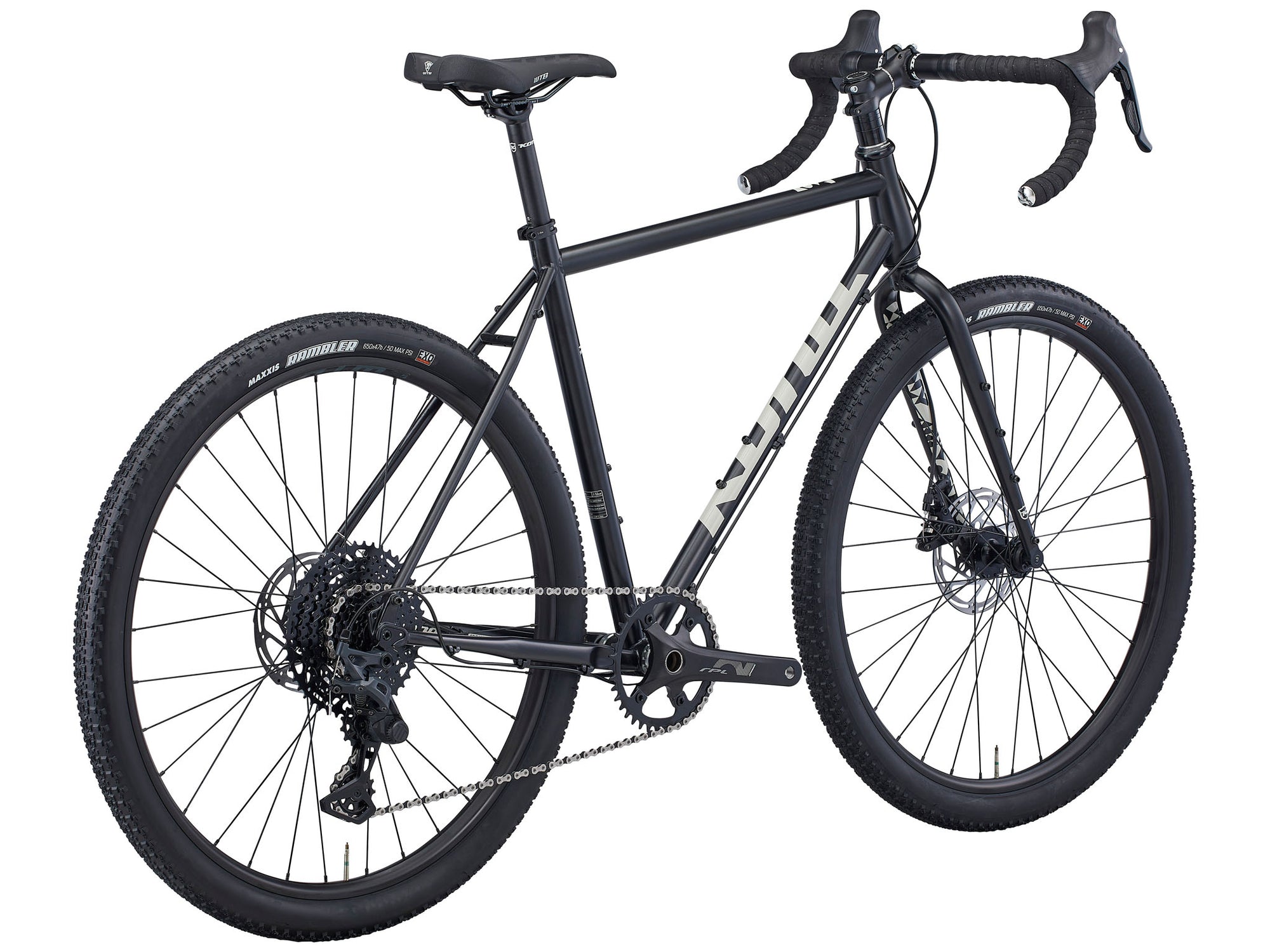

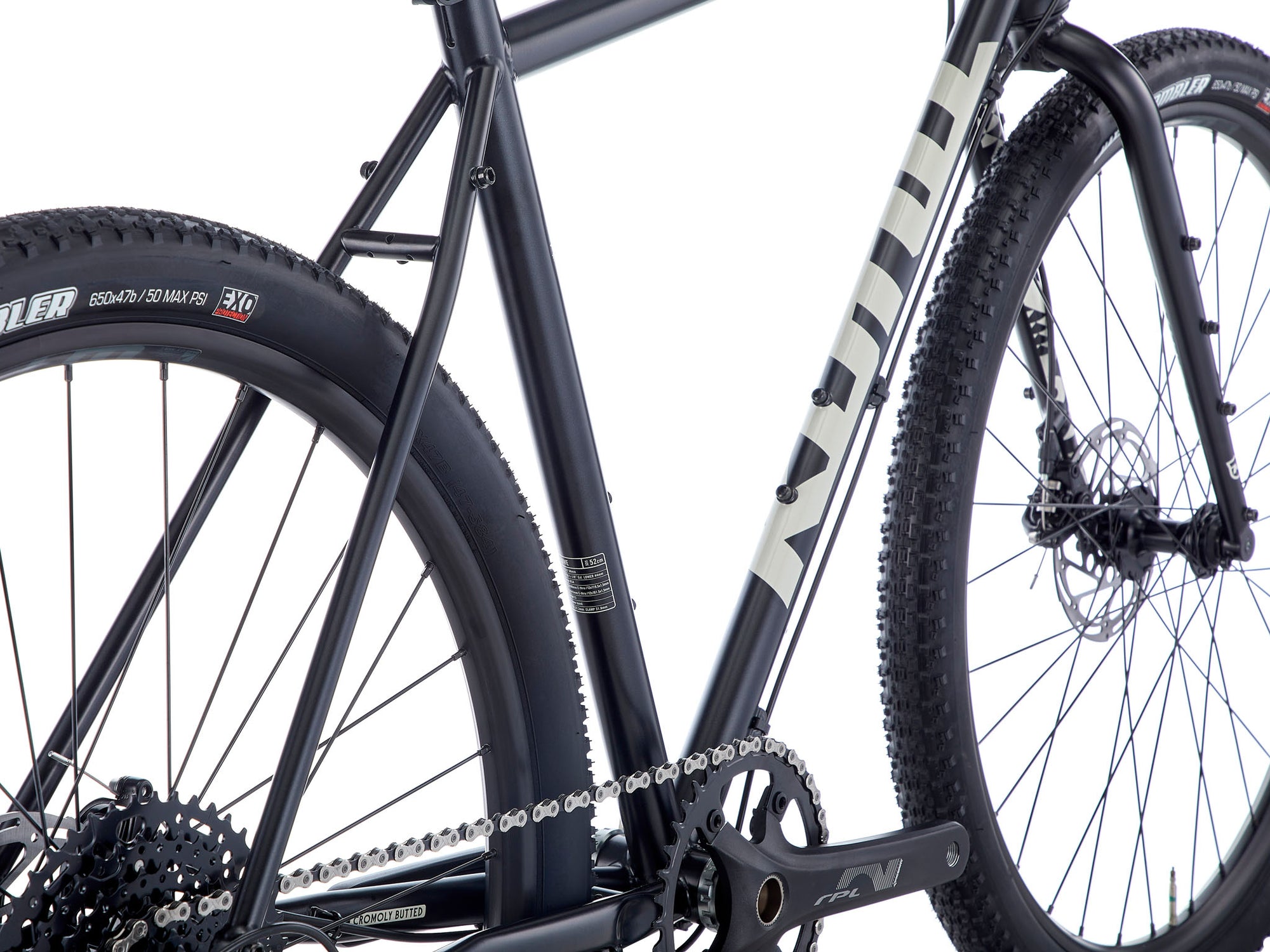

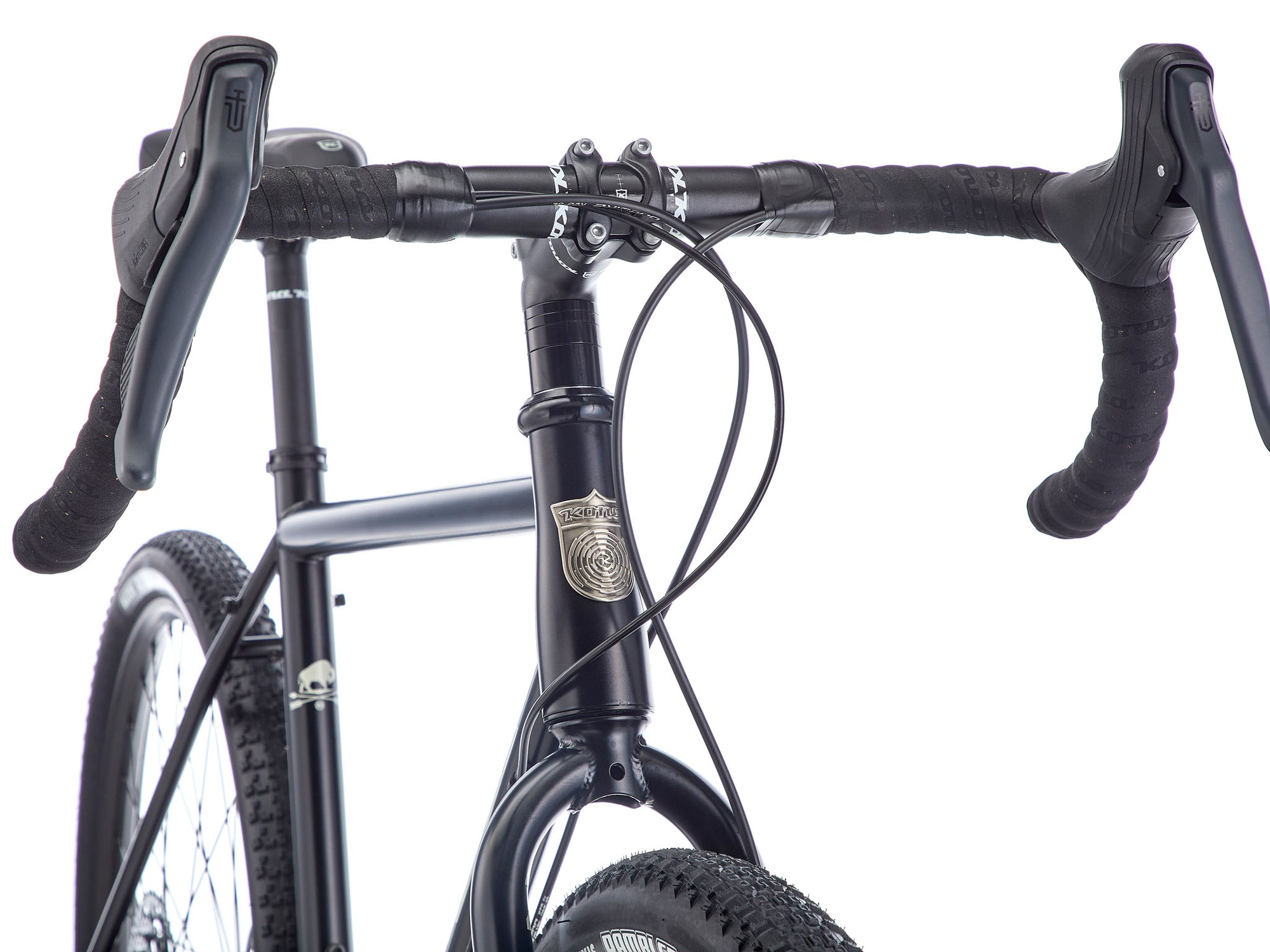

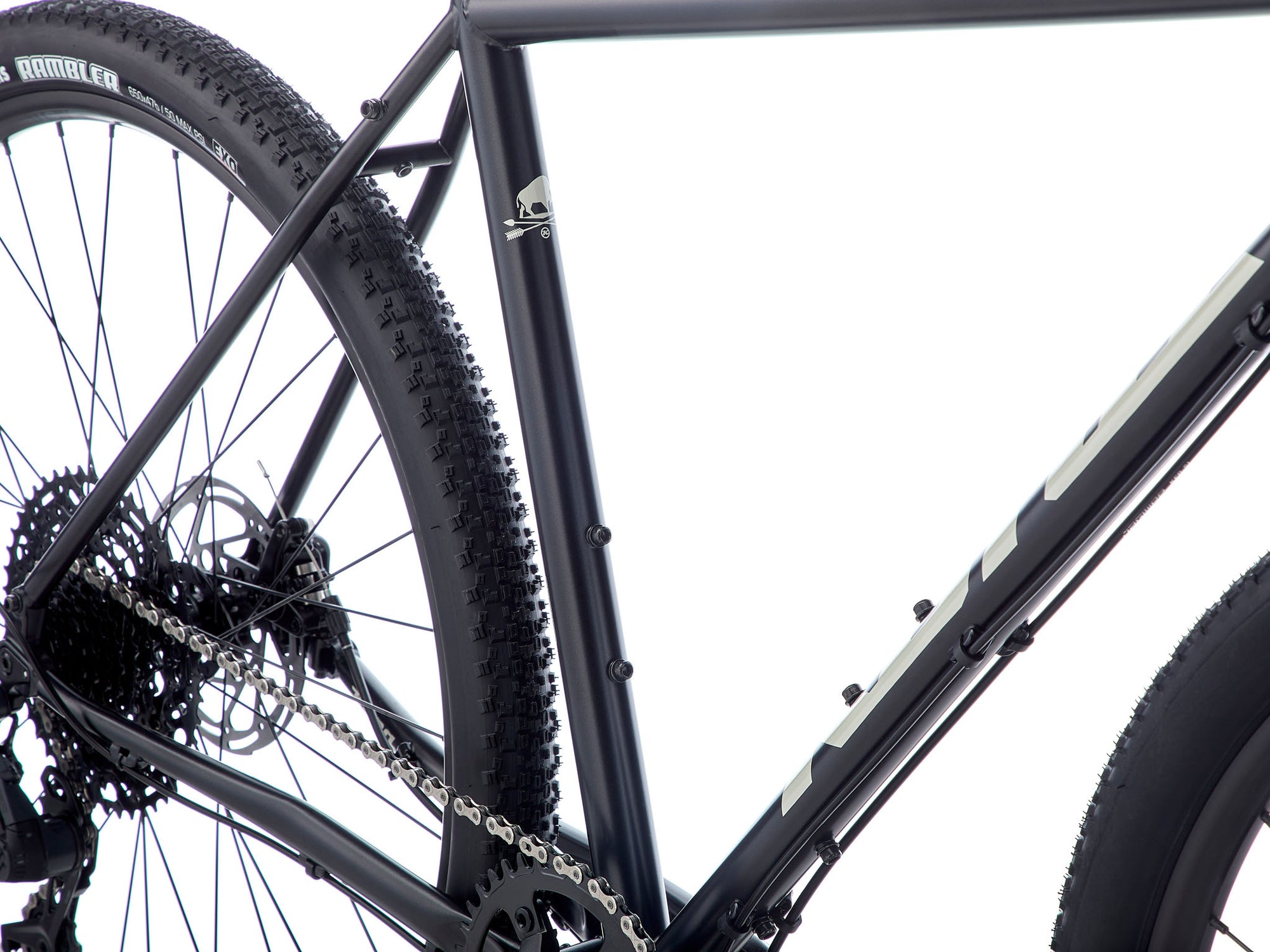

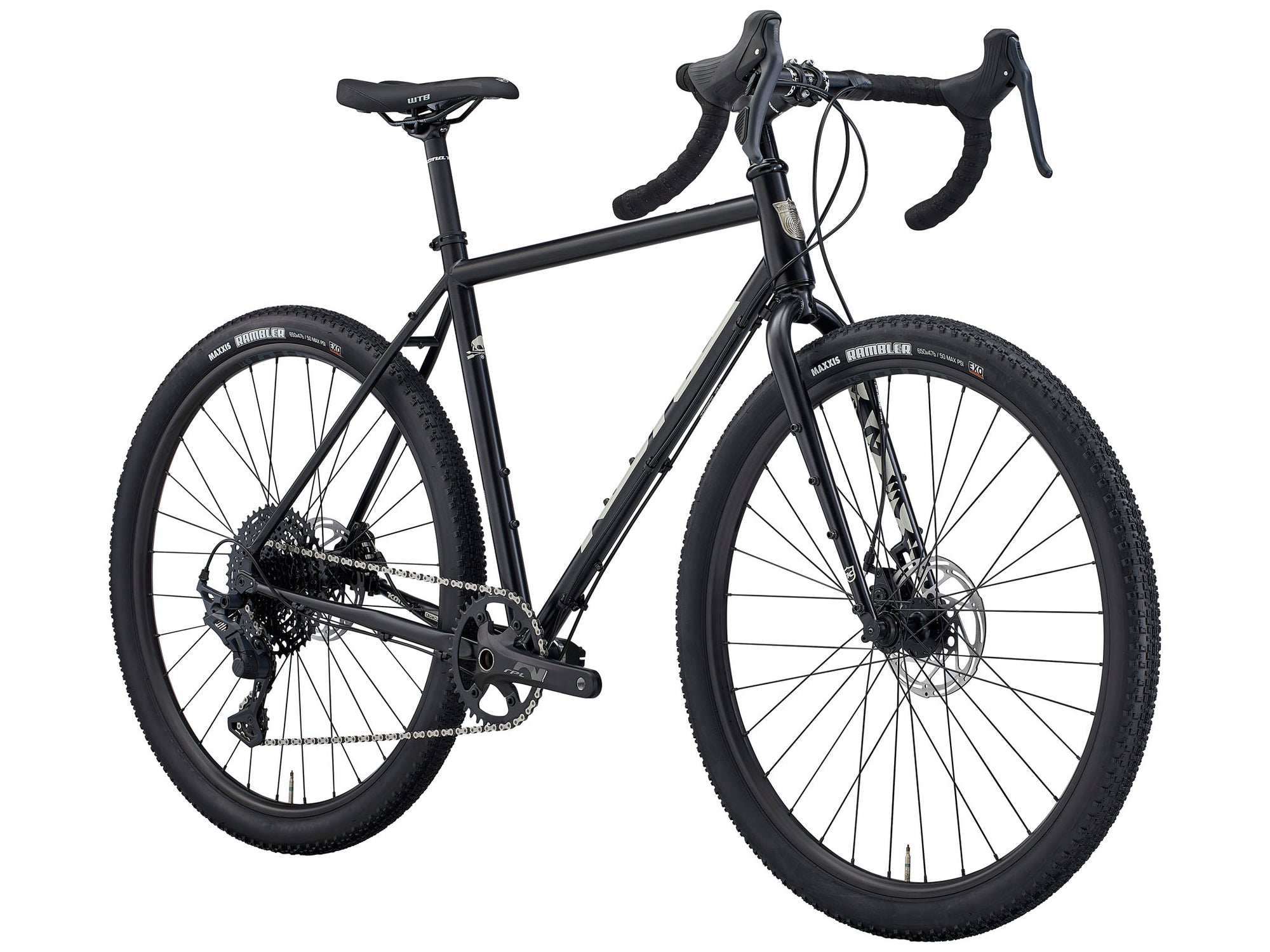

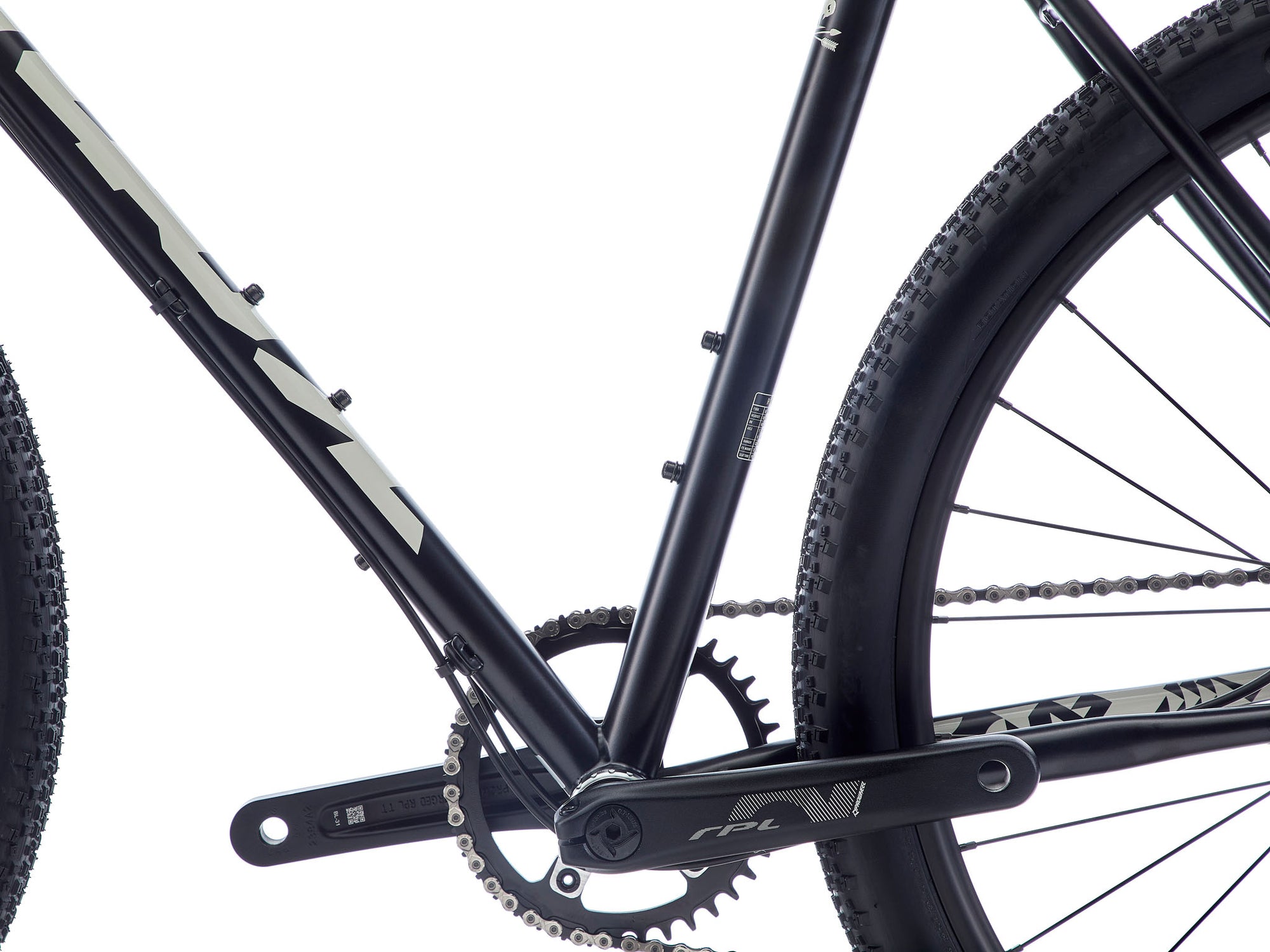

Rove Base (36MS)
$1,39936MS
Gallery
Images
geometry
Geometry
Geometry
>
Geometry
Geometry
Frame geometry
| Geometry | 48 | 50 | 52 | 54 | 56 | 58 |
|---|---|---|---|---|---|---|
| Stack | 532mm | 551mm | 570mm | 588mm | 607mm | 626mm |
| Reach | 372mm | 378mm | 383mm | 388mm | 392mm | 400mm |
| Headtube length | 90mm | 110mm | 130mm | 150mm | 170mm | 190mm |
| Headtube angle | 70.5deg | 70.5deg | 71deg | 71deg | 71.5deg | 71.5deg |
| BB height | 268mm | 268mm | 270mm | 270mm | 272mm | 272mm |
| BB drop | 74mm | 74mm | 72mm | 72mm | 70mm | 70mm |
| Trail | — | — | — | — | — | — |
| Fork length | 400mm | 400mm | 400mm | 400mm | 400mm | 400mm |
| Fork offset | 50mm | 50mm | 50mm | 50mm | 50mm | 50mm |
| Front center | 592mm | 604mm | 612mm | 623mm | 628mm | 643mm |
| Chainstay length | 435mm | 435mm | 435mm | 435mm | 435mm | 435mm |
| Wheelbase | 1016mm | 1029mm | 1036mm | 1048mm | 1054mm | 1068mm |
| Top tube | 515mm | 531mm | 546mm | 562mm | 578mm | 598mm |
| Standover height | 735mm | 754mm | 775mm | 794mm | 815mm | 834mm |
| Seat tube length | 480mm | 500mm | 520mm | 540mm | 560mm | 580mm |
| Seat tube angle | 75deg | 74.5deg | 74deg | 73.5deg | 73deg | 72.5deg |
Spec geometry
| Geometry | 48 | 50 | 52 | 54 | 56 | 58 |
|---|---|---|---|---|---|---|
| Crank length | — | — | — | — | — | — |
| Stem length | — | — | — | — | — | — |
| Handlebar width | — | — | — | — | — | — |
| Handlebar reach | — | — | — | — | — | — |
| Handlebar drop | — | — | — | — | — | — |
| Saddle width | — | — | — | — | — | — |
| Dropper post travel | — | — | — | — | — | — |
| Seatpost offset | — | — | — | — | — | — |
Specs
Full specs
>
Specs
Full specs
Frame
Frame
Kona Butted Cromoly
Suspension
Fork
Kona Project Two Cromoly Disc
Brakes
Front brake
Tektro MDC550 mechanical disc
Rear brake
Tektro MDC550 mechanical disc
Front rotor
Tektro TR 160mm
Rear rotor
Tektro TR 160mm
Drivetrain
Shift levers
Microshift Sword
Rear derailleur
Microshift Sword
Cassette
Microshift Advent X, 10-speed, 11-48T
Chain
KMC X10
Crankset
Prowheel crankarms, 40T chainring
Bottom bracket
Prowheel BB68+
Cockpit
Stem
Kona Road
Handlebars
Kona Road
Grips
Kona Cork Tape
Saddle
WTB Volt
Seatpost
Kona Thumb w/Offset, 27.2mm
Wheels & Tires
Front wheel
WTB ST i23 TCS 2.0; Formula 100x12mm; Stainless Black 14g
Rear wheel
WTB ST i23 TCS 2.0; Formula 142x12mm; Stainless Black 14g
Front tire
Maxxis Rambler EXO 650x47c
Rear tire
Maxxis Rambler EXO 650x47c
