Kona

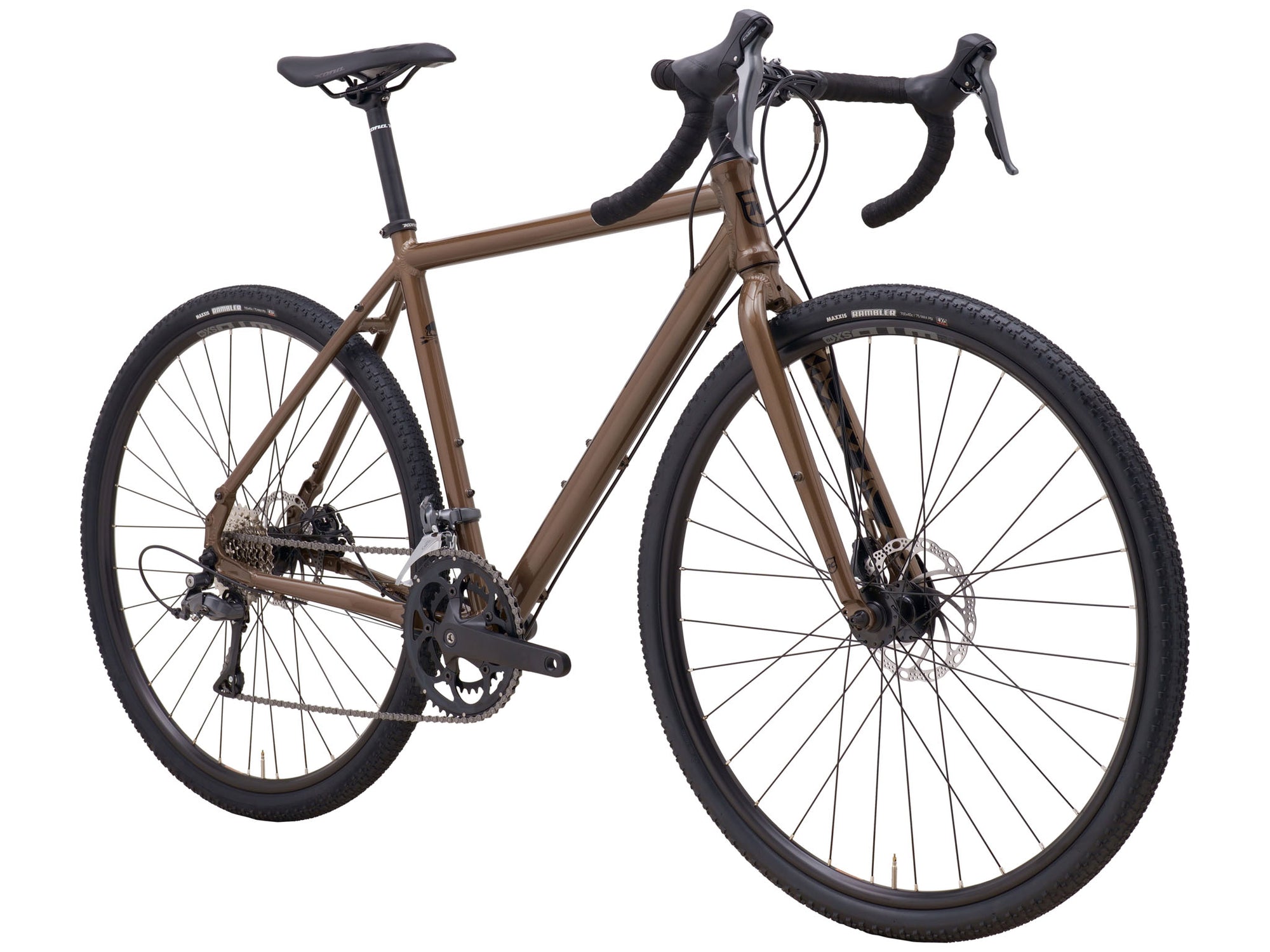

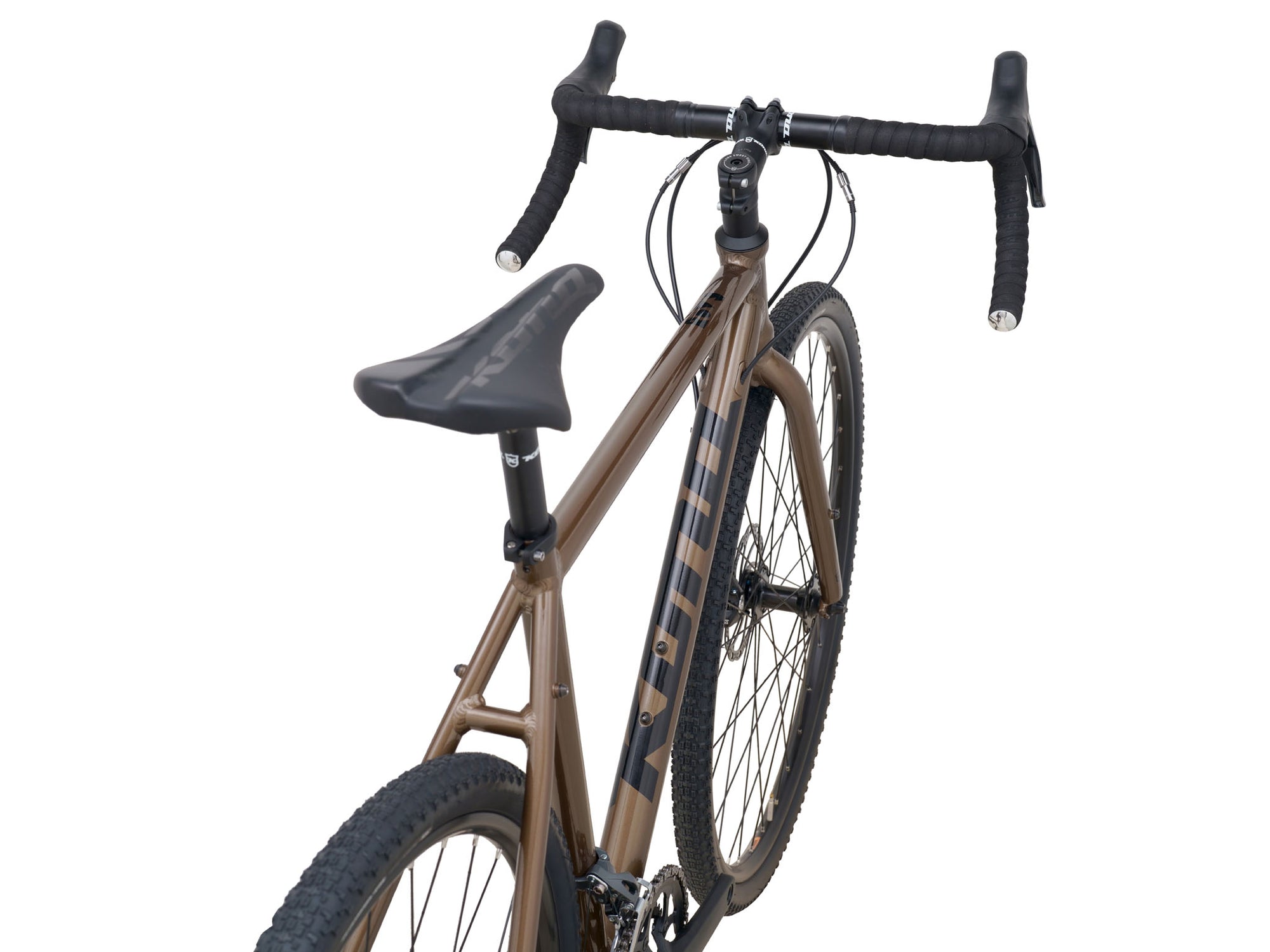

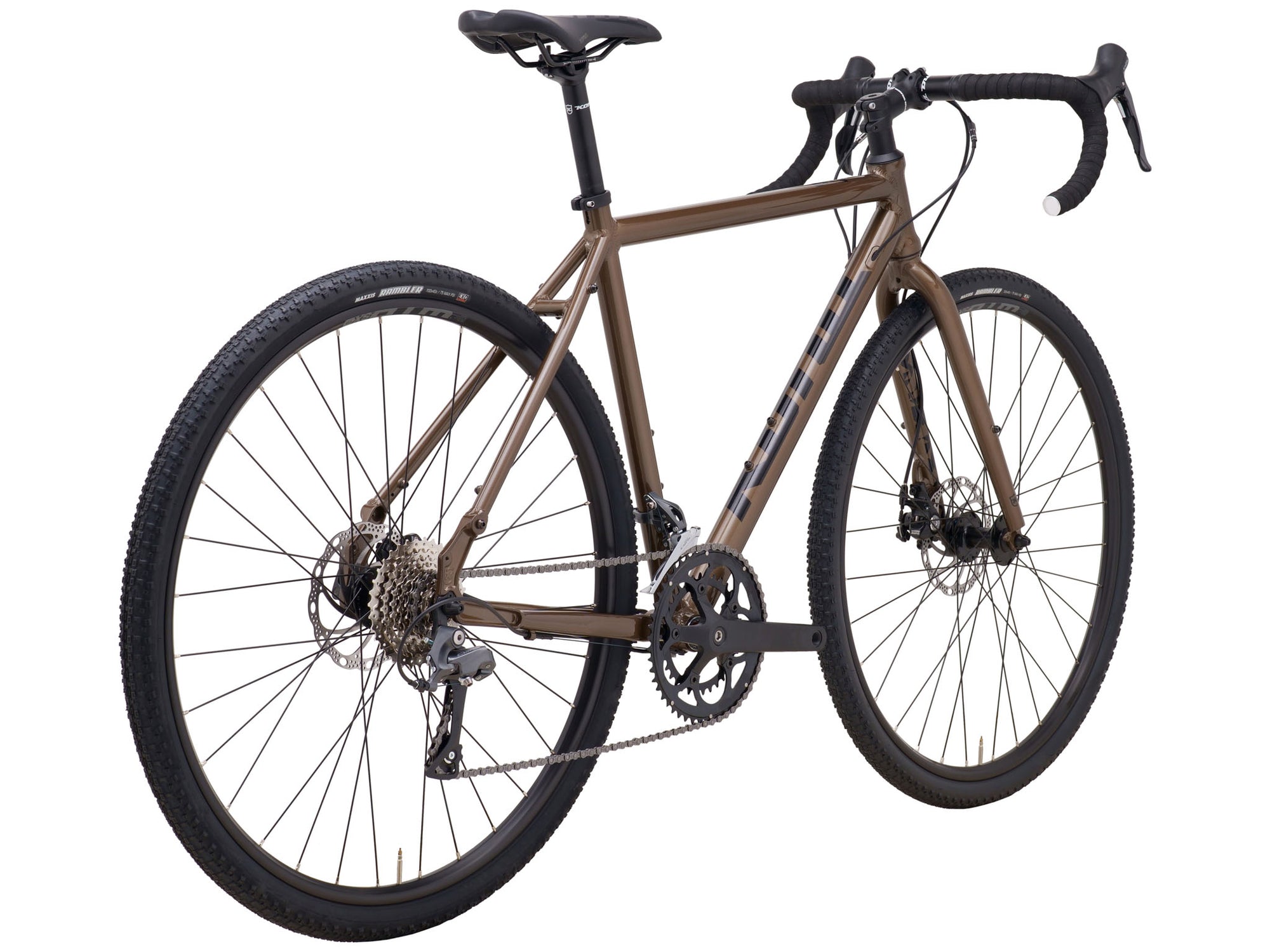

Rove AL 700
$94936B
Gallery
Images
geometry
Geometry
Geometry
>
Geometry
Geometry
Frame geometry
| Geometry | 48 | 50 | 52 | 54 | 56 | 58 |
|---|---|---|---|---|---|---|
| Stack | 532mm | 551mm | 570mm | 588mm | 607mm | 626mm |
| Reach | 372mm | 378mm | 383mm | 388mm | 392mm | 400mm |
| Headtube length | 90mm | 110mm | 130mm | 150mm | 170mm | 190mm |
| Headtube angle | 70.5deg | 70.5deg | 71deg | 71deg | 71.5deg | 71.5deg |
| BB height | 268mm | 268mm | 270mm | 270mm | 272mm | 272mm |
| BB drop | 74mm | 74mm | 72mm | 72mm | 70mm | 70mm |
| Trail | — | — | — | — | — | — |
| Fork length | 400mm | 400mm | 400mm | 400mm | 400mm | 400mm |
| Fork offset | 50mm | 50mm | 50mm | 50mm | 50mm | 50mm |
| Front center | 592mm | 604mm | 612mm | 623mm | 628mm | 643mm |
| Chainstay length | 435mm | 435mm | 435mm | 435mm | 435mm | 435mm |
| Wheelbase | 1016mm | 1029mm | 1036mm | 1048mm | 1054mm | 1068mm |
| Top tube | 515mm | 531mm | 546mm | 562mm | 578mm | 598mm |
| Standover height | 735mm | 754mm | 775mm | 794mm | 815mm | 834mm |
| Seat tube length | 480mm | 500mm | 520mm | 540mm | 560mm | 580mm |
| Seat tube angle | 75deg | 74.5deg | 74deg | 73.5deg | 73deg | 72.5deg |
Spec geometry
| Geometry | 48 | 50 | 52 | 54 | 56 | 58 |
|---|---|---|---|---|---|---|
| Crank length | — | — | — | — | — | — |
| Stem length | — | — | — | — | — | — |
| Handlebar width | — | — | — | — | — | — |
| Handlebar reach | — | — | — | — | — | — |
| Handlebar drop | — | — | — | — | — | — |
| Saddle width | — | — | — | — | — | — |
| Dropper post travel | — | — | — | — | — | — |
| Seatpost offset | — | — | — | — | — | — |
Specs
Full specs
>
Specs
Full specs
Frame
Frame
Kona 6061 Aluminum Butted
Suspension
Fork
Kona Project Two Aluminum Disc
Brakes
Front brake
Tektro Mira CX Mechanical
Rear brake
Tektro Mira CX Mechanical
Front rotor
Tektro TR160, 160mm
Rear rotor
Tektro TR160, 160mm
Drivetrain
Shift levers
Shimano Claris

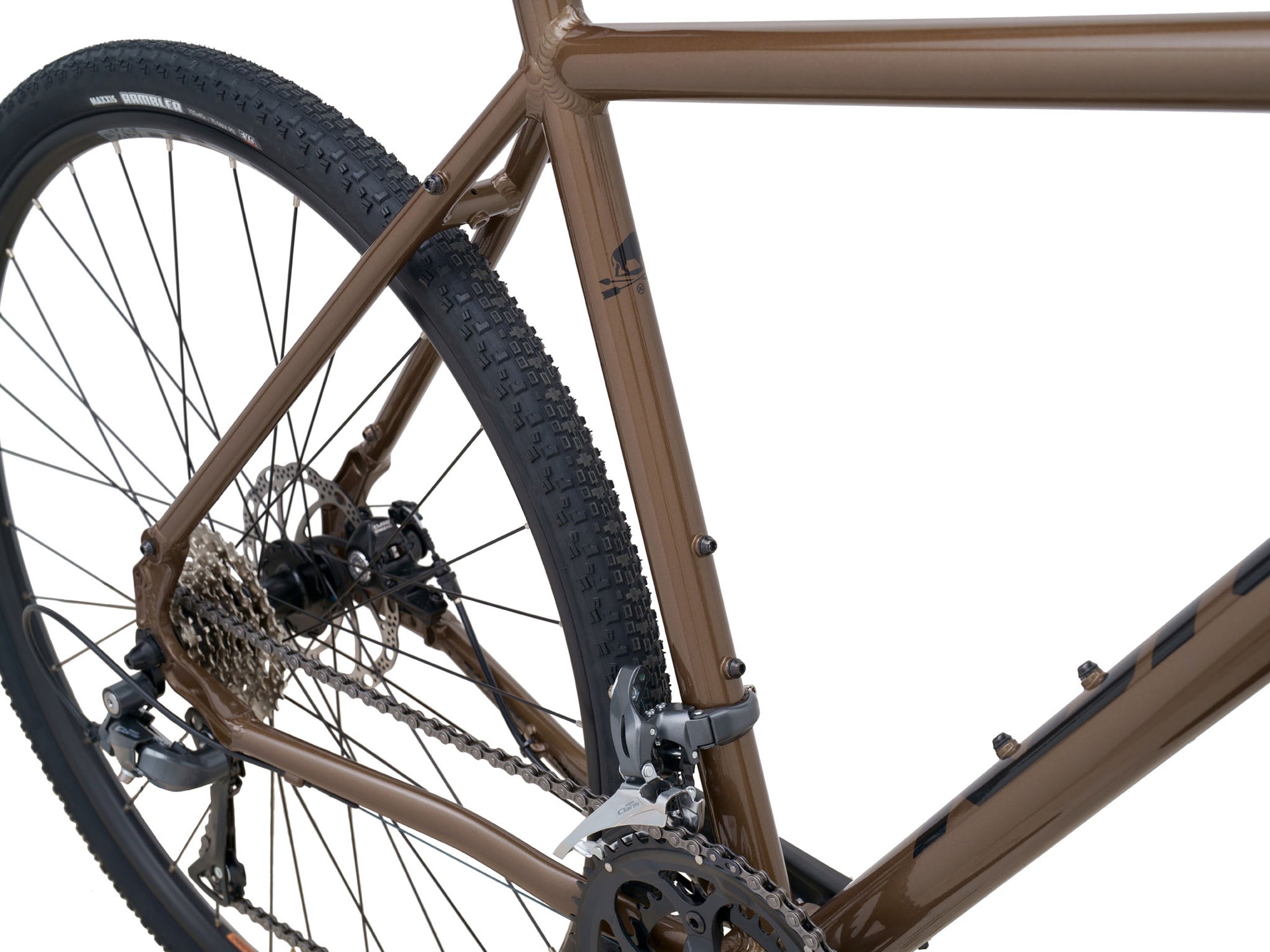

Rear derailleur
Shimano Claris

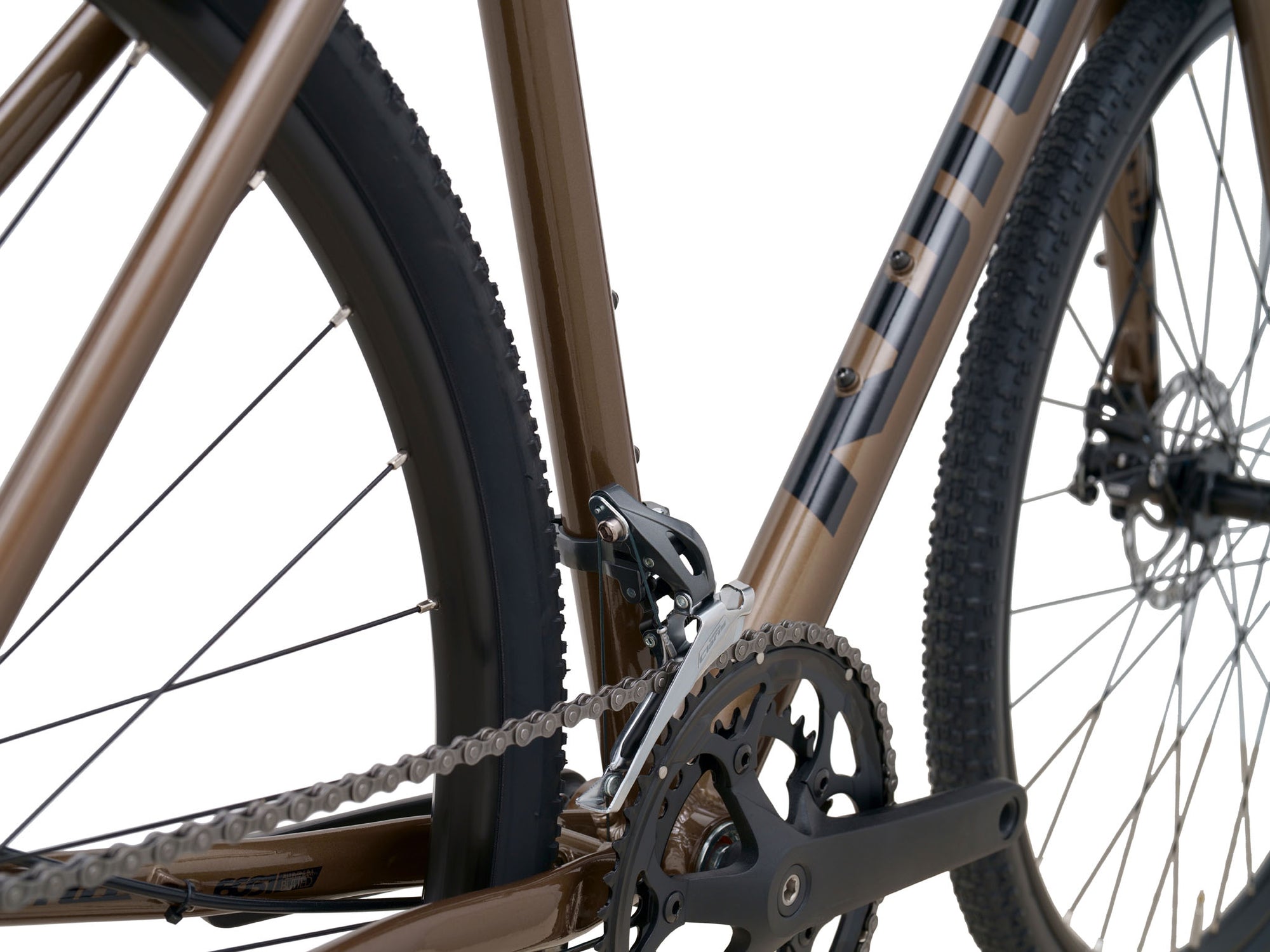

Front derailleur
Shimano Claris
Cassette
Shimano Claris, 8-speed, 11-34T
Chain
KMC Z8.3

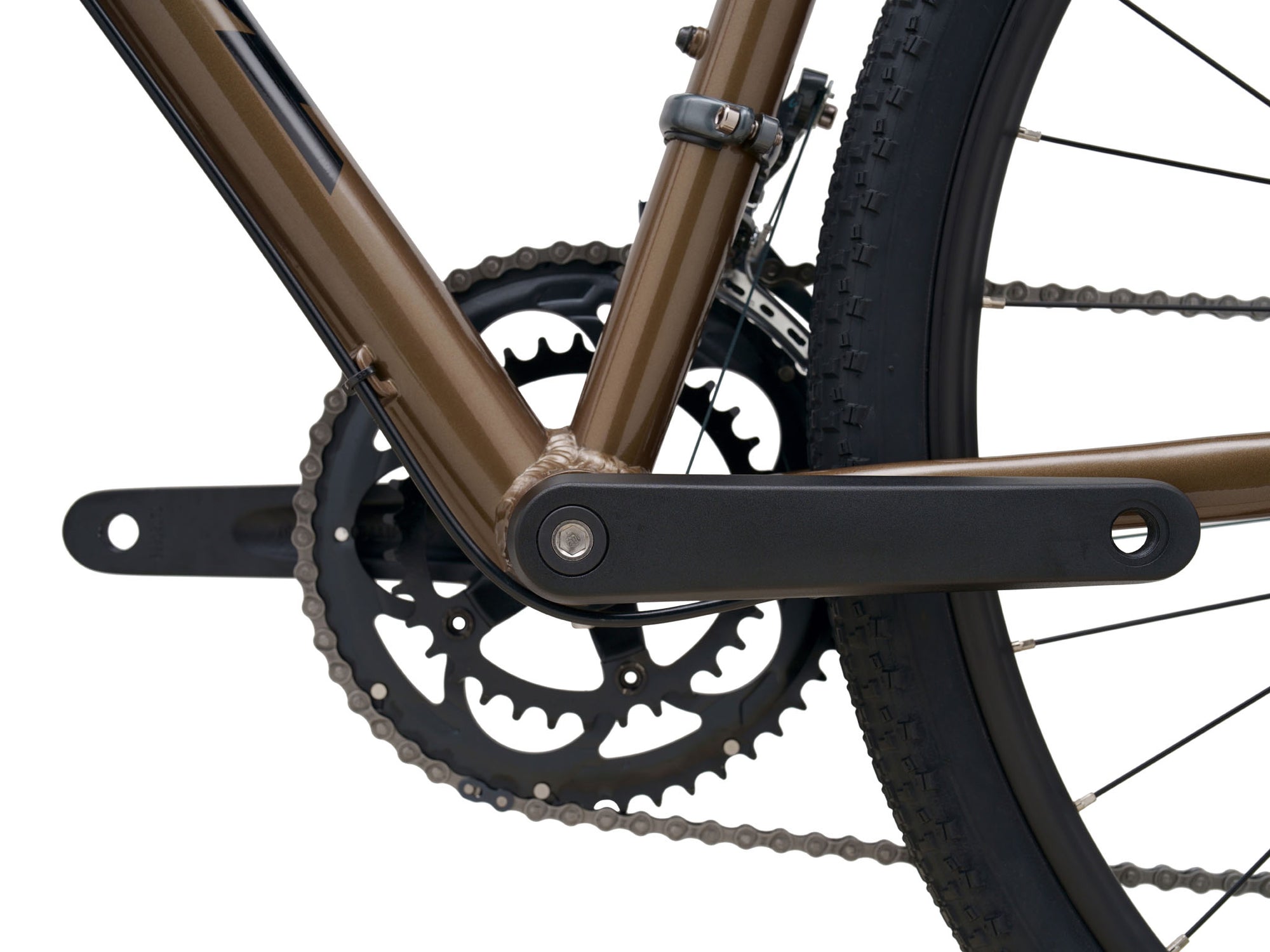

Crankset
Samox crankarms, 34/50T chainrings
Bottom bracket
FSA 7420
Cockpit
Stem
Kona Road
Handlebars
Kona Road
Grips
Kona Cork Tape
Saddle
Kona Road
Seatpost
Kona Thumb w/Offset, 27.2mm
Wheels & Tires
Front wheel
WTB SX19; Formula, 100x9mm; Stainless Black, 14g
Rear wheel
WTB SX19; Formula, 135x10mm; Stainless Black, 14g
Front tire
Maxxis Rambler, 700x40c
Rear tire
Maxxis Rambler, 700x40c
