Kona

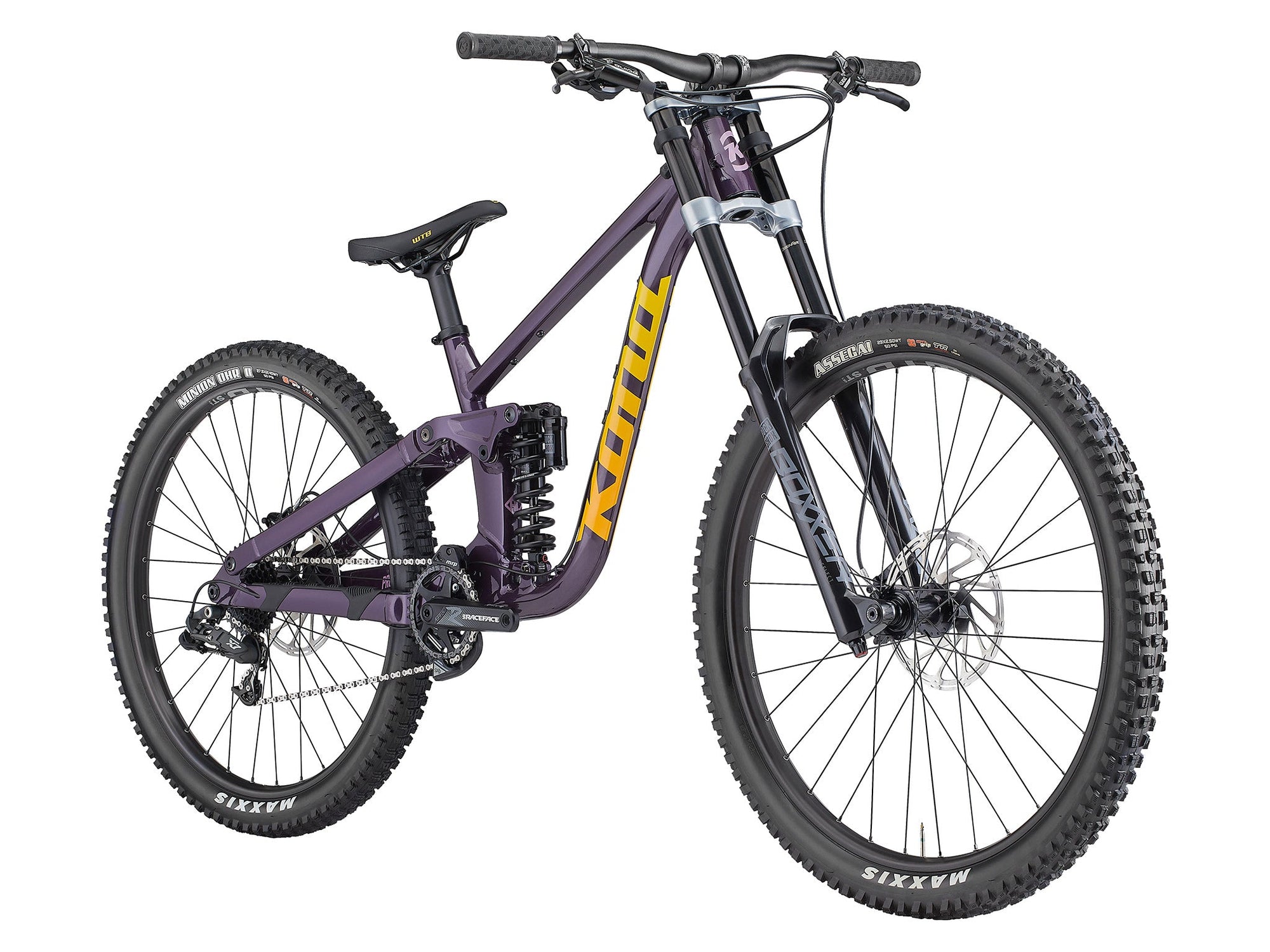

Process X DH
Gallery
Images
geometry
Geometry
Geometry
>
Geometry
Geometry
Frame geometry
| Geometry | L | M | S | XL |
|---|---|---|---|---|
| Stack | 637mm | 632mm | 632mm | 641mm |
| Reach | 490mm | 465mm | 440mm | 525mm |
| Headtube length | 115mm | 110mm | 110mm | 120mm |
| Headtube angle | 63.5deg | 63.5deg | 63.5deg | 63.5deg |
| BB height | 345mm | 345mm | 345mm | 345mm |
| BB drop | 30mm | 30mm | 20mm | 30mm |
| Trail | — | — | — | — |
| Fork length | 585mm | 585mm | 585mm | 585mm |
| Fork offset | 44mm | 44mm | 44mm | 44mm |
| Front center | 838mm | 808mm | 783mm | 878mm |
| Chainstay length | 440mm | 440mm | 440mm | 440mm |
| Wheelbase | 1276mm | 1246mm | 1221mm | 1316mm |
| Top tube | 623mm | 594mm | 569mm | 662mm |
| Standover height | 710mm | 700mm | 700mm | 720mm |
| Seat tube length | 420mm | 380mm | 380mm | 450mm |
| Seat tube angle | 77.8deg | 77.9deg | 77.9deg | 77.8deg |
Spec geometry
| Geometry | L | M | S | XL |
|---|---|---|---|---|
| Crank length | — | — | — | — |
| Stem length | — | — | — | — |
| Handlebar width | — | — | — | — |
| Handlebar reach | — | — | — | — |
| Handlebar drop | — | — | — | — |
| Saddle width | — | — | — | — |
| Dropper post travel | — | — | — | — |
| Seatpost offset | — | — | — | — |
Specs
Full specs
>
Specs
Full specs
Frame
Frame
Kona 6061 Aluminum Butted, 162mm travel

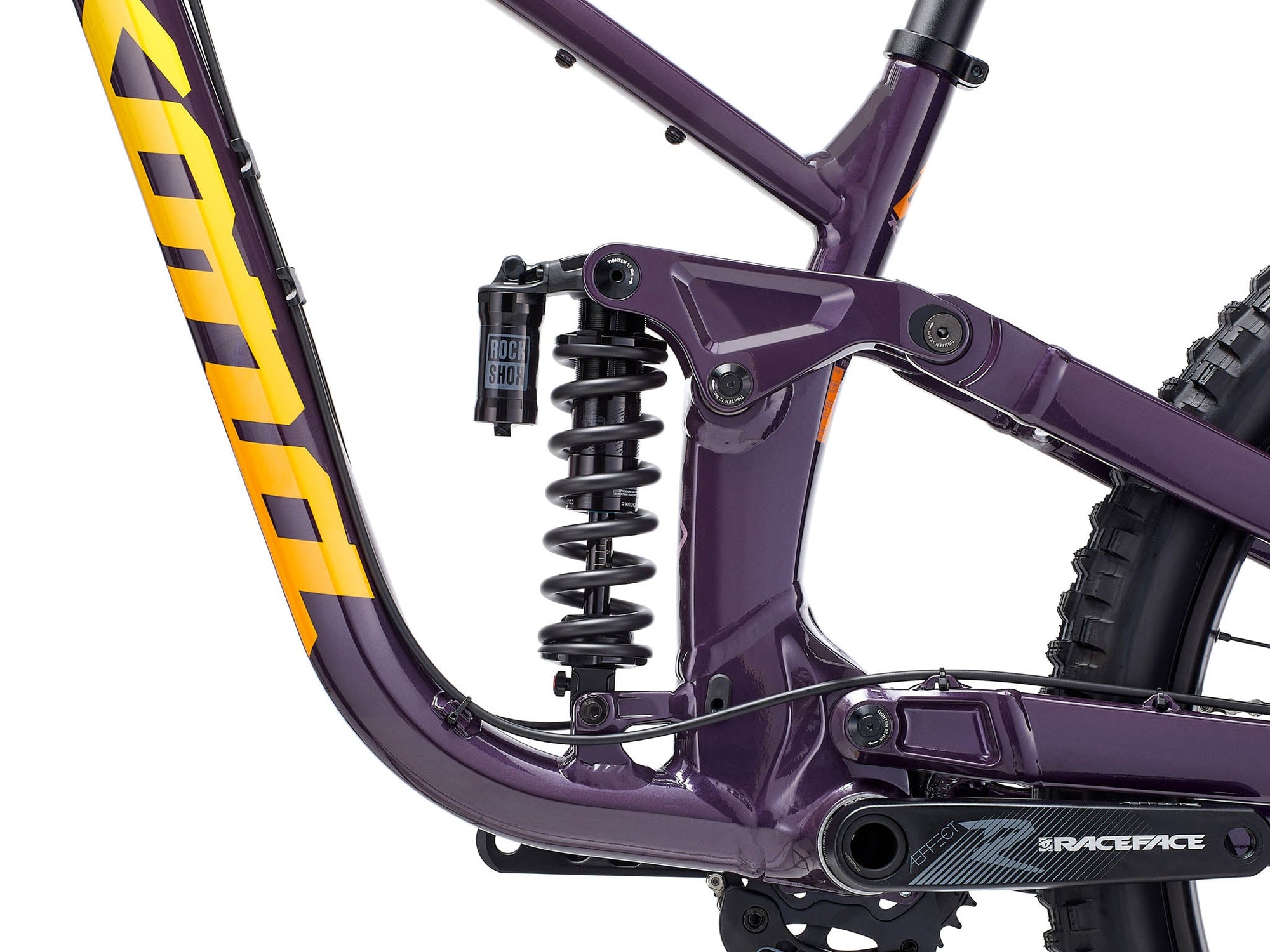

Suspension
Rear shock
RockShox Super Deluxe Coil Trunnion

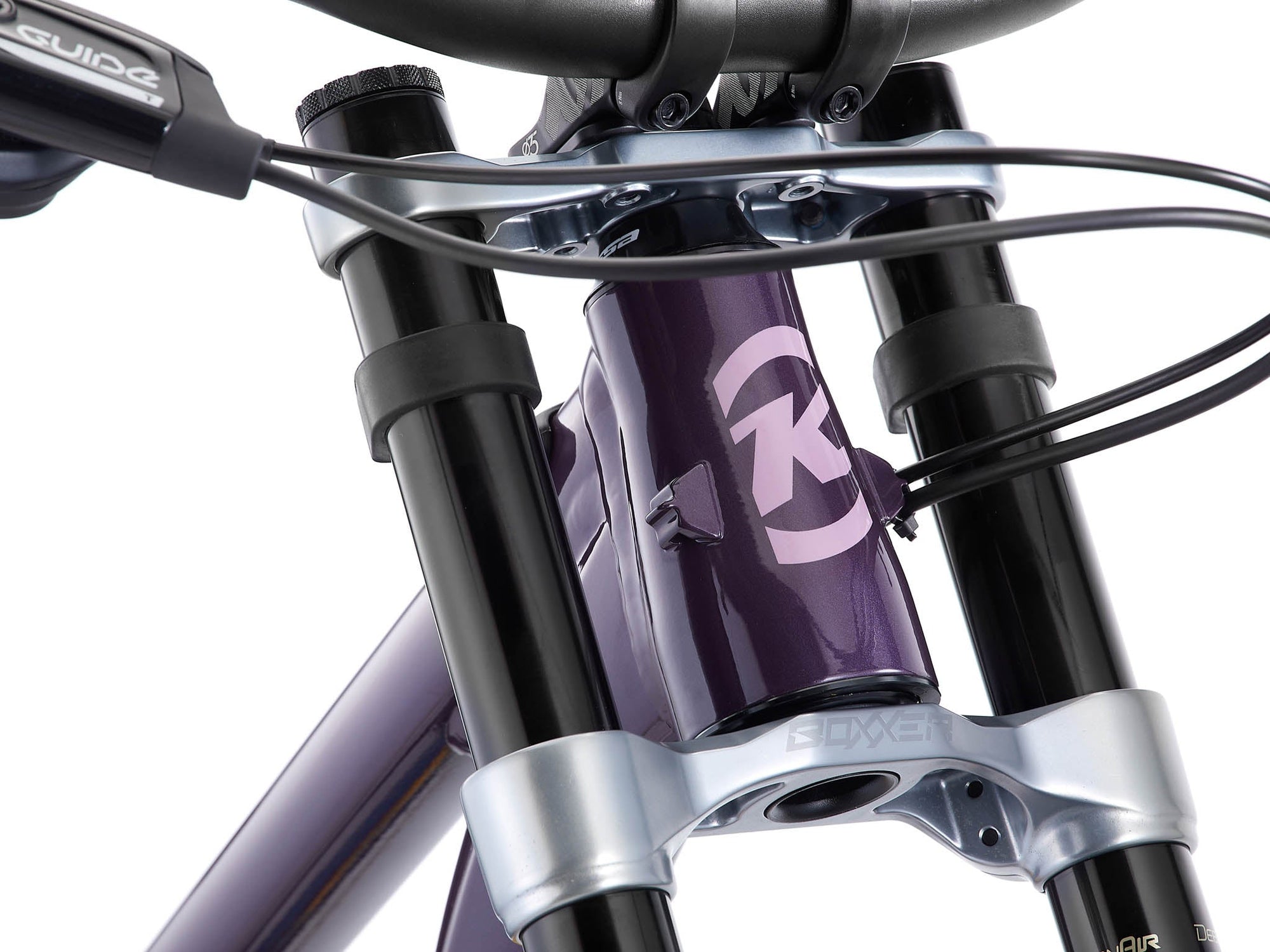

Fork
RockShox Boxxer Select DebonAir, 190mm
Brakes
Front brake
SRAM Guide T hydraulic disc (Guide T lever, Guide T caliper)

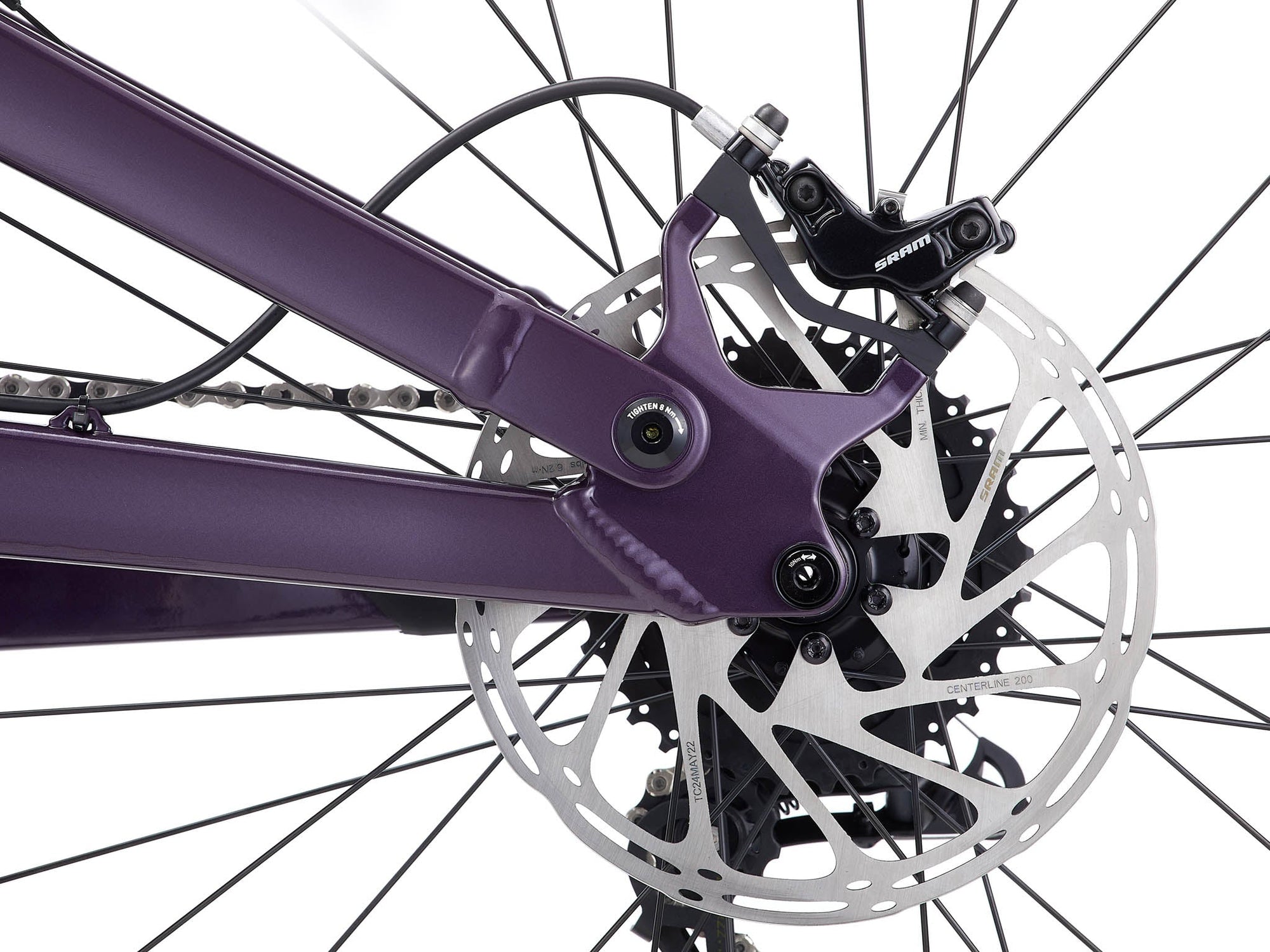

Rear brake
SRAM Guide T hydraulic disc (Guide T lever, Guide T caliper)
Front rotor
SRAM Centerline 200mm
Rear rotor
SRAM Centerline 200mm
Drivetrain
Shift levers
SRAM X5
Rear derailleur
SRAM X7
Cassette
SRAM PG920, 9-speed, 11-34T
Chain
KMC X9
Crankset
Race Face Aeffect R
Bottom bracket
Race Face PF92
Cockpit

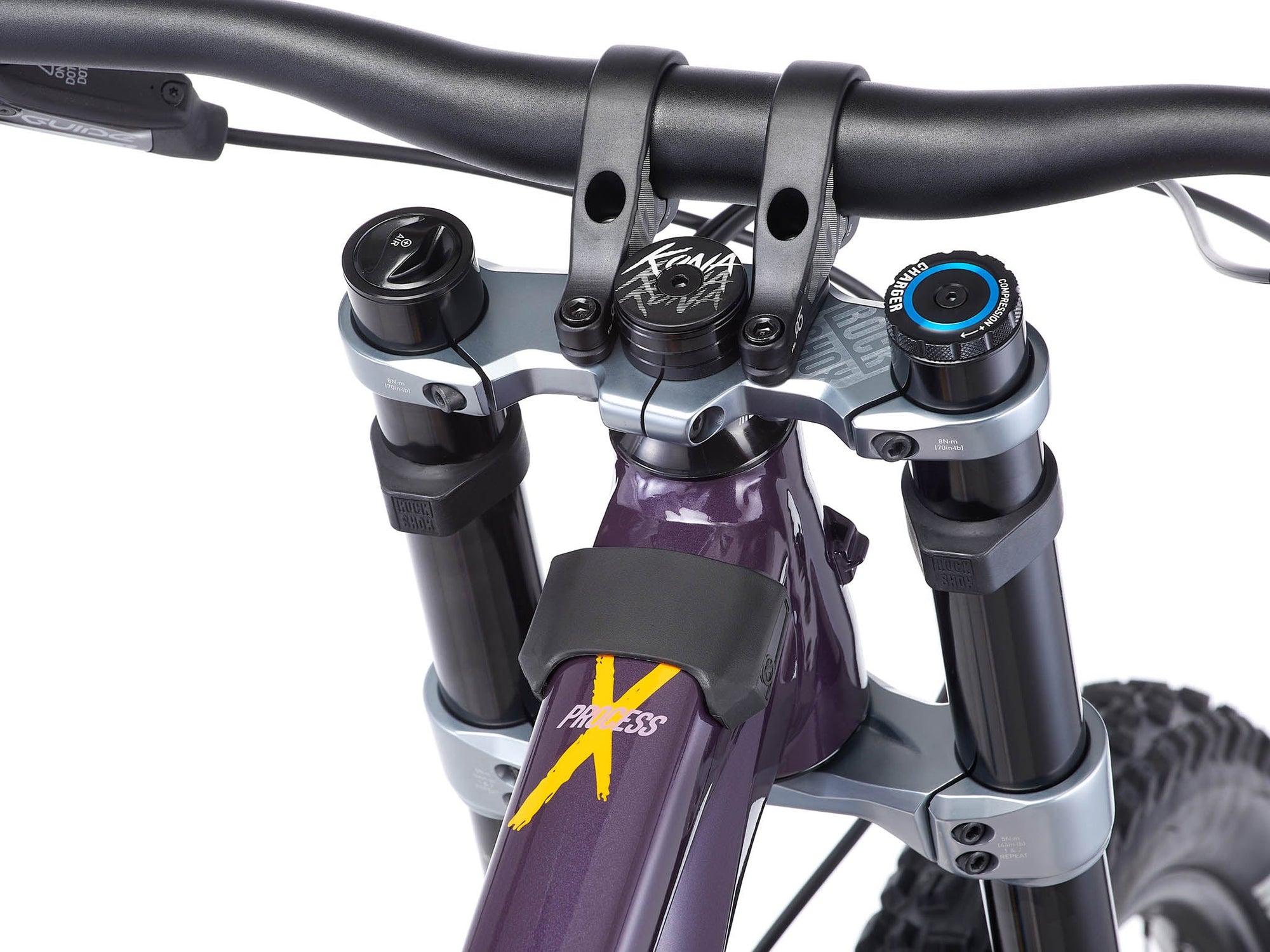

Stem
Race Face Chester
Handlebars
Kona XC/BC 35
Grips
Kona Key Grip
Saddle
WTB Volt
Seatpost
Kona OB, 31.6mm
Wheels & Tires
Front wheel
WTB ST i30 TCS 2.0; Formula, 110x20mm; Stainless Black 14g
Rear wheel
WTB ST i30 TCS 2.0; Formula, 148x12mm; Stainless Black 14g
Front tire
Maxxis Assegai DH, 29x2.5 WT
Rear tire
Maxxis Minion DHR II DH, 27.5x2.4 WT
