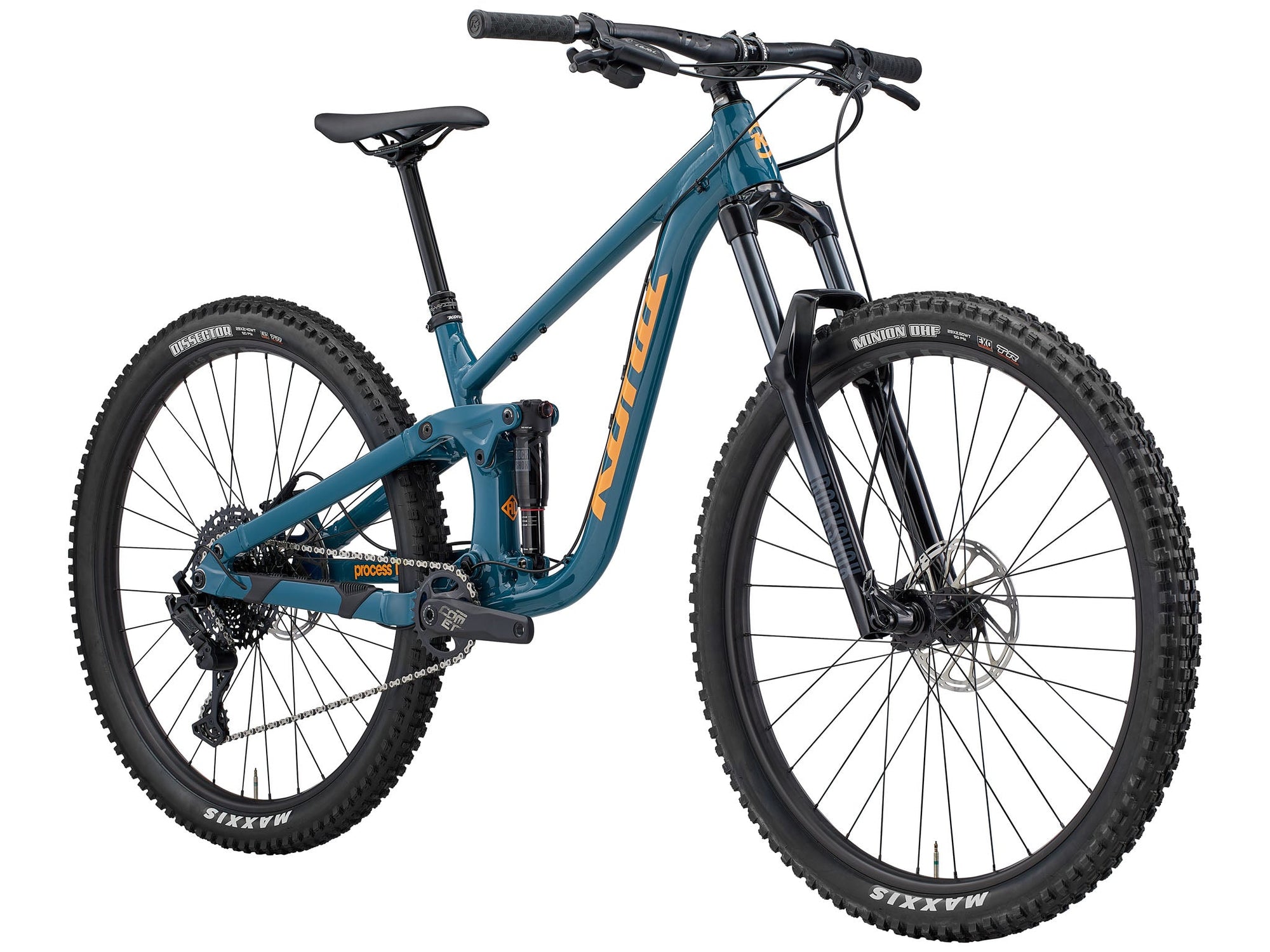

Process 134 Base
Gallery
Images
geometry
Geometry
Geometry
>
Geometry
Geometry
Frame geometry
| Geometry | L | M | S | XL |
|---|---|---|---|---|
| Stack | 625mm | 615mm | 611mm | 635mm |
| Reach | 480mm | 455mm | 430mm | 515mm |
| Headtube length | 116mm | 105mm | 100mm | 127mm |
| Headtube angle | 65.5deg | 65.5deg | 65.5deg | 65.5deg |
| BB height | 342mm | 342mm | 342mm | 342mm |
| BB drop | 33mm | 33mm | 23mm | 33mm |
| Trail | — | — | — | — |
| Fork length | 551mm | 551mm | 551mm | 551mm |
| Fork offset | 44mm | 44mm | 44mm | 44mm |
| Front center | 797mm | 767mm | 740mm | 836mm |
| Chainstay length | 435mm | 435mm | 435mm | 435mm |
| Wheelbase | 1230mm | 1200mm | 1171mm | 1269mm |
| Top tube | 628mm | 599mm | 572mm | 666mm |
| Standover height | 710mm | 700mm | 700mm | 720mm |
| Seat tube length | 420mm | 380mm | 380mm | 450mm |
| Seat tube angle | 76.7deg | 76.9deg | 76.9deg | 76.6deg |
Spec geometry
| Geometry | L | M | S | XL |
|---|---|---|---|---|
| Crank length | — | — | — | — |
| Stem length | — | — | — | — |
| Handlebar width | — | — | — | — |
| Handlebar reach | — | — | — | — |
| Handlebar drop | — | — | — | — |
| Saddle width | — | — | — | — |
| Dropper post travel | — | — | — | — |
| Seatpost offset | — | — | — | — |
Specs
Full specs
>
Specs
Full specs
Frame
Frame
Kona 6061 Aluminum Butted, 134mm travel
Suspension
Rear shock
RockShox Deluxe Select Trunnion
Fork
RockShox Recon RL Motion Control Solo Air, 140mm, tapered, 110mm spacing
Brakes
Front brake
SRAM Level hydraulic disc
Rear brake
SRAM Level hydraulic disc
Front rotor
SRAM Centerline 180mm
Rear rotor
SRAM Centerline 180mm
Drivetrain
Shift levers
microSHIFT Advent X
Rear derailleur
microSHIFT Advent X
Cassette
microSHIFT Advent X, 10-speed, 11-48T
Chain
KMC X10
Crankset
FSA Comet crankarms, 30T chainring
Bottom bracket
FSA PF92
Cockpit
Stem
Kona XC/BC 35
Handlebars
Kona XC/BC 35
Grips
Kona Key Grip
Saddle
Kona Trail
Seatpost
TranzX Dropper +RAD Internal, 31.6mm
Wheels & Tires
Front wheel
WTB ST i30 TCS 2.0; Formula, 110x15mm; Stainless Black 14g
Rear wheel
WTB ST i30 TCS 2.0; Formula, 148x12mm; Stainless Black 14g
Front tire
Maxxis Minion DHF, EXO TR Dual, 29x2.5 WT
Rear tire
Maxxis Dissector, EXO TR Dual, 29x2.4 WT (S: 27.5x2.4 WT)
