Ouroboros CR/DL
Gallery
Images
detail
Geometry
Geometry
>
Geometry
Geometry
Frame geometry
| Geometry | 48 | 50 | 52 | 54 | 56 | 58 |
|---|---|---|---|---|---|---|
| Stack | 566mm | 581mm | 598mm | 616mm | 636mm | 666mm |
| Reach | 372mm | 377mm | 382mm | 386mm | 391mm | 396mm |
| Headtube length | 116mm | 132mm | 148mm | 172mm | 193mm | 225mm |
| Headtube angle | 68.7deg | 68.7deg | 68.7deg | 68.7deg | 68.7deg | 68.7deg |
| BB height | 296mm | 296mm | 296mm | 299mm | 299mm | 299mm |
| BB drop | 69mm | 69mm | 69mm | 66mm | 66mm | 66mm |
| Trail | — | — | — | — | — | — |
| Fork length | 435mm | 435mm | 435mm | 435mm | 435mm | 435mm |
| Fork offset | 51mm | 51mm | 51mm | 51mm | 51mm | 51mm |
| Front center | 624mm | 635mm | 646mm | 659mm | 671mm | 687mm |
| Chainstay length | 445mm | 445mm | 445mm | 445mm | 445mm | 445mm |
| Wheelbase | 1060mm | 1071mm | 1082mm | 1096mm | 1108mm | 1124mm |
| Top tube | 532mm | 547mm | 559mm | 578mm | 595mm | 616mm |
| Standover height | 725mm | 730mm | 769mm | 777mm | 814mm | 848mm |
| Seat tube length | 410mm | 410mm | 455mm | 455mm | 500mm | 535mm |
| Seat tube angle | 74.2deg | 73.7deg | 73.2deg | 72.7deg | 72.2deg | 71.7deg |
Spec geometry
| Geometry | 48 | 50 | 52 | 54 | 56 | 58 |
|---|---|---|---|---|---|---|
| Crank length | — | — | — | — | — | — |
| Stem length | 45mm | 45mm | 45mm | 60mm | 60mm | 60mm |
| Handlebar width | 460mm | 460mm | 480mm | 480mm | 500mm | 520mm |
| Handlebar reach | — | — | — | — | — | — |
| Handlebar drop | — | — | — | — | — | — |
| Saddle width | — | — | — | — | — | — |
| Dropper post travel | — | — | — | — | — | — |
| Seatpost offset | 20mm | 20mm | 20mm | 20mm | 20mm | 20mm |
Specs
Full specs
>
Specs
Full specs

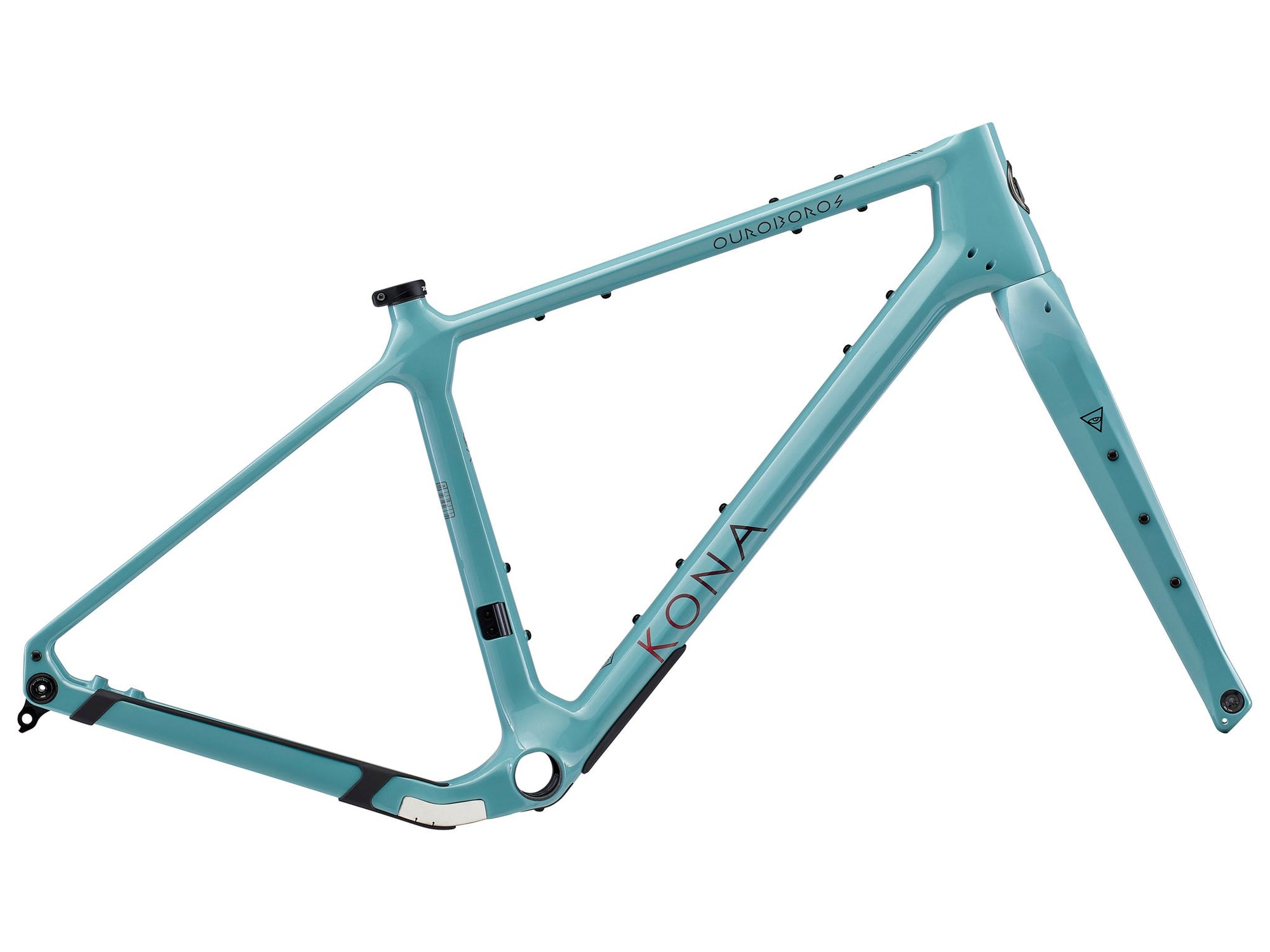

Frame
Frame
Kona Carbon
Suspension
Fork

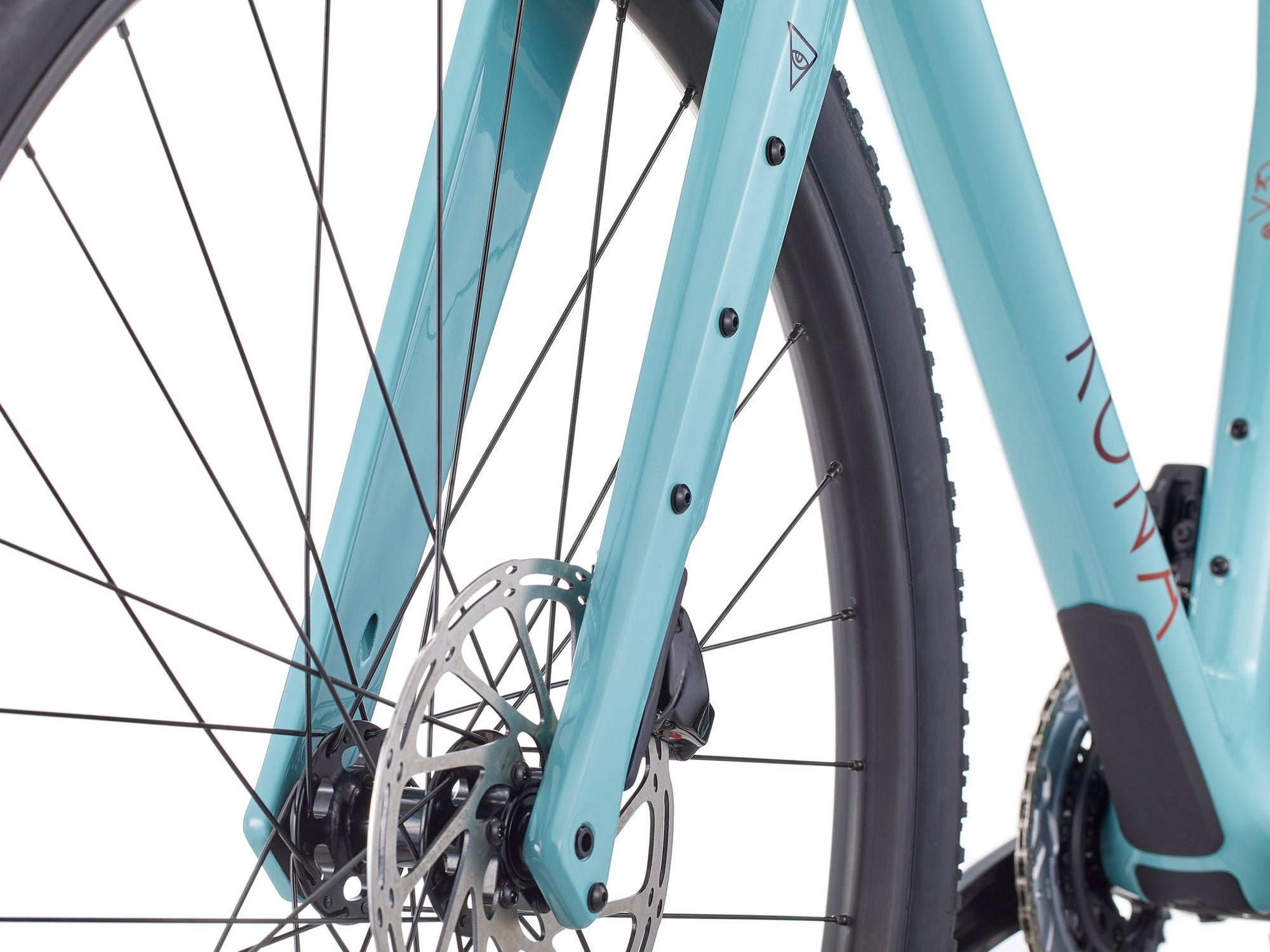

Kona Ouroboros Carbon, 420 axle to crown, tapered 1.5 (28.6 - 38.1), 100 x 12mm, internal brake and dynamo routing, native 160 flat mount front, 3-pack bosses + fender mounts
Brakes
Front brake
SRAM Rival Flat Mount Hydraulic
Rear brake
SRAM Rival Flat Mount Hydraulic
Front rotor
SRAM Centerline 6-bolt 180mm
Rear rotor
SRAM Centerline 6-bolt 180mm
Drivetrain
Shift levers
SRAM Rival eTap AXS
Rear derailleur
SRAM Rival eTap AXS
Front derailleur
SRAM Rival eTap AXS Wide
Cassette
SRAM Rival XG-1250, 12-speed, 10-36T (XDR)
Chain
SRAM Rival 12-speed
Crankset
SRAM Rival DUB Wide crankarms with SRAM Rival 43/30 Wide chainrings
Bottom bracket
SRAM Press-Fit 86.5 DUB Wide
Cockpit
Stem
Ritchey Trail Comp, 0-degree (48-52: 45mm; 54-58: 60mm)
Handlebars
Ritchey Venturemax Comp/Venturemax XL Comp, 24° flare, 4.6° backsweep (48-50: 460mm; 52-54: 480mm; 56: 500mm; 58: 520mm)
Grips
Velo bar tape
Saddle
WTB Volt Medium Steel SL
Seatpost
Ritchey Link 20 WCS, 31.6mm, 20mm setback (48-52: 350mm; 54-58: 400mm)
Wheels & Tires
Front wheel
WTB KOM i27 6069 alloy, 32h, TCS 2.0, with tubeless tape; KT-Taiwan QL-S3GR, 100 x 12mm, 32h, 6-bolt; Double-butted stainless
Rear wheel
WTB KOM i27 6069 alloy, 32h, TCS 2.0, with tubeless tape; KT-Taiwan QL-DD4DR, 142 x 12mm, 32h, 6-bolt, XDR freehub, STAR ratchet; Double-butted stainless
Front tire
Maxxis Rambler 700 x 45 TR EXO
Rear tire
Maxxis Rambler 700 x 45 TR EXO
