Kona

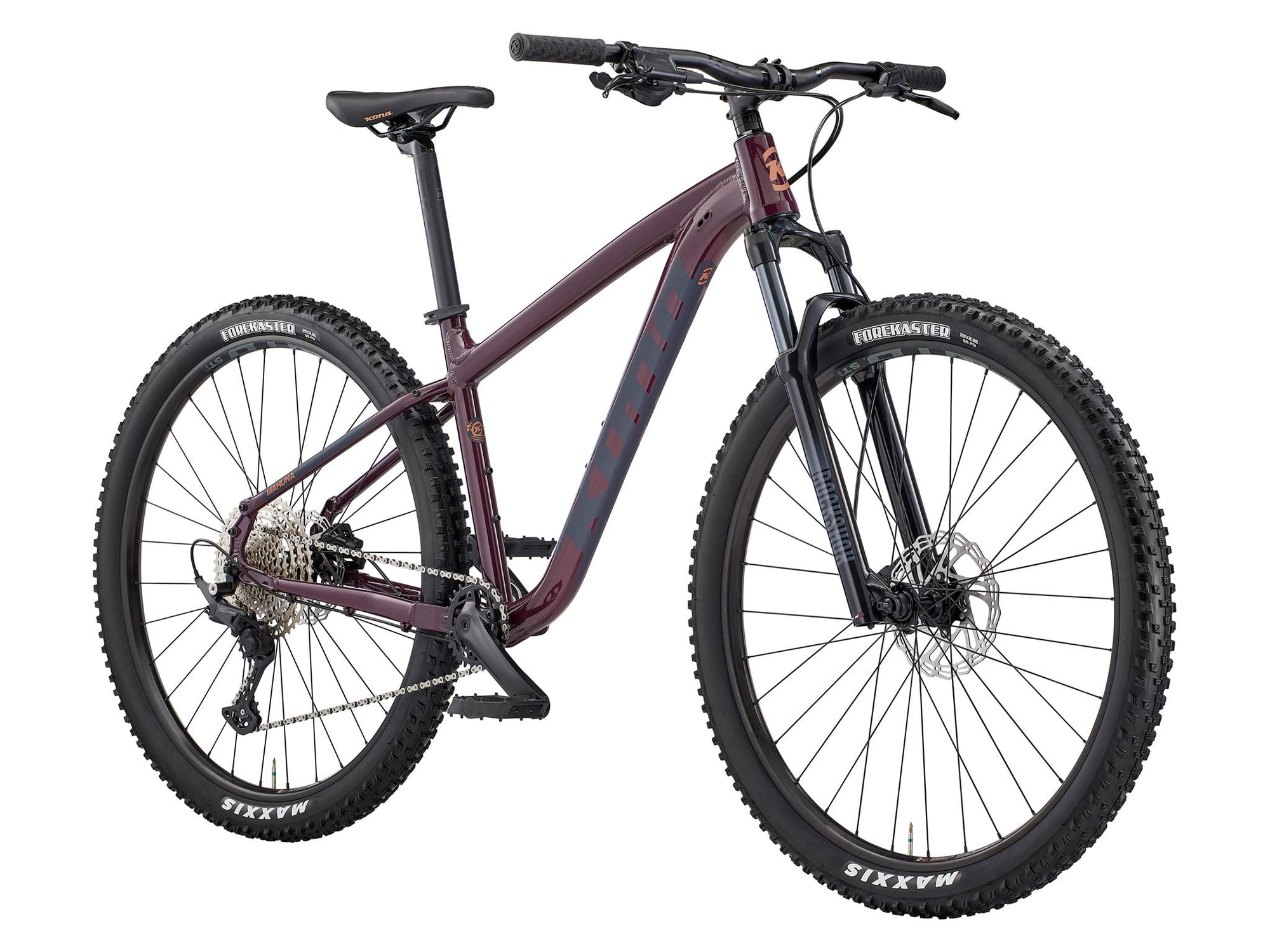

Mahuna Standard
Gallery
Images
geometry
Geometry
Geometry
>
Geometry
Geometry
Frame geometry
| Geometry | L | M | S | XL |
|---|---|---|---|---|
| Stack | 620mm | 611mm | 602mm | 629mm |
| Reach | 465mm | 440mm | 415mm | 500mm |
| Headtube length | 115mm | 105mm | 95mm | 125mm |
| Headtube angle | 68deg | 68deg | 68deg | 68deg |
| BB height | 315mm | 315mm | 315mm | 315mm |
| BB drop | 60mm | 60mm | 60mm | 60mm |
| Trail | — | — | — | — |
| Fork length | 506mm | 506mm | 506mm | 506mm |
| Fork offset | 51mm | 51mm | 51mm | 51mm |
| Front center | 749mm | 720mm | 691mm | 787mm |
| Chainstay length | 450mm | 450mm | 450mm | 450mm |
| Wheelbase | 1195mm | 1164mm | 1135mm | 1231mm |
| Top tube | 631mm | 604mm | 576mm | 669mm |
| Standover height | 738mm | 733mm | 727mm | 760mm |
| Seat tube length | 470mm | 420mm | 370mm | 530mm |
| Seat tube angle | 75deg | 75deg | 75deg | 75deg |
Spec geometry
| Geometry | L | M | S | XL |
|---|---|---|---|---|
| Crank length | — | — | — | — |
| Stem length | — | — | — | — |
| Handlebar width | — | — | — | — |
| Handlebar reach | — | — | — | — |
| Handlebar drop | — | — | — | — |
| Saddle width | — | — | — | — |
| Dropper post travel | — | — | — | — |
| Seatpost offset | — | — | — | — |
Specs
Full specs
>
Specs
Full specs
Frame
Frame
Kona 6061 Aluminum Butted
Suspension
Fork
RockShox Judy Silver TK Solo Air, 100mm
Brakes
Front brake
Alhonga HT472 or Shimano MT201 hydraulic disc
Rear brake
Alhonga HT472 or Shimano MT201 hydraulic disc
Front rotor
Alhonga or Shimano RT10, 180mm, Center Lock
Rear rotor
Alhonga or Shimano RT10, 160mm, Center Lock
Drivetrain
Shift levers
Shimano Deore
Rear derailleur
Shimano Deore
Cassette
Shimano Deore or SunRace, 11-speed, 11-51T
Chain
KMC X11
Crankset
Prowheel (11-speed)
Bottom bracket
Feimin or FSA BB7420, 73mm
Cockpit
Stem
Kona XC
Handlebars
Kona XC/BC Riser
Grips
Kona Key Grip (slip-on)
Saddle
Kona XC
Seatpost
Kona Thumb, 31.6mm
Wheels & Tires
Front wheel
WTB ST i27 TCS 2.0; Formula, 100x9mm, Center Lock; Stainless black, 14g
Rear wheel
WTB ST i27 TCS 2.0; Shimano, 135x10mm, Center Lock; Stainless black, 14g
Front tire
Maxxis Forekaster, 29x2.35
Rear tire
Maxxis Forekaster, 29x2.35
