Kona

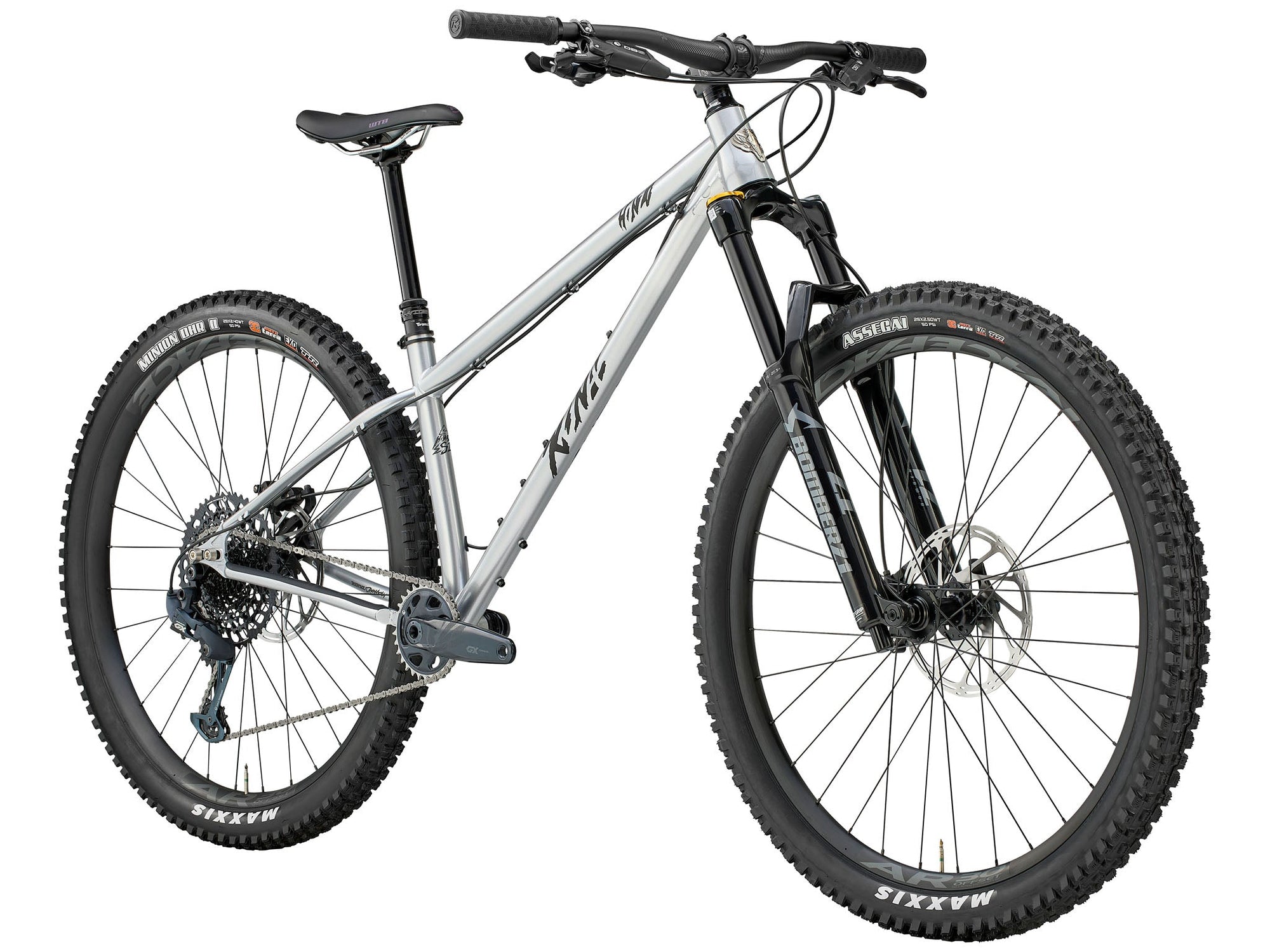

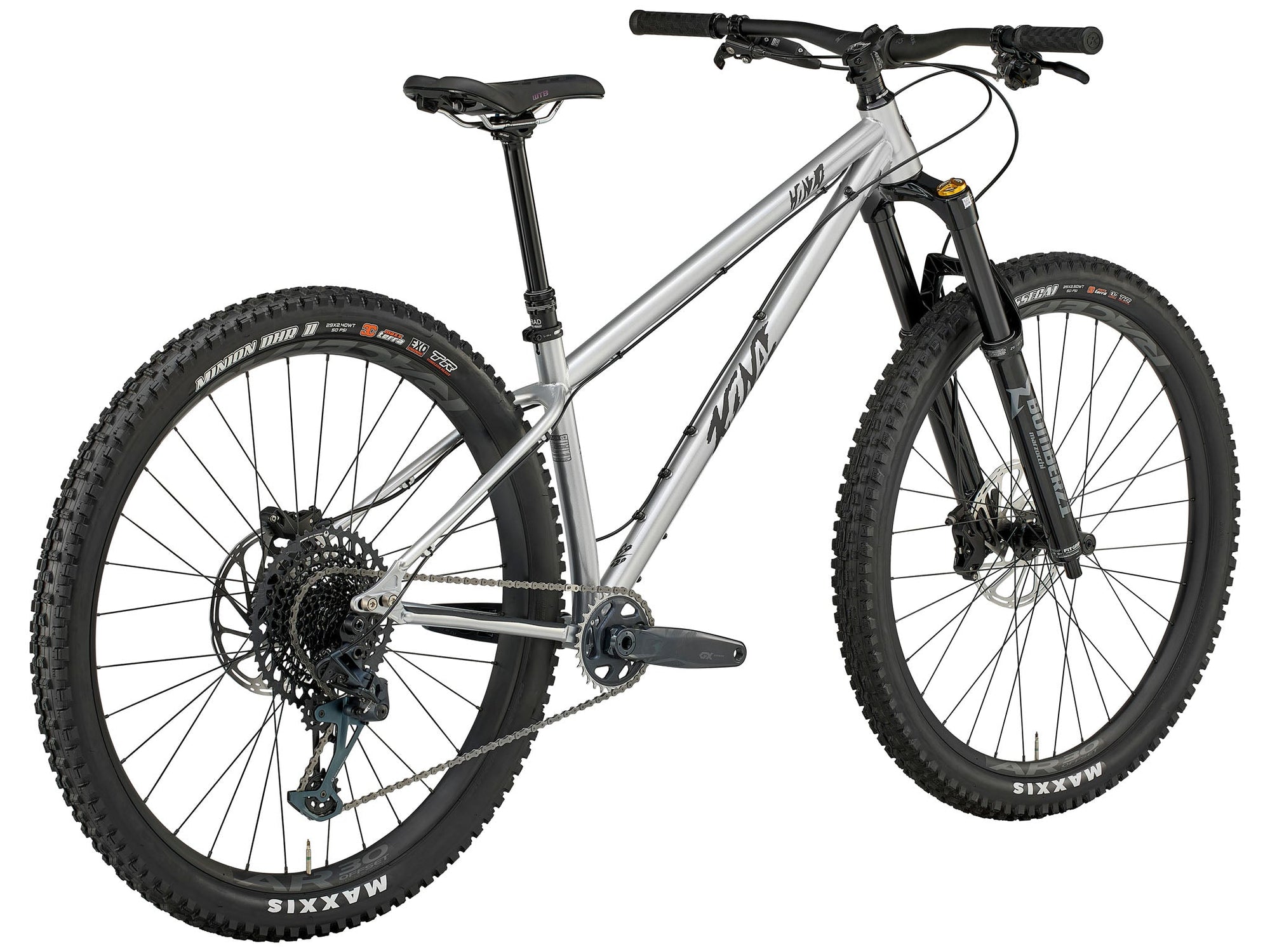

Honzo ESD 36SR
Gallery
Images
geometry
Geometry
Geometry
>
Geometry
Geometry
Frame geometry
| Geometry | L | M | S | XL |
|---|---|---|---|---|
| Stack | 655mm | 646mm | 636mm | 673mm |
| Reach | 480mm | 455mm | 430mm | 515mm |
| Headtube length | 120mm | 110mm | 100mm | 140mm |
| Headtube angle | 66.5deg | 66.5deg | 66.5deg | 66.5deg |
| BB height | 315mm | 315mm | 315mm | 315mm |
| BB drop | 60mm | 60mm | 60mm | 60mm |
| Trail | — | — | — | — |
| Fork length | 543mm | 543mm | 543mm | 543mm |
| Fork offset | 42mm | 42mm | 42mm | 42mm |
| Front center | 787mm | 758mm | 729mm | 830mm |
| Chainstay length | 425mm | 425mm | 425mm | 425mm |
| Wheelbase | 1205mm | 1176mm | 1147mm | 1248mm |
| Top tube | 638mm | 610mm | 583mm | 678mm |
| Standover height | 728mm | 729mm | 742mm | 731mm |
| Seat tube length | 450mm | 410mm | 385mm | 485mm |
| Seat tube angle | 75deg | 75deg | 75deg | 75deg |
Spec geometry
| Geometry | L | M | S | XL |
|---|---|---|---|---|
| Crank length | — | — | — | — |
| Stem length | — | — | — | — |
| Handlebar width | — | — | — | — |
| Handlebar reach | — | — | — | — |
| Handlebar drop | — | — | — | — |
| Saddle width | — | — | — | — |
| Dropper post travel | — | — | — | — |
| Seatpost offset | — | — | — | — |
Specs
Full specs
>
Specs
Full specs

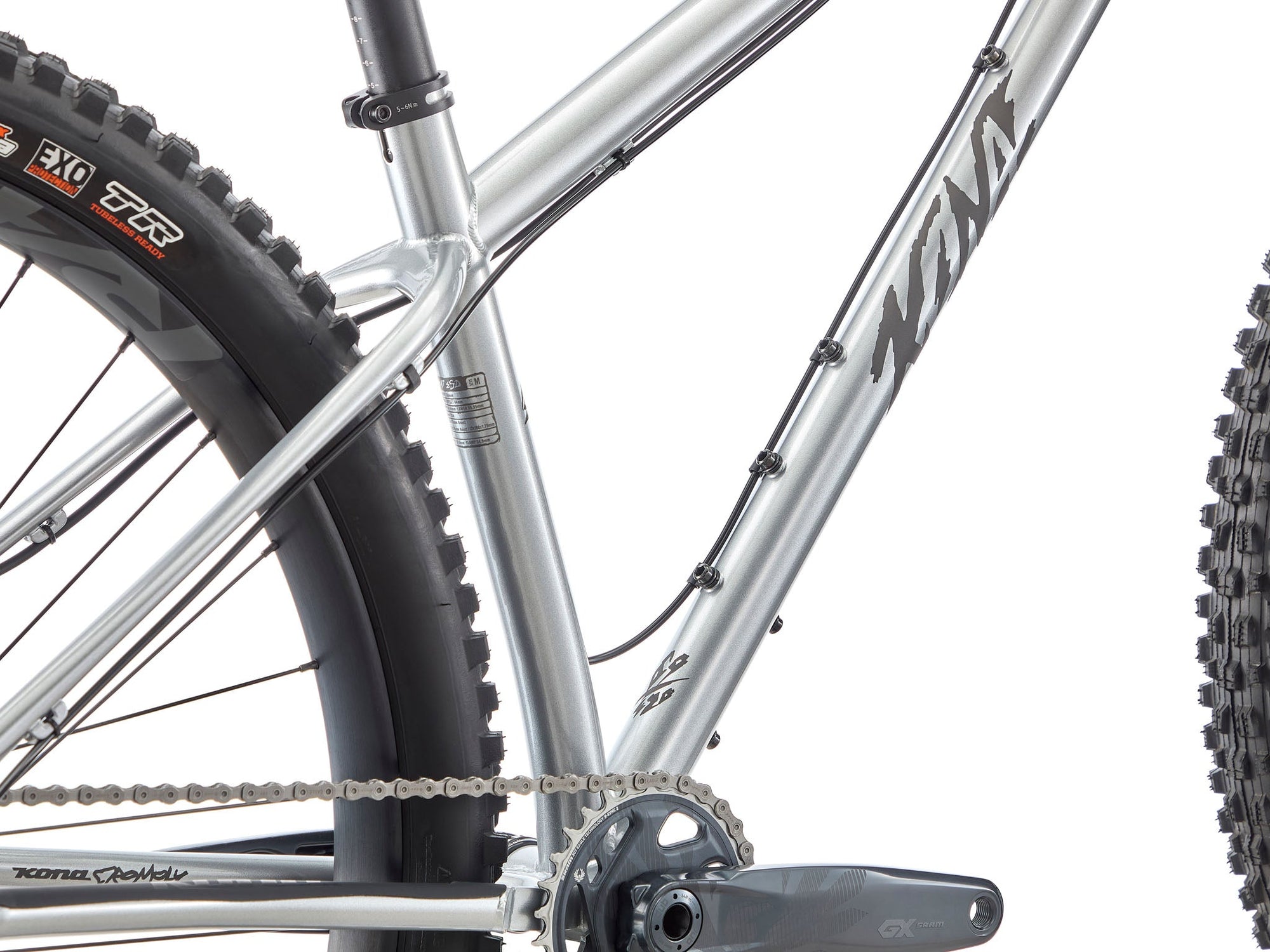

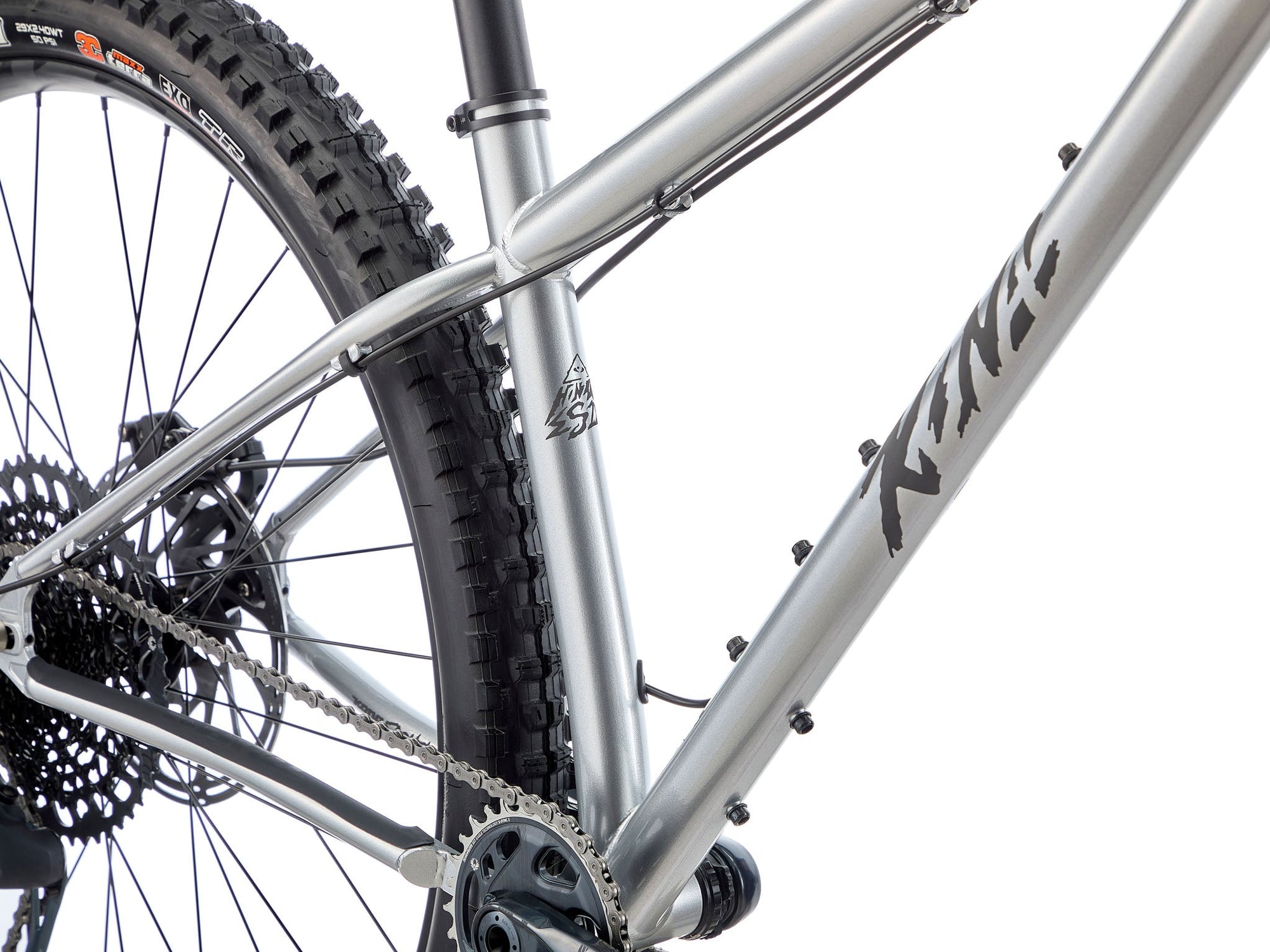

Frame
Frame
Kona Cromoly Butted (Chromoly steel)
Suspension
Fork
Marzocchi Bomber Z1, GRIP damper, 150mm, tapered steerer, 110mm Boost spacing
Brakes
Front brake
SRAM DB8 hydraulic disc
Rear brake
SRAM DB8 hydraulic disc
Front rotor
SRAM Centerline 200mm
Rear rotor
SRAM Centerline 200mm
Drivetrain
Shift levers
SRAM GX Eagle
Rear derailleur
SRAM GX Eagle
Cassette
SRAM GX Eagle, 12-speed, 10-52T
Chain
SRAM NX Eagle

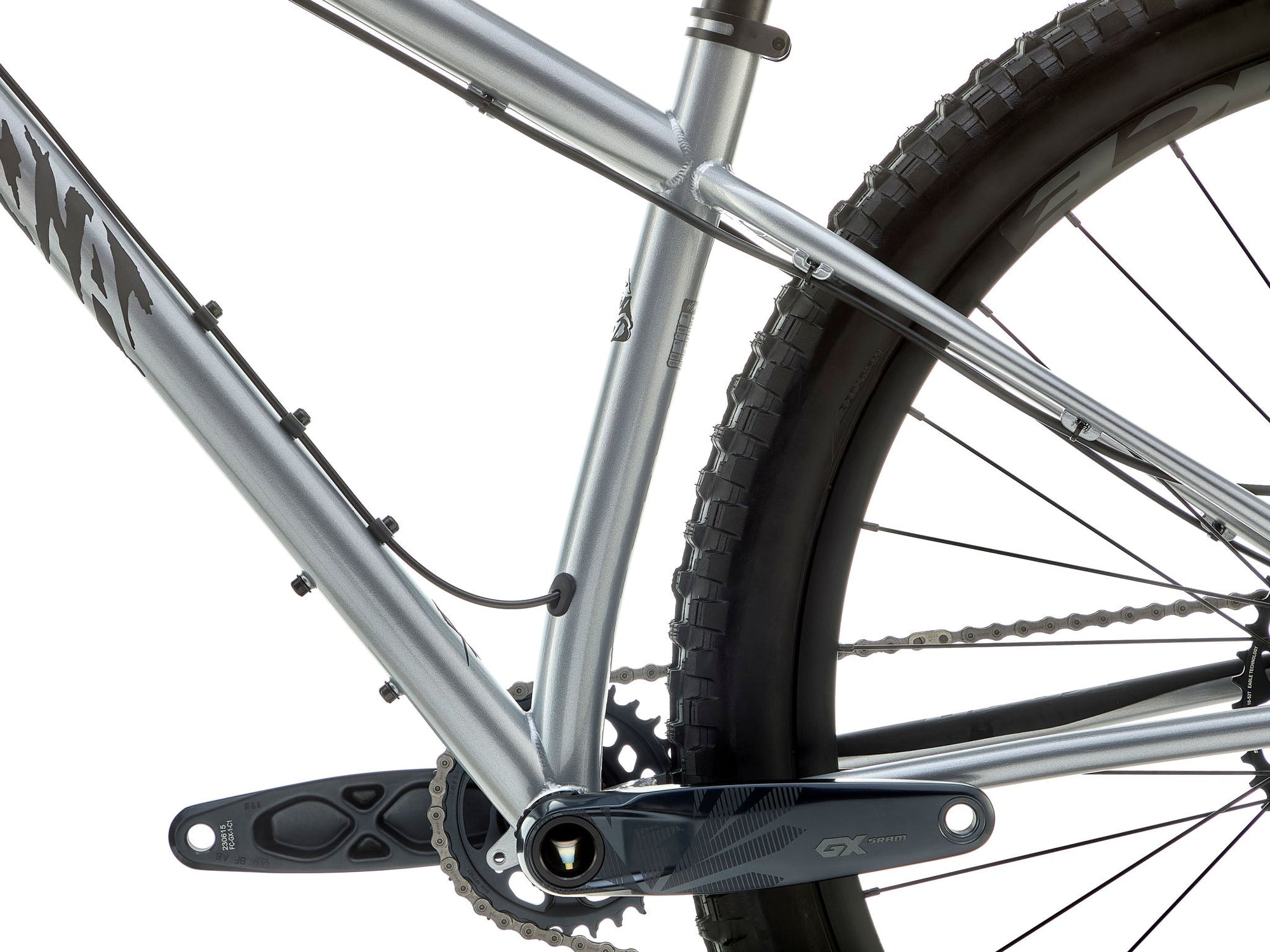

Crankset
SRAM GX Eagle crankarms with 30T X-Sync Eagle chainring
Bottom bracket
SRAM DUB, 73mm

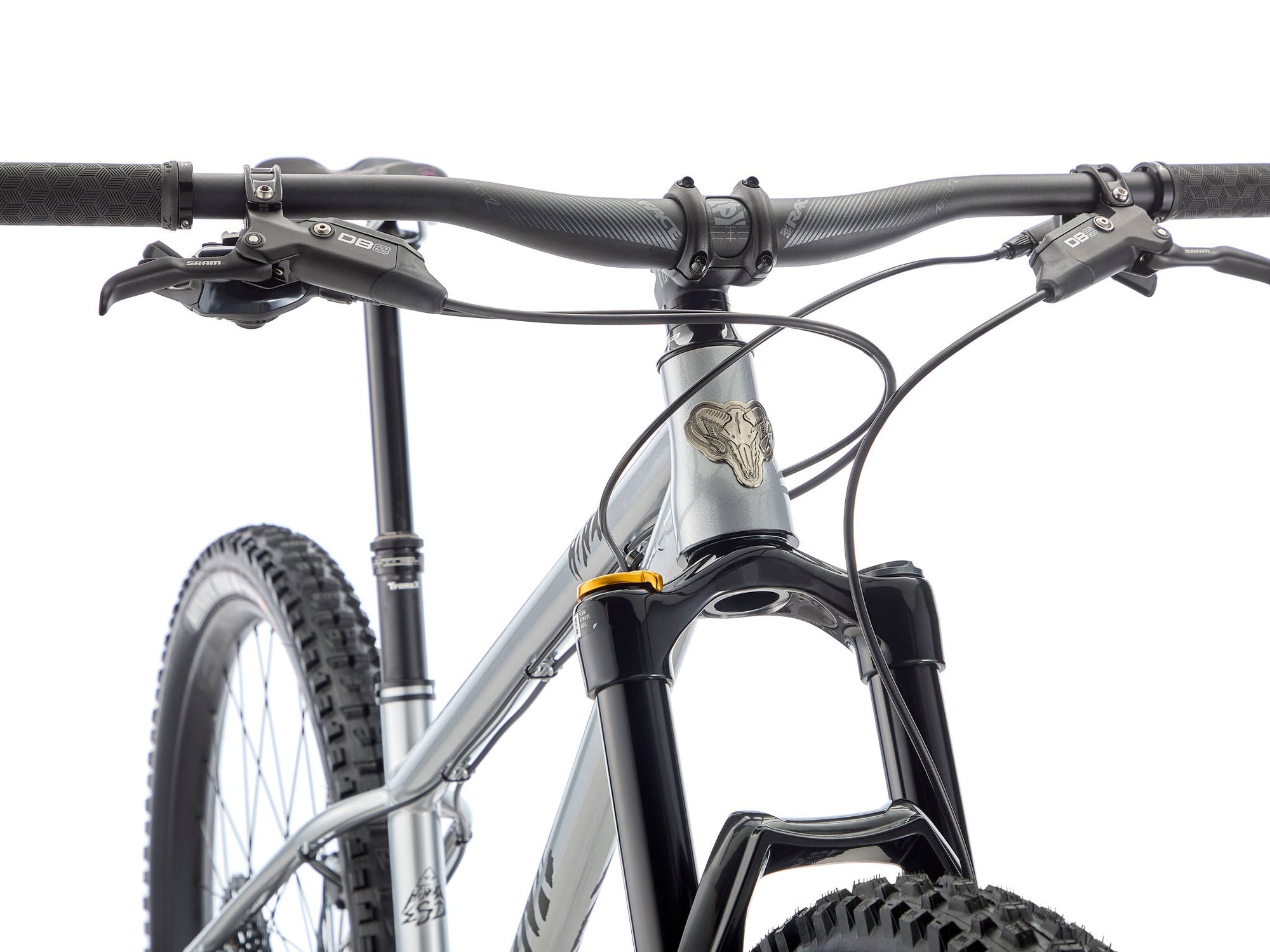

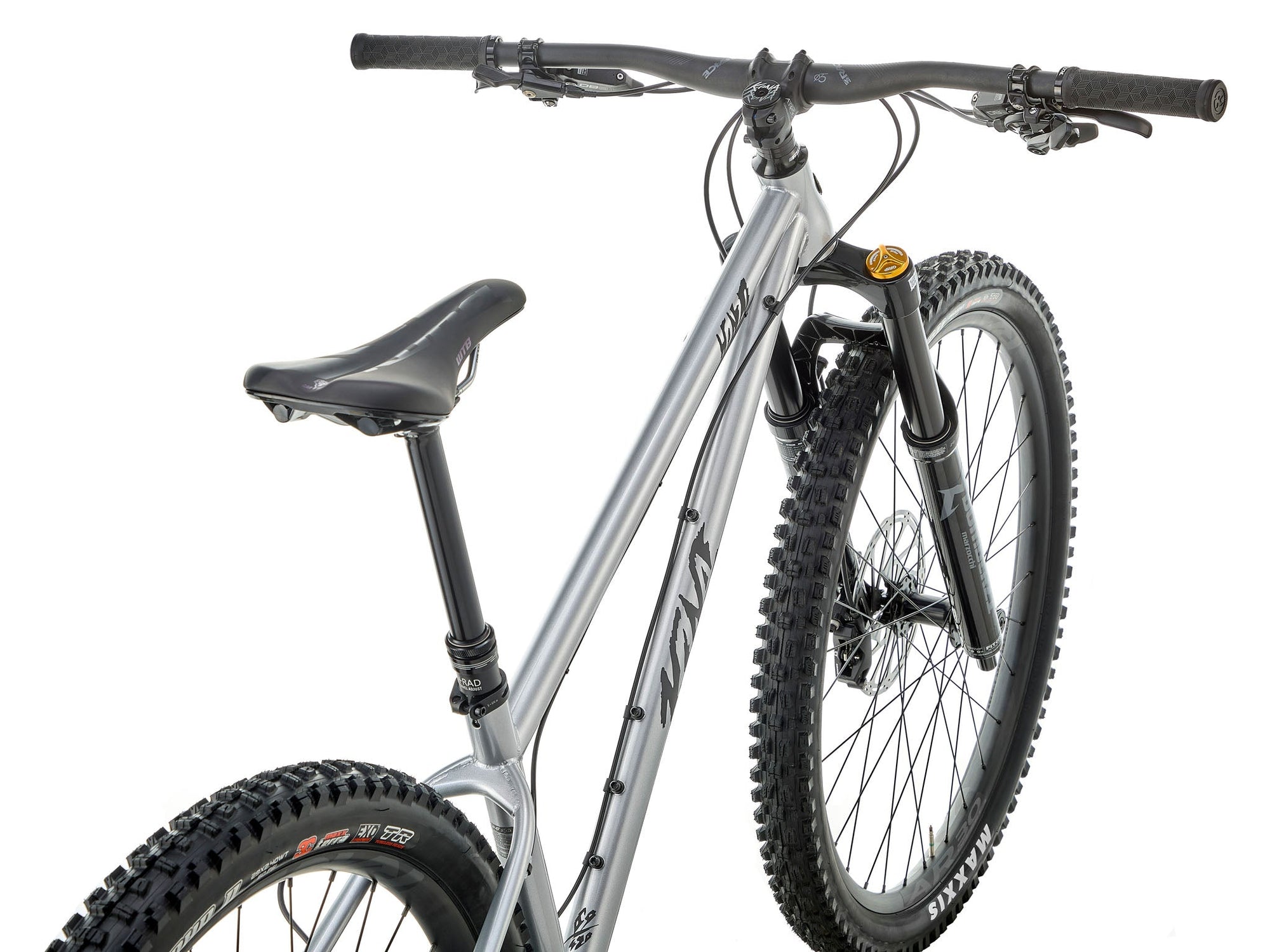

Cockpit
Stem
Race Face Aeffect R 35
Handlebars
Race Face Aeffect R 35
Grips
Kona Key Grip
Saddle
WTB Volt
Seatpost
TranzX Dropper +RAD Internal, 31.6mm
Wheels & Tires
Front wheel
Race Face AR 30; Race Face AR 30, 110x15mm; Stainless black 14g
Rear wheel
Race Face AR 30; Race Face AR 30, 148x12mm; Stainless black 14g
Front tire
Maxxis Assegai, EXO TR, 3C, 29x2.5 WT
Rear tire
Maxxis Minion DHR II, EXO TR, 3C, 29x2.4 WT
