Frame geometry
| Geometry | L | M | S | XL |
|---|---|---|---|---|
| Stack | 655mm | 646mm | 636mm | 673mm |
| Reach | 480mm | 455mm | 430mm | 515mm |
| Headtube length | 120mm | 110mm | 100mm | 140mm |
| Headtube angle | 66.5deg | 66.5deg | 66.5deg | 66.5deg |
| BB height | 315mm | 315mm | 315mm | 315mm |
| BB drop | 60mm | 60mm | 60mm | 60mm |
| Trail | — | — | — | — |
| Fork length | 543mm | 543mm | 543mm | 543mm |
| Fork offset | 42mm | 42mm | 42mm | 42mm |
| Front center | 787mm | 758mm | 729mm | 830mm |
| Chainstay length | 425mm | 425mm | 425mm | 425mm |
| Wheelbase | 1205mm | 1176mm | 1147mm | 1248mm |
| Top tube | 638mm | 610mm | 583mm | 678mm |
| Standover height | 728mm | 729mm | 742mm | 731mm |
| Seat tube length | 450mm | 410mm | 385mm | 485mm |
| Seat tube angle | 75deg | 75deg | 75deg | 75deg |
Spec geometry
| Geometry | L | M | S | XL |
|---|---|---|---|---|
| Crank length | — | — | — | — |
| Stem length | — | — | — | — |
| Handlebar width | — | — | — | — |
| Handlebar reach | — | — | — | — |
| Handlebar drop | — | — | — | — |
| Saddle width | — | — | — | — |
| Dropper post travel | — | — | — | — |
| Seatpost offset | — | — | — | — |
Specs
Full specs
>
Specs
Full specs
Frame
Frame
Kona 6061 Aluminum Butted
Suspension
Fork
RockShox Recon RL Solo Air, 130mm, tapered steerer, 110mm spacing (Boost)
Brakes

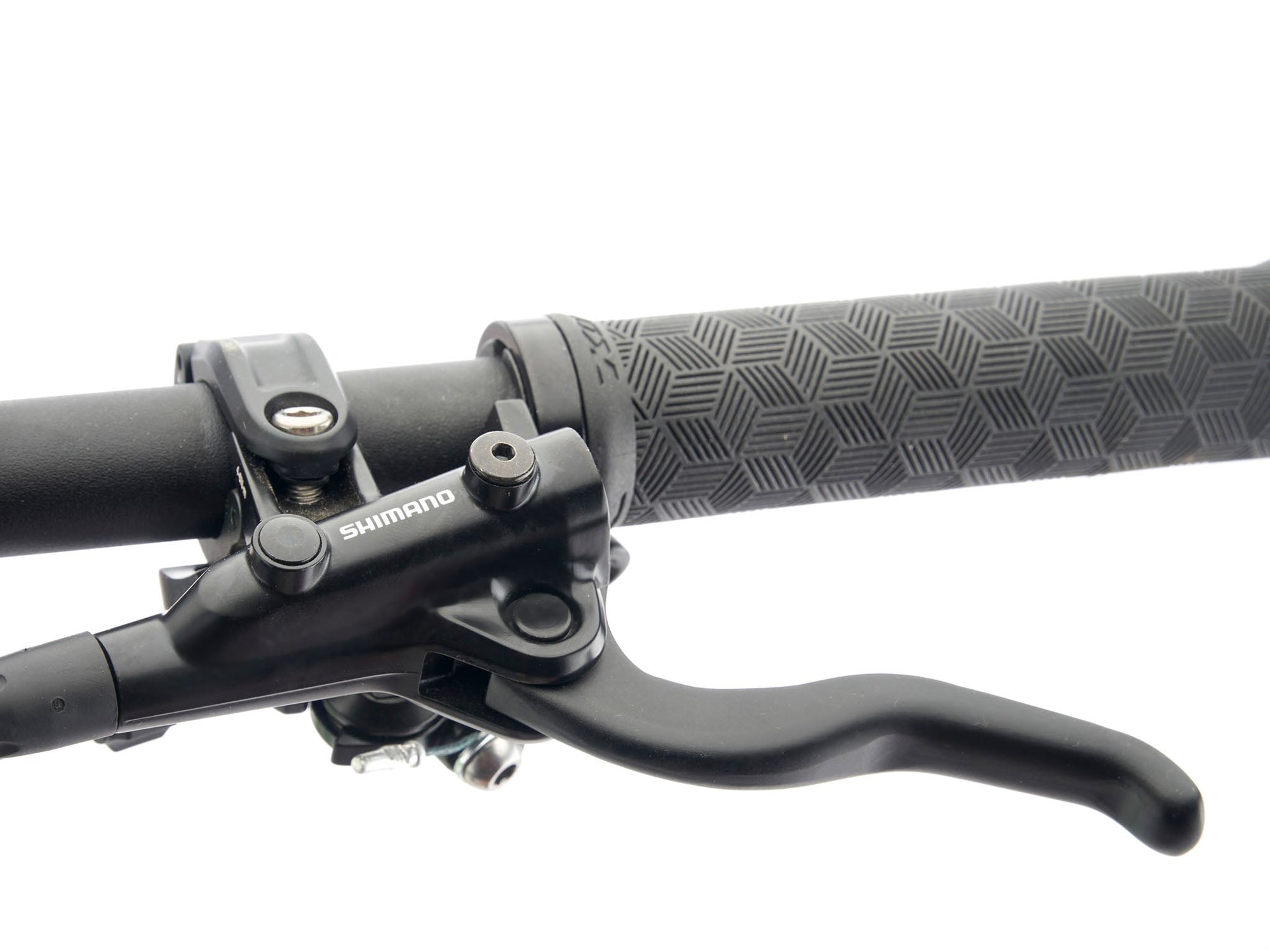

Front brake
Shimano MT410 hydraulic disc
Rear brake
Shimano MT410 hydraulic disc
Front rotor
Shimano RT30 180mm (Center Lock)
Rear rotor
Shimano RT30 160mm (Center Lock)
Drivetrain

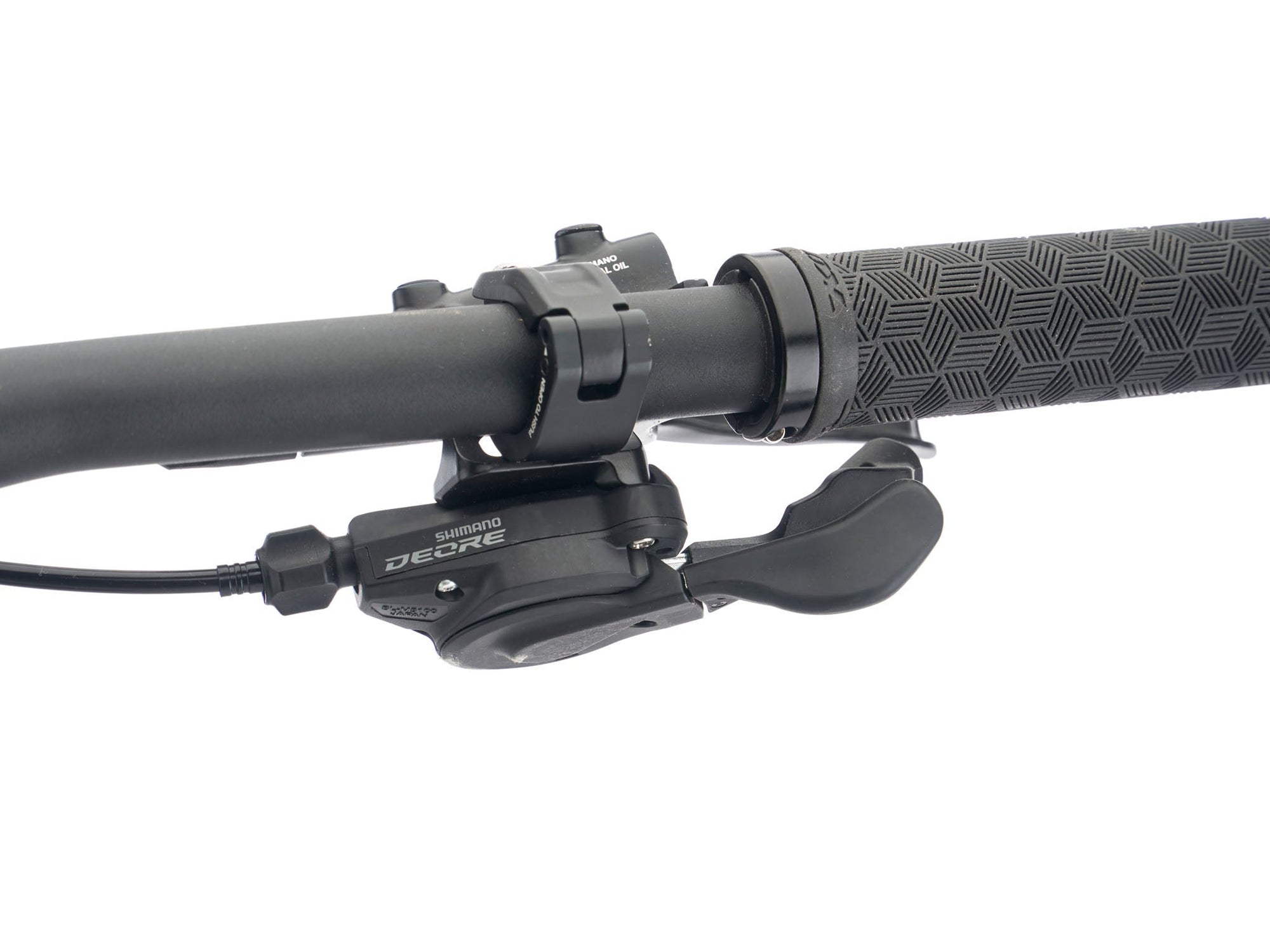

Shift levers
Shimano Deore, 11-speed

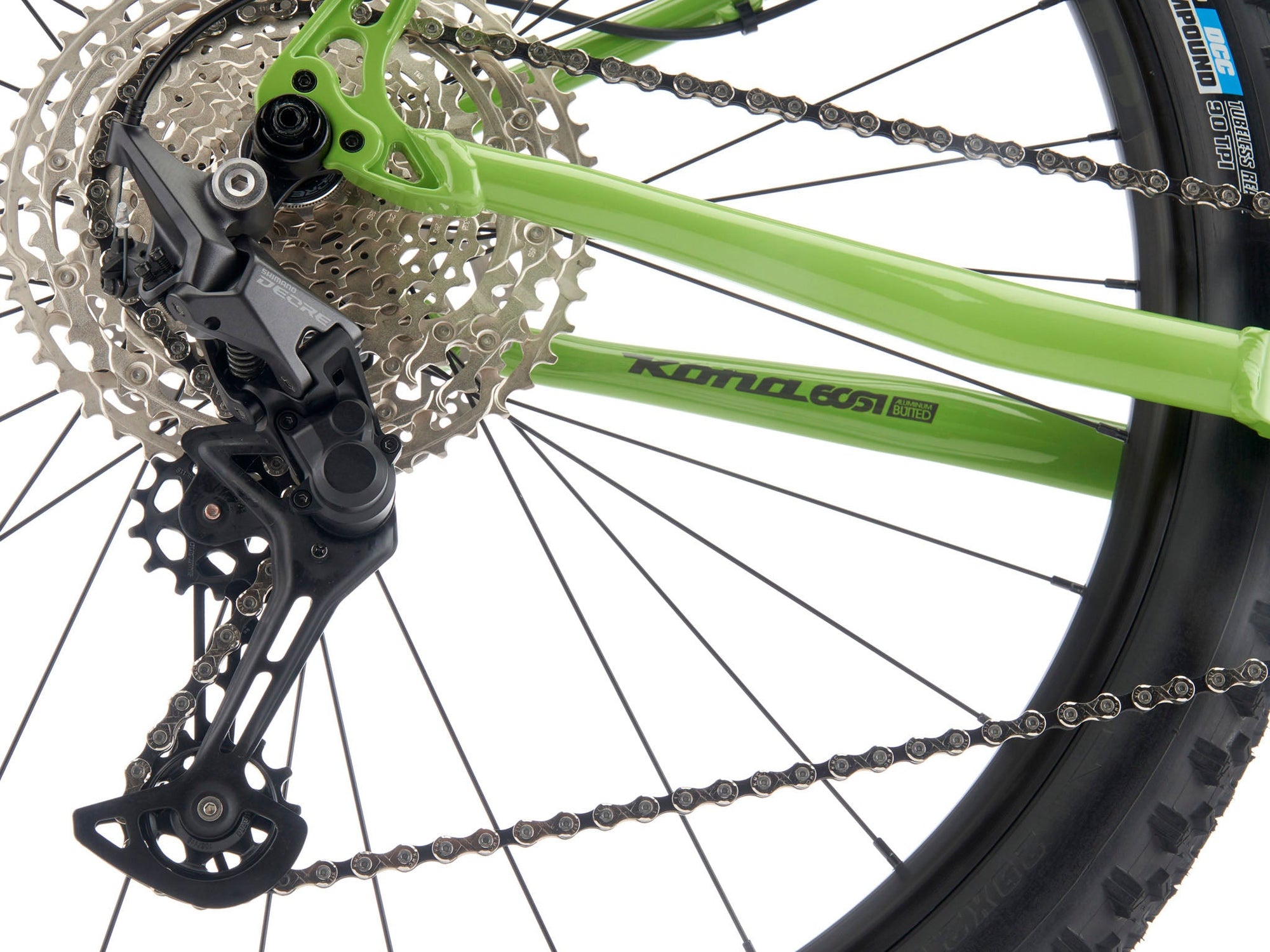

Rear derailleur
Shimano Deore, 11-speed
Cassette
Shimano Deore, 11-speed, 11-51T
Chain
KMC X11
Crankset
Shimano Deore crankarms, 30T chainring
Bottom bracket
Shimano Deore, 73mm
Cockpit
Stem
Kona XC/BC 35

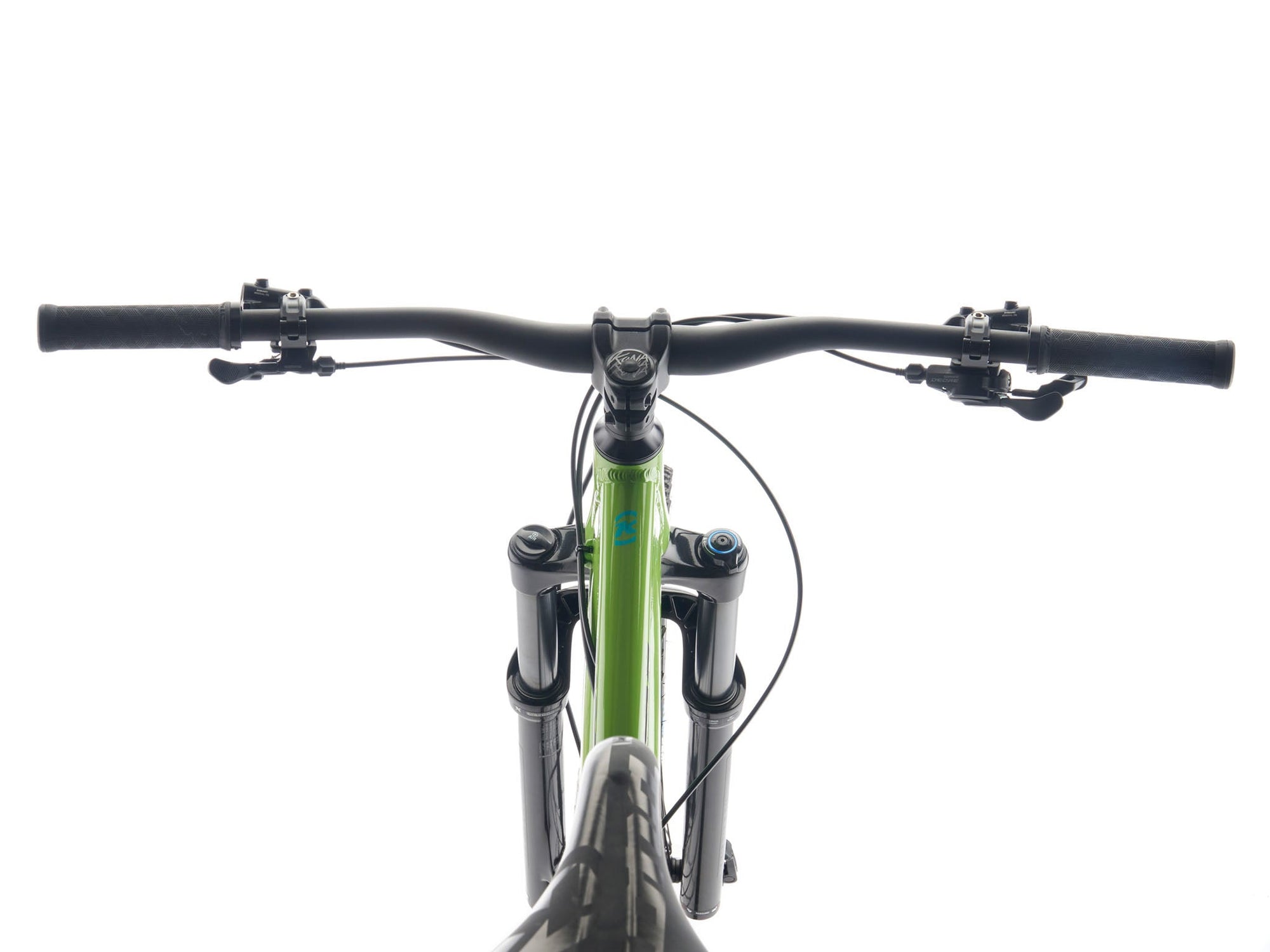

Handlebars
Kona XC/BC 35
Grips
Kona Key Grip
Saddle
Kona Trail
Seatpost
TranzX Dropper +RAD, internal routing, 31.6mm, with Shimano lever
Wheels & Tires
Front wheel
WTB ST i30 TCS; Shimano 110x15mm (Center Lock); Stainless black 14g
Rear wheel
WTB ST i30 TCS; Shimano 148x12mm (Center Lock); Stainless black 14g
Front tire
Vee Tire Flow Snap Tackee TR 29x2.35
Rear tire
Vee Tire Crown Gem DCC TR 29x2.3
