Felt

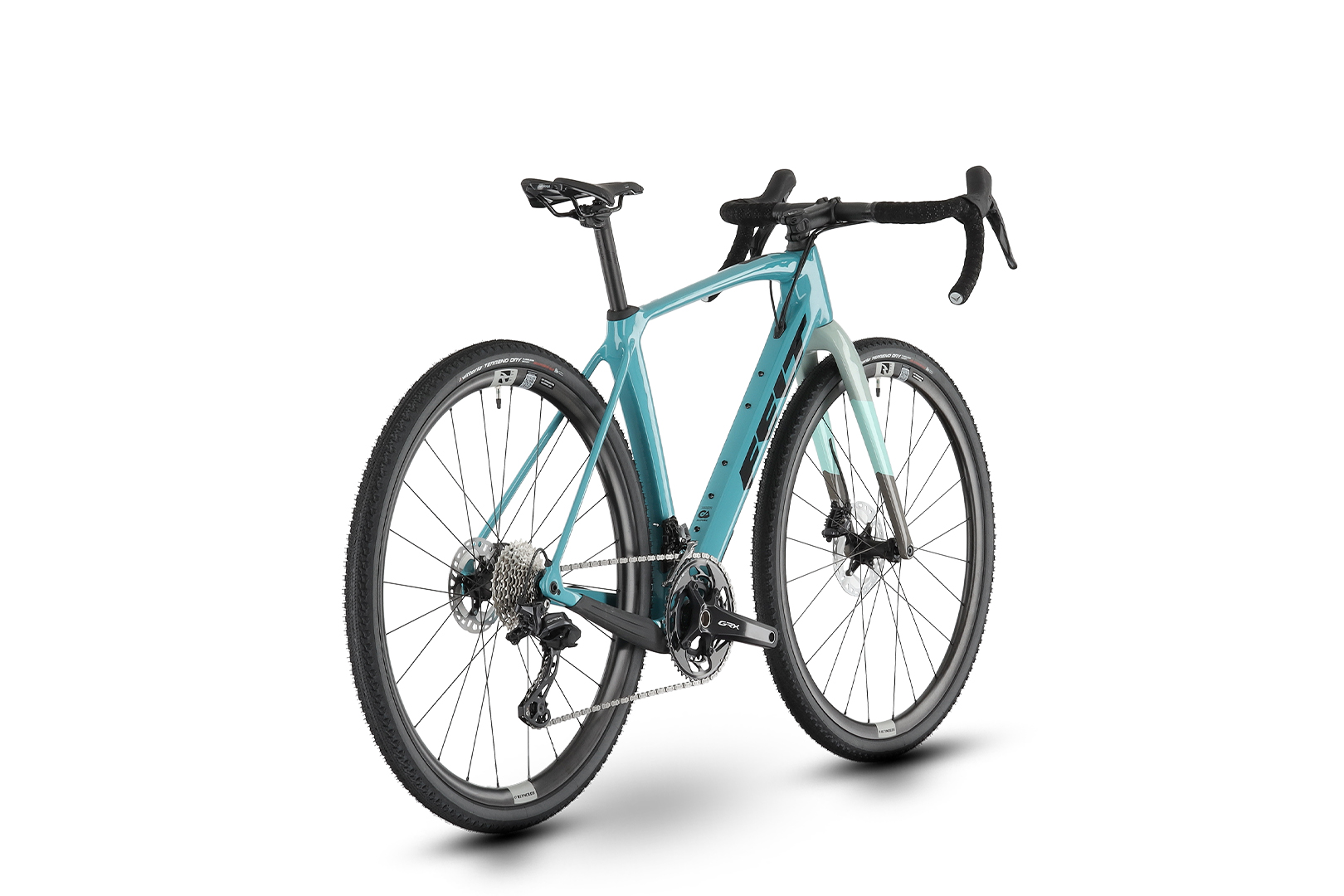

Breed Advanced GRX 820
Gallery
Images
product
Geometry
Geometry
>
Geometry
Geometry
Frame geometry
| Geometry | 47 | 51 | 54 |
|---|---|---|---|
| Stack | 544mm | 562mm | 575mm |
| Reach | 374mm | 379mm | 385mm |
| Headtube length | 100mm | 116mm | 132mm |
| Headtube angle | 70deg | 70.5deg | 70.5deg |
| BB height | — | — | — |
| BB drop | 72mm | 72mm | 72mm |
| Trail | — | — | — |
| Fork length | — | — | — |
| Fork offset | 50mm | 50mm | 50mm |
| Front center | — | — | — |
| Chainstay length | 430mm | 430mm | 430mm |
| Wheelbase | 1023mm | 1029mm | 1035mm |
| Top tube | 530mm | 540mm | 550mm |
| Standover height | 716mm | 724mm | 735mm |
| Seat tube length | 440mm | 470mm | 500mm |
| Seat tube angle | 74deg | 74deg | 74deg |
Spec geometry
| Geometry | 47 | 51 | 54 |
|---|---|---|---|
| Crank length | 165mm | 170mm | 172.5mm |
| Stem length | 80mm | 90mm | 100mm |
| Handlebar width | 400mm | 420mm | 440mm |
| Handlebar reach | — | — | — |
| Handlebar drop | — | — | — |
| Saddle width | — | — | — |
| Dropper post travel | — | — | — |
| Seatpost offset | — | — | — |
Specs
Full specs
>
Specs
Full specs
Frame
Frame
Felt BREED 1.0, UHC Advanced carbon
Suspension
Fork
Felt BREED 1.0, UHC Advanced carbon
Brakes
Front brake
Shimano BR-RX820, 2-piston, hydraulic disc
Rear brake
Shimano BR-RX820, 2-piston, hydraulic disc
Front rotor
Shimano RT-MT800, 160mm, Center Lock
Rear rotor
Shimano RT-MT800, 140mm, Center Lock
Drivetrain
Shift levers
Shimano GRX, ST-RX810
Rear derailleur
Shimano GRX, RD-RX820, 24-speed
Front derailleur
Shimano GRX, FD-RX820, Brazed-On
Cassette
Shimano Ultegra CS-R8101, 11-34T
Chain
Shimano CN-M8100
Crankset
Shimano GRX, FC-RX820, 48/31T
Bottom bracket
Token T47 Asymmetric, Threaded, T47 77 Asymmetric
Cockpit
Stem
Devox StemR.A1, -7°
Handlebars
Devox DBar.A1 GXA 31.8mm (47cm: 400mm; 51cm: 420mm; 54cm: 440mm; 56/58/61cm: 460mm)
Saddle
Prologo Dimension NDR T4.0
Seatpost
Devox Post.C2 (47/51/56/58/61cm: 400mm; 54cm: 350mm)
Wheels & Tires
Front wheel
Reynolds G700 Custom, Center Lock, 12x100mm
Rear wheel
Reynolds G700 Custom, Center Lock, 12x142mm
Front tire
Vittoria Terreno Dry, 700x38
Rear tire
Vittoria Terreno Dry, 700x38
