Felt

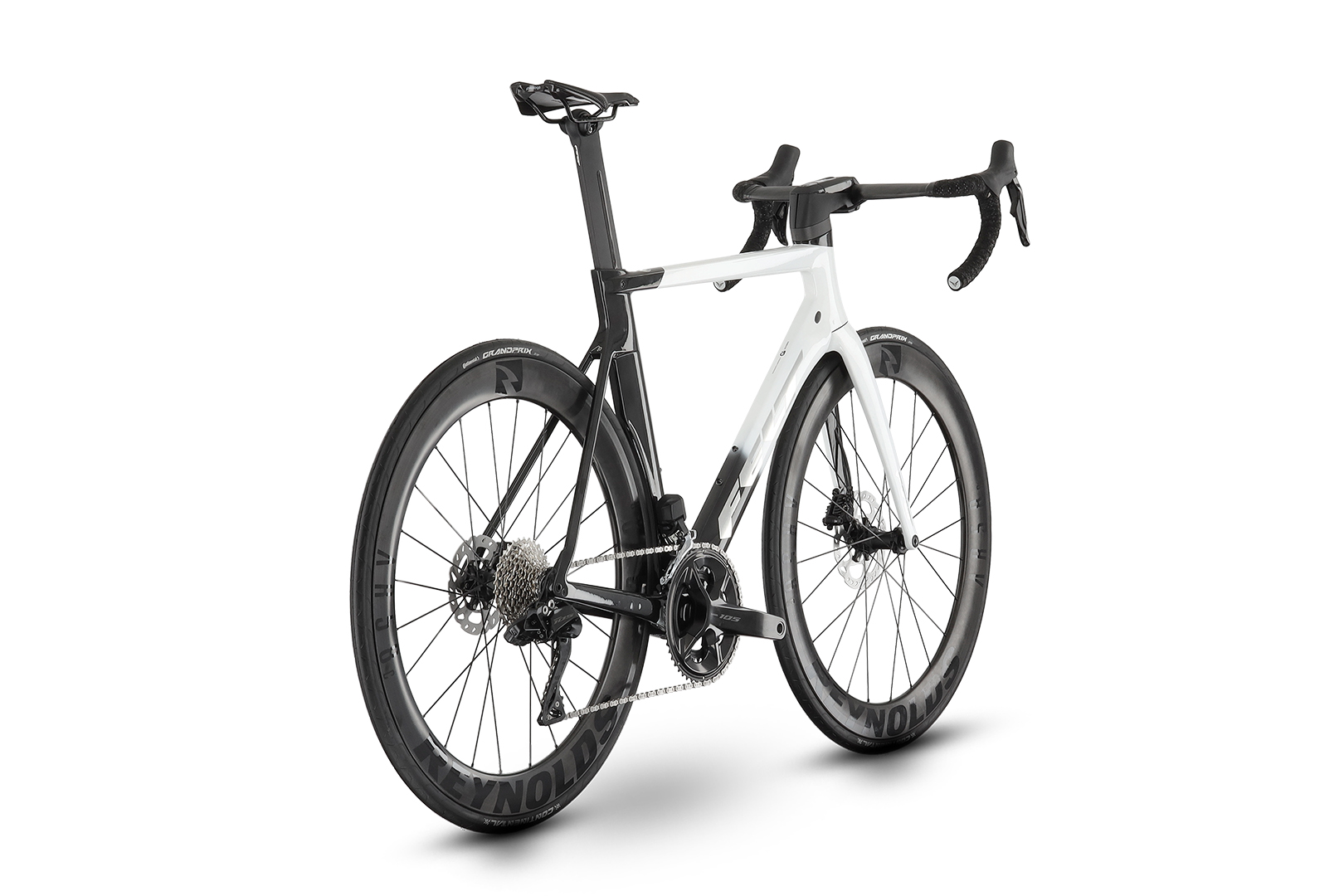

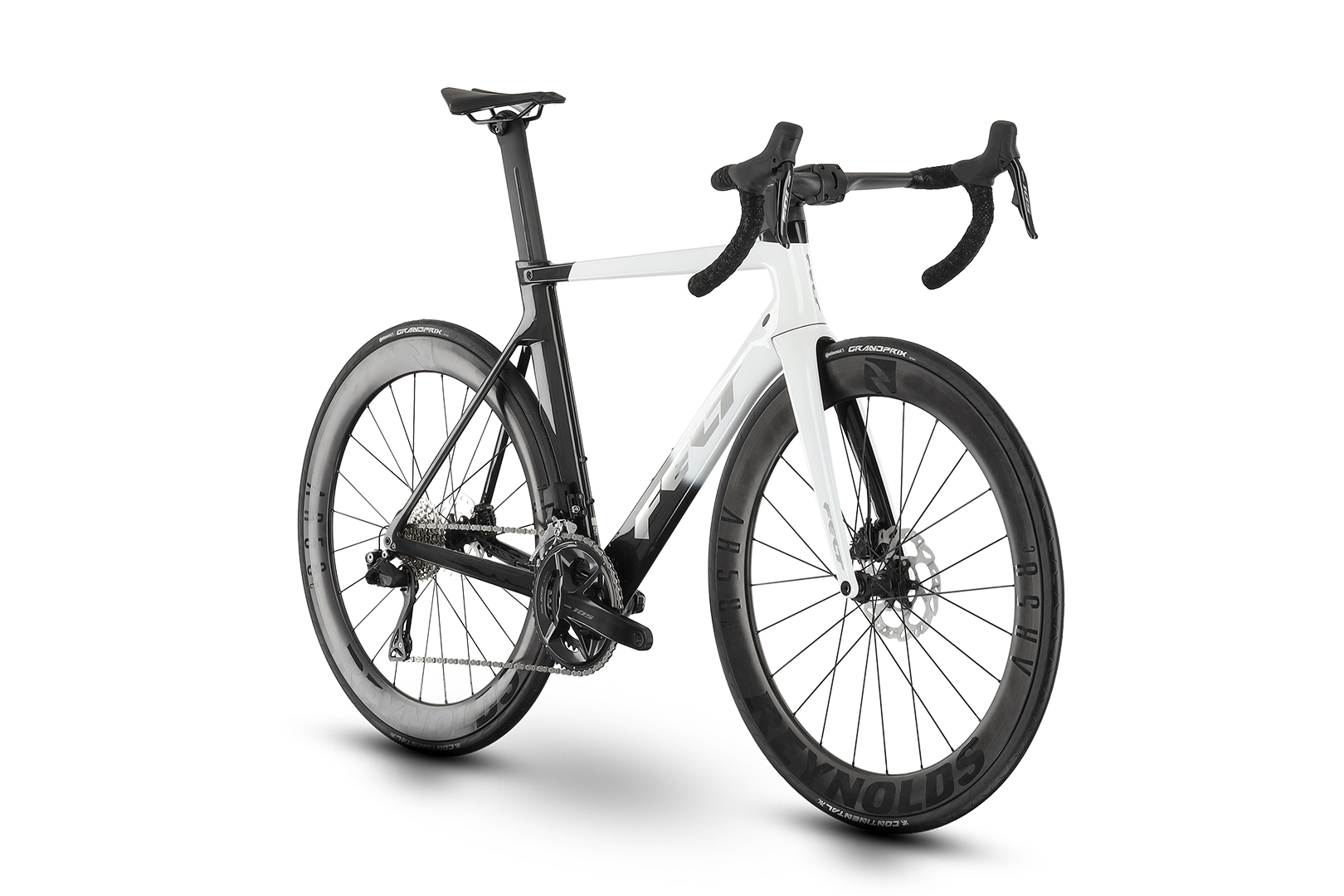

AR Advanced 105 Di2
Gallery
Images
product
Geometry
Geometry
>
Geometry
Geometry
Frame geometry
| Geometry | 51 | 54 | 56 | 58 | 61 |
|---|---|---|---|---|---|
| Stack | 518mm | 539mm | 561mm | 579mm | 608mm |
| Reach | 381mm | 383mm | 394mm | 408mm | 419mm |
| Headtube length | 111mm | 130mm | 150mm | 167mm | 197.5mm |
| Headtube angle | 72.1deg | 73deg | 73.5deg | 73.5deg | 73deg |
| BB height | — | — | — | — | — |
| BB drop | 70mm | 70mm | 70mm | 70mm | 70mm |
| Trail | — | — | — | — | — |
| Fork length | — | — | — | — | — |
| Fork offset | 47mm | 47mm | 43mm | 43mm | 43mm |
| Front center | — | — | — | — | — |
| Chainstay length | 408mm | 410mm | 410mm | 410mm | 412mm |
| Wheelbase | 977mm | 980mm | 988mm | 1003mm | 1024mm |
| Top tube | 529mm | 543mm | 560mm | 580mm | 605mm |
| Standover height | 734mm | 760mm | 780mm | 807mm | 845mm |
| Seat tube length | 473mm | 502.5mm | 526mm | 553mm | 601mm |
| Seat tube angle | 74.4deg | 73.5deg | 73.5deg | 73.5deg | 73deg |
Spec geometry
| Geometry | 51 | 54 | 56 | 58 | 61 |
|---|---|---|---|---|---|
| Crank length | 170mm | 172.5mm | 172.5mm | 175mm | 175mm |
| Stem length | 90mm | 100mm | 100mm | 110mm | 120mm |
| Handlebar width | 400mm | 420mm | 420mm | 420mm | 420mm |
| Handlebar reach | — | — | — | — | — |
| Handlebar drop | — | — | — | — | — |
| Saddle width | 143mm | 143mm | 143mm | 143mm | 143mm |
| Dropper post travel | — | — | — | — | — |
| Seatpost offset | — | — | — | — | — |
Specs
Full specs
>
Specs
Full specs
Frame
Frame
Felt AR 3.0, UHC Advanced + TeXtreme carbon
Suspension
Fork
Felt AR 3.0, UHC Ultimate + TeXtreme carbon
Brakes
Front brake
Shimano BR-R7170, 2-piston, hydraulic disc brake
Rear brake
Shimano BR-R7170, 2-piston, hydraulic disc brake
Front rotor
Shimano SM-RT70, 160mm, Center Lock
Rear rotor
Shimano SM-RT70, 140mm, Center Lock
Drivetrain
Shift levers
Shimano 105 Di2, ST-R7170
Rear derailleur
Shimano 105 Di2, RD-R7150, 24-S
Front derailleur
Shimano 105 Di2, FD-R7150
Cassette
Shimano 105 CS-R7100, 11-30T
Chain
Shimano CN-M7100
Crankset
Shimano 105, FC-R7100, 50/34T
Bottom bracket
Shimano 105 (series not specified)
Cockpit
Stem
Felt Sprint, -6°
Handlebars
48/51cm: Devox DBar.C0 Aero 31.8mm, 400mm; 54/56/58/61cm: Devox DBar.C0 Aero 31.8mm, 420mm
Saddle
Prologo Dimension 143 T4.0
Seatpost
Felt AeroRoad IL 2.0, 350mm
Wheels & Tires
Front wheel
Reynolds AR58 DB Custom wheelset, Tubeless Ready, Center Lock, 12x100mm
Rear wheel
Reynolds AR58 DB Custom wheelset, Tubeless Ready, Center Lock, 12x142mm
Front tire
Continental Grand Prix SL, 700x25
Rear tire
Continental Grand Prix SL, 700x25
Weight
Weight
Permissible total weight: 129 kg
