Factor
Ostro VAM SRAM Force w/ Power Meter
Gallery
Images
other
Geometry
Geometry
>
Geometry
Geometry

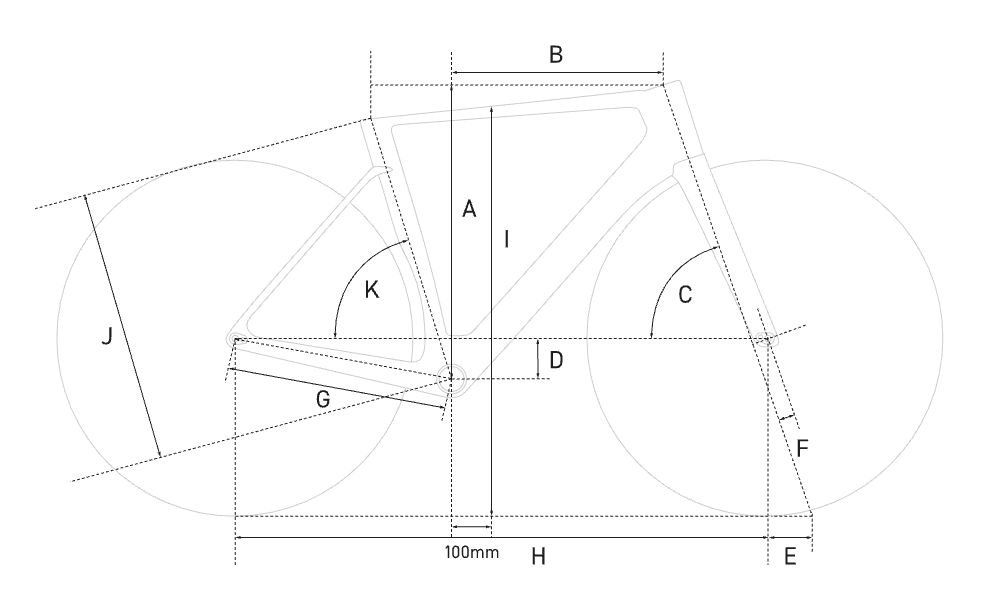

Frame geometry
| Geometry | 45 | 49 | 52 | 54 | 56 | 58 | 61 |
|---|---|---|---|---|---|---|---|
| Stack | 502mm | 503mm | 523mm | 542mm | 565mm | 587mm | 611mm |
| Reach | 360mm | 370mm | 376mm | 384mm | 392mm | 401mm | 409mm |
| Headtube length | — | — | — | — | — | — | — |
| Headtube angle | 71.1deg | 71.1deg | 72.5deg | 72.5deg | 73.3deg | 73.3deg | 73.3deg |
| BB height | — | — | — | — | — | — | — |
| BB drop | 72mm | 72mm | 72mm | 70mm | 70mm | 70mm | 70mm |
| Trail | 58mm | 58mm | 58mm | 58mm | 58.6mm | 58.6mm | 58.6mm |
| Fork length | — | — | — | — | — | — | — |
| Fork offset | 57mm | 53mm | 48mm | 48mm | 43mm | 43mm | 43mm |
| Front center | — | — | — | — | — | — | — |
| Chainstay length | 405mm | 405mm | 405mm | 405mm | 405mm | 408mm | 410mm |
| Wheelbase | 970mm | 969mm | 971mm | 985mm | 987mm | 1006mm | 1022mm |
| Top tube | — | — | — | — | — | — | — |
| Standover height | 726mm | 737mm | 762mm | 781mm | 804mm | 817mm | 840mm |
| Seat tube length | 432mm | 454mm | 483mm | 502mm | 524mm | 531mm | 554mm |
| Seat tube angle | 75.5deg | 74.5deg | 74deg | 74deg | 73.5deg | 73.5deg | 73.5deg |
Spec geometry
| Geometry | 45 | 49 | 52 | 54 | 56 | 58 | 61 |
|---|---|---|---|---|---|---|---|
| Crank length | — | — | — | — | — | — | — |
| Stem length | — | — | — | — | — | — | — |
| Handlebar width | — | — | — | — | — | — | — |
| Handlebar reach | 80mm | 80mm | 80mm | 80mm | 80mm | 80mm | 80mm |
| Handlebar drop | 120mm | 120mm | 120mm | 120mm | 120mm | 120mm | 120mm |
| Saddle width | — | — | — | — | — | — | — |
| Dropper post travel | — | — | — | — | — | — | — |
| Seatpost offset | — | — | — | — | — | — | — |
Specs
Full specs
>
Specs
Full specs
Frame
Frame
Carbon frame: TeXtreme®, Toray®, Nippon Graphite® pitch-based fiber
Suspension
Fork
OSTRO Wide Stance Fork
Brakes
Front brake
SRAM Force HRD hydraulic disc
Rear brake
SRAM Force HRD hydraulic disc
Front rotor
160mm
Rear rotor
160mm
Drivetrain
Shift levers
SRAM Force eTap AXS HRD (electronic hydraulic)
Rear derailleur
SRAM Force eTap AXS, 12-speed
Front derailleur
SRAM Force eTap AXS
Cassette
SRAM Force XG-1270, 12-speed, 10-33T
Chain
SRAM Force 12-speed Flattop chain
Crankset
SRAM Force AXS E1 power meter crankset, 2x, 48/35T
Bottom bracket
CeramicSpeed T47A aluminum cups with CeramicSpeed bearings (DUB/24mm/Ultra-Torque compatible; typically DUB for SRAM)
Cockpit
Stem
Black Inc Integrated Aero Barstem (one-piece cockpit; multiple stem lengths available)
Handlebars
Black Inc Integrated Aero Barstem (reach 80mm, drop 120mm; multiple bar widths available)
Saddle
Not specified
Seatpost
Seatpost with 0mm or 20mm setback options
Wheels & Tires
Front wheel
Black Inc 48|58 wheelset (front)
Rear wheel
Black Inc 48|58 wheelset (rear)
Weight
Weight
900g
