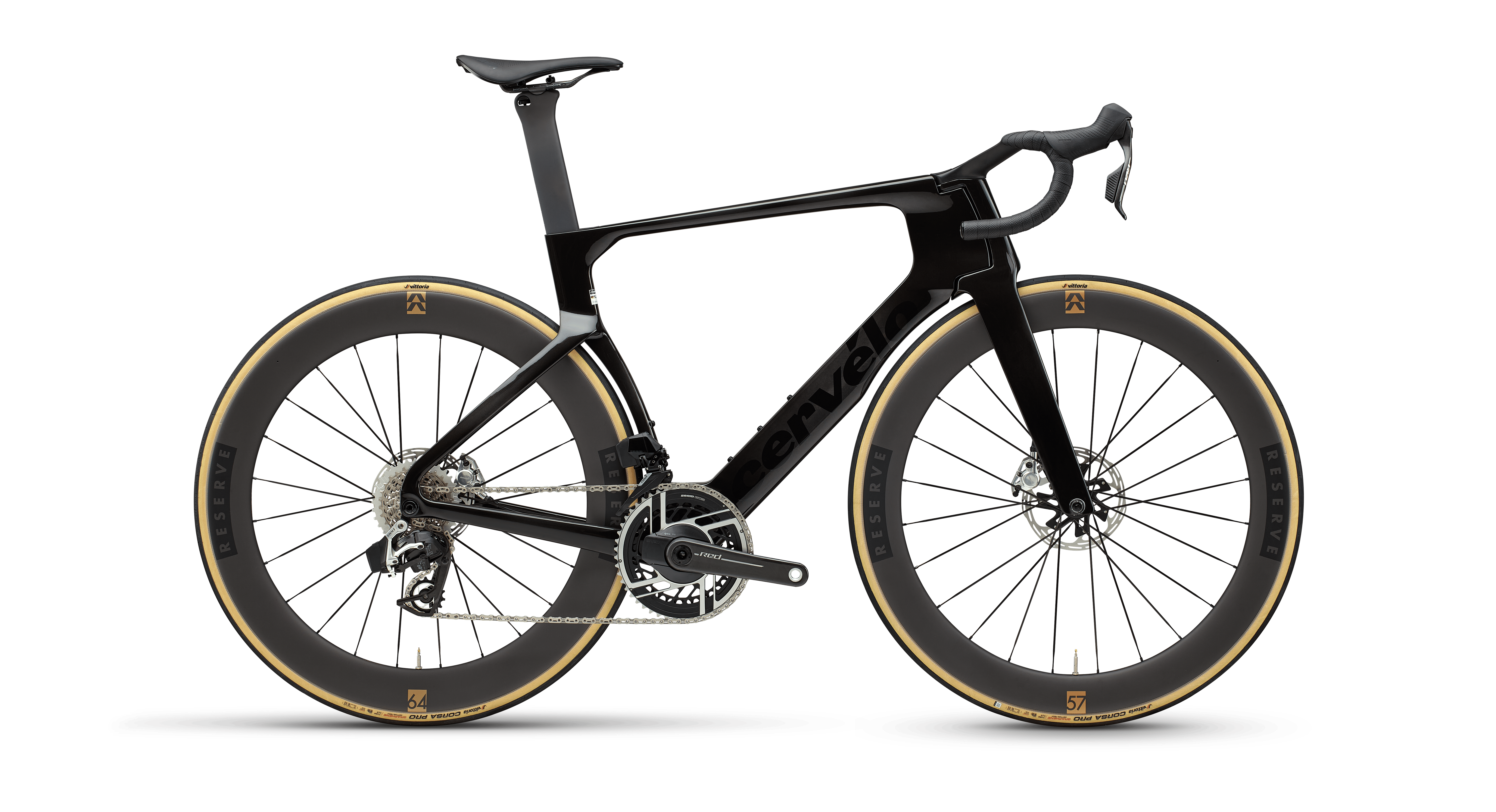

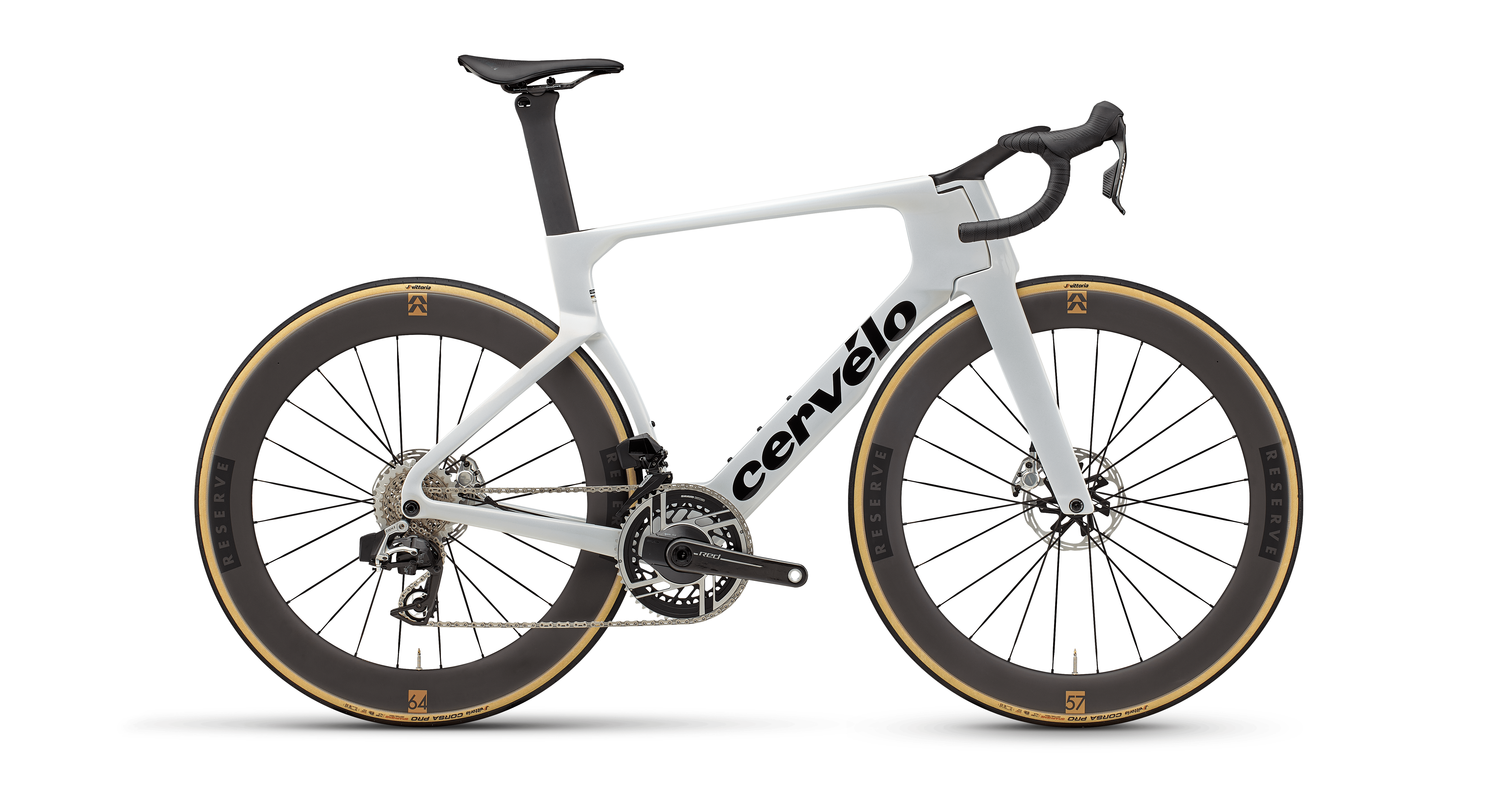

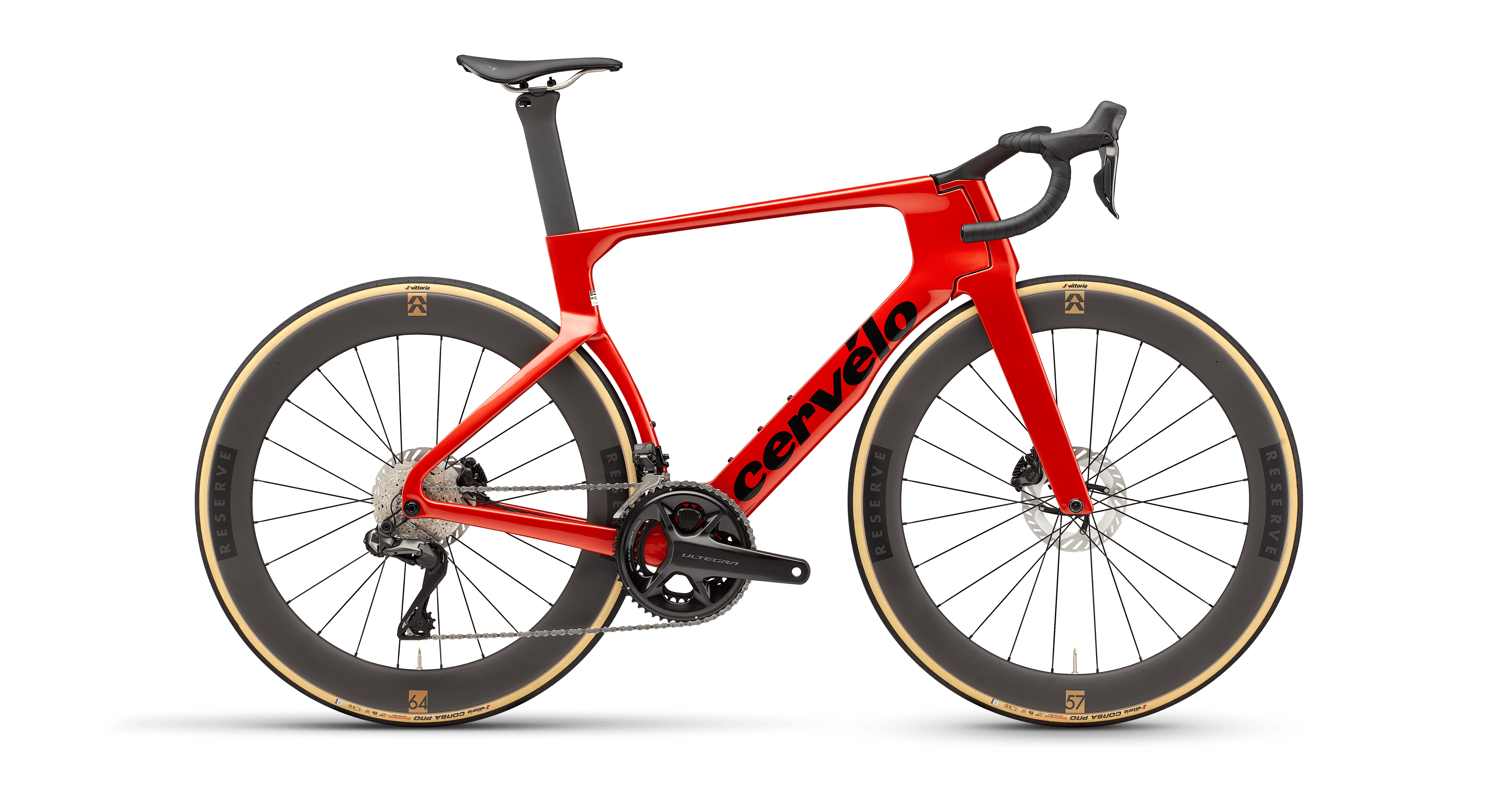

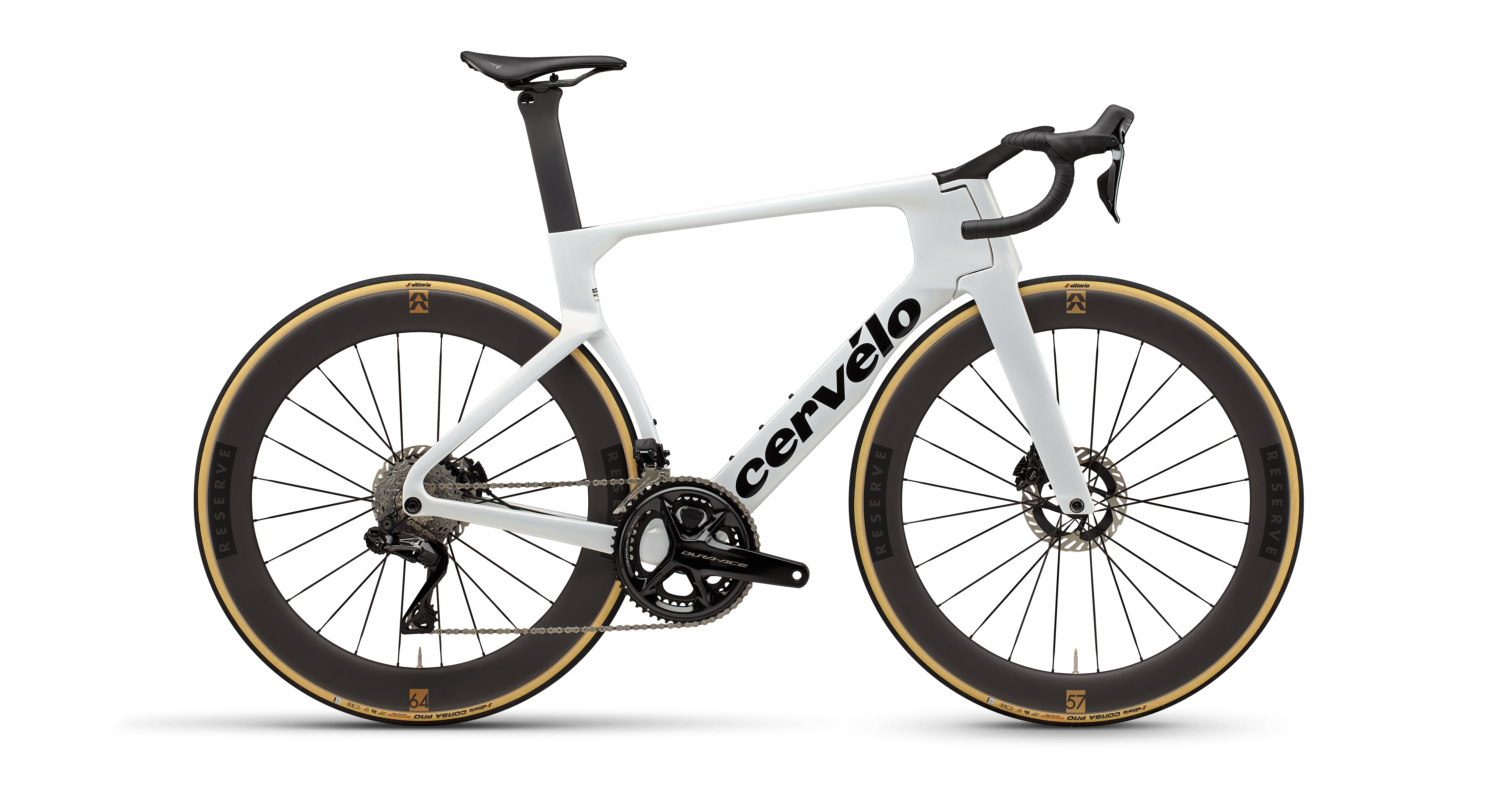

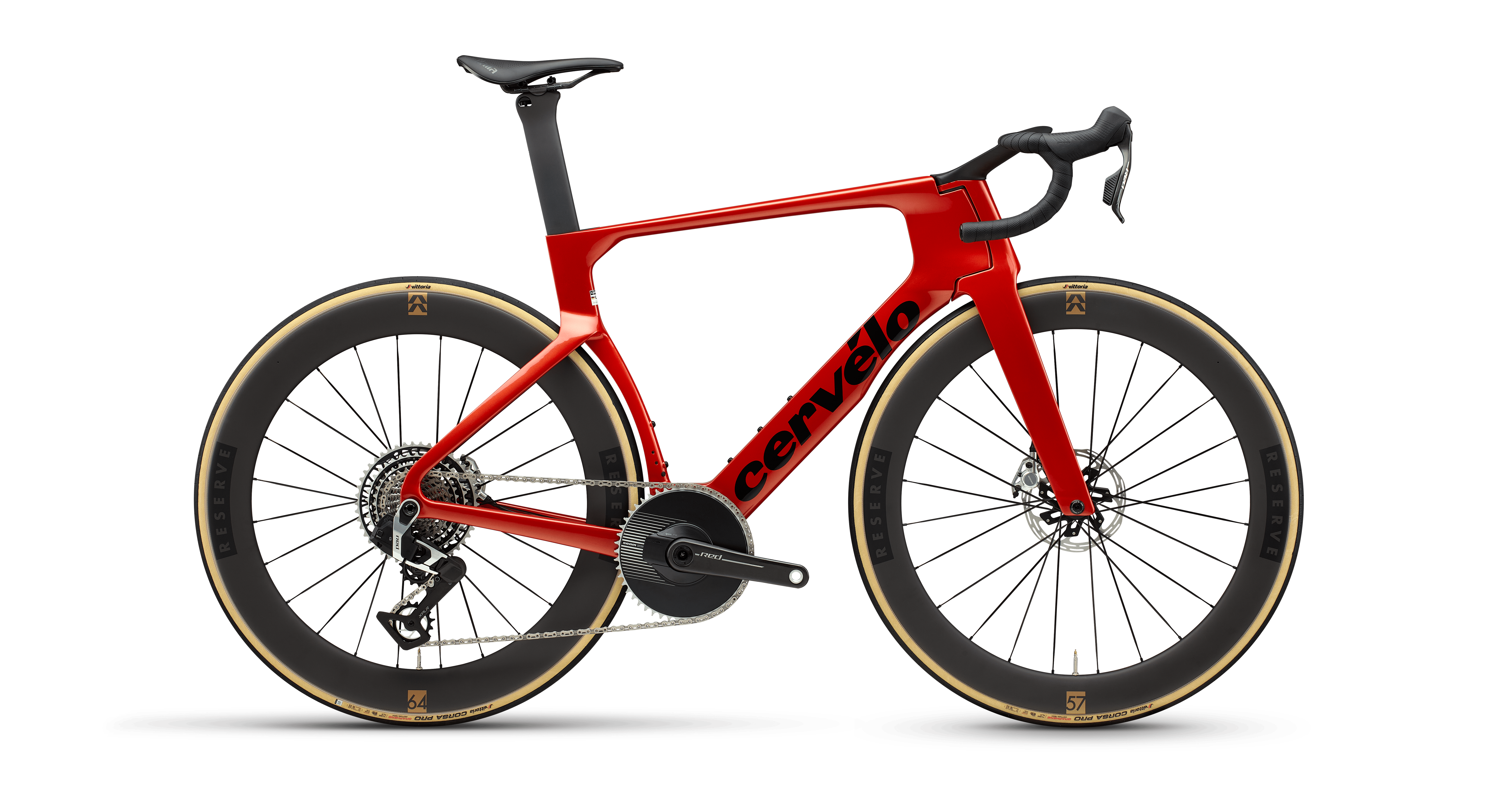

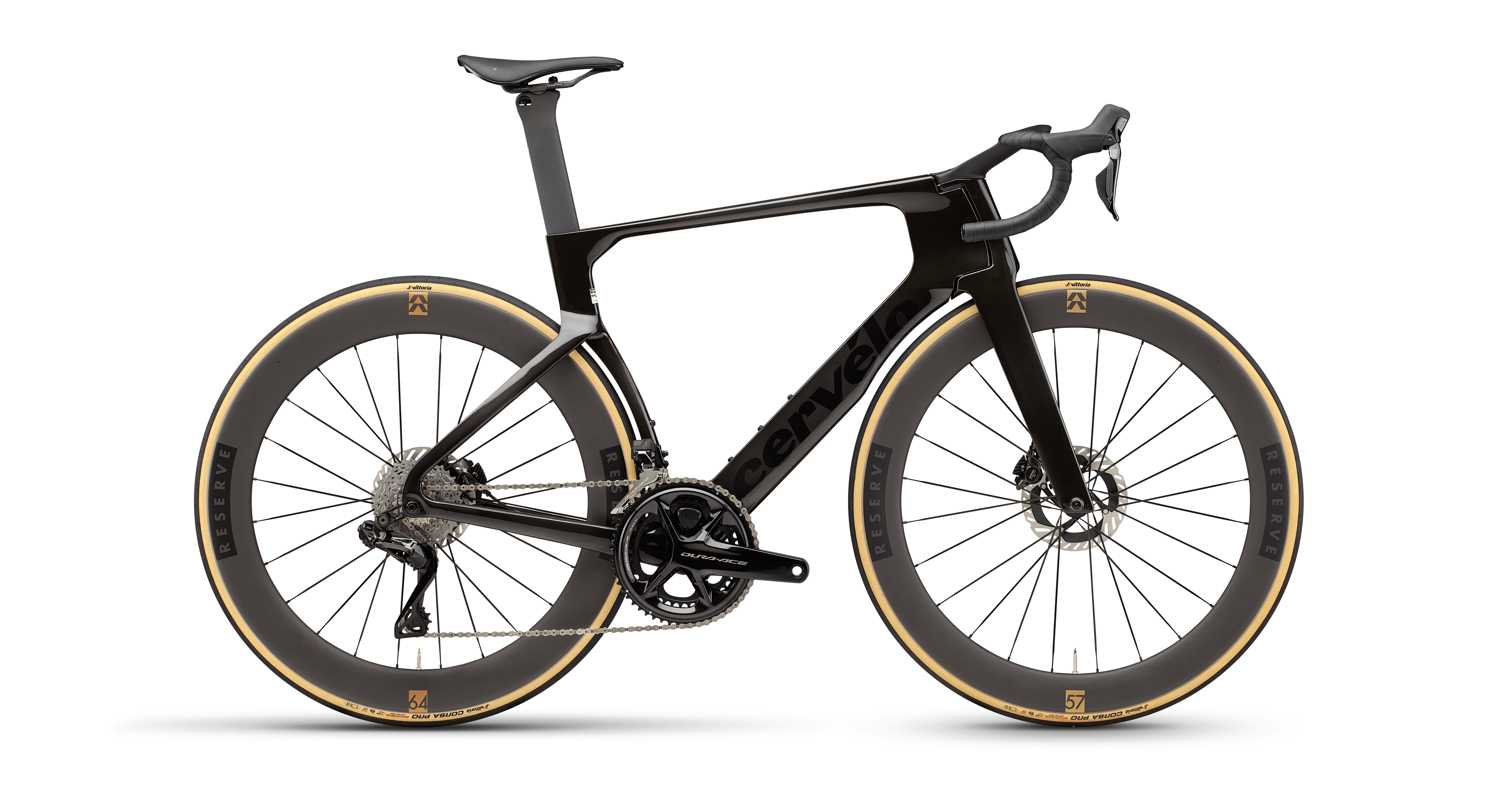

Cervelo
S5 Force AXS
Gallery
Images
product
Geometry
Geometry
>
Geometry
Geometry

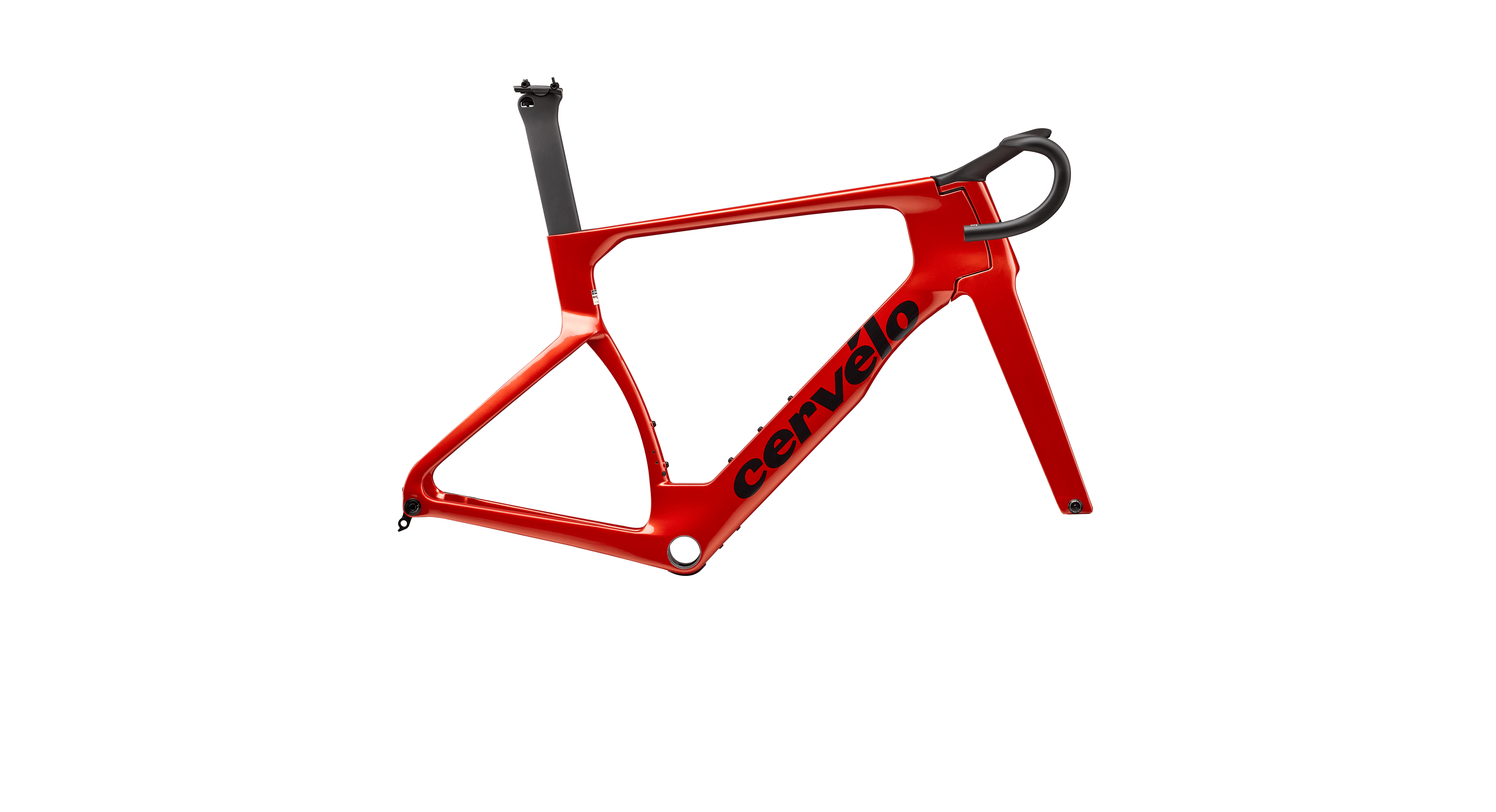

Frame geometry
| Geometry | 48 | 51 | 54 | 56 | 58 | 61 | 48cm | 51cm | 54cm | 56cm | 58cm | 61cm |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Stack | 496mm | 519mm | 542mm | 565mm | 588mm | 608mm | — | — | — | — | — | — |
| Reach | 367mm | 376mm | 384mm | 392mm | 401mm | 409mm | — | — | — | — | — | — |
| Headtube length | 64mm | 82mm | 104mm | 125mm | 152mm | 173mm | — | — | — | — | — | — |
| Headtube angle | 71deg | 72deg | 73deg | 73.5deg | 73.5deg | 73.5deg | — | — | — | — | — | — |
| BB height | — | — | — | — | — | — | — | — | — | — | — | — |
| BB drop | 74.5mm | 74.5mm | 72mm | 72mm | 69.5mm | 69.5mm | — | — | — | — | — | — |
| Trail | 55.6mm | 55.6mm | 55.6mm | 55.6mm | 55.6mm | 55.6mm | — | — | — | — | — | — |
| Fork length | — | — | — | — | — | — | — | — | — | — | — | — |
| Fork offset | 58.5mm | 52.5mm | 46.5mm | 43.5mm | 43.5mm | 43.5mm | — | — | — | — | — | — |
| Front center | 579mm | 580mm | 581mm | 588mm | 604mm | 617mm | — | — | — | — | — | — |
| Chainstay length | 405mm | 405mm | 405mm | 405mm | 405mm | 405mm | — | — | — | — | — | — |
| Wheelbase | 973mm | 974mm | 975mm | 982mm | 999mm | 1013mm | — | — | — | — | — | — |
| Top tube | 520mm | 535mm | 550mm | 565mm | 581mm | 595mm | — | — | — | — | — | — |
| Standover height | 712mm | 734mm | 758mm | 781mm | 804mm | 822mm | — | — | — | — | — | — |
| Seat tube length | — | — | — | — | — | — | — | — | — | — | — | — |
| Seat tube angle | 73deg | 73deg | 73deg | 73deg | 73deg | 73deg | — | — | — | — | — | — |
Spec geometry
| Geometry | 48 | 51 | 54 | 56 | 58 | 61 | 48cm | 51cm | 54cm | 56cm | 58cm | 61cm |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Crank length | — | — | — | — | — | — | 165mm | 165mm | 170mm | 170mm | 172.5mm | 172.5mm |
| Stem length | — | — | — | — | — | — | 80mm | 90mm | 100mm | 100mm | 110mm | 120mm |
| Handlebar width | — | — | — | — | — | — | 360mm | 380mm | 400mm | 400mm | 400mm | 400mm |
| Handlebar reach | — | — | — | — | — | — | — | — | — | — | — | — |
| Handlebar drop | — | — | — | — | — | — | — | — | — | — | — | — |
| Saddle width | — | — | — | — | — | — | — | — | — | — | — | — |
| Dropper post travel | — | — | — | — | — | — | — | — | — | — | — | — |
| Seatpost offset | — | — | — | — | — | — | 0mm | 0mm | 0mm | 0mm | 15mm | 15mm |
Specs
Full specs
>
Specs
Full specs
Suspension
Fork
Cervélo All-Carbon, Bayonet S5 Fork
Brakes
Front rotor
SRAM Paceline Centerlock
Rear rotor
SRAM Paceline Centerlock
Drivetrain
Shift levers
SRAM Force AXS E1
Rear derailleur
SRAM Force AXS E1
Front derailleur
SRAM Force AXS E1
Cassette
SRAM Force E1, 10-33T, 12-Speed
Chain
SRAM Force E1
Crankset
SRAM Force AXS E1, 50/37T, DUB, with power meter
Bottom bracket
SRAM DUB Ceramic, BBright
Cockpit
Stem
Cervélo HB19 Carbon

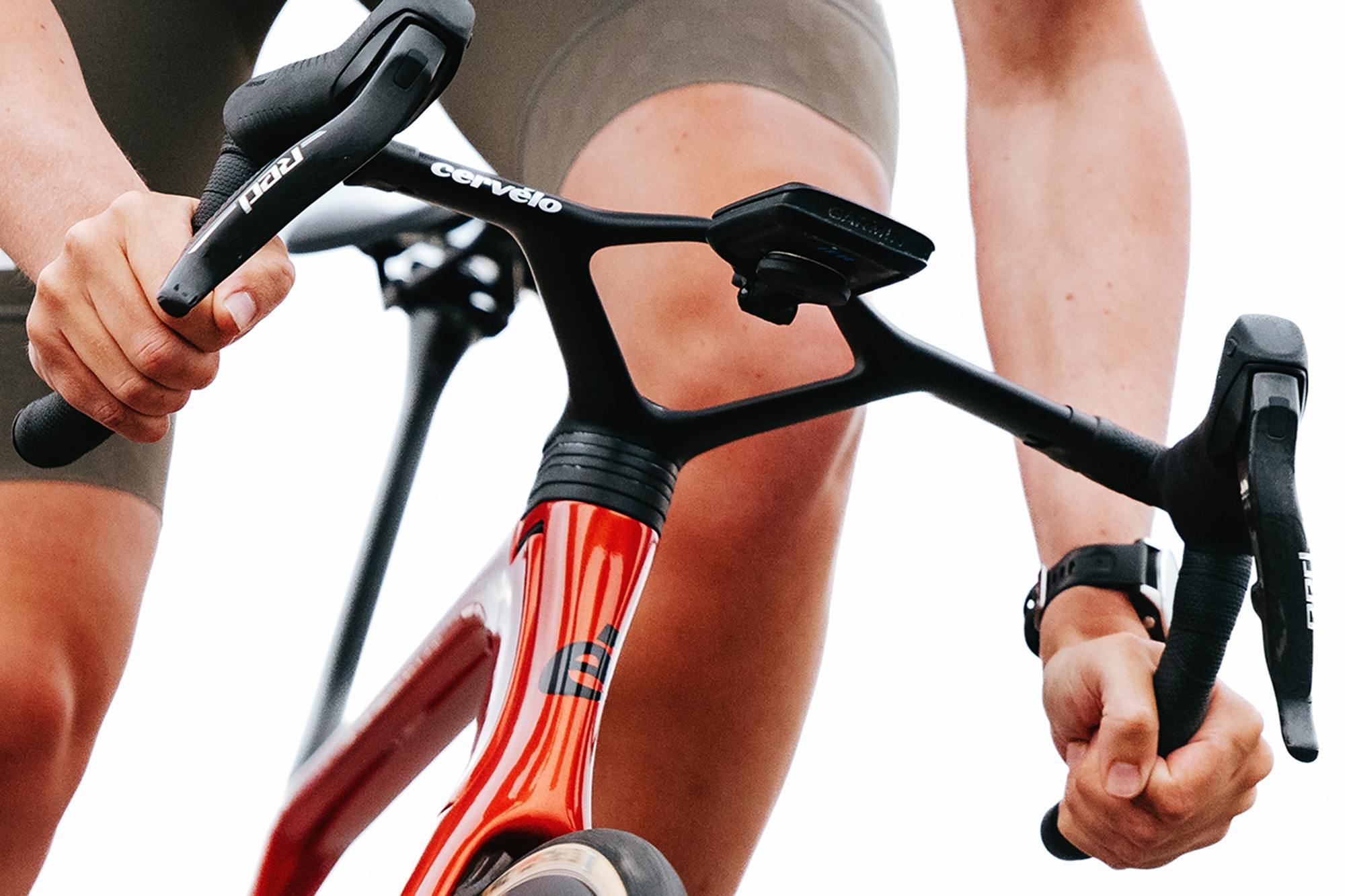

Handlebars
Cervélo HB19 Carbon
Saddle
Selle Italia NOVUS BOOST EVO SuperFlow Ti
Seatpost
Cervélo SP34 Carbon
Wheels & Tires

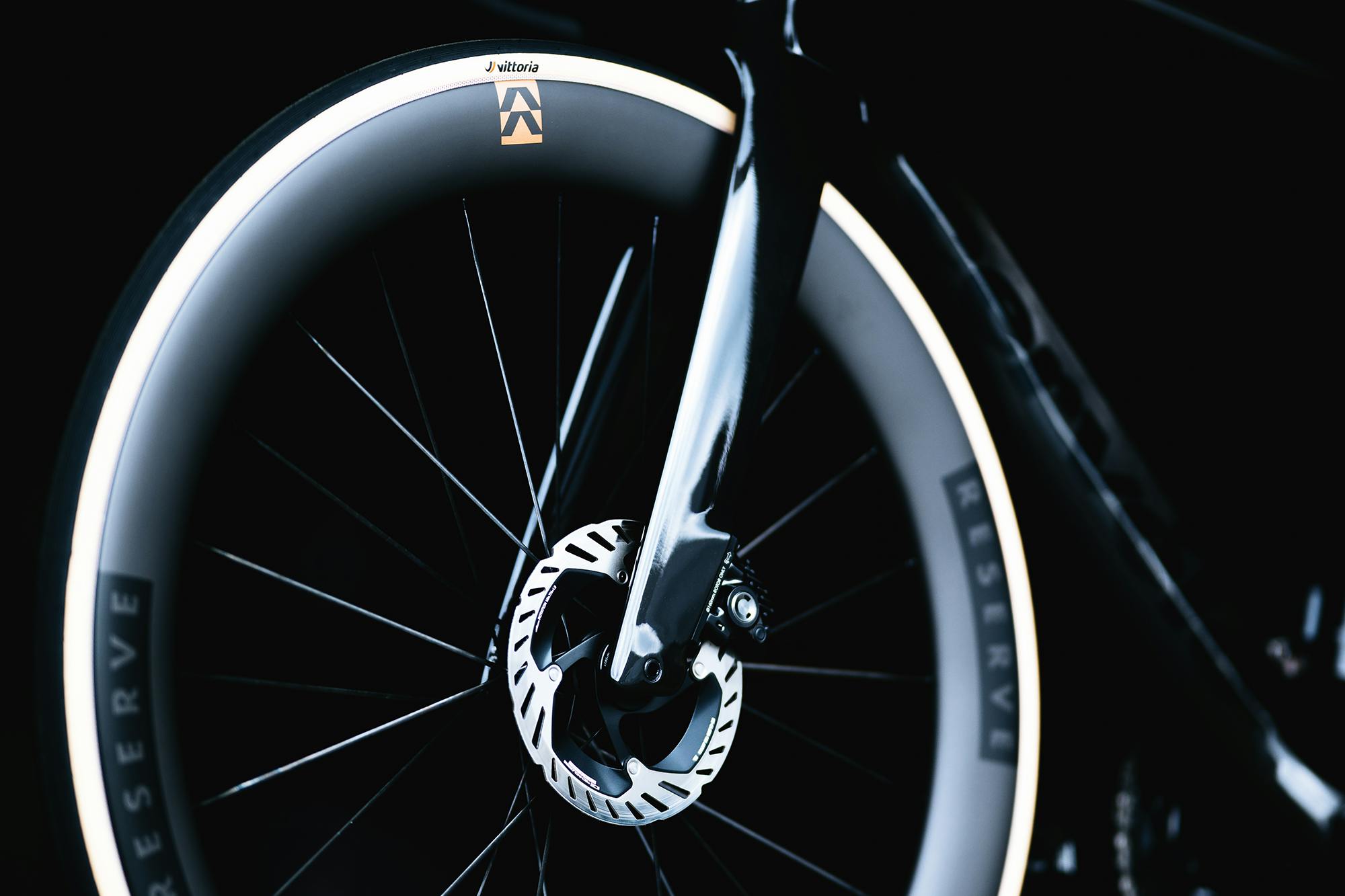

Front wheel
Reserve 57TA, DT Swiss 240, 12x100mm, 24H, centerlock, tubeless compatible
Rear wheel
Reserve 64TA, DT Swiss 240, 12x142mm, XDR freehub, 24H, centerlock, tubeless compatible
Front tire
Vittoria Corsa Pro TLR G2.0 700x29c
Rear tire
Vittoria Corsa Pro TLR G2.0 700x29c
