Cervelo

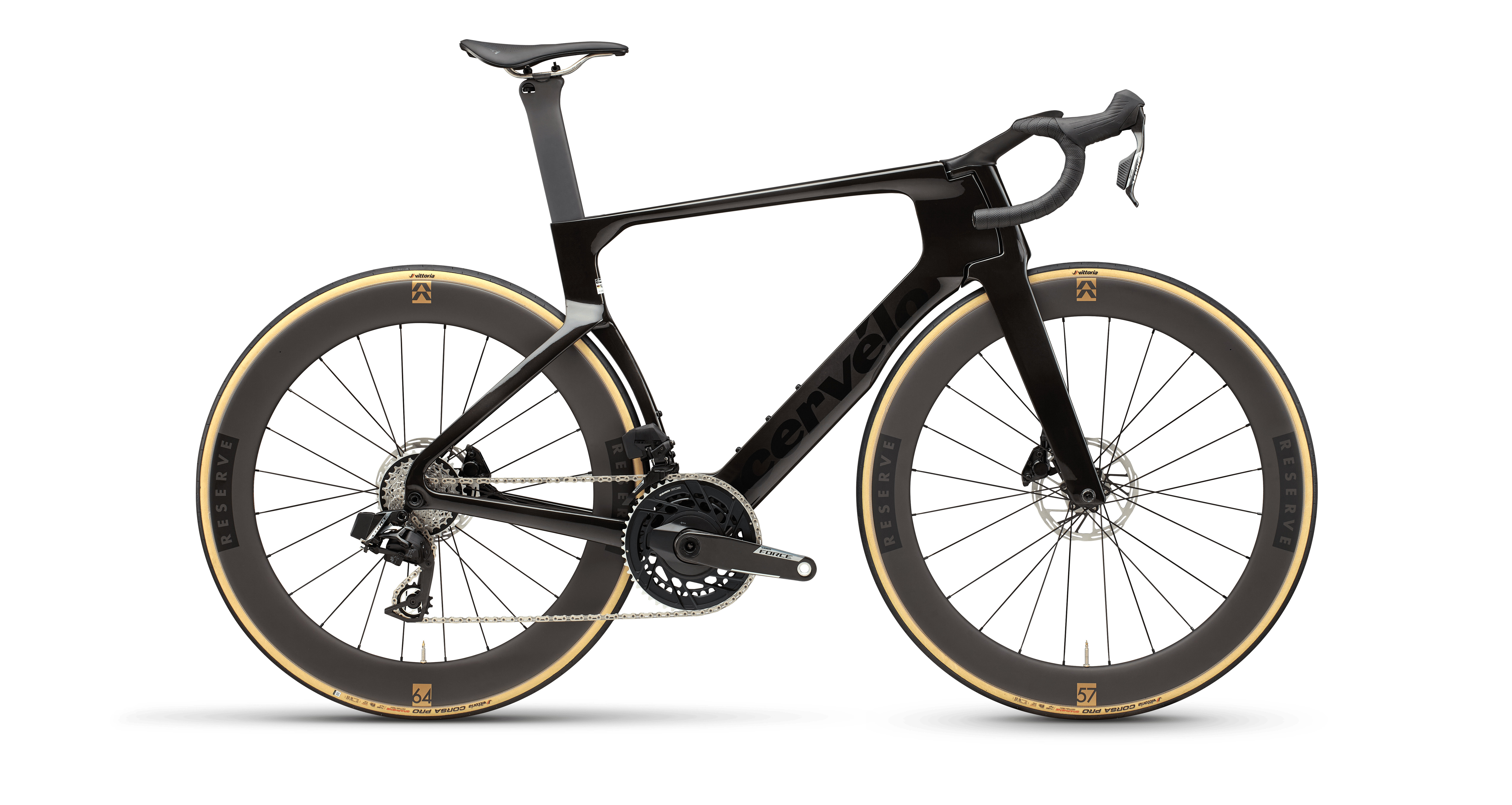

S5 Dura-Ace Di2
Gallery
Images
product
Geometry
Geometry
>
Geometry
Geometry
Frame geometry
| Geometry | 48 | 51 | 54 | 56 | 58 | 61 | 48cm | 51cm | 54cm | 56cm | 58cm | 61cm |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Stack | 496mm | 519mm | 542mm | 565mm | 588mm | 608mm | — | — | — | — | — | — |
| Reach | 367mm | 376mm | 384mm | 392mm | 401mm | 409mm | — | — | — | — | — | — |
| Headtube length | 64mm | 82mm | 104mm | 125mm | 152mm | 173mm | — | — | — | — | — | — |
| Headtube angle | 71deg | 72deg | 73deg | 73.5deg | 73.5deg | 73.5deg | — | — | — | — | — | — |
| BB height | — | — | — | — | — | — | — | — | — | — | — | — |
| BB drop | 74.5mm | 74.5mm | 72mm | 72mm | 69.5mm | 69.5mm | — | — | — | — | — | — |
| Trail | 55.6mm | 55.6mm | 55.6mm | 55.6mm | 55.6mm | 55.6mm | — | — | — | — | — | — |
| Fork length | — | — | — | — | — | — | — | — | — | — | — | — |
| Fork offset | 58.5mm | 52.5mm | 46.5mm | 43.5mm | 43.5mm | 43.5mm | — | — | — | — | — | — |
| Front center | 579mm | 580mm | 581mm | 588mm | 604mm | 617mm | — | — | — | — | — | — |
| Chainstay length | 405mm | 405mm | 405mm | 405mm | 405mm | 405mm | — | — | — | — | — | — |
| Wheelbase | 973mm | 974mm | 975mm | 982mm | 999mm | 1013mm | — | — | — | — | — | — |
| Top tube | 520mm | 535mm | 550mm | 565mm | 581mm | 595mm | — | — | — | — | — | — |
| Standover height | 712mm | 734mm | 758mm | 781mm | 804mm | 822mm | — | — | — | — | — | — |
| Seat tube length | — | — | — | — | — | — | — | — | — | — | — | — |
| Seat tube angle | 73deg | 73deg | 73deg | 73deg | 73deg | 73deg | — | — | — | — | — | — |
Spec geometry
| Geometry | 48 | 51 | 54 | 56 | 58 | 61 | 48cm | 51cm | 54cm | 56cm | 58cm | 61cm |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Crank length | — | — | — | — | — | — | 165mm | 165mm | 170mm | 170mm | 172.5mm | 172.5mm |
| Stem length | — | — | — | — | — | — | 80mm | 90mm | 100mm | 100mm | 110mm | 120mm |
| Handlebar width | — | — | — | — | — | — | 360mm | 380mm | 400mm | 400mm | 400mm | 400mm |
| Handlebar reach | — | — | — | — | — | — | — | — | — | — | — | — |
| Handlebar drop | — | — | — | — | — | — | — | — | — | — | — | — |
| Saddle width | — | — | — | — | — | — | — | — | — | — | — | — |
| Dropper post travel | — | — | — | — | — | — | — | — | — | — | — | — |
| Seatpost offset | — | — | — | — | — | — | 0mm | 0mm | 0mm | 0mm | 15mm | 15mm |
Specs
Full specs
>
Specs
Full specs
Suspension
Fork
Cervélo All-Carbon, Bayonet S5 Fork
Brakes
Front rotor
Shimano CL900 Centerlock
Rear rotor
Shimano CL900 Centerlock
Drivetrain
Shift levers
Shimano Dura-Ace, R9270
Rear derailleur
Shimano Dura-Ace, R9250
Front derailleur
Shimano Dura-Ace, R9250
Cassette
Shimano Dura-Ace, R9200, 11-34T, 12-Speed
Chain
Shimano M9100
Crankset
Shimano Dura-Ace, R9200, 54/40T
Bottom bracket
Ceramic Speed SL, BBright for 24mm spindle
Cockpit
Stem
Cervélo HB19 Carbon (1-piece handlebar/stem)
Handlebars
Cervélo HB19 Carbon (1-piece handlebar/stem)
Saddle
Selle Italia NOVUS BOOST EVO SuperFlow Carbon
Seatpost
Cervélo SP34 Carbon
Wheels & Tires
Front wheel
Reserve 57TA, DT Swiss 180, 12x100mm, 24H, centerlock, tubeless compatible
Rear wheel
Reserve 64TA, DT Swiss 180, 12x142mm, HG freehub 24H, centerlock, tubeless compatible
Front tire
Vittoria Corsa Pro TLR G2.0 700x29c
Rear tire
Vittoria Corsa Pro TLR G2.0 700x29c
