Cervelo

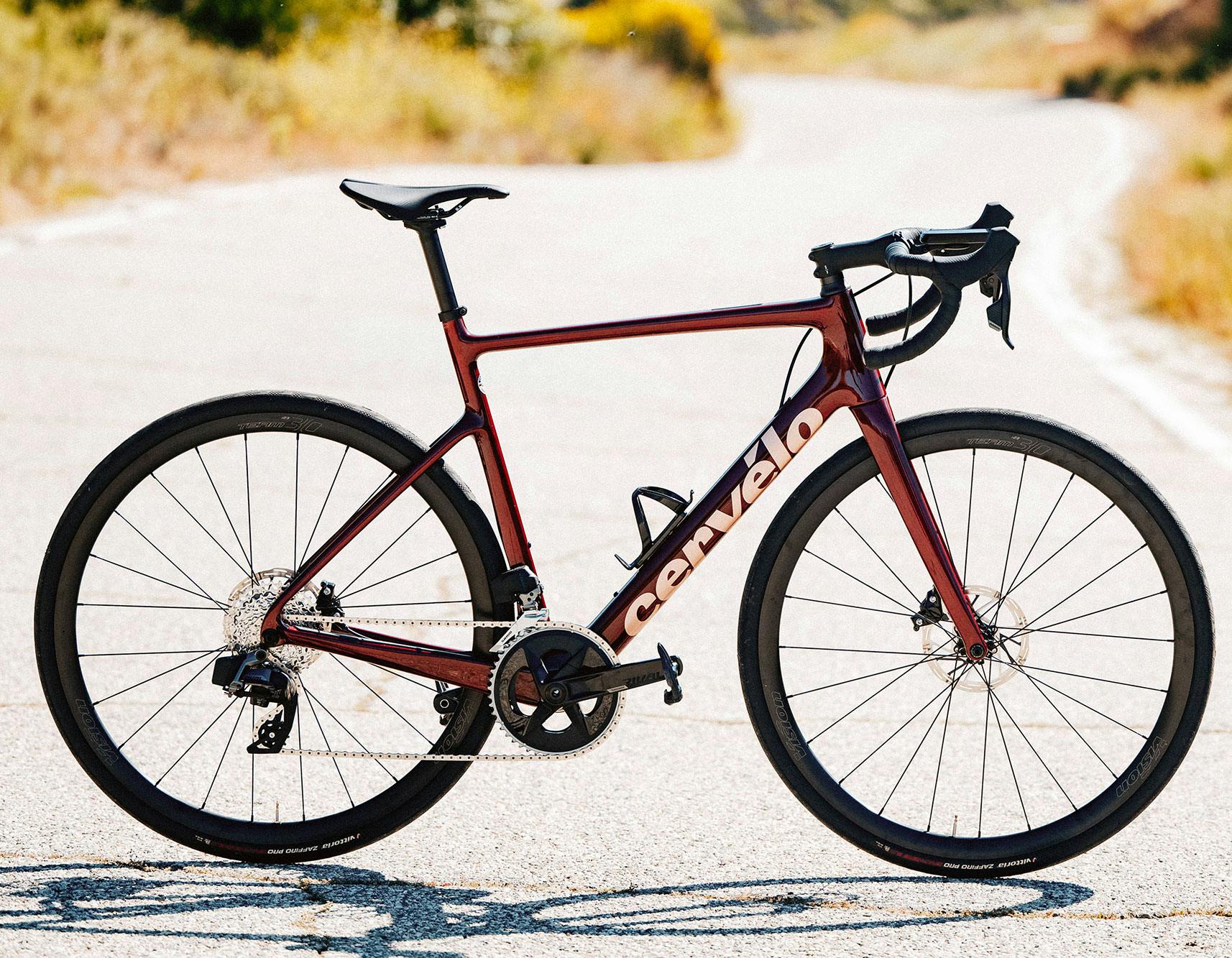

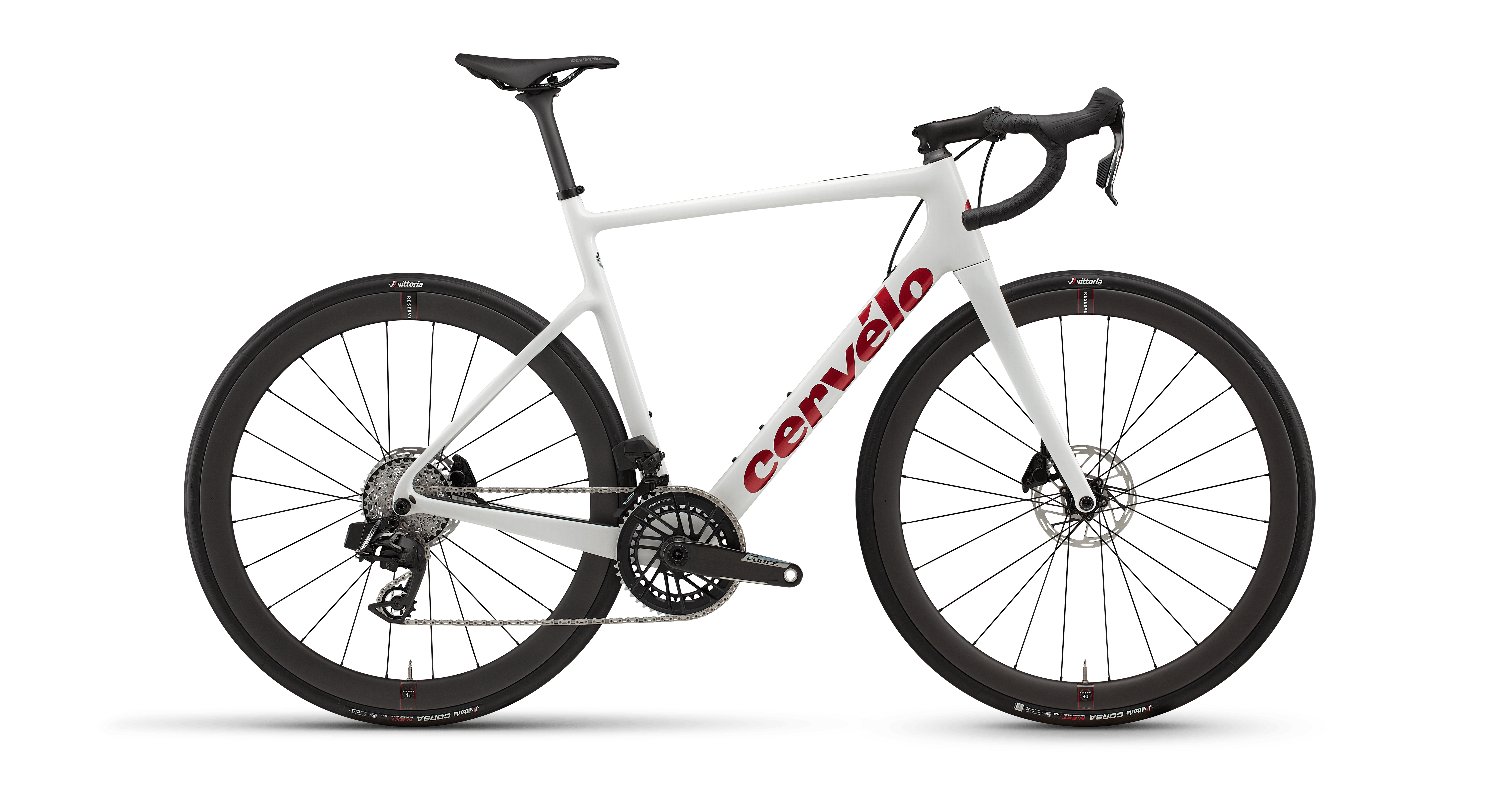

Caledonia Rival AXS
Gallery
Images
lifestyle
Geometry
Geometry
>
Geometry
Geometry
Frame geometry
| Geometry | 48 | 51 | 54 | 56 | 58 | 61 | 48cm | 51cm | 54cm | 56cm | 58cm | 61cm |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Stack | 505mm | 530mm | 555mm | 580mm | 605mm | 630mm | — | — | — | — | — | — |
| Reach | 360mm | 369mm | 378mm | 387mm | 396mm | 405mm | — | — | — | — | — | — |
| Headtube length | 89.5mm | 109.9mm | 136mm | 162.3mm | 191.2mm | 217.5mm | — | — | — | — | — | — |
| Headtube angle | 70.5deg | 71.5deg | 72deg | 72deg | 72deg | 72deg | — | — | — | — | — | — |
| BB height | — | — | — | — | — | — | — | — | — | — | — | — |
| BB drop | 76.5mm | 76.5mm | 74mm | 74mm | 71.5mm | 71.5mm | — | — | — | — | — | — |
| Trail | 60mm | 60mm | 60mm | 60mm | 60mm | 60mm | — | — | — | — | — | — |
| Fork length | — | — | — | — | — | — | — | — | — | — | — | — |
| Fork offset | 59mm | 53mm | 50mm | 50mm | 50mm | 50mm | — | — | — | — | — | — |
| Front center | 579.4mm | 581.7mm | 591.5mm | 608.5mm | 626mm | 643mm | — | — | — | — | — | — |
| Chainstay length | 415mm | 415mm | 415mm | 415mm | 415mm | 415mm | — | — | — | — | — | — |
| Wheelbase | 982.2mm | 984.5mm | 995.2mm | 1012.3mm | 1030.7mm | 1047.8mm | — | — | — | — | — | — |
| Top tube | 502mm | 522mm | 543mm | 565mm | 581mm | 598mm | — | — | — | — | — | — |
| Standover height | 701mm | 741mm | 773mm | 796mm | 823mm | 847mm | — | — | — | — | — | — |
| Seat tube length | — | — | — | — | — | — | — | — | — | — | — | — |
| Seat tube angle | 74.5deg | 74deg | 73.5deg | 73deg | 73deg | 73deg | — | — | — | — | — | — |
Spec geometry
| Geometry | 48 | 51 | 54 | 56 | 58 | 61 | 48cm | 51cm | 54cm | 56cm | 58cm | 61cm |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Crank length | — | — | — | — | — | — | 165mm | 165mm | 170mm | 170mm | 172.5mm | 172.5mm |
| Stem length | — | — | — | — | — | — | 80mm | 90mm | 100mm | 100mm | 110mm | 110mm |
| Handlebar width | — | — | — | — | — | — | 380mm | 380mm | 400mm | 400mm | 420mm | 420mm |
| Handlebar reach | — | — | — | — | — | — | — | — | — | — | — | — |
| Handlebar drop | — | — | — | — | — | — | — | — | — | — | — | — |
| Saddle width | — | — | — | — | — | — | — | — | — | — | — | — |
| Dropper post travel | — | — | — | — | — | — | — | — | — | — | — | — |
| Seatpost offset | — | — | — | — | — | — | 0mm | 0mm | 0mm | 0mm | 15mm | 15mm |
Specs
Full specs
>
Specs
Full specs
Suspension
Fork
Cervélo All-Carbon, Tapered Caledonia Fork
Brakes
Front rotor
SRAM Paceline Centerlock
Rear rotor
SRAM Paceline Centerlock
Drivetrain
Shift levers
SRAM Rival AXS E1
Rear derailleur
SRAM Rival AXS E1
Front derailleur
SRAM Rival AXS E1
Cassette
SRAM Rival D1, 10-36T, 12-Speed
Chain
SRAM Rival E1
Crankset
SRAM Rival AXS E1, 48/35T, DUB
Bottom bracket
SRAM DUB, BBright
Cockpit
Stem
Cervélo ST36 Alloy
Handlebars
Cervélo AB07 Alloy, 31.8mm clamp
Saddle
Cervélo Saddle
Seatpost
Cervélo SP19 Carbon 27.2
Wheels & Tires
Front wheel
Vision Team i23 Disc, 23mm IW, direct pull, 12x100mm, centerlock, tubeless compatible
Rear wheel
Vision Team i23 Disc, 23mm IW, direct pull, 12x142mm, XDR freehub, centerlock, tubeless compatible
Front tire
Vittoria Corsa N.EXT TLR G2.0 700x32c
Rear tire
Vittoria Corsa N.EXT TLR G2.0 700x32c
