Cervelo

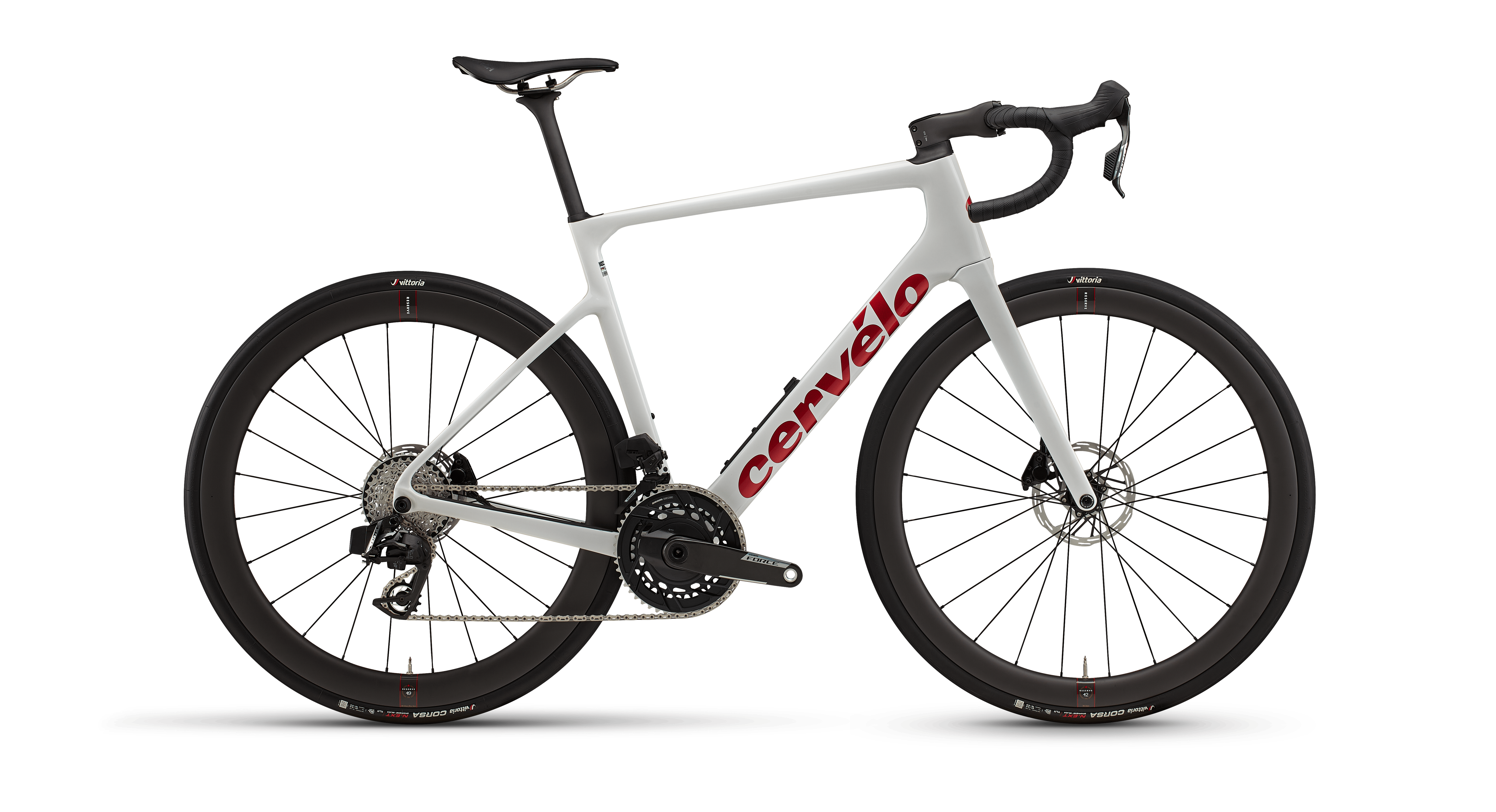

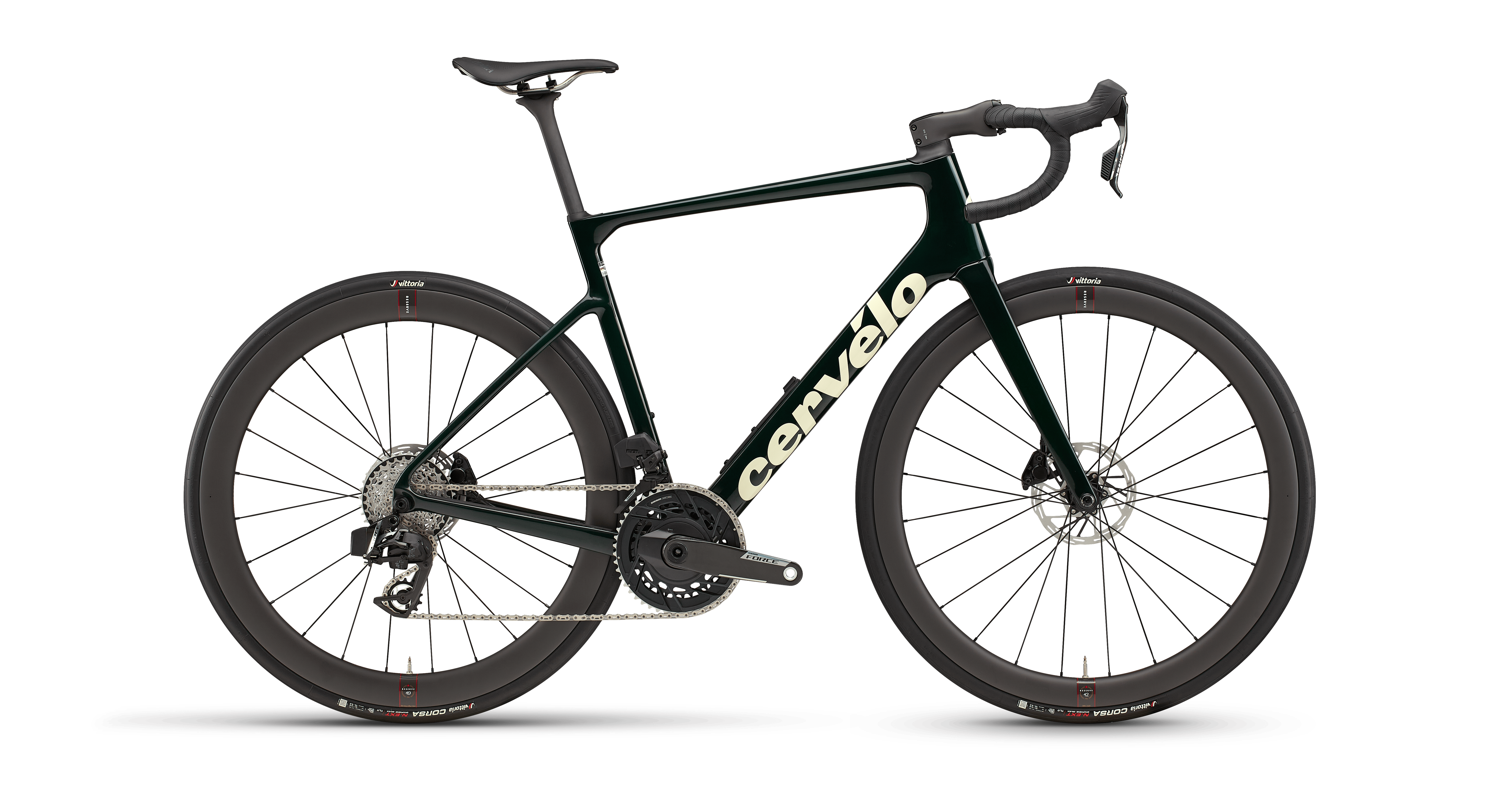

Caledonia-5 Rival AXS
Gallery
Images
product
Geometry
Geometry
>
Geometry
Geometry
Frame geometry
| Geometry | 48 | 51 | 54 | 56 | 58 | 61 | 48cm | 51cm | 54cm | 56cm | 58cm | 61cm |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Stack | 505mm | 530mm | 555mm | 580mm | 605mm | 630mm | — | — | — | — | — | — |
| Reach | 360mm | 369mm | 378mm | 387mm | 396mm | 405mm | — | — | — | — | — | — |
| Headtube length | 89.5mm | 110.3mm | 136.3mm | 162.6mm | 191.5mm | 217.8mm | — | — | — | — | — | — |
| Headtube angle | 70.5deg | 71.5deg | 72deg | 72deg | 72deg | 72deg | — | — | — | — | — | — |
| BB height | — | — | — | — | — | — | — | — | — | — | — | — |
| BB drop | 76.5mm | 76.5mm | 74mm | 74mm | 71.5mm | 71.5mm | — | — | — | — | — | — |
| Trail | 57.8mm | 57.8mm | 57.8mm | 57.8mm | 57.8mm | 57.8mm | — | — | — | — | — | — |
| Fork length | — | — | — | — | — | — | — | — | — | — | — | — |
| Fork offset | 60mm | 54mm | 51mm | 51mm | 51mm | 51mm | — | — | — | — | — | — |
| Front center | 580.5mm | 582.7mm | 592.5mm | 609.5mm | 627mm | 644.1mm | — | — | — | — | — | — |
| Chainstay length | 415mm | 415mm | 415mm | 415mm | 415mm | 415mm | — | — | — | — | — | — |
| Wheelbase | 983.3mm | 985.6mm | 996.3mm | 1013.4mm | 1031.8mm | 1048.9mm | — | — | — | — | — | — |
| Top tube | 502mm | 522mm | 543mm | 565mm | 581mm | 598mm | — | — | — | — | — | — |
| Standover height | 701mm | 743mm | 775mm | 798mm | 824mm | 847mm | — | — | — | — | — | — |
| Seat tube length | — | — | — | — | — | — | — | — | — | — | — | — |
| Seat tube angle | 74.5deg | 74deg | 73.5deg | 73deg | 73deg | 73deg | — | — | — | — | — | — |
Spec geometry
| Geometry | 48 | 51 | 54 | 56 | 58 | 61 | 48cm | 51cm | 54cm | 56cm | 58cm | 61cm |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Crank length | — | — | — | — | — | — | 165mm | 165mm | 170mm | 170mm | 172.5mm | 172.5mm |
| Stem length | — | — | — | — | — | — | 80mm | 90mm | 100mm | 100mm | 110mm | 110mm |
| Handlebar width | — | — | — | — | — | — | 360mm | 380mm | 400mm | 400mm | 420mm | 420mm |
| Handlebar reach | — | — | — | — | — | — | — | — | — | — | — | — |
| Handlebar drop | — | — | — | — | — | — | — | — | — | — | — | — |
| Saddle width | — | — | — | — | — | — | — | — | — | — | — | — |
| Dropper post travel | — | — | — | — | — | — | — | — | — | — | — | — |
| Seatpost offset | — | — | — | — | — | — | 0mm | 0mm | 0mm | 0mm | 15mm | 15mm |
Specs
Full specs
>
Specs
Full specs
Suspension
Fork
Cervélo All-Carbon, Tapered Caledonia-5 Fork
Brakes
Front rotor
SRAM Paceline Centerlock
Rear rotor
SRAM Paceline Centerlock
Drivetrain
Shift levers
SRAM Rival AXS E1
Rear derailleur
SRAM Rival AXS E1
Front derailleur
SRAM Rival AXS E1
Cassette
SRAM Rival D1, 10-36T, 12-Speed
Chain
SRAM Rival E1
Crankset
SRAM Rival AXS E1, 48/35T, DUB, with power meter
Bottom bracket
SRAM DUB, BBright
Cockpit
Stem
Cervélo ST31 Carbon
Handlebars
Cervélo HB13 Carbon, 31.8mm clamp
Saddle
Selle Italia NOVUS BOOST EVO SuperFlow Manganese
Seatpost
Cervélo SP24 Carbon
Wheels & Tires
Front wheel
Reserve 42TA, DT Swiss 370, 12x100mm, 24H, centerlock, tubeless compatible
Rear wheel
Reserve 49TA, DT Swiss 370, 12x142mm, XDR freehub, 24H, centerlock, tubeless compatible
Front tire
Vittoria Corsa N.EXT TLR G2.0 700x30c
Rear tire
Vittoria Corsa N.EXT TLR G2.0 700x30c
