Cervelo

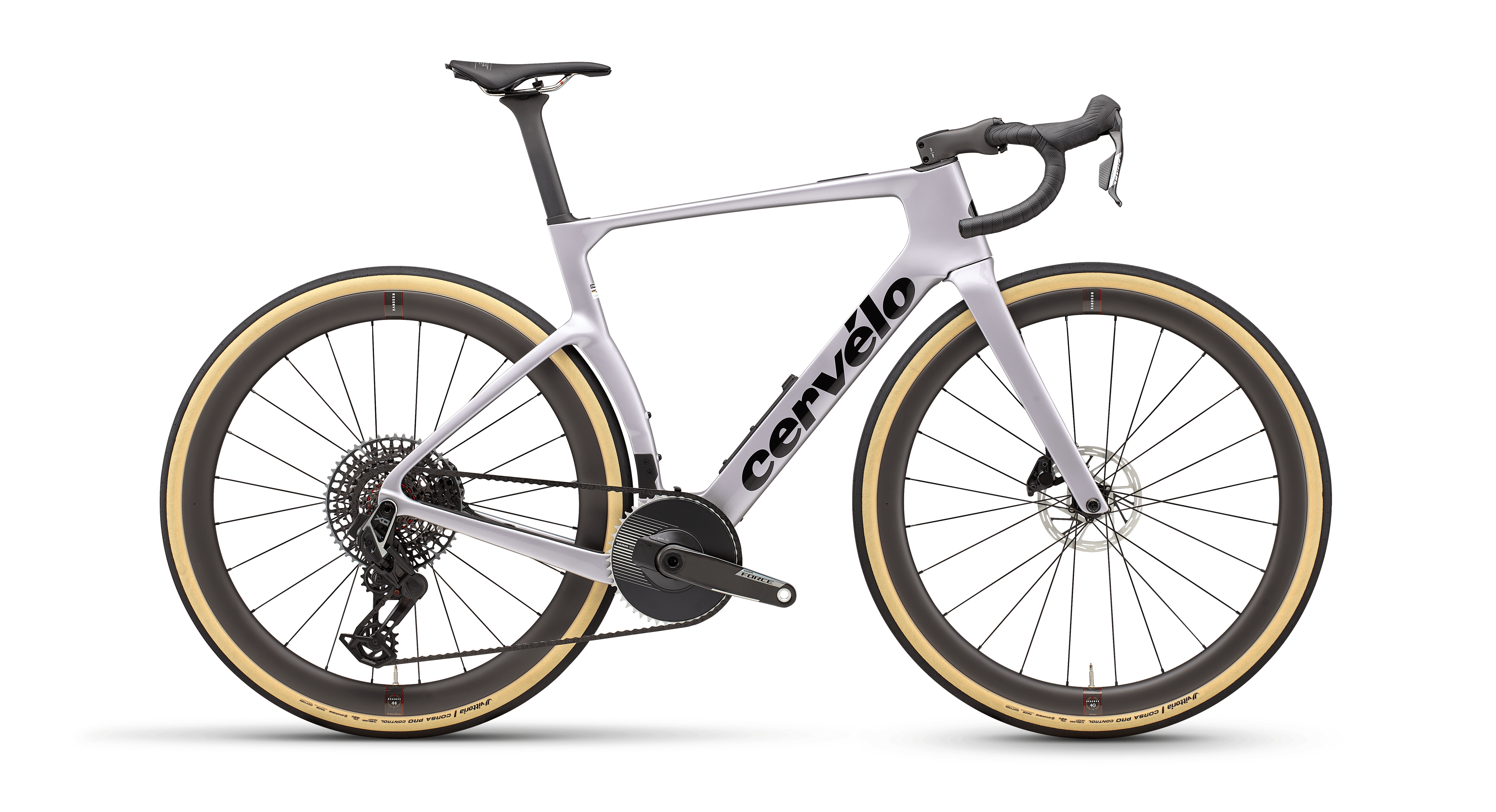

Aspero-5 Red AXS 1
Gallery
Images
product
Geometry
Geometry
>
Geometry
Geometry
Frame geometry
| Geometry | 48 | 51 | 54 | 56 | 58 | 61 | 48cm | 51cm | 54cm | 56cm | 58cm | 61cm |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Stack | 500mm | 525mm | 550mm | 575mm | 600mm | 625mm | — | — | — | — | — | — |
| Reach | 369mm | 377mm | 386mm | 395mm | 404mm | 413mm | — | — | — | — | — | — |
| Headtube length | 75mm | 99mm | 122mm | 148mm | 177mm | 203mm | — | — | — | — | — | — |
| Headtube angle | 70.6deg | 71.1deg | 71.6deg | 71.6deg | 71.6deg | 71.6deg | — | — | — | — | — | — |
| BB height | — | — | — | — | — | — | — | — | — | — | — | — |
| BB drop | 80mm | 80mm | 80mm | 80mm | 78mm | 78mm | — | — | — | — | — | — |
| Trail | — | — | — | — | — | — | — | — | — | — | — | — |
| Fork length | — | — | — | — | — | — | — | — | — | — | — | — |
| Fork offset | 57.5mm | 54.5mm | 51.5mm | 51.5mm | 51.5mm | 51.5mm | — | — | — | — | — | — |
| Front center | 584mm | 593mm | 602mm | 619mm | 636mm | 653mm | — | — | — | — | — | — |
| Chainstay length | 422.5mm | 422.5mm | 422.5mm | 422.5mm | 422.5mm | 422.5mm | — | — | — | — | — | — |
| Wheelbase | 993mm | 1002mm | 1012mm | 1029mm | 1047mm | 1064mm | — | — | — | — | — | — |
| Top tube | 516mm | 531mm | 552mm | 574mm | 591mm | 607mm | — | — | — | — | — | — |
| Standover height | 720mm | 753mm | 779mm | 801mm | 826mm | 851mm | — | — | — | — | — | — |
| Seat tube length | — | — | — | — | — | — | — | — | — | — | — | — |
| Seat tube angle | 74.1deg | 73.6deg | 73.1deg | 72.6deg | 72.6deg | 72.6deg | — | — | — | — | — | — |
Spec geometry
| Geometry | 48 | 51 | 54 | 56 | 58 | 61 | 48cm | 51cm | 54cm | 56cm | 58cm | 61cm |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Crank length | — | — | — | — | — | — | 165mm | 165mm | 170mm | 170mm | 172.5mm | 172.5mm |
| Stem length | — | — | — | — | — | — | 70mm | 80mm | 90mm | 90mm | 100mm | 100mm |
| Handlebar width | — | — | — | — | — | — | 380mm | 380mm | 400mm | 400mm | 420mm | 420mm |
| Handlebar reach | — | — | — | — | — | — | — | — | — | — | — | — |
| Handlebar drop | — | — | — | — | — | — | — | — | — | — | — | — |
| Saddle width | — | — | — | — | — | — | — | — | — | — | — | — |
| Dropper post travel | — | — | — | — | — | — | — | — | — | — | — | — |
| Seatpost offset | — | — | — | — | — | — | 0mm | 0mm | 0mm | 0mm | 0mm | 15mm |
Specs
Full specs
>
Specs
Full specs
Suspension
Fork
Cervélo All-Carbon, Tapered Aspero-5 Fork
Brakes
Front rotor
SRAM Paceline X Centerlock
Rear rotor
SRAM Paceline X Centerlock
Drivetrain
Shift levers
SRAM Red AXS E1
Rear derailleur
SRAM XX SL Eagle AXS, T-Type
Cassette
SRAM XX SL Eagle, T-Type, 10-52T, 12-Speed
Chain
SRAM XX SL Eagle, T-Type
Crankset
SRAM Red 1 AXS E1, 48T Aero, DUB Wide, with power meter
Bottom bracket
SRAM DUB Wide Ceramic, T47 BBright
Cockpit
Stem
Cervélo ST31 Carbon
Handlebars
Cervélo HB16 Carbon, 31.8mm clamp
Saddle
Prologo Nago R4 PAS Nack
Seatpost
Cervélo SP27 Carbon
Wheels & Tires
Front wheel
Reserve 40TA GR, DT Swiss 240, 12x100mm, 24H centerlock, tubeless compatible
Rear wheel
Reserve 44TA GR, DT Swiss 240, 12x142mm, XDR freehub, 24H centerlock, tubeless compatible
Front tire
Vittoria Corsa Pro Control TLR G2.0 700x42c
Rear tire
Vittoria Corsa Pro Control TLR G2.0 700x42c
