Cervelo

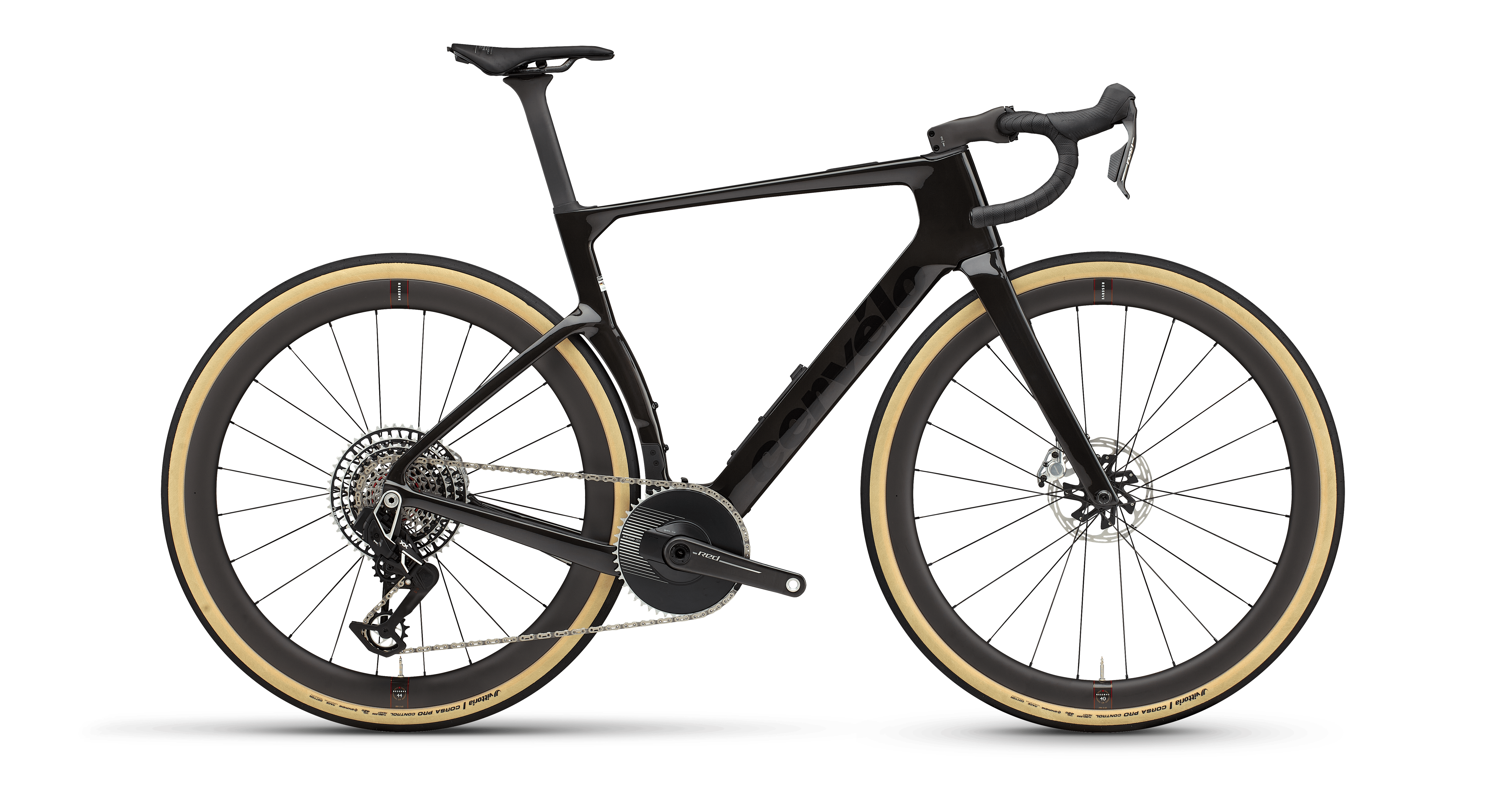

Aspero-5 GRX RX825 Di2 1
Gallery
Images
product
Geometry
Geometry
>
Geometry
Geometry
Frame geometry
| Geometry | 48 | 51 | 54 | 56 | 58 | 61 | 48cm | 51cm | 54cm | 56cm | 58cm | 61cm |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Stack | 500mm | 525mm | 550mm | 575mm | 600mm | 625mm | — | — | — | — | — | — |
| Reach | 369mm | 377mm | 386mm | 395mm | 404mm | 413mm | — | — | — | — | — | — |
| Headtube length | 75mm | 99mm | 122mm | 148mm | 177mm | 203mm | — | — | — | — | — | — |
| Headtube angle | 70.6deg | 71.1deg | 71.6deg | 71.6deg | 71.6deg | 71.6deg | — | — | — | — | — | — |
| BB height | — | — | — | — | — | — | — | — | — | — | — | — |
| BB drop | 80mm | 80mm | 80mm | 80mm | 78mm | 78mm | — | — | — | — | — | — |
| Trail | — | — | — | — | — | — | — | — | — | — | — | — |
| Fork length | — | — | — | — | — | — | — | — | — | — | — | — |
| Fork offset | 57.5mm | 54.5mm | 51.5mm | 51.5mm | 51.5mm | 51.5mm | — | — | — | — | — | — |
| Front center | 584mm | 593mm | 602mm | 619mm | 636mm | 653mm | — | — | — | — | — | — |
| Chainstay length | 422.5mm | 422.5mm | 422.5mm | 422.5mm | 422.5mm | 422.5mm | — | — | — | — | — | — |
| Wheelbase | 993mm | 1002mm | 1012mm | 1029mm | 1047mm | 1064mm | — | — | — | — | — | — |
| Top tube | 516mm | 531mm | 552mm | 574mm | 591mm | 607mm | — | — | — | — | — | — |
| Standover height | 720mm | 753mm | 779mm | 801mm | 826mm | 851mm | — | — | — | — | — | — |
| Seat tube length | — | — | — | — | — | — | — | — | — | — | — | — |
| Seat tube angle | 74.1deg | 73.6deg | 73.1deg | 72.6deg | 72.6deg | 72.6deg | — | — | — | — | — | — |
Spec geometry
| Geometry | 48 | 51 | 54 | 56 | 58 | 61 | 48cm | 51cm | 54cm | 56cm | 58cm | 61cm |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Crank length | — | — | — | — | — | — | 170mm | 170mm | 170mm | 170mm | 172.5mm | 172.5mm |
| Stem length | — | — | — | — | — | — | 70mm | 80mm | 90mm | 90mm | 100mm | 100mm |
| Handlebar width | — | — | — | — | — | — | 380mm | 380mm | 400mm | 400mm | 420mm | 420mm |
| Handlebar reach | — | — | — | — | — | — | — | — | — | — | — | — |
| Handlebar drop | — | — | — | — | — | — | — | — | — | — | — | — |
| Saddle width | — | — | — | — | — | — | — | — | — | — | — | — |
| Dropper post travel | — | — | — | — | — | — | — | — | — | — | — | — |
| Seatpost offset | — | — | — | — | — | — | 0mm | 0mm | 0mm | 0mm | 0mm | 15mm |
Specs
Full specs
>
Specs
Full specs
Suspension
Fork
Cervélo All-Carbon, Tapered Aspero-5 Fork
Brakes
Front rotor
Shimano CL800 Centerlock
Rear rotor
Shimano CL800 Centerlock
Drivetrain
Shift levers
Shimano GRX, RX825
Rear derailleur
Shimano GRX, RX827 SGS
Cassette
Shimano XTR, M9200, 10-51T, 12-Speed
Chain
Shimano M8100
Crankset
Shimano GRX, RX820 + Wolf Tooth Components Aero 48T Chainring for GRX
Bottom bracket
Ceramic Speed SL, T47 BBright for 24mm spindle
Cockpit
Stem
Cervélo ST31 Carbon
Handlebars
Cervélo HB16 Carbon, 31.8mm clamp
Saddle
Prologo Nago R4 PAS Tirox
Seatpost
Cervélo SP27 Carbon
Wheels & Tires
Front wheel
Reserve 40TA GR, DT Swiss 350, 12x100mm, 24H, centerlock, tubeless compatible
Rear wheel
Reserve 44TA GR, DT Swiss 350,12x142mm, MS freehub, 24H, centerlock, tubeless compatible
Front tire
Vittoria Corsa Pro Control TLR G2.0 700x42c
Rear tire
Vittoria Corsa Pro Control TLR G2.0 700x42c
