Canyon

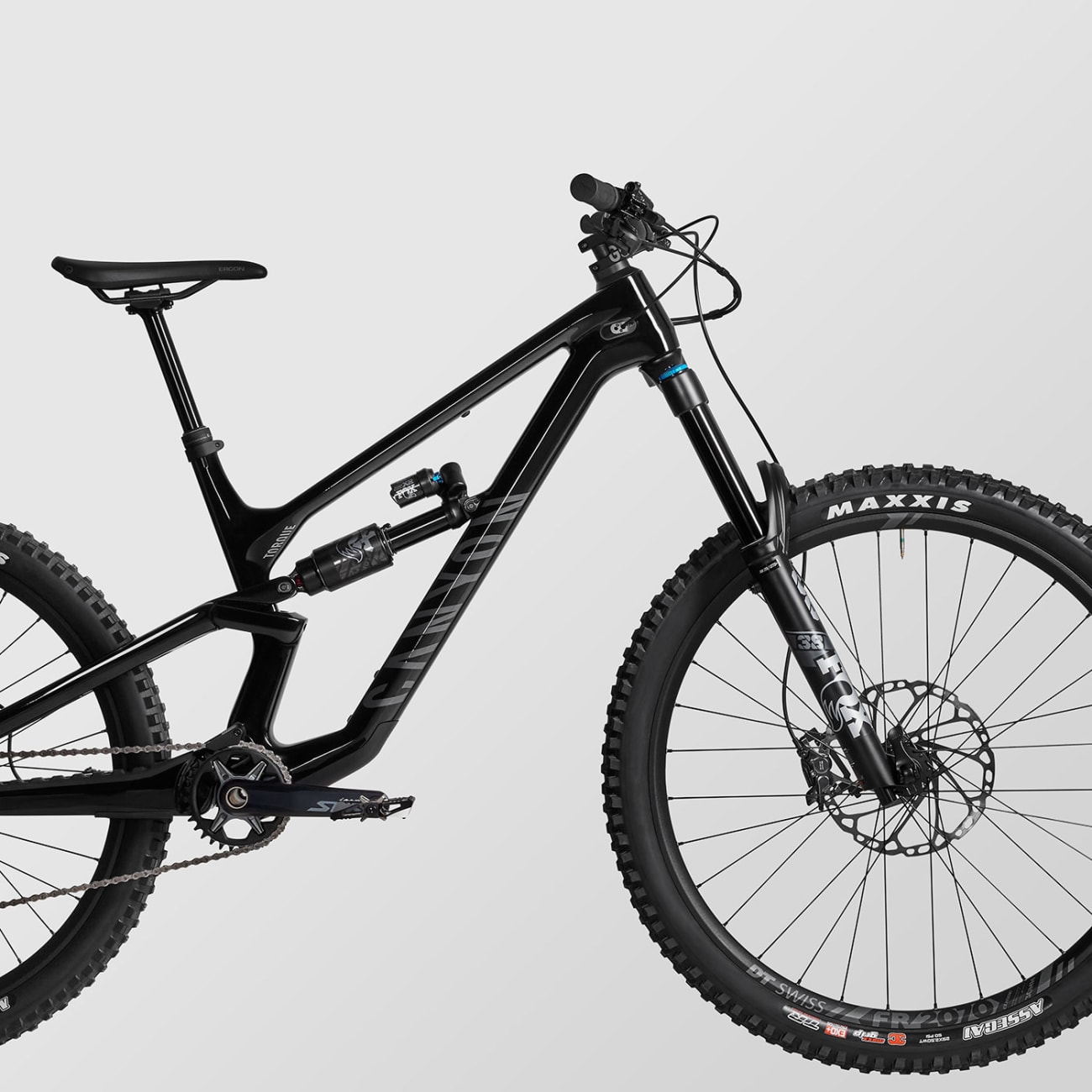

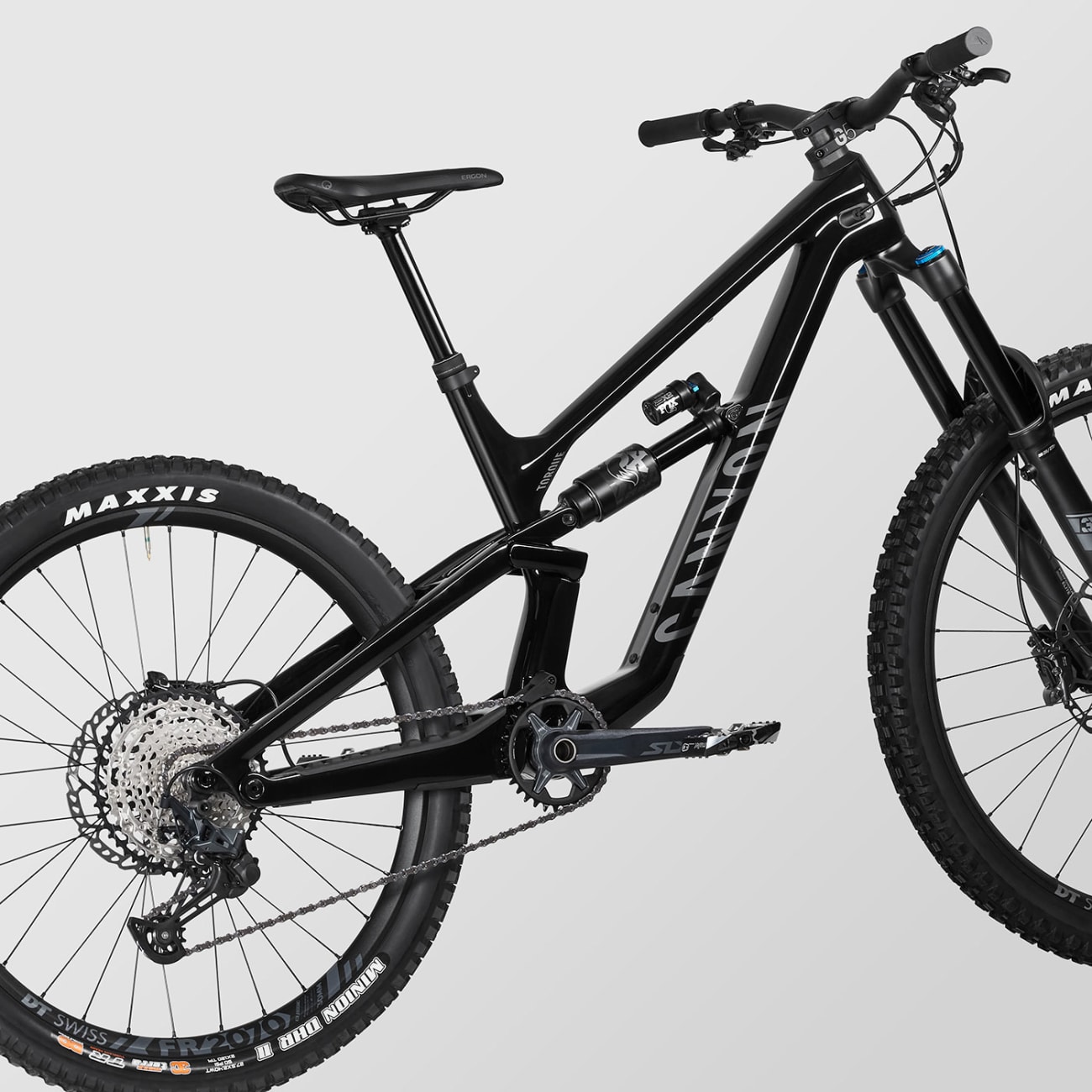

Torque Mullet Mullet CF 8 Shimano Deore SLX M7100
Gallery
Images
product
Geometry
Geometry
>
Geometry
Geometry
Frame geometry
| Geometry | L | M | S | XL |
|---|---|---|---|---|
| Stack | 638mm | 629mm | 624mm | 647mm |
| Reach | 490mm | 465mm | 440mm | 515mm |
| Headtube length | 115mm | 105mm | 100mm | 125mm |
| Headtube angle | 63.5deg | 63.5deg | 63.5deg | 63.5deg |
| BB height | — | — | — | — |
| BB drop | 30mm | 30mm | 30mm | 30mm |
| Trail | — | — | — | — |
| Fork length | — | — | — | — |
| Fork offset | — | — | — | — |
| Front center | — | — | — | — |
| Chainstay length | 435mm | 435mm | 435mm | 435mm |
| Wheelbase | 1277mm | 1248mm | 1220mm | 1307mm |
| Top tube | 631mm | 604mm | 578mm | 658mm |
| Standover height | 773mm | 771mm | 761mm | 778mm |
| Seat tube length | 445mm | 430mm | 395mm | 460mm |
| Seat tube angle | 77.5deg | 77.5deg | 77.5deg | — |
Spec geometry
| Geometry | L | M | S | XL |
|---|---|---|---|---|
| Crank length | — | — | — | — |
| Stem length | — | — | — | — |
| Handlebar width | — | — | — | — |
| Handlebar reach | — | — | — | — |
| Handlebar drop | — | — | — | — |
| Saddle width | — | — | — | — |
| Dropper post travel | — | — | — | — |
| Seatpost offset | — | — | — | — |
Specs
Full specs
>
Specs
Full specs
Frame
Frame

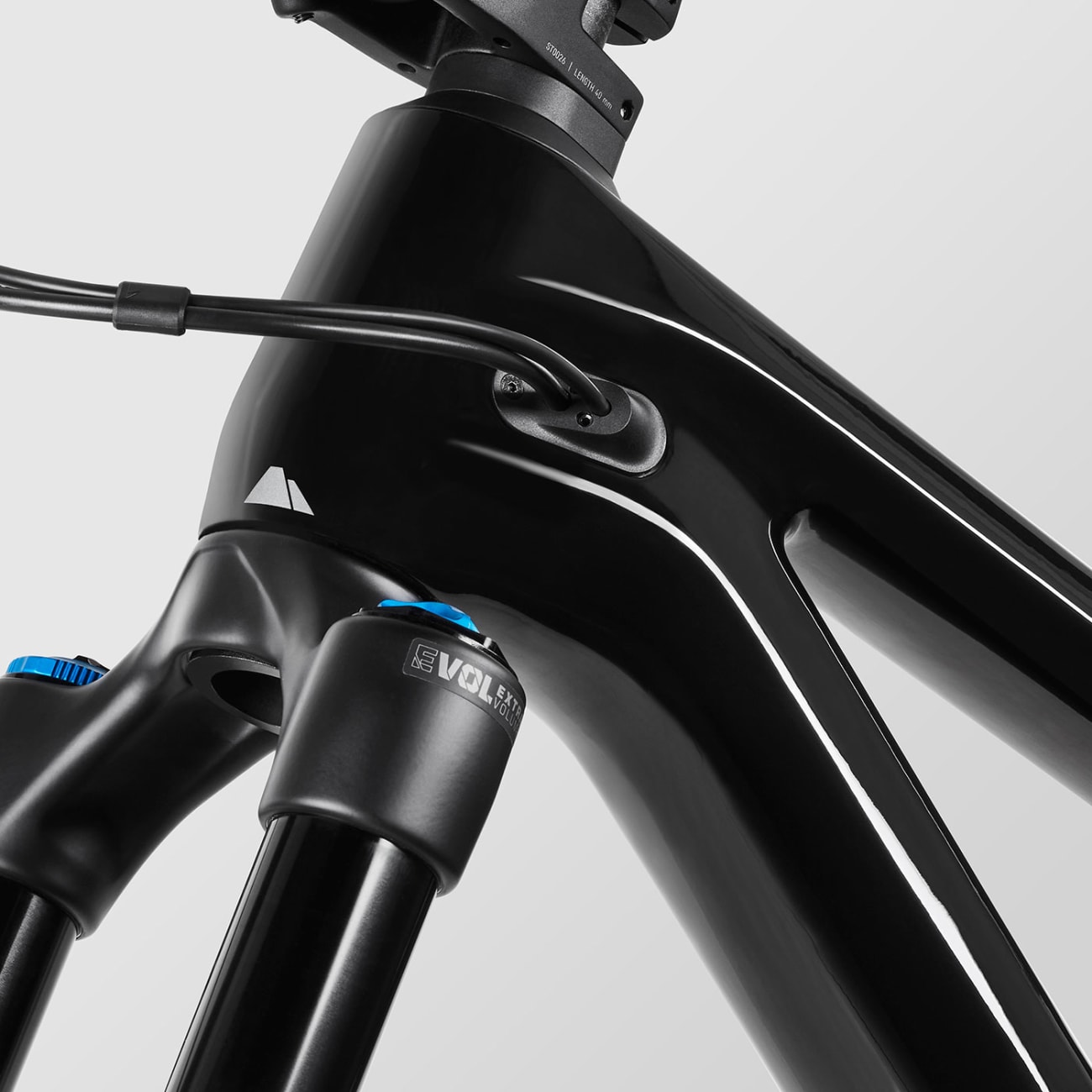

Canyon Torque CF; extra-robust carbon mullet frame; Category 5; 12x148mm rear axle
Suspension
Rear shock
FOX X2 Performance Elite
Fork
FOX 38 Performance Elite Series, 170mm travel, 15x110mm, 44mm offset
Brakes
Front brake
Shimano Deore XT M8120, 4-piston hydraulic disc
Rear brake
Shimano Deore XT M8120, 4-piston hydraulic disc
Front rotor
Shimano SM-RT66, 220mm
Rear rotor
Shimano RT66, 203mm
Drivetrain
Shift levers
Shimano Deore SLX M7100
Rear derailleur
Shimano Deore SLX M7100, long cage
Cassette
Shimano Deore SLX CS-M7100, 12-speed, 10-51T
Chain
Shimano Deore M6100
Crankset
Shimano Deore SLX M7120, 1x
Bottom bracket
Shimano MT800, BSA 68/73
Cockpit
Stem
Canyon G5, 31.8mm clamp
Handlebars
Canyon G5, 31.8mm clamp, 30mm rise
Grips
Canyon G5
Saddle
Ergon SM10 Enduro Comp
Seatpost
Canyon G5 alloy seatpost, 30.9mm
Wheels & Tires
Front wheel
DT Swiss FR2070 370LN, 15x110mm, 6-bolt
Rear wheel
DT Swiss FR2070 370LN, 12x148mm, 6-bolt
Front tire
Maxxis Assegai 3C MaxxGrip, 2.5
Rear tire
Maxxis Minion DHR II 3C MaxxTerra, 2.4
